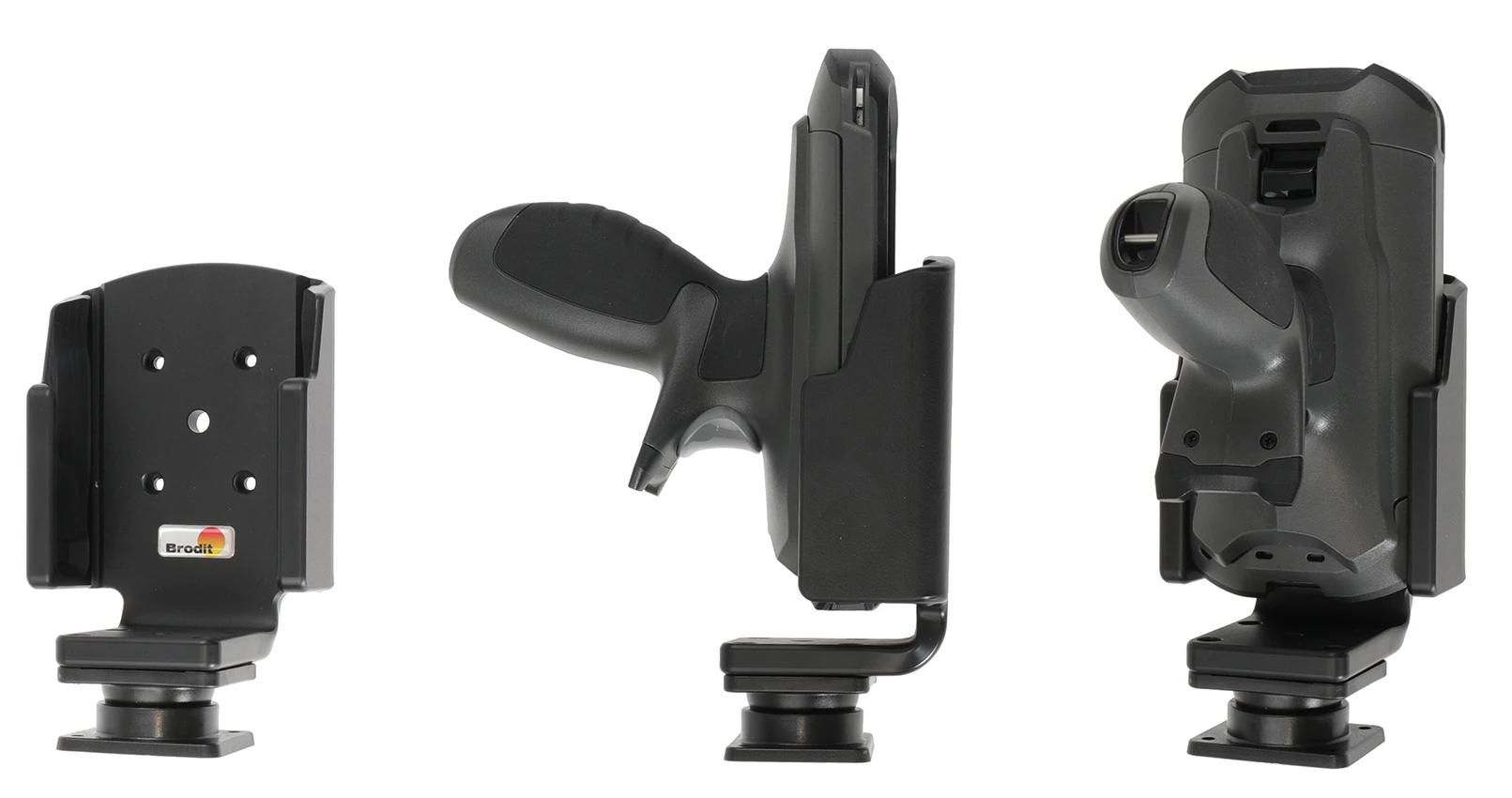

Passive holder with tilt swivel
8 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
Keep your device in a passive holder and you will always have it within easy sight and reach! Safe and convenient, provides for a better work environment. Custom made with a perfect, firm fit for device with pistol grip. The device is placed face downward/inward in the holder so it is easy to place it in the holder and take it with you with a one-hand grip. You can choose if you want to attach the holder onto a vertical or horizontal position.

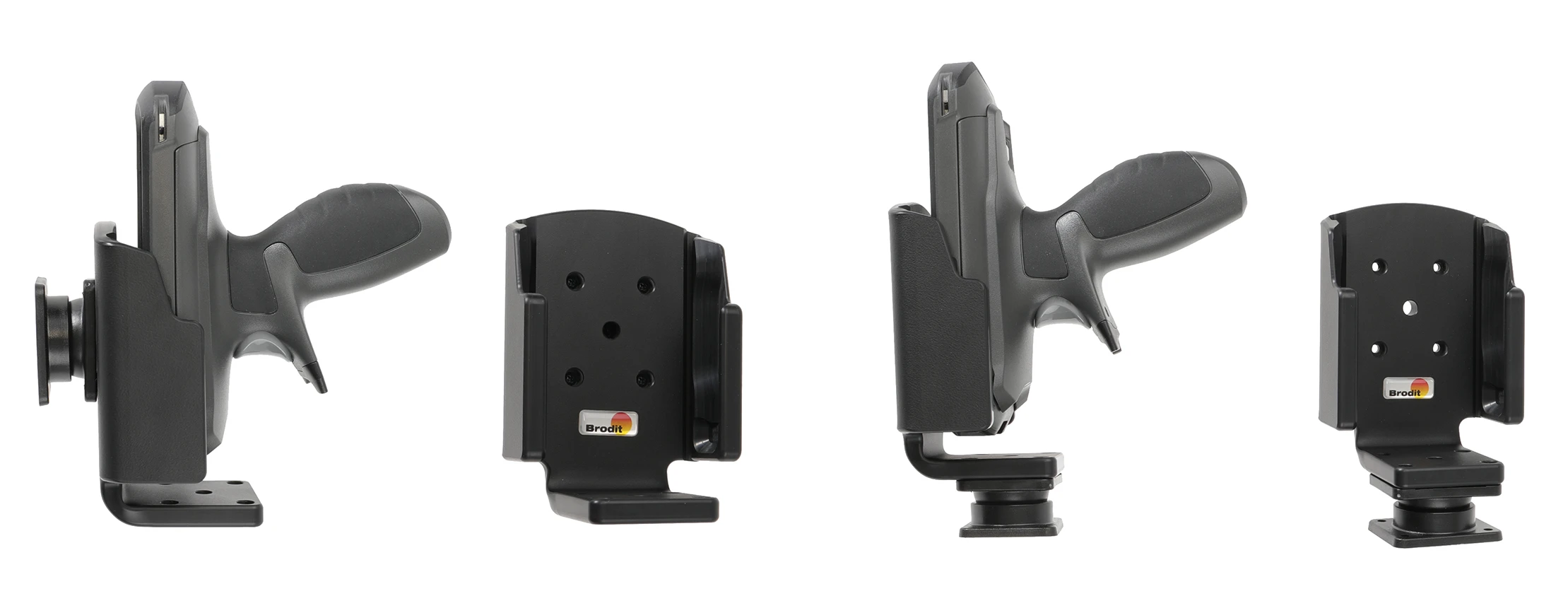

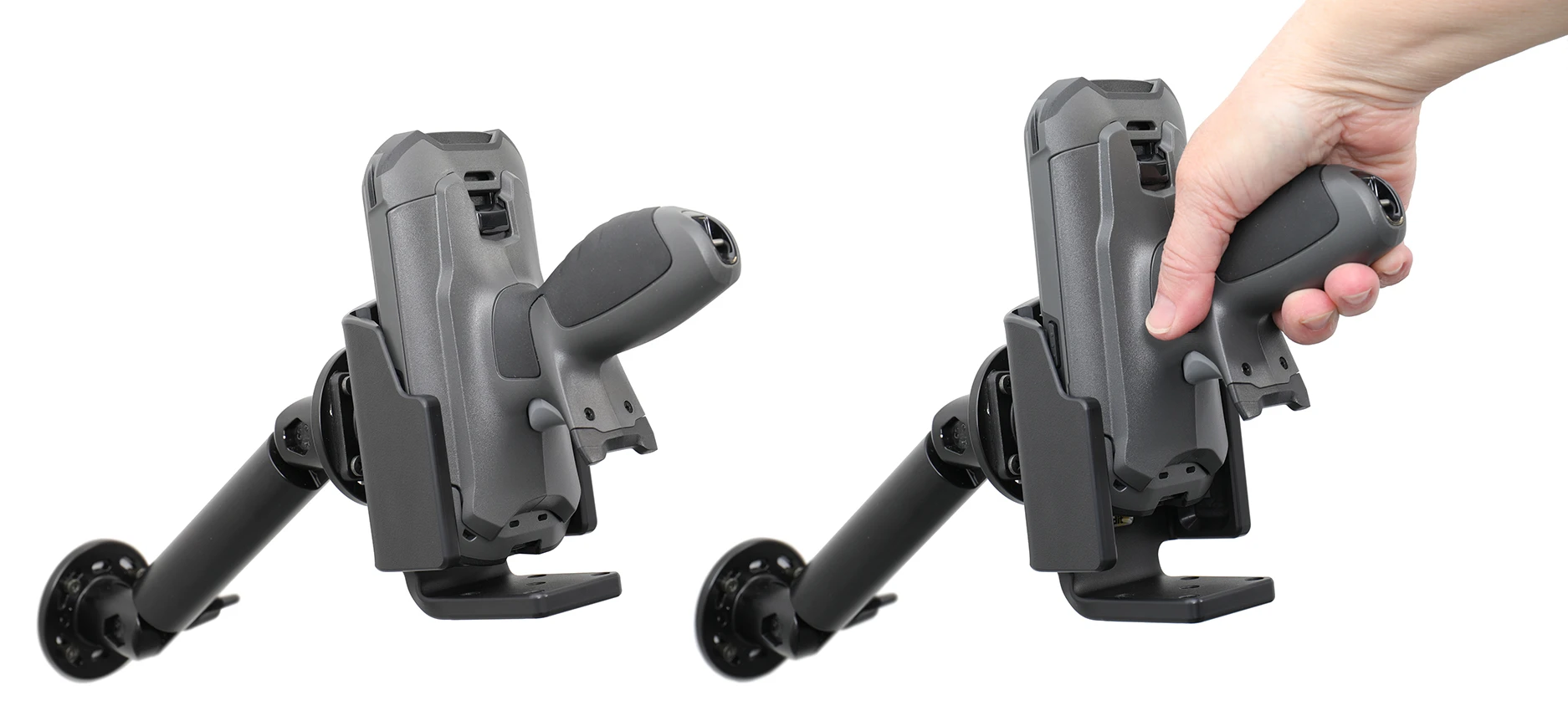

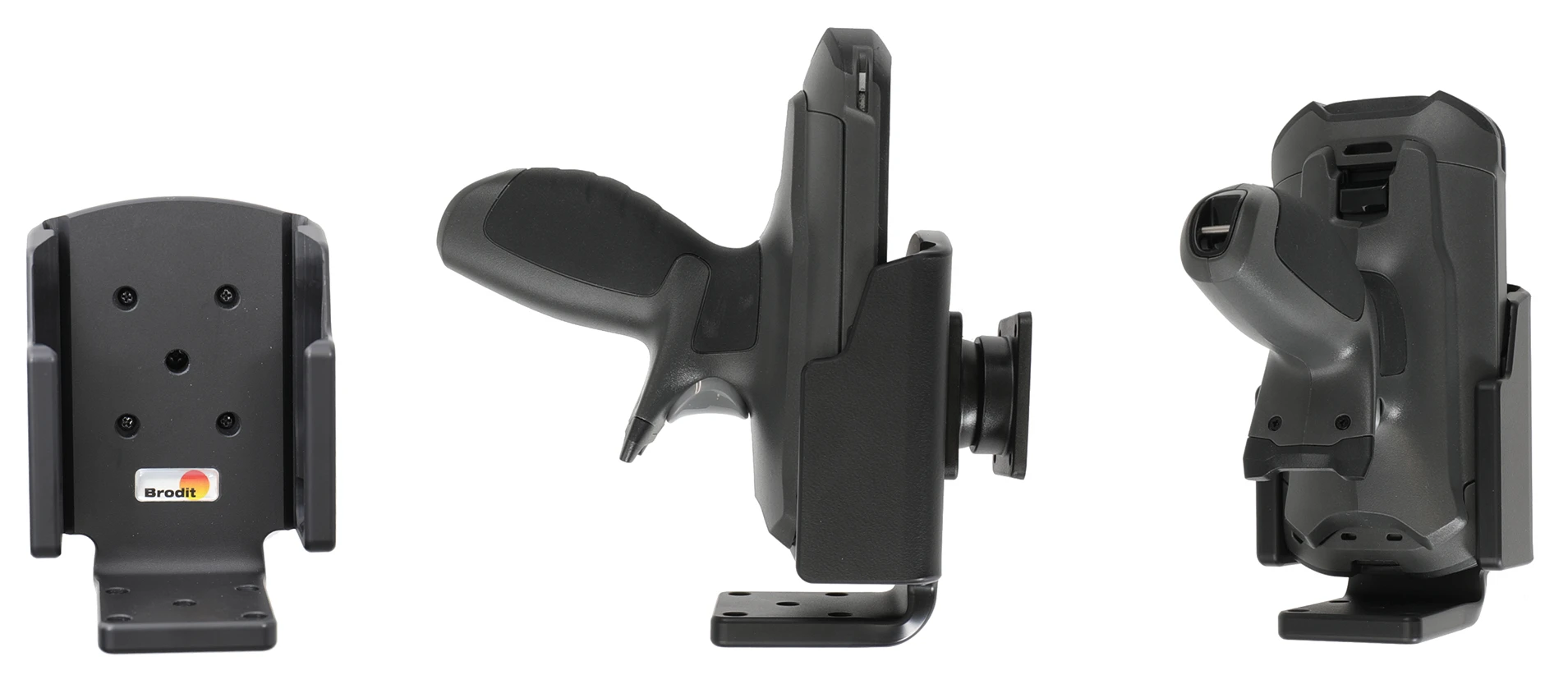

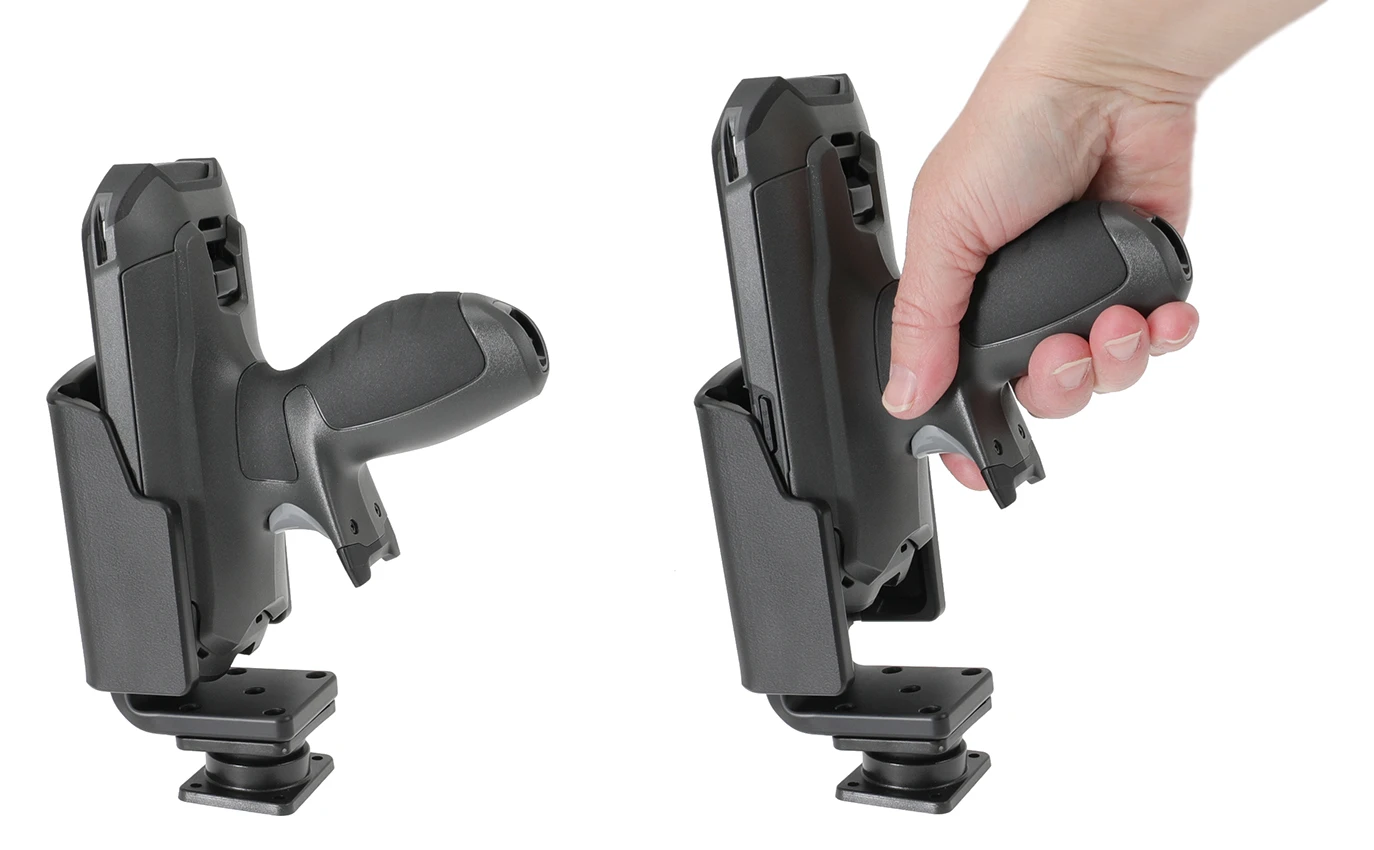

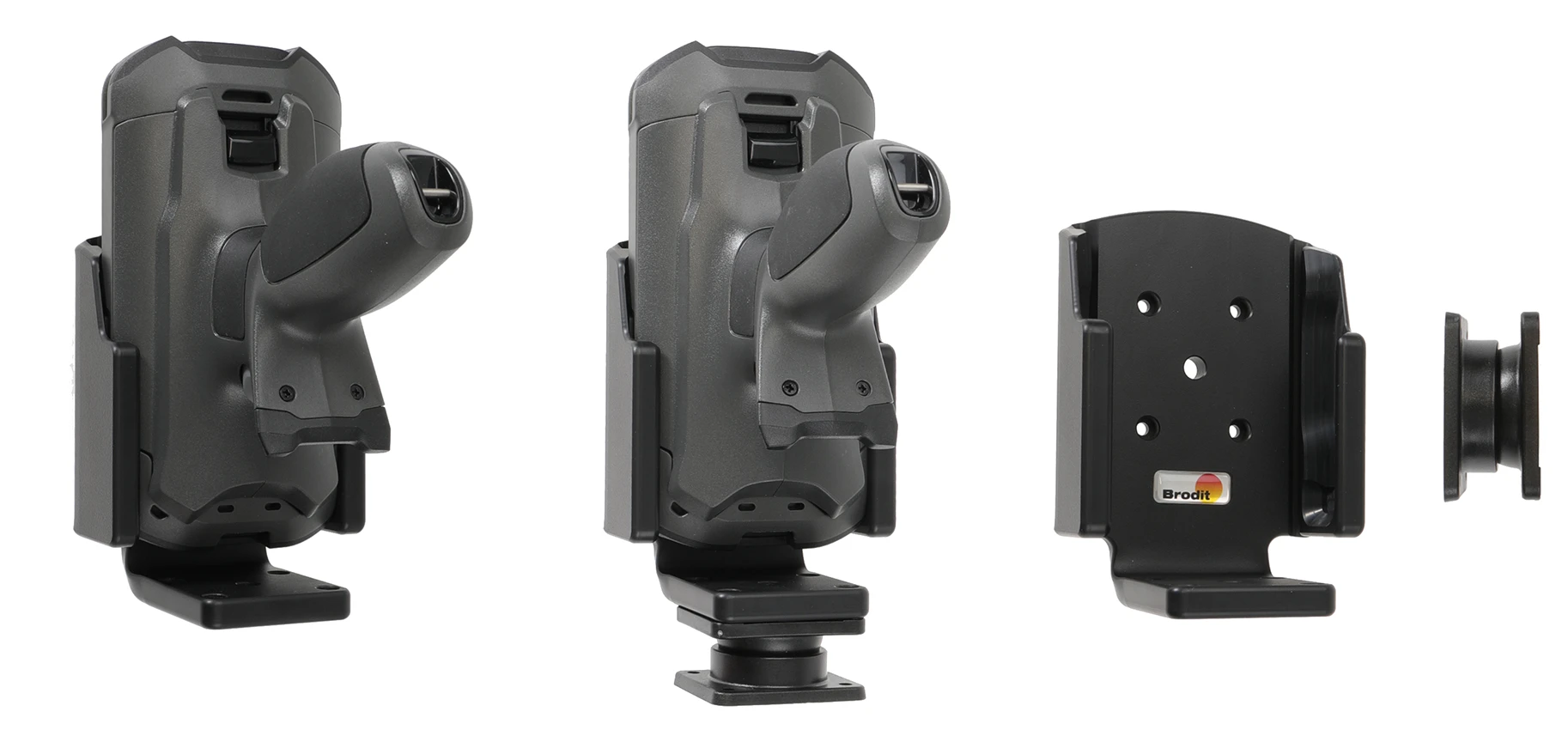

Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS plastic. Color: black. Made in Sweden. Attach onto a Pedestal Mount or any flat surface.
Dimensions of holder with tilt swivel on back: 87x122x90 mm (WxHxD)
Dimensions of holder with tilt swivel on bottom: : 87x172x65 mm (WxHxD)

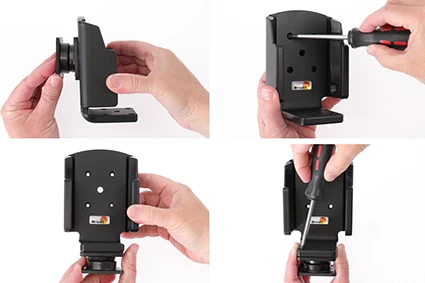

دليل تركيب المنتج
رقم الخطوة 1

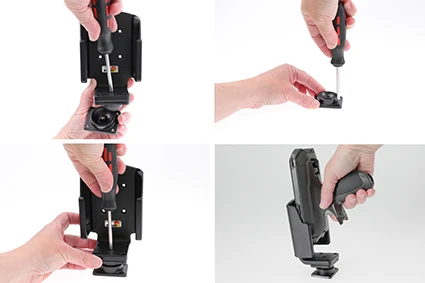

Installation on vertical surface: Place the enclosed tilt swivel on the back of the holder so the holes match and attach it with the enclosed screws (bag marked SK186). The tilt swivel center screw should be accessible through the center back hole in the holder. Installation on horizontal surface: Place the enclosed tilt swivel on the bottom of the holder so the holes match and attach it with the enclosed screws (bag marked SK186). The tilt swivel center screw should be accessible through the center bottom hole in the holder.
رقم الخطوة 2

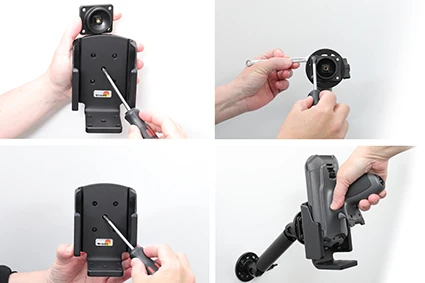

Installation on vertical surface: Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.
رقم الخطوة 3
Installation on horizontal surface: Loosen the screw in the center bottom of the holder so you can remove the tilt swivel attaching plate. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.
رقم الخطوة 4

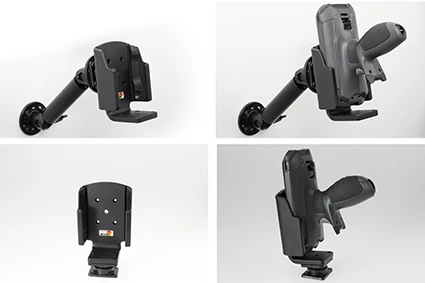

The holder is in place.
