تفاصيل المنتج
Passive holder
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

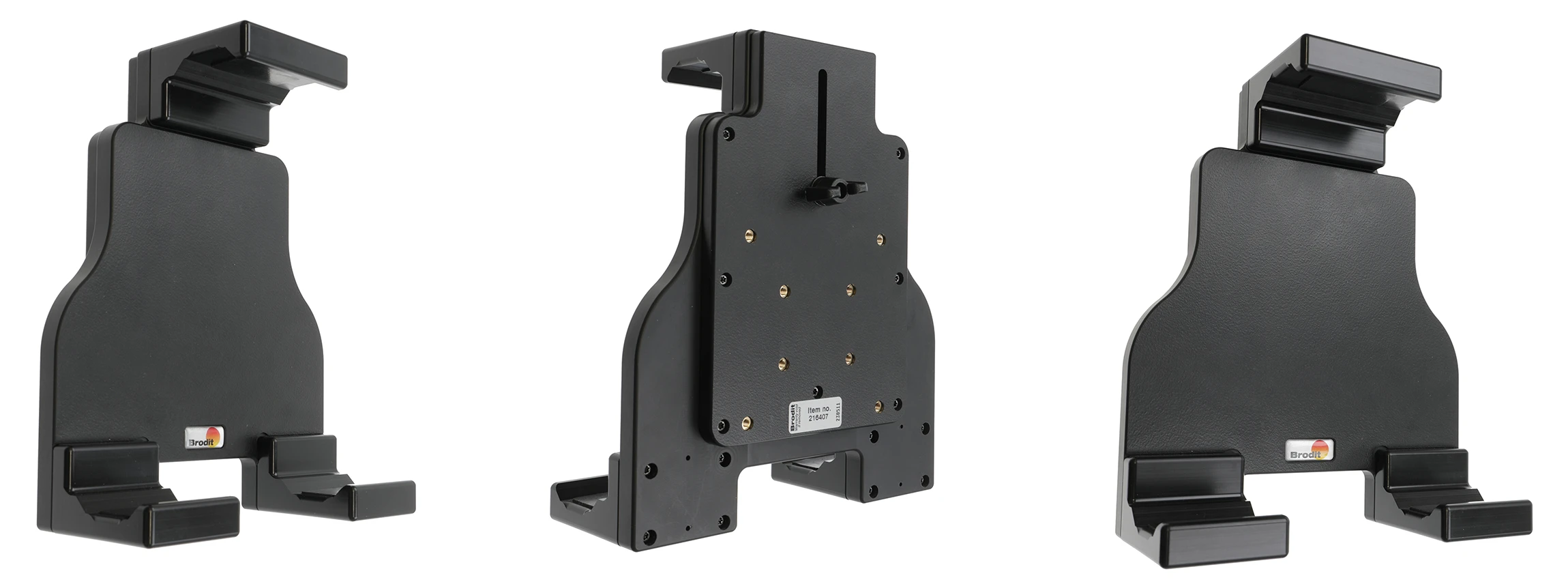

Adjustable passive holder with tilt swivel for devices with or without skin/case. Keep your device in a holder in your car and you will always have it within easy sight and reach. Safe, neat and convenient! Measure your device/skin/case and compare with the holder specifications to choose the right product for you. This holder fits for devices with or without skin/case with the height 190-230 mm and maximum thickness 35 mm.
Attach the cradle onto an Pedestal Mount in a forklift, truck, distribution vehicle, warehouse, table top etc. With 4 mm AMPS and 4 mm VESA 75 standard holes. Made of high grade ABS-, Acetal-plastic. Color: Black. Made in Sweden.
Choose installation placement with care, devices must not be placed in positions where they may block the view or important controls. The cradle should only be attached onto a suitable place. Installations always take place at the customer's own discretion and responsibility.
دليل تركيب المنتج
رقم الخطوة 1

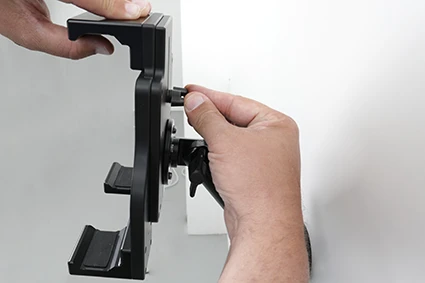

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 2

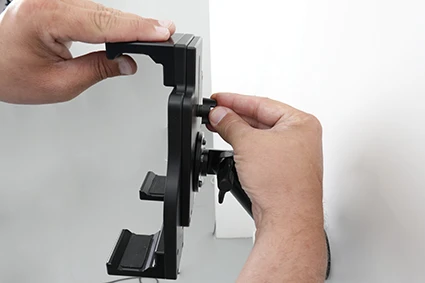

Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.
رقم الخطوة 3

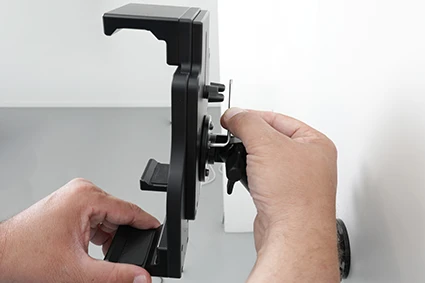

To place the device in the holder: Place the upper part of the device under the upper part of the holder. Press upward so the upper part of the holder slides upwards. Press the lower part of the device forward so the device is placed straight in the holder. Stop pressing upward so the upper part of the holder slides downward and rests on the device. Press downwards HARD on top of the holder, in the same time tighten the wingnut on the back of the holder FIRMLY. IMPORTANT: It is very important to press downward HARD on top of the holder and to tighten the wingnut FIRMLY so the device is properly held in place in the holder. To remove the device from the holder: Loosen the wingnut on back of the holder. Press the device upward so the the upper part of the holder slides upward. Lift the device downward and out of the holder.
رقم الخطوة 4

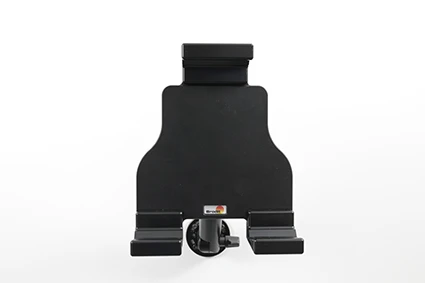

The holder is in place.
