Passive holder

رقم الصنف : 216297

With screwed top. With AMPS, Vesa 75 holes. Fits devices without rugged frame and without handstrap.

Zebra ET80

Zebra ET85

more...

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

With screwed top. With AMPS, Vesa 75 holes. Fits devices without rugged frame and without handstrap.

معلومات فنية

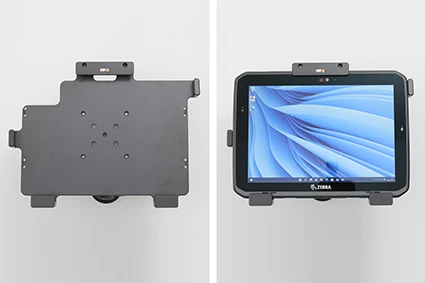

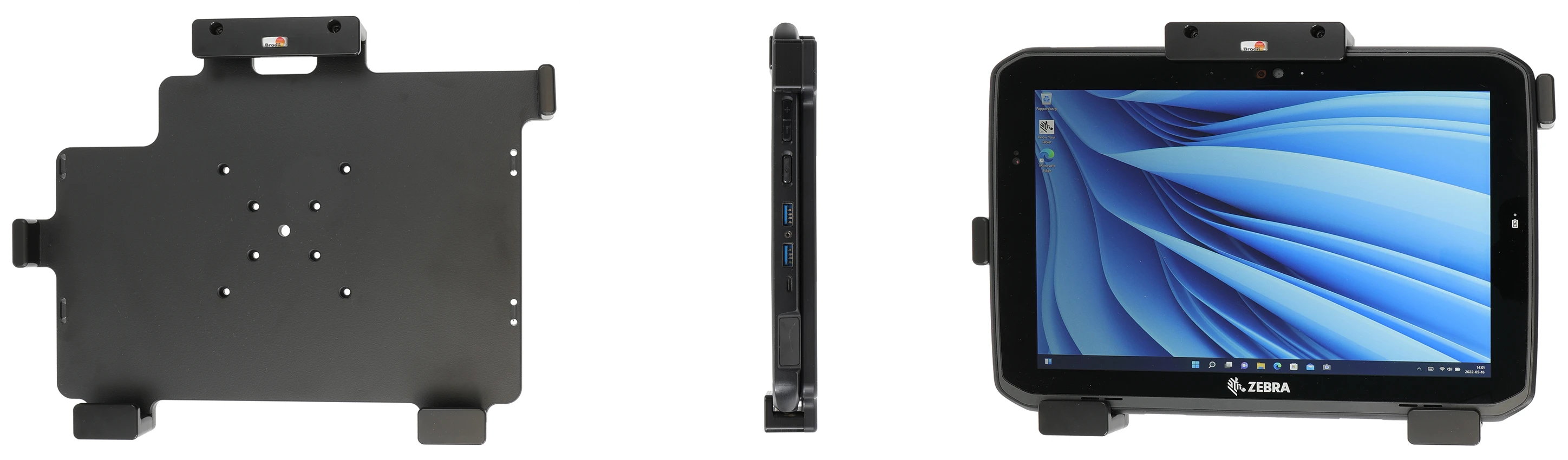

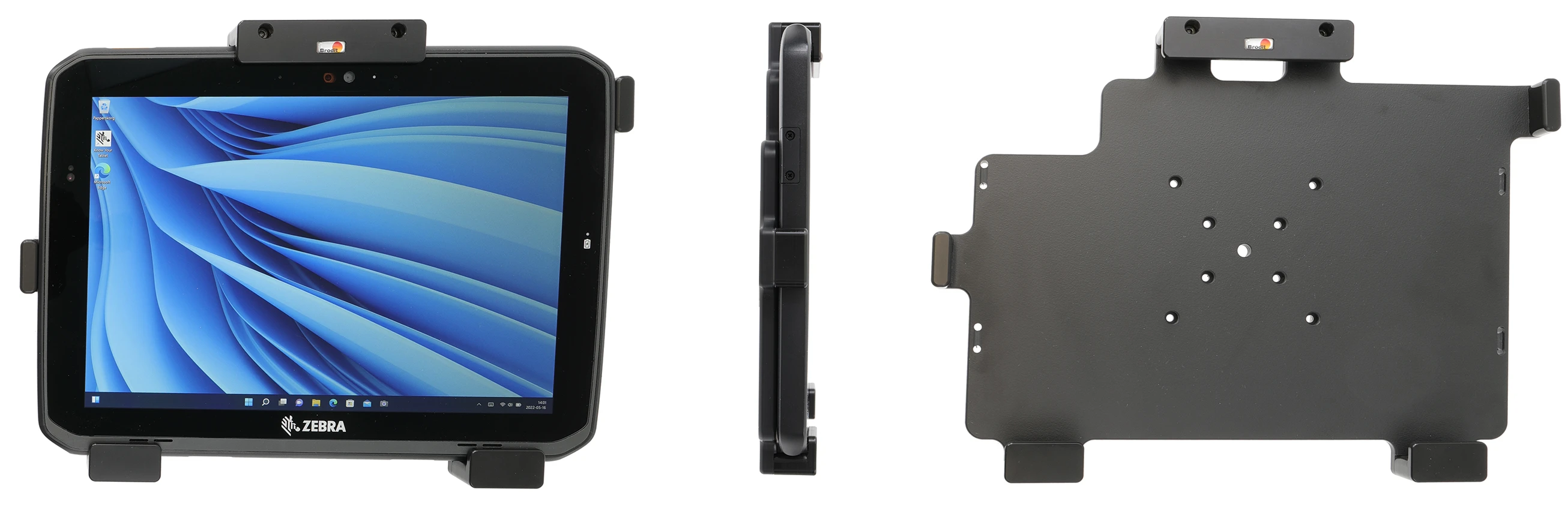

This holder is the perfect choice when you want to have your device extra firmly in place. The holder keeps your device in a firm grip in the holder. You can connect e.g. a charging cable to the device when it is in the holder. Attach the holder to any flat surface or a Pedestal Mount in a truck, distribution vehicle, warehouse etc. Predrilled AMPS and VESA 75 standard holes. You have full access to the camera and all buttons and outlets when the device is in the holder.

Made in Sweden. Made of high grade Acetal plastic. Color: Black. Devices should not be installed onto a vehicle's dashboard if blocking the view or key controls. An installation of a device in a vehicle is always done on the customer's own responsibility.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

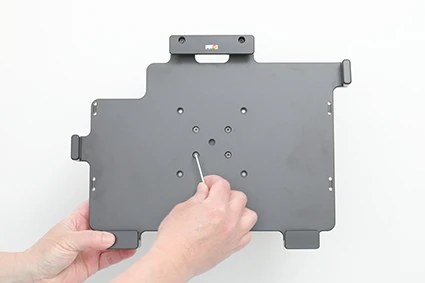

1. Place the holder onto the desired position and screw into place with the enclosed screws.

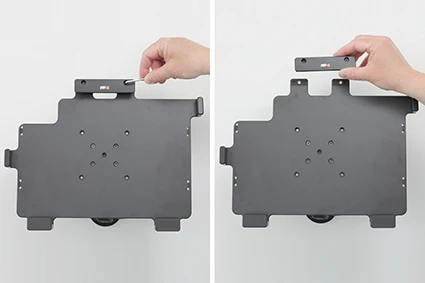

2. Loosen the screws for the locking part.

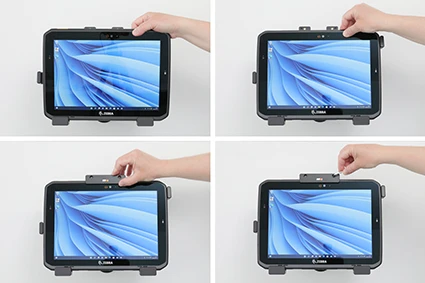

3. To place the device in the holder: Place the lower part of the device in the holder. Flip/press the upper part of the device forward so it snaps into place in the holder. Place the locking part over the holder so that the screws fit in the holes and screw them on.

4. The holder is in place.

التوافق

Zebra : ET80
Zebra : ET85
