Mount with tilt swivel
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

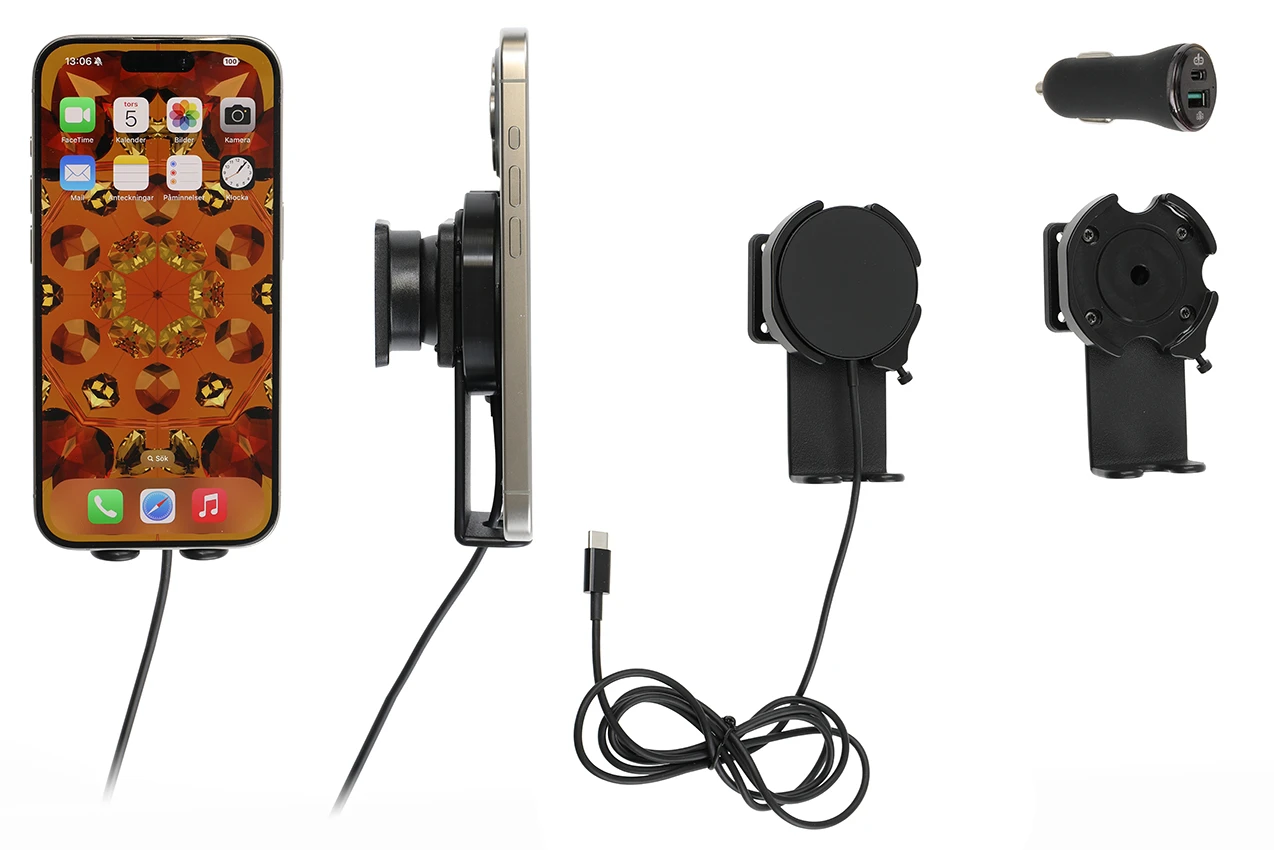

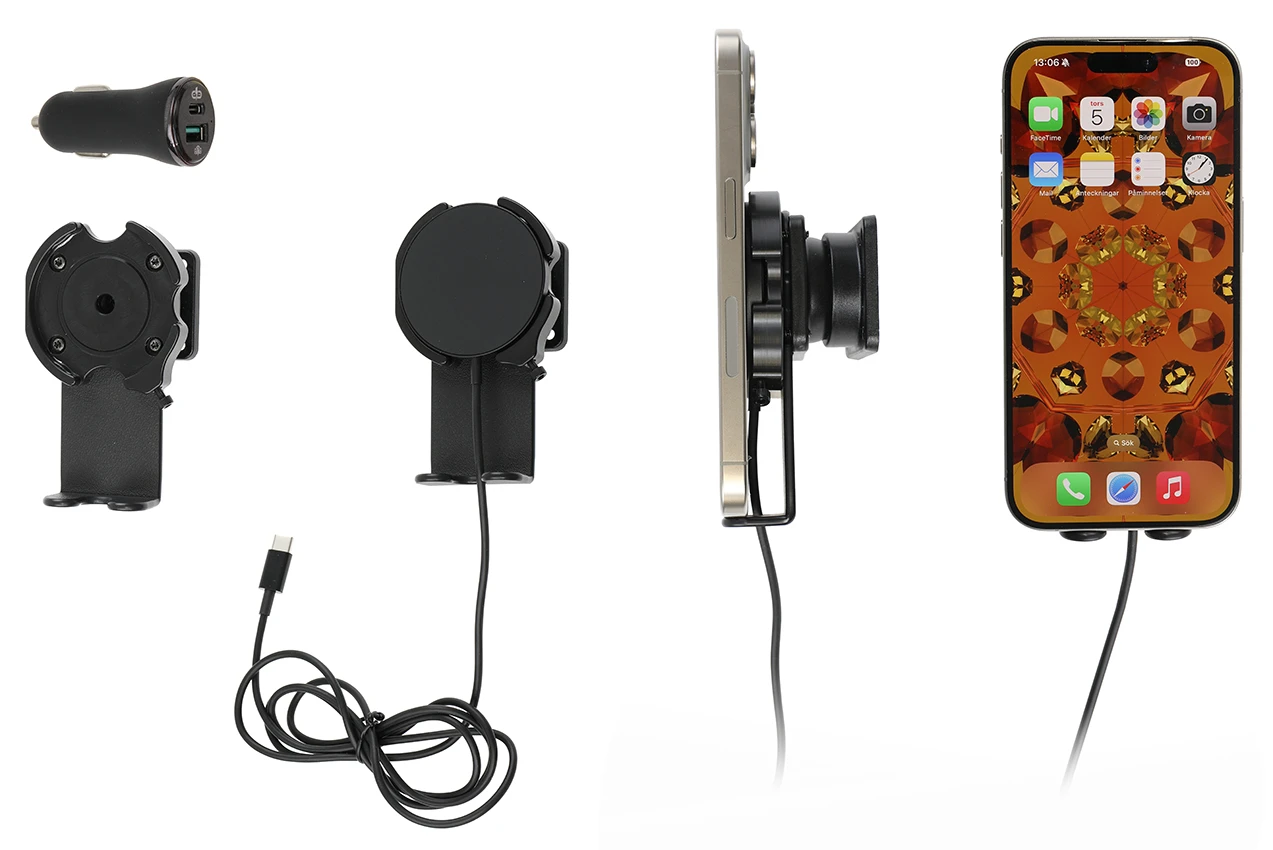

Keep your iPhone battery fully charged in a mount with Magnetic wireless charger, always within easy sight and reach! Neat, discreet and convenient. Custom made with a perfect, firm fit. The iPhone is held securely in place in an upright position for maximum cellular reception. The Mount is equipped with an support under the device. Cig-plug adapter with 2 USB ports includes.
Important Note: This product is not compatible for Magsafe devices fitted in a standard case/skin without a Magsafe ring.
The mount is equipped with a tilt swivel so you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a ProClip mounting platform.
دليل تركيب المنتج
رقم الخطوة 1

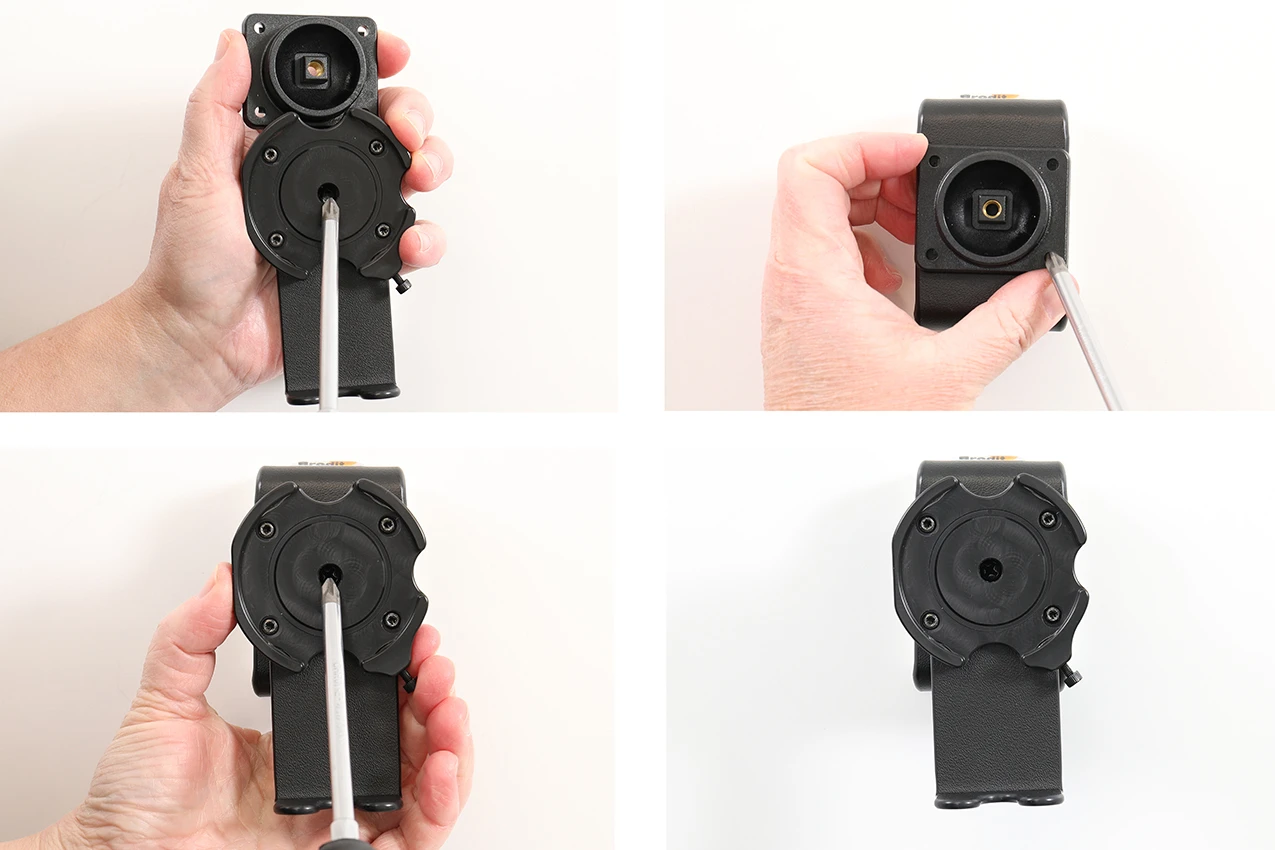

Loosen the screw in the center of the mount so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the mount over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw so the mount is firmly in place, but still can be adjusted.
رقم الخطوة 2

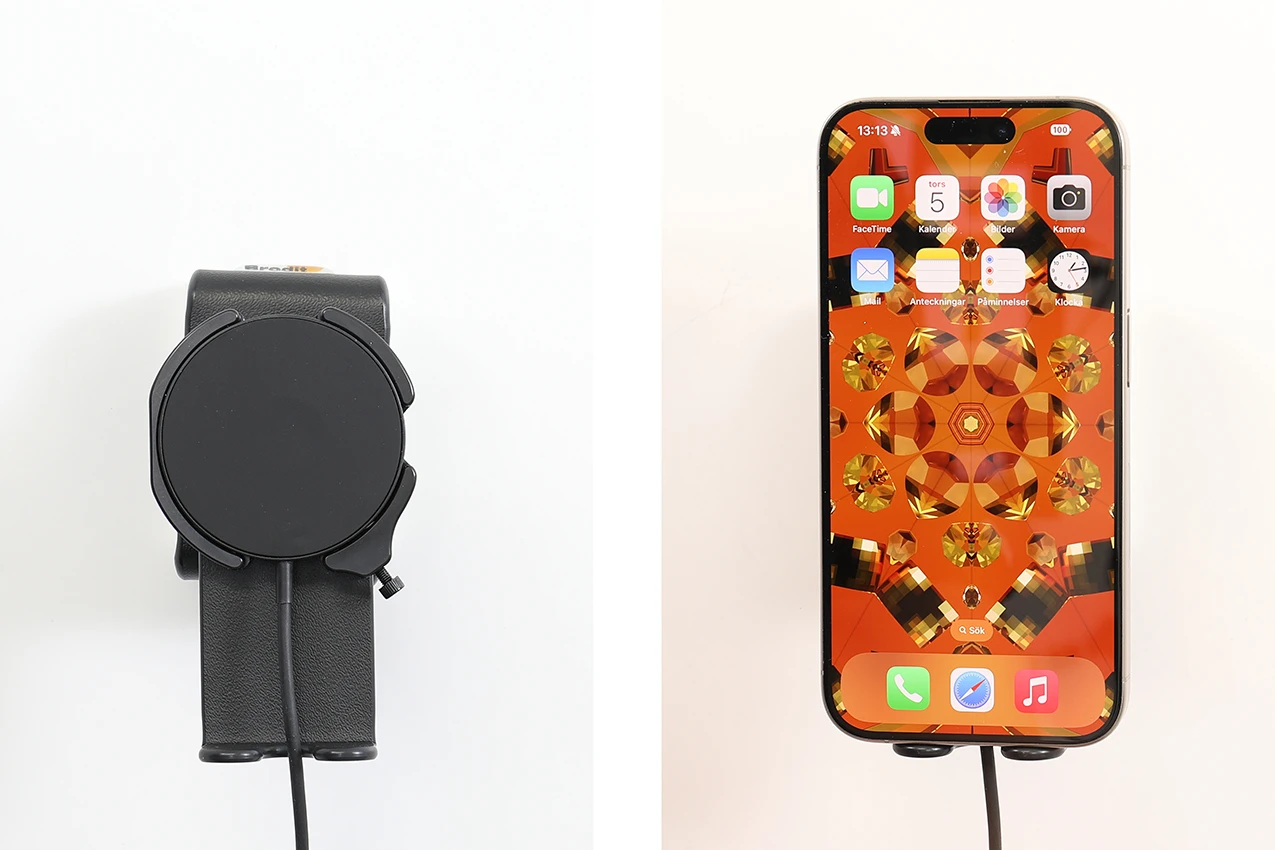

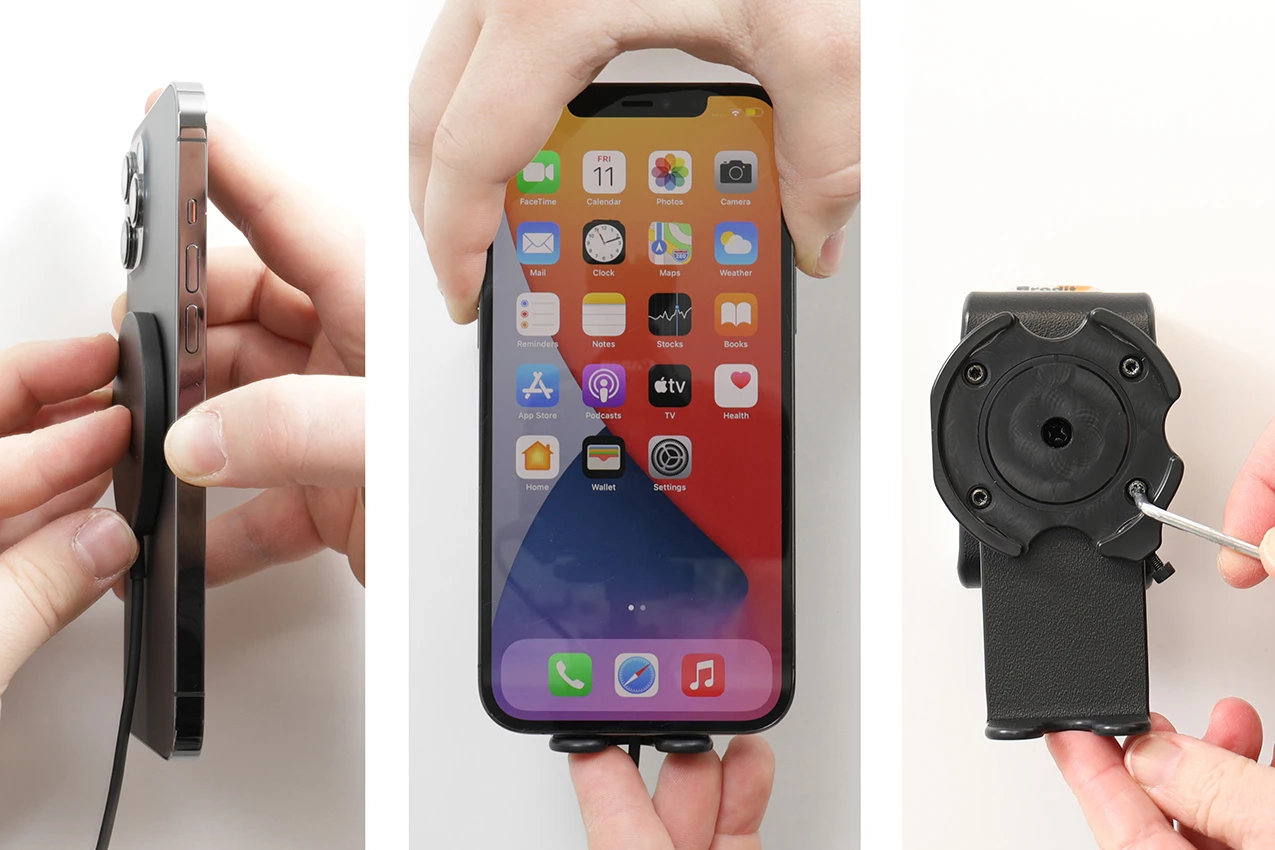

To adjust the mount for your device: Place the Magnetic Charger on your device. Place the device above the mount and adjust the support. Tighten the screws on the front side of the mount.
رقم الخطوة 3

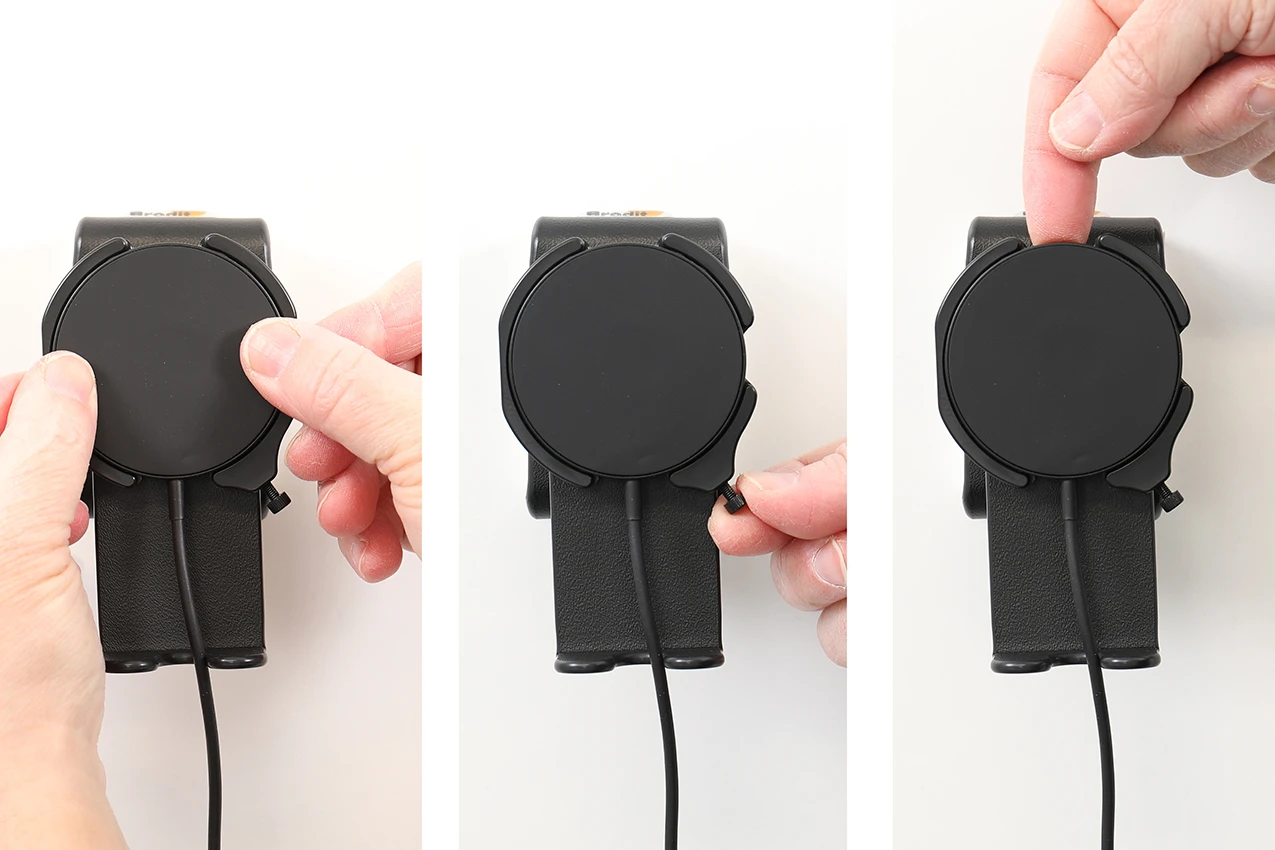

Carefully press the Magnetic Charger downward and forward so it goes into the mount, tighten the fixing screw. Remove the Magnetic Charger from the mount: First loosen the fixing screw then push the Magnetic Charger out of the mount.
رقم الخطوة 4

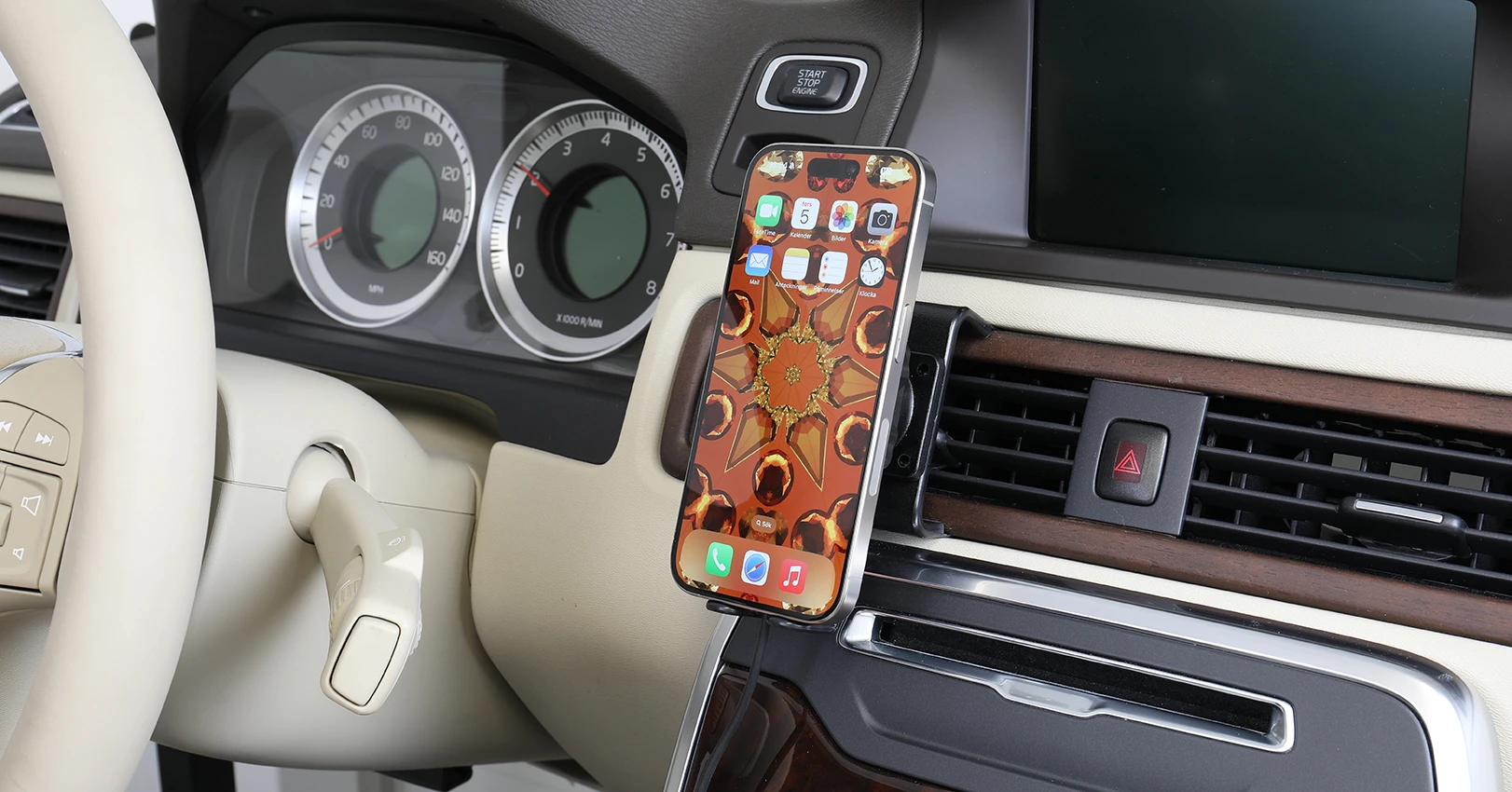

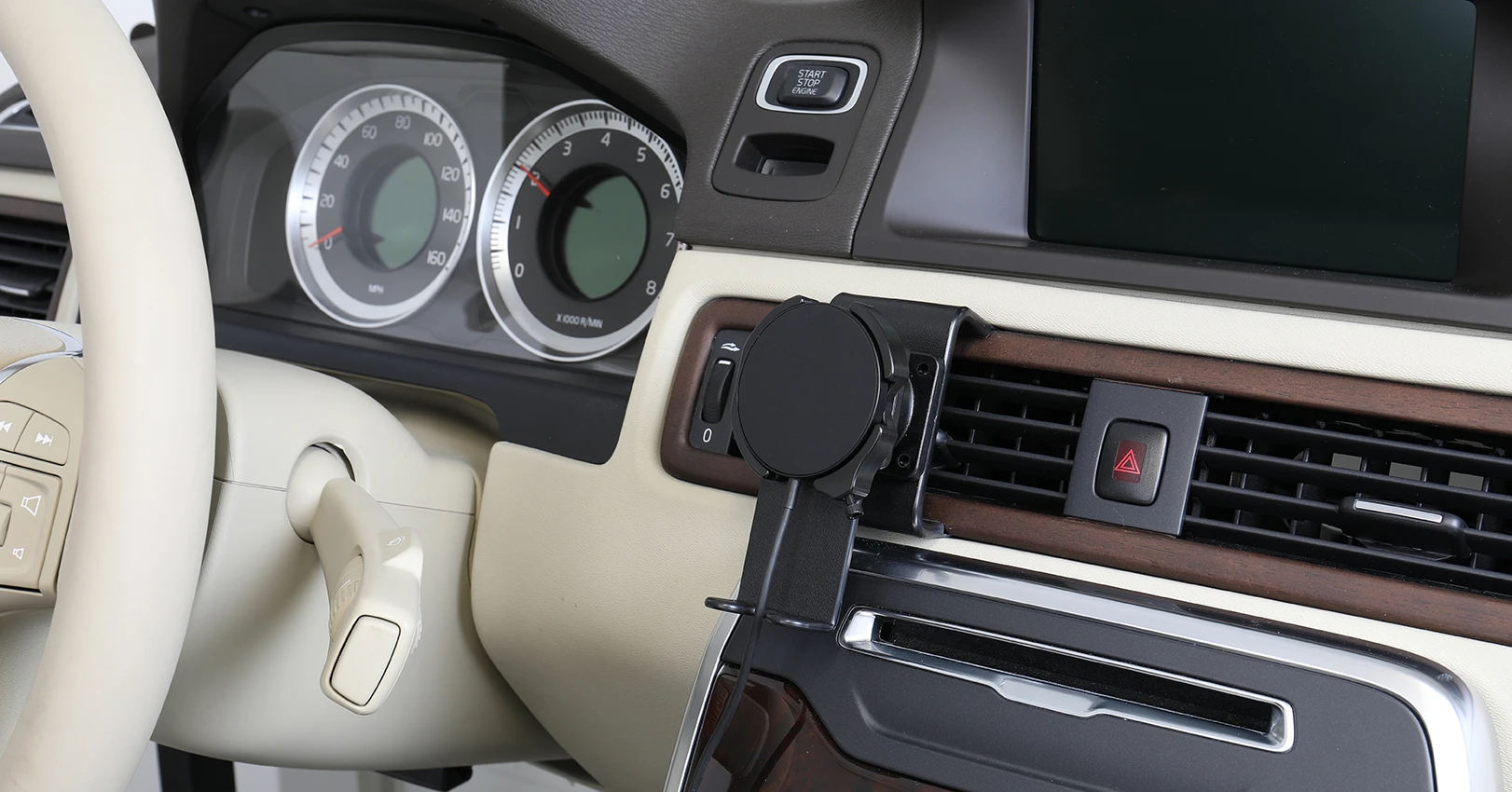

The mount is in place. The mount to hold an Magnetic Charger is designed for use in ordinary driving conditions. Please be aware that in certain situations, such as driving on bumpy roads or a sudden braking/maneuvering of a vehicle, it is possible that the Magnetic Charger device may be dislodged from the mount holding it. Use of the mount holding an Magnetic Charger is at the user’s sole discretion and risk. Brodit AB is not responsible for any damage caused by a device being dislodged from the mount holding a Magnetic Charger.
