More and more people use navigation units. Keep your unit in a holder attached to the dashboard, and you will always have it within easy reach! You can easily take the unit with you when leaving the vehicle. The holders can be adjusted in order to avoid light reflection on the screen. Attach onto ProClip Mounting Platform.

التعليمات

Please read all of the instructions and look at the pictures before attaching the mount.

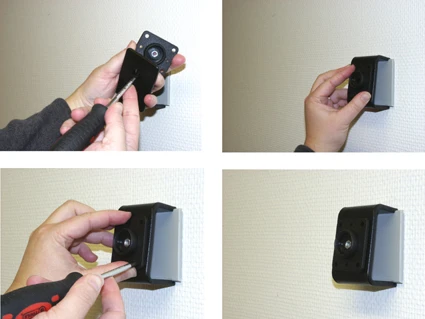

1. Attachment of mount: Loosen the screw in the center of the mount so you can remove the tilt swivel attaching plate on the back. Place the attaching plate on desired position. Screw the attaching plate into place with the enclosed screws.

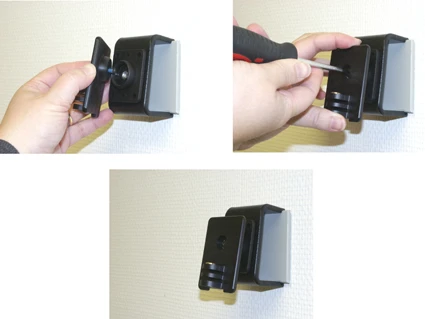

2. Place the mount over the attaching plate wo the tilt swivel fits. Screw the mount onto the attaching plate. The mount is in place.

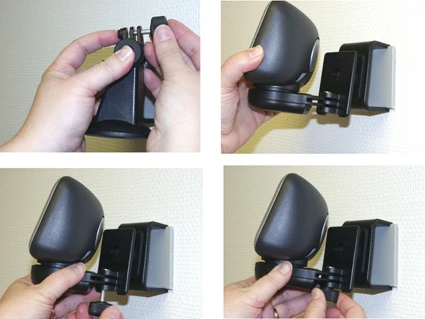

3. Attachment of unit onto mount: Remove the screw from the original mount. Place the unit by the mount, and press it towards the mount so it goes into the mount and the holes match. Put the screw into place from underneath and tighten.

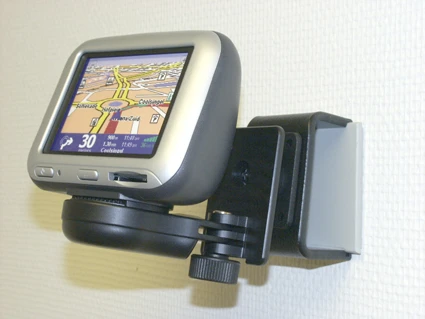

4. The mount is in place, with a unit in place.

التوافق

• Becker : Traffic Assist PRO 7916
• TomTom : GO 300
• TomTom : GO 700
• GoPro : Threaded Adapter
• TomTom : GO 500
• Becker : Traffic Assist Pro 7929
• TomTom : GO
