Mount

رقم الصنف : 217235

With AMPS holes.

Bixolon SLP-DX220

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

With AMPS holes.

معلومات فنية

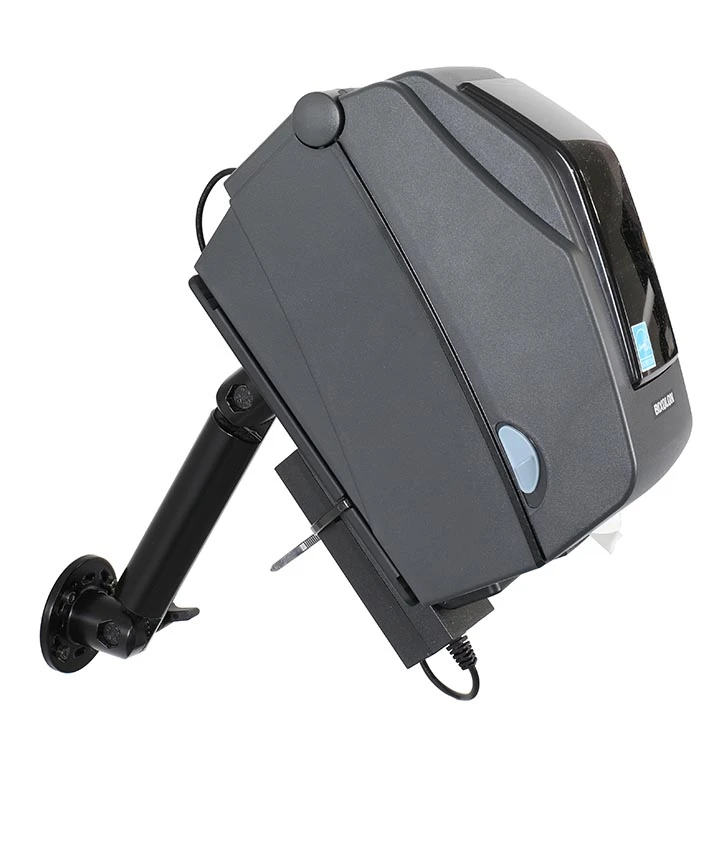

This printer mount offers a smart, stable, and space-efficient solution for installing your printer. The design has been carefully developed to combine functionality and convenience, making it easy to create a more organized and ergonomic workspace.

The mount adds only 7 mm in thickness, allowing the printer to sit close to the surface and take up minimal space – perfect for workplaces where every centimeter counts. The robust design ensures that the printer remains securely in place. Another advantage is the ability to secure cables neatly and safely, reducing the risk of tangling, wear, and accidental disconnections, while giving the installation a more professional and organized appearance.

The mount features an AMPS hole pattern, allowing for easy and flexible installation. It can be quickly attached to a pedestal mount on a pipe, rod, or any flat surface, depending on your needs and working environment.

Manufactured from high-quality ABS/Acetal plastic, the mount provides excellent strength, dimensional stability, and long service life. Color: black. Made in Sweden.

التعليمات

Please read all of the instructions and look at the pictures before attaching the mount.

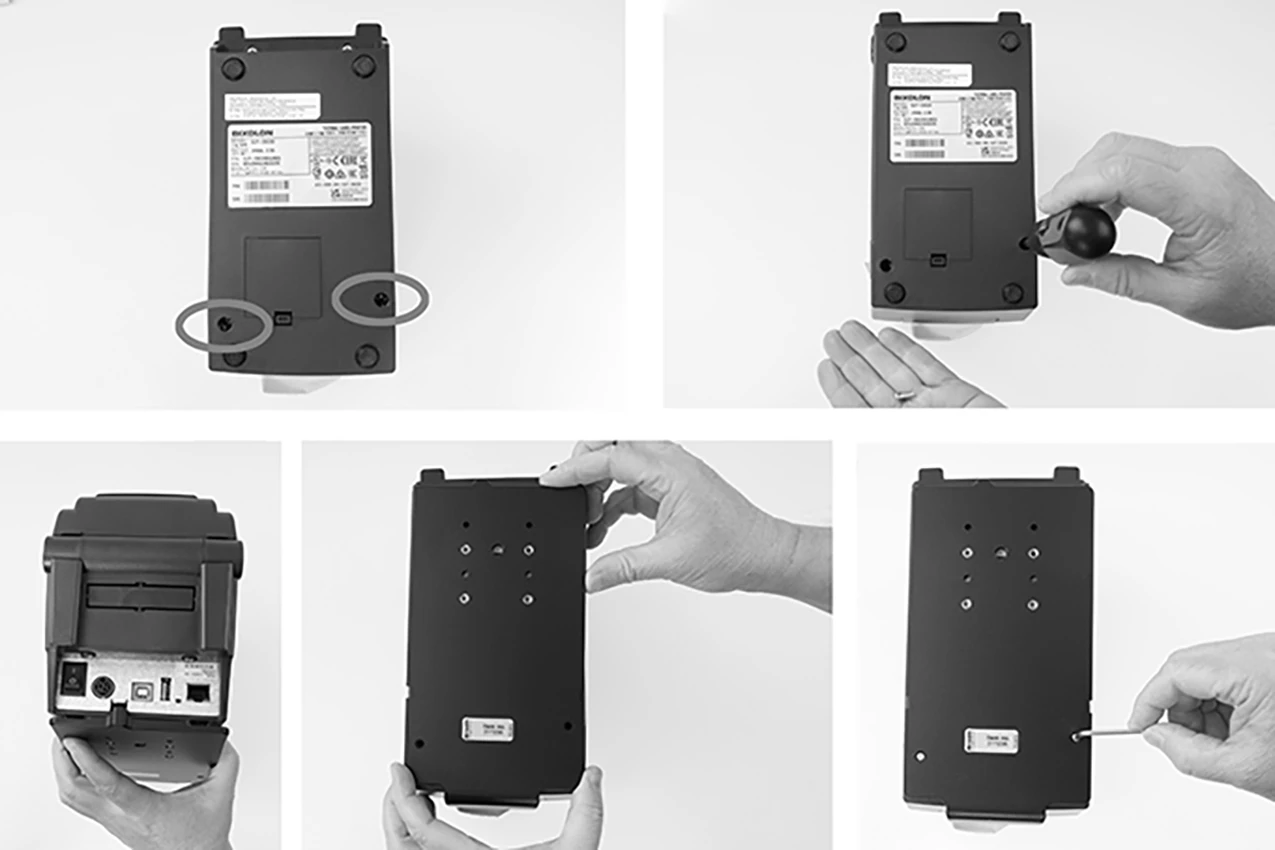

1. Lay the printer back side up on the table. Remove the two parked screws. Hook the notch on the mount into the small hole in the printer. Press the mount flat onto the printer so the other end hooks around the printer and the holes match. Attach the mount onto the printer with the two enclosed screws.

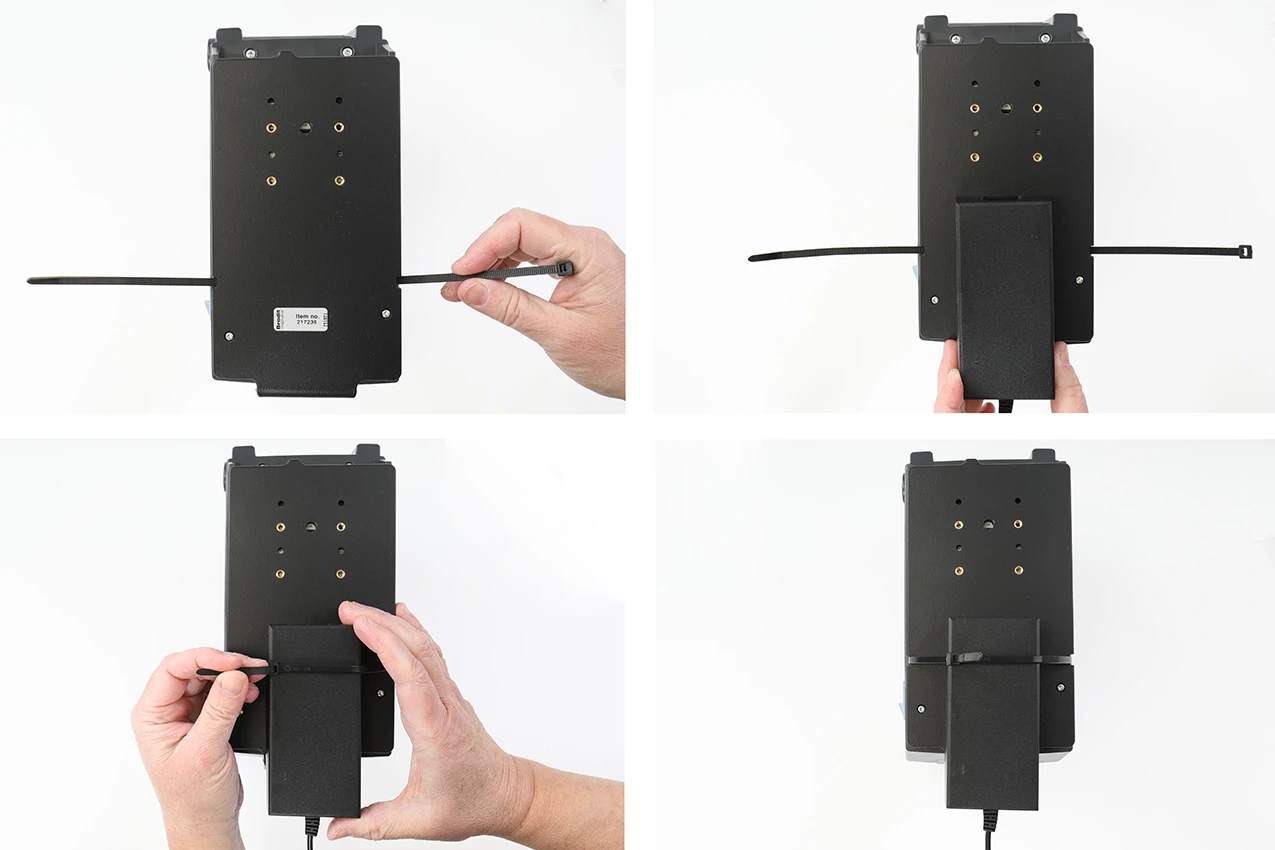

2. Put the charging box in place. Place the cable tie in the slot and fasten the charging box and cables. It is important not to position the charging box to close to the AMPS holes.

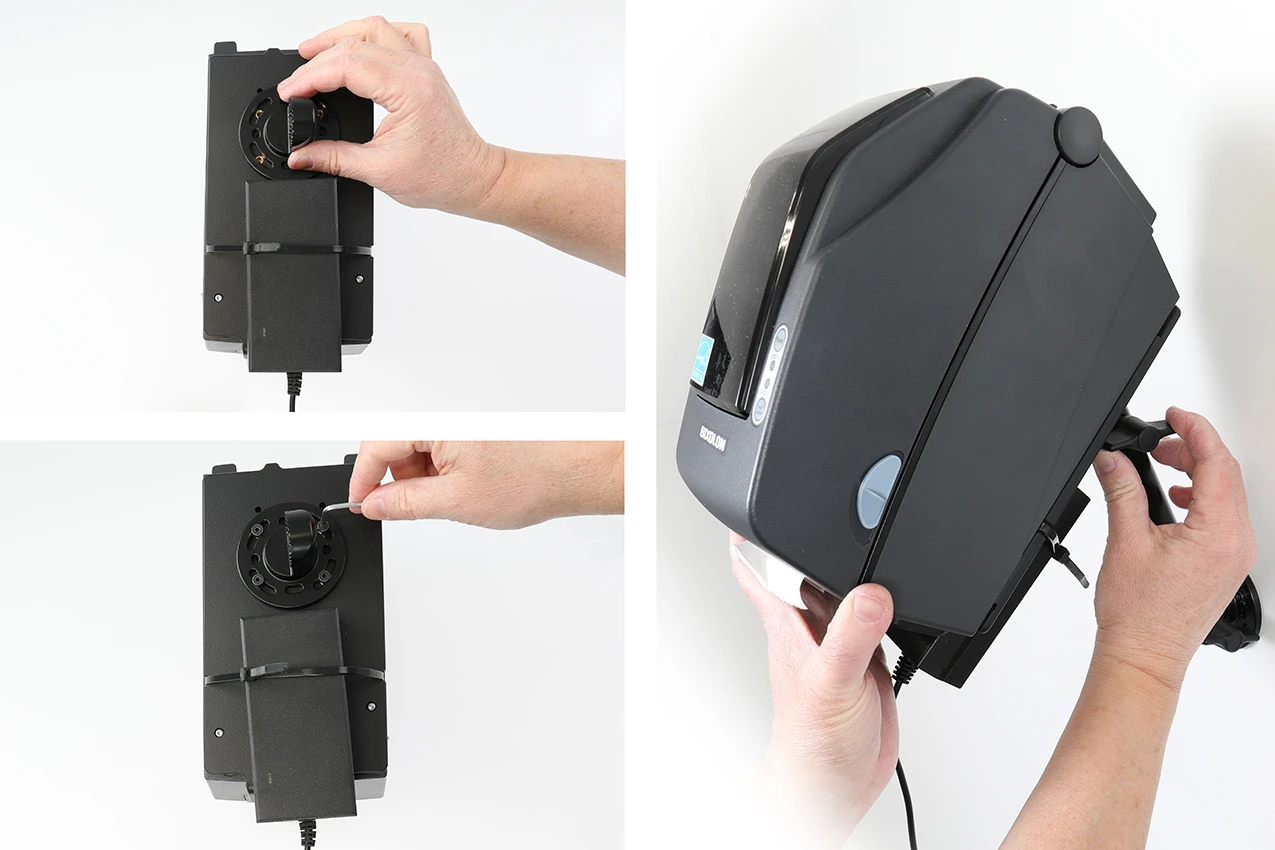

3. For installation onto a pedestal mount: Attach the pedestal mount top plate onto the mount. Attach the printer in place onto the pedestal mount.

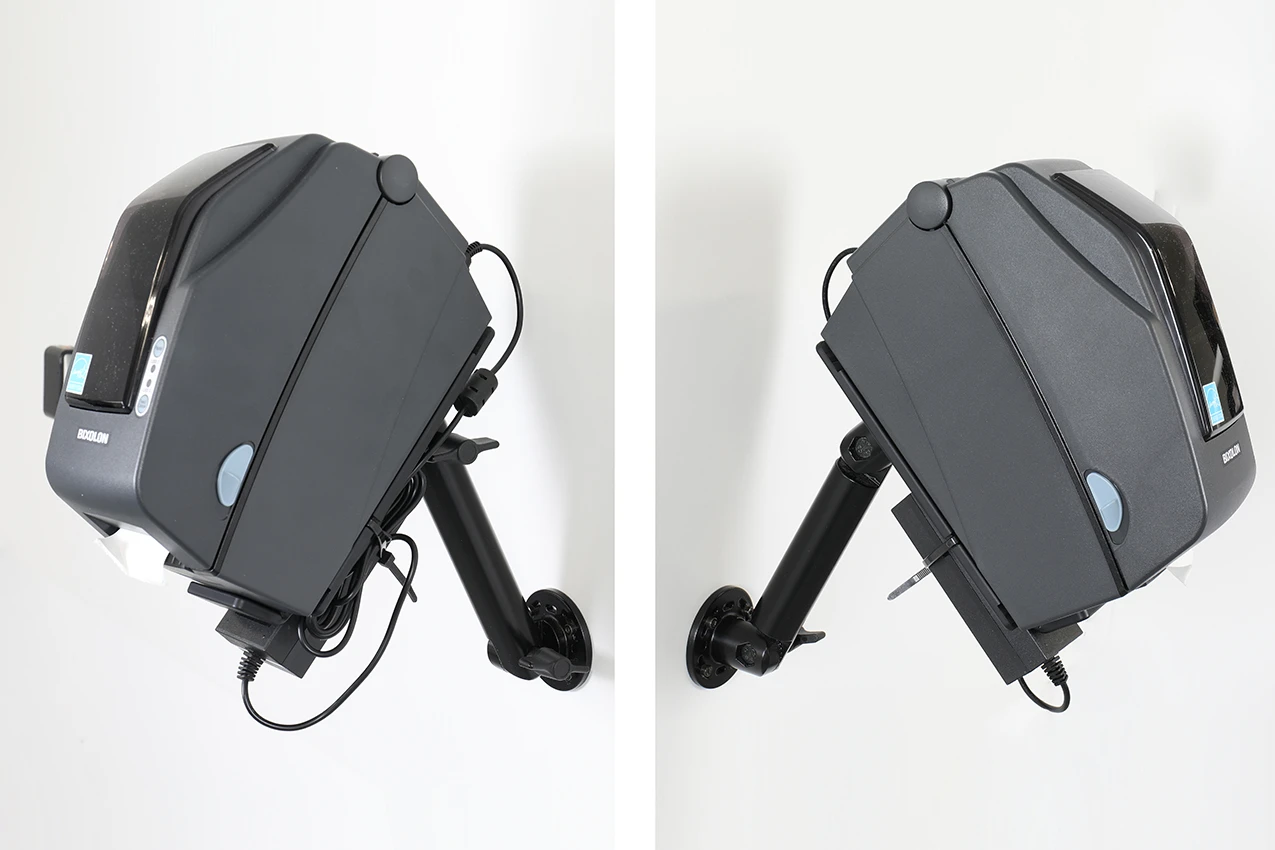

4. The mount is in place, with a printer in place.

التوافق

Bixolon : SLP-DX220
