رقم الصنف : 217208

Printer mount with label roll function. Designed for stationary rollers max diameter 127mm, core diameter 25mm. With MultiMoveClip.

Zebra ZQ630 Plus

Zebra ZQ630

more...

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

Printer mount with label roll function. Designed for stationary rollers max diameter 127mm, core diameter 25mm. With MultiMoveClip.

معلومات فنية

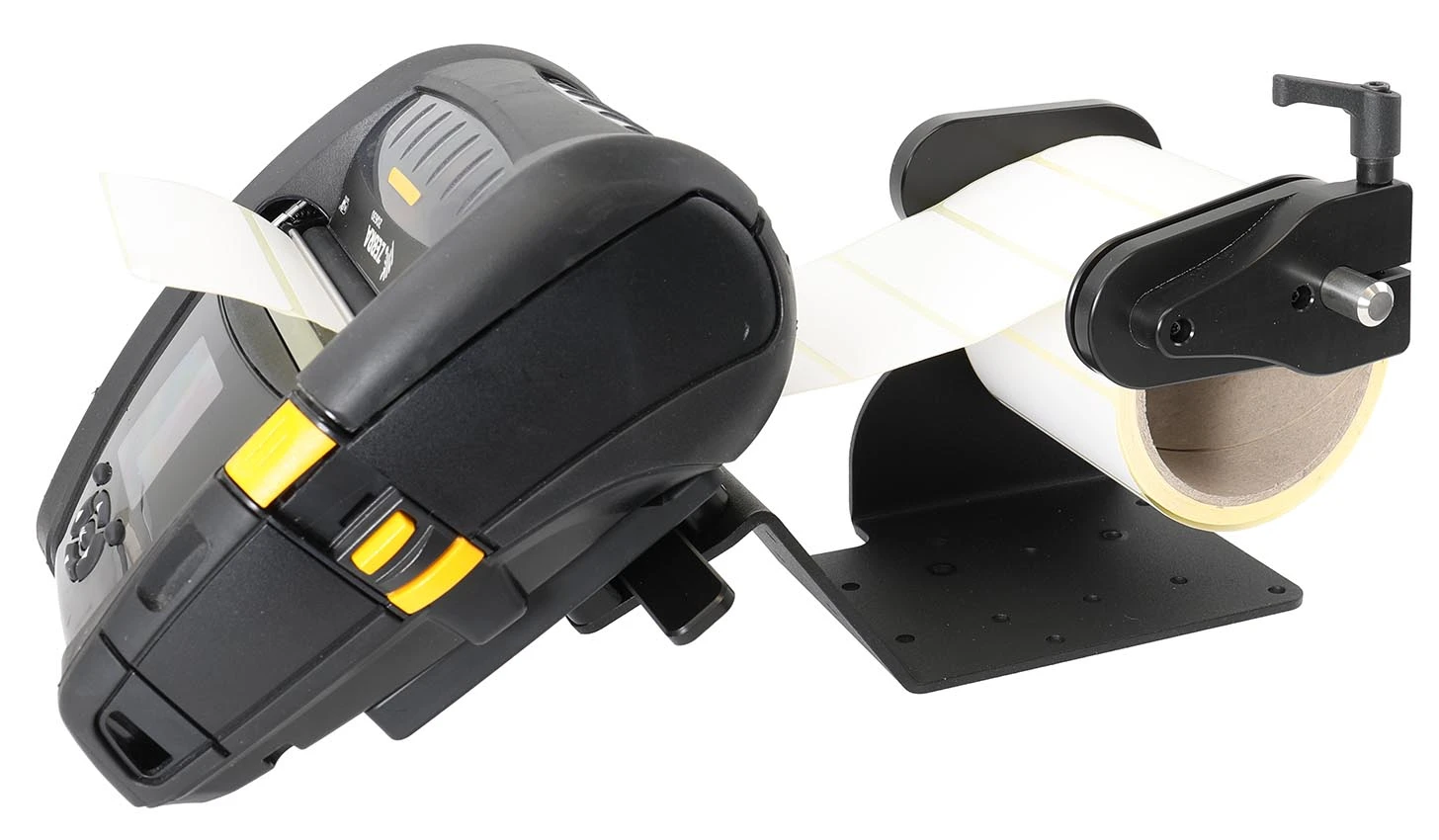

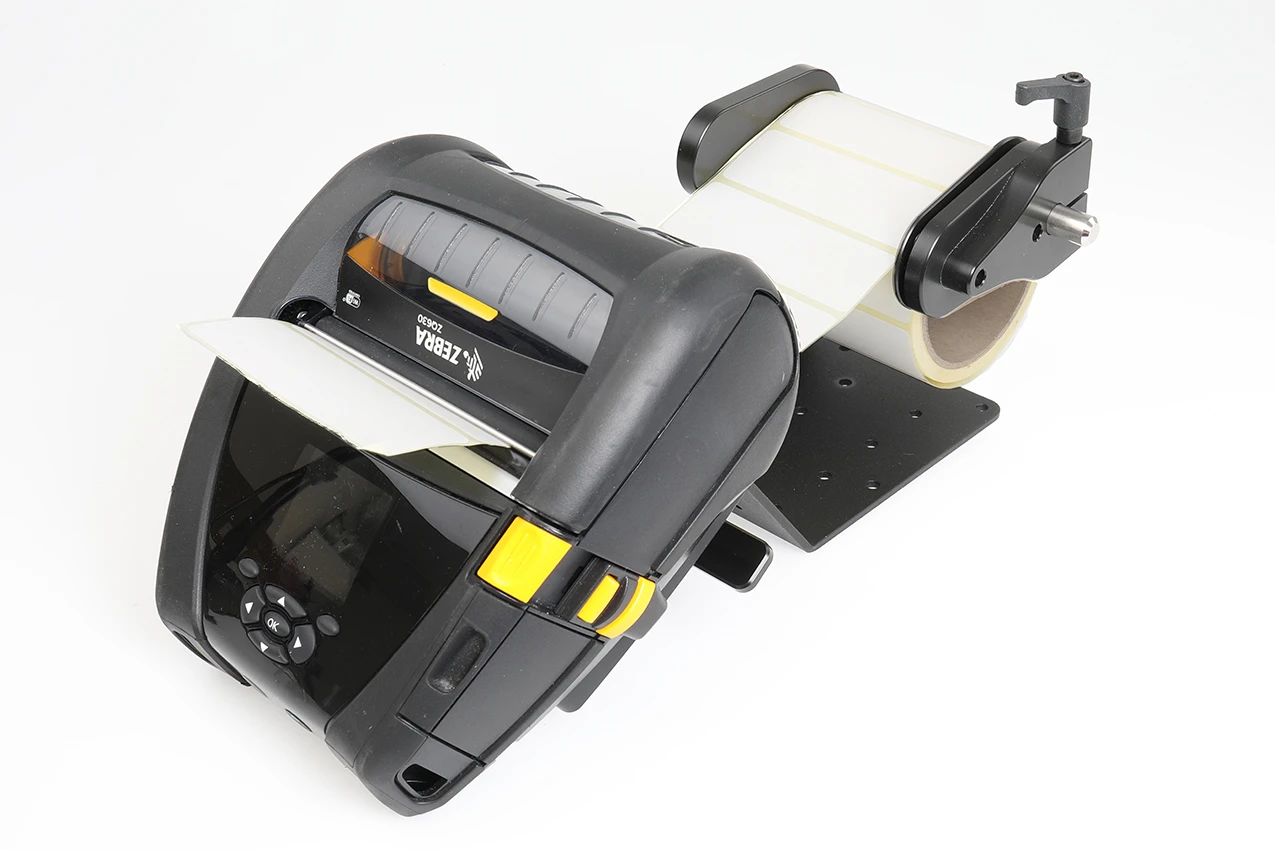

This printer mount offers an easy and secure way to mount your printer and includes an external roller for large rolls of labels or media. When combined with a printer mount plate this platform provides a flexible mount that utilizes the continuous feed rollers for printing platforms.

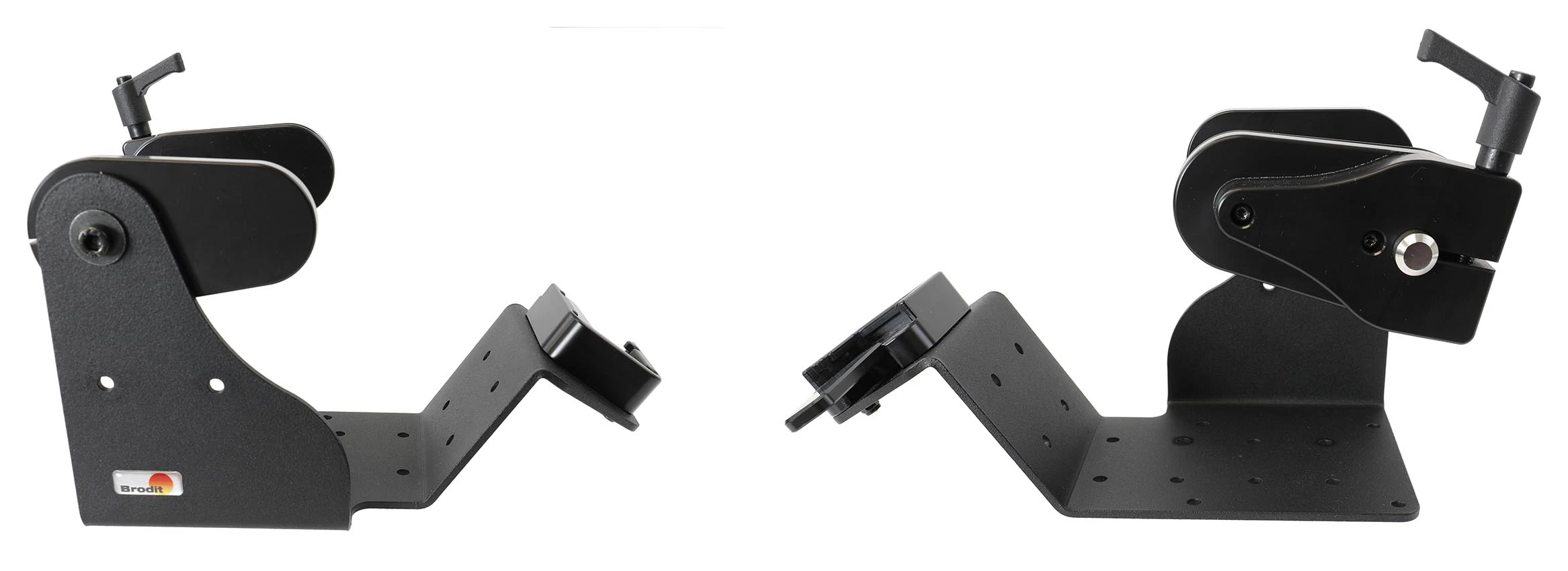

With AMPS, VESA 75 holes. Made of high grade ABS/Acetal plastic and metal. Color: black. Made in Sweden.

التعليمات

Please read all of the instructions and look at the pictures before attaching the product.

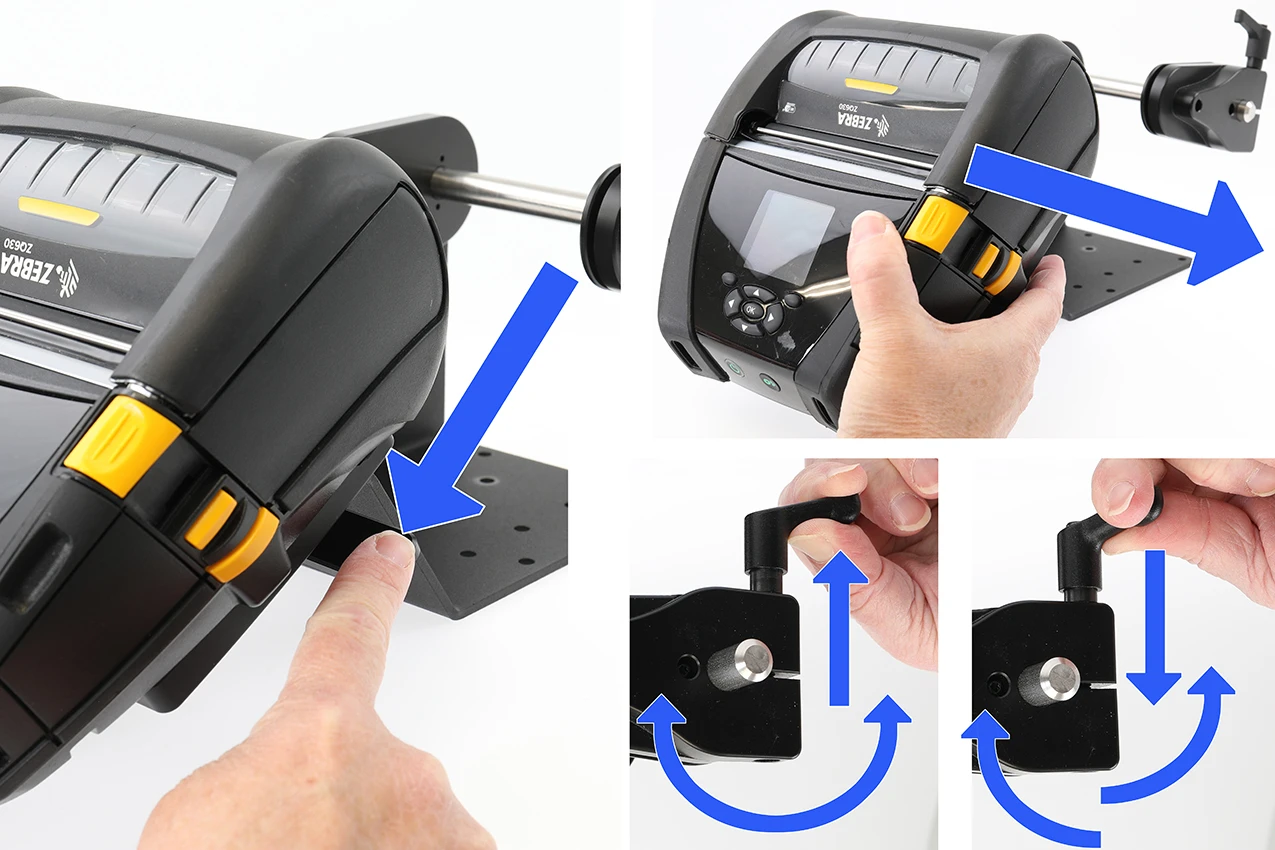

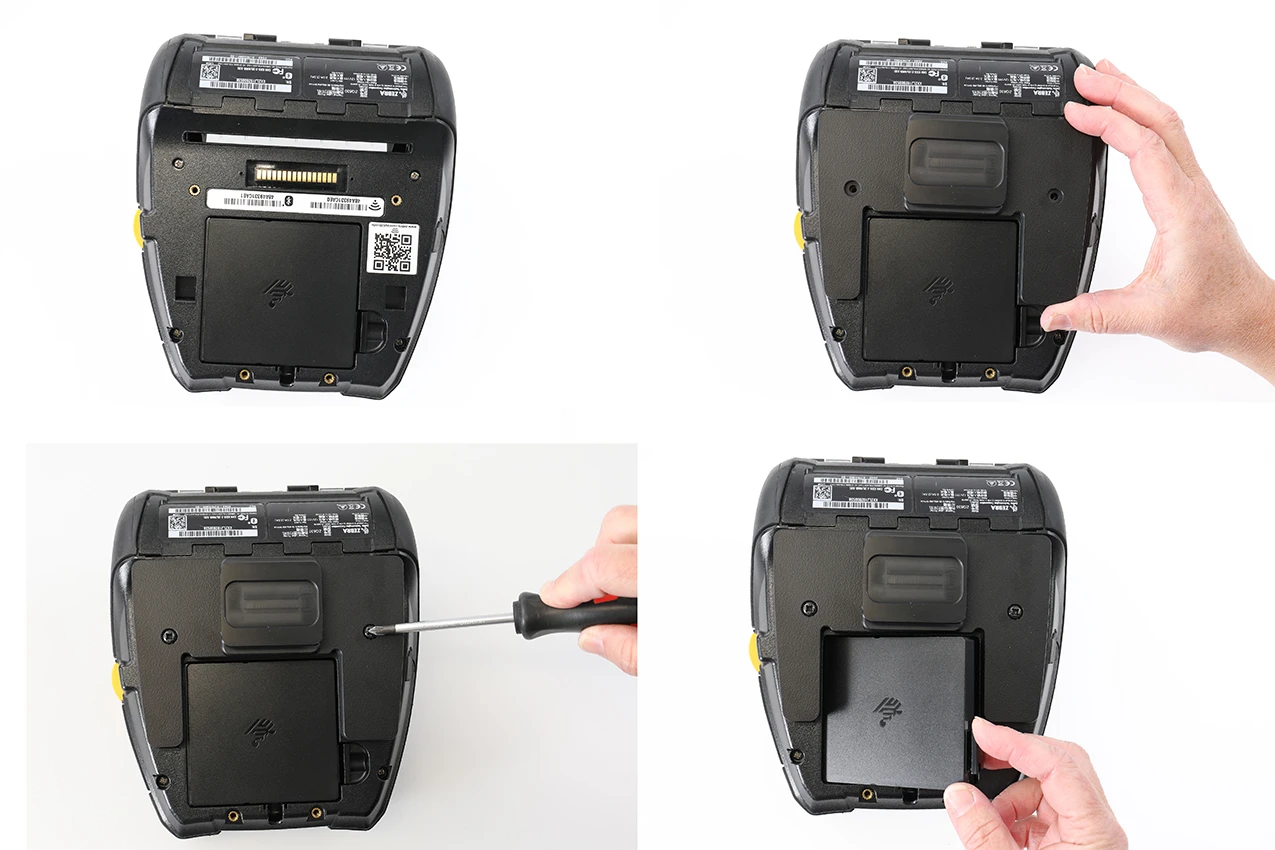

1. Place the mount onto the device so the holes match. Screw the device onto the printer with the enclosed thumb-screw.

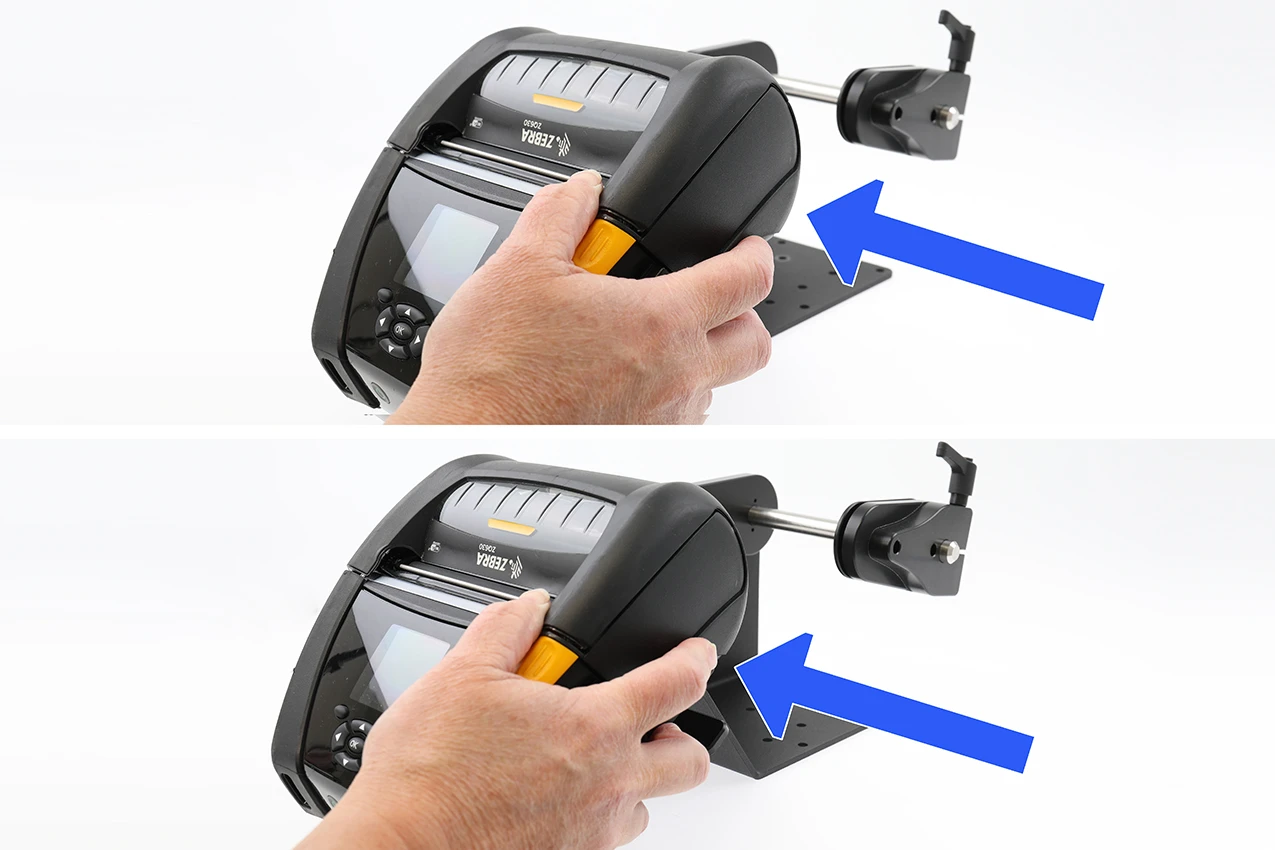

2. Place the printer next to the mount, push it in until you hear a click.

3. To release the printer press in the locking lever, push the printer to the side until it comes free. To adjust and lock the label roll, turn the lever sideways to lock. If you need to take a new grip, press the lever down to start over.

4. The product is in place.

التوافق

Zebra : ZQ630 Plus
Zebra : ZQ630
