تفاصيل المنتج
Mount
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

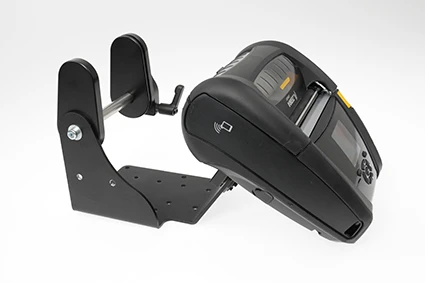

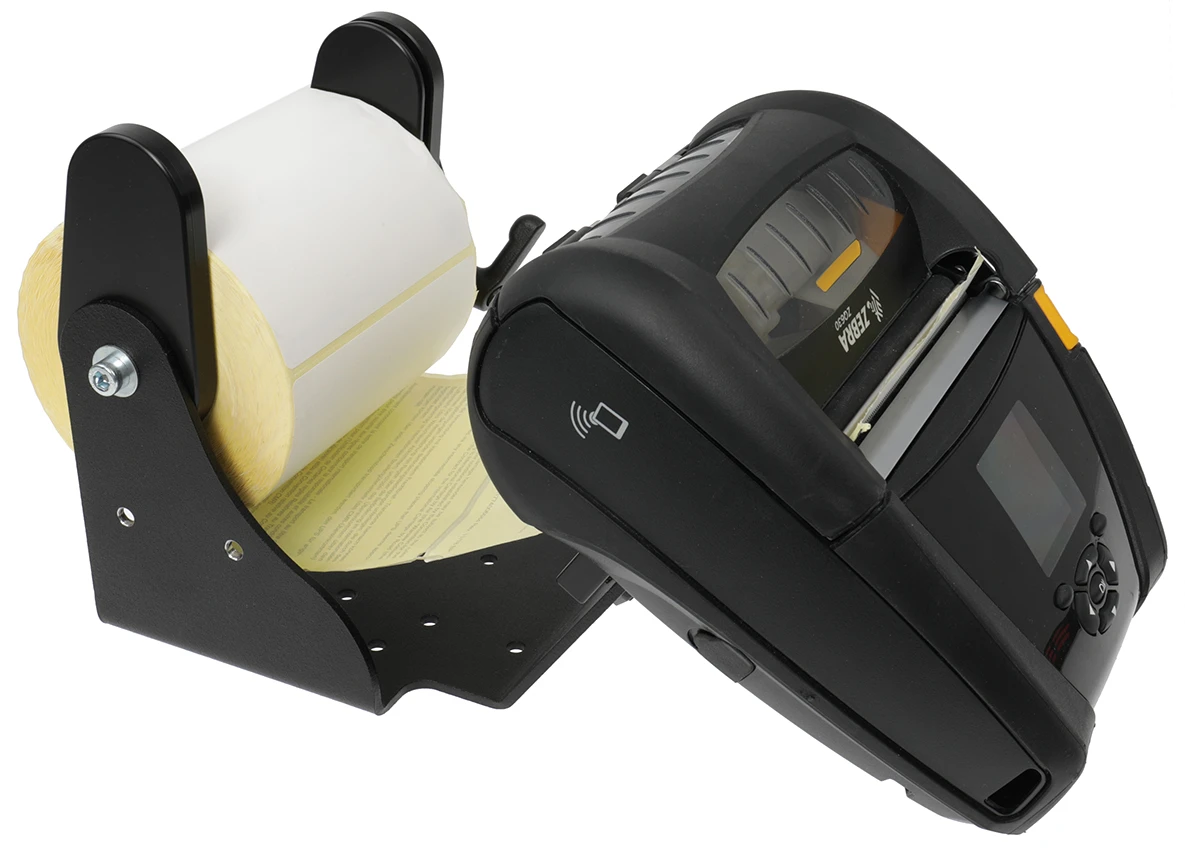

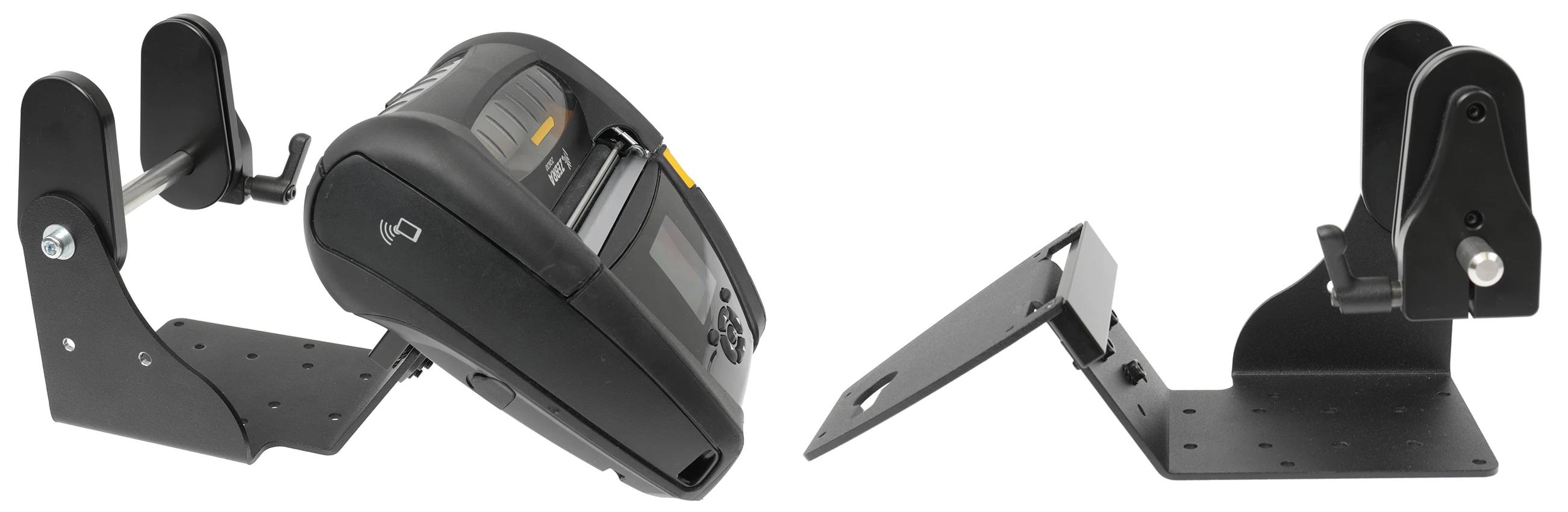

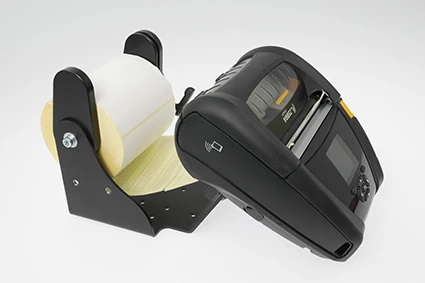

This mount offers an easy and secure way to mount your printer. It keeps your printer's battery fully charged at all times, and you will always have your printer within easy sight and reach! Combining functionality and convenience, Brodit products contribute to an improved working environment. Custom made mount with a perfect, firm fit. Attach onto a Pedestal Mount or a flat surface.

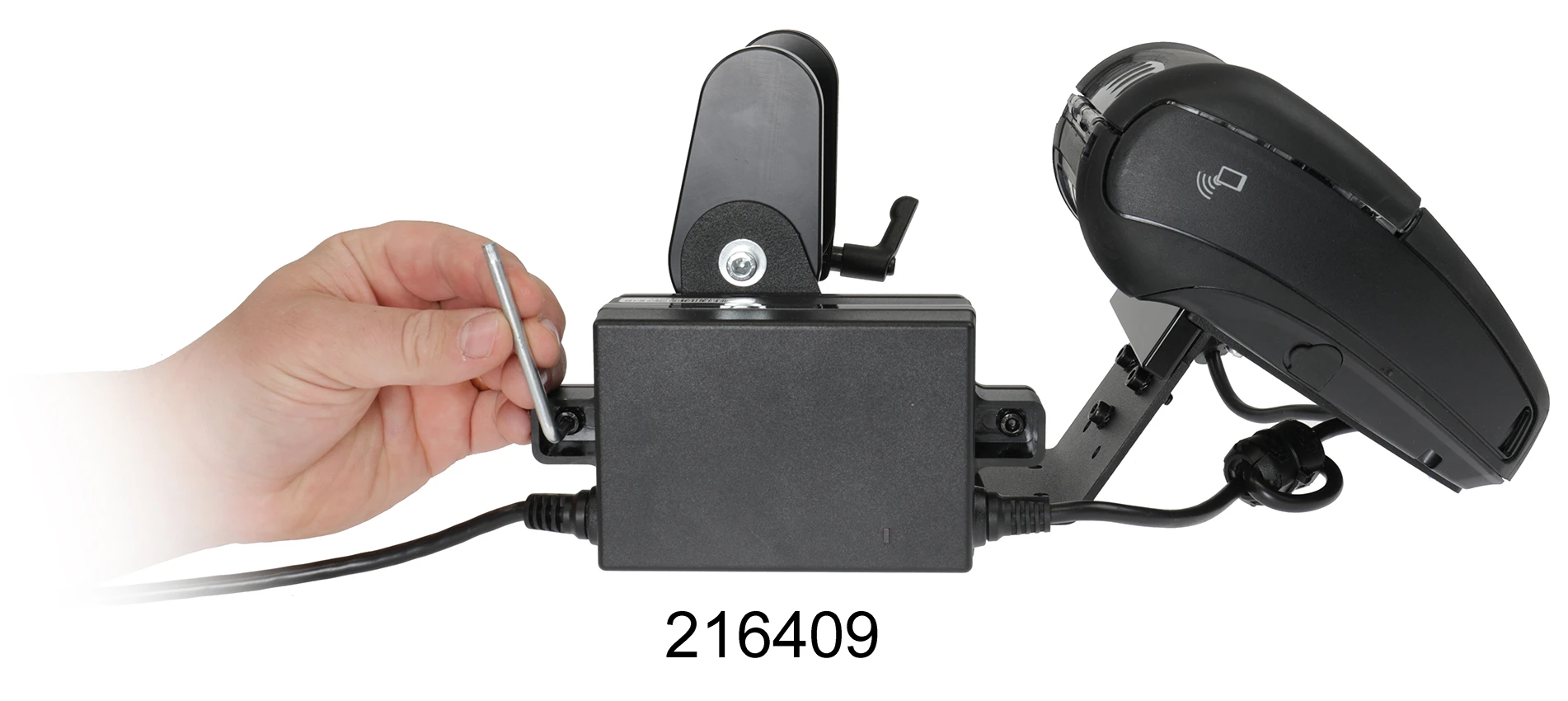

For charging use Zebra original Power Supply P1050667-140, AK18913-003, P1063406-030 and Brodit Mounting plate 216409.
With AMPS, VESA 75 holes. Made of high grade ABS/Acetal plastic and metal. Color: black. Made in Sweden.
دليل تركيب المنتج
رقم الخطوة 1

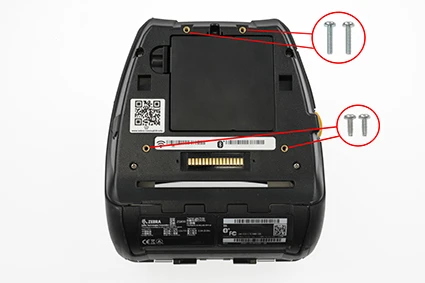

Location of the screws before mounting
رقم الخطوة 2

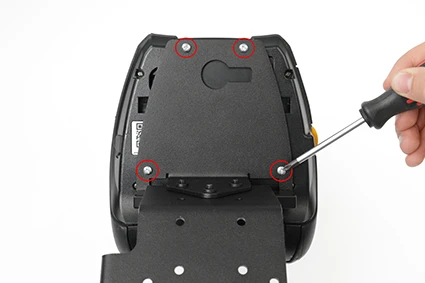

LONG screws 16mm, SHORT screws 9mm. Place the mount onto the device so the holes match. Screw the two enclosed LONG screws in place in the holes shown in the picture. Screw the two enclosed SHORT screws in place in the holes shown in the picture.
رقم الخطوة 3
The product is in place.
رقم الخطوة 4
The product is in place.
