تفاصيل المنتج
Mount
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
This mount offers an easy and secure way to mount your printer. It keeps your printer's battery fully charged at all times, and you will always have your printer within easy sight and reach! Combining functionality and convenience, Brodit products contribute to an improved working environment. Custom made mount with a perfect, firm fit. With quick release MultiMoveClip, easy to move your printer between locations. Attach onto a Pedestal Mount or a flat surface.
For charging the sliding power block use Zebra power suppliesP10031359, P1031365-024 and AK18913-003
A recommended accessory is Vibration dampener.
With AMPS-holes. Made of high grade ABS/Acetal plastic. Color: black. Made in Sweden.
دليل تركيب المنتج
رقم الخطوة 1

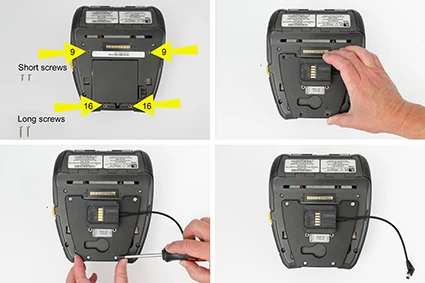

Location of the screws before mounting, LONG screws 16mm, SHORT screws 9mm. Place the mount onto the device so the holes match. Screw the two enclosed LONG screws in place in the holes shown in the picture. Screw the two enclosed SHORT screws in place in the holes shown in the picture.
رقم الخطوة 2

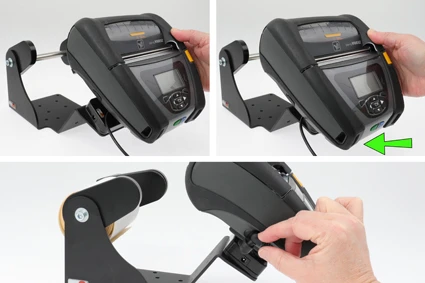

Put the device into place: Hold the device on the right side of the mount. Slide it leftwards onto the mount so it snaps into place. Mount the cable.
رقم الخطوة 3

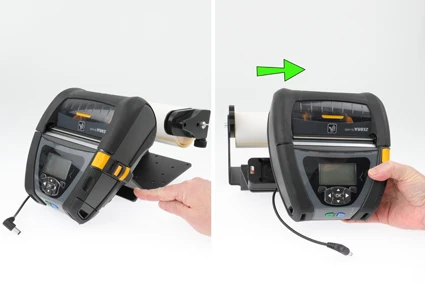

Remove the device: Press forward on the release lever and slide the device righwards away from the mount.
رقم الخطوة 4
The product is in place.
