الوصف

Tilt Swivel mount with MultiMoveClip.

معلومات فنية

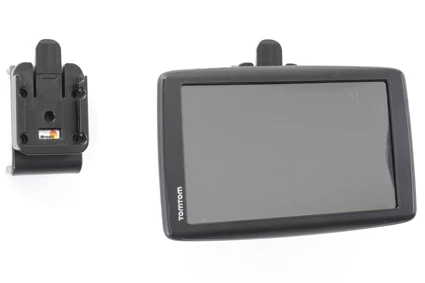

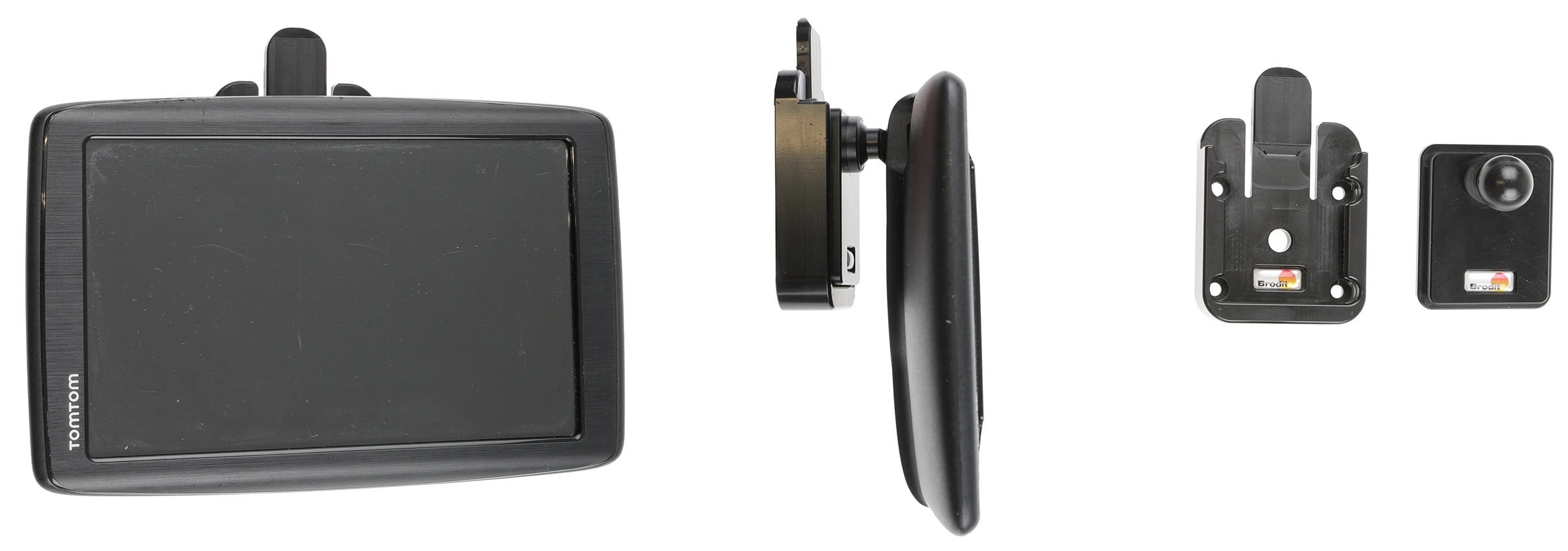

The choice for you who prefer to have your GPS device within easy sight and reach, firmly attached onto the dashboard instead of in the windshield. The product consists of a tilt swivel mount and a MultiMoveClip that replaces the original mount.

You can easily take you device with you when leaving the car. A charging cable can be connected to the device when it is in place in the mount. You can adjust the angle of the device in order to avoid light reflection. Attach the mount onto a ProClip Mounting Platform.

Made of Acetal plastic. Color: Black. Made in Sweden.

التعليمات

Please read all of the instructions and look at the pictures before attaching the mount.

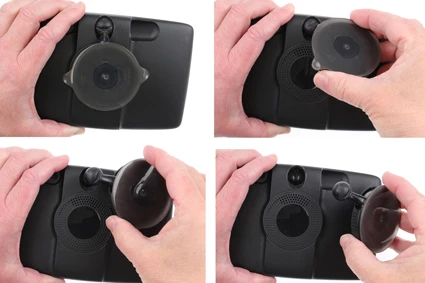

1. Remove the original amount that includes the suction cup: Push the suction cup mount rightwards into a horizontal position. Lift/bend the suction cup assembly/arm so the ball joint comes out of the cup in which it sits.

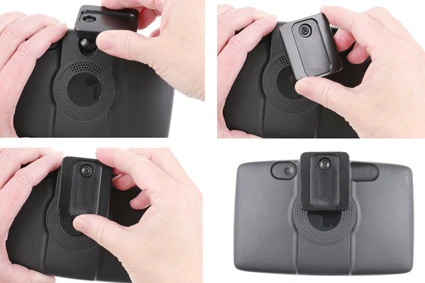

2. Attach the mount onto your device: Hold the mount horizontally and hook the ball into the hole on the back of your device. Turn the mount into vertical position.

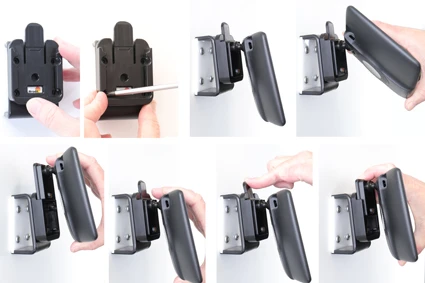

3. Place the MultiMoveClip onto the desired position and screw into place with the enclosed screws.

Put the device in place: Slide the device straight downward into the MultiMoveClip so you hear/feel it snaps into place.

Remove the device: Press the latch on the MultiMoveClip and lift the device straight upward and out of the MultiMoveClip.

4. The mount is in place.

التوافق

• TomTom : Start 20
• TomTom : GO 40
• TomTom : Via 125
• TomTom : GO 400
• TomTom : GO 51
• TomTom : GO LIVE 800 Series
• TomTom : Start 50
• TomTom : Via 110
• TomTom : Via 62
• TomTom : GO 60
• TomTom : Start 25
• TomTom : Via 120
• TomTom : Via 100
• TomTom : Via 125 Live
• TomTom : GO LIVE 820
• TomTom : Via 52
• TomTom : Start 60
• TomTom : Start 62
• TomTom : GO LIVE 825
• TomTom : Via 135
• TomTom : Start 52
• TomTom : Via 120 Live
• TomTom : GO 50
• TomTom : GO 61
• TomTom : Start 40
• TomTom : Via 130
