Mount

رقم الصنف : 216059

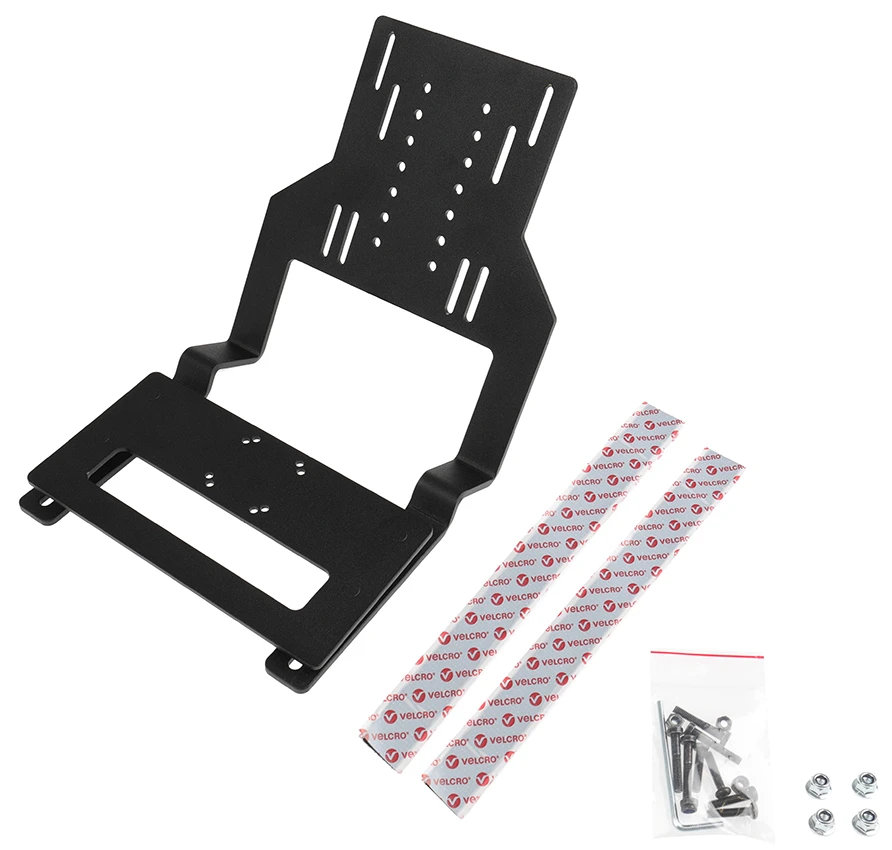

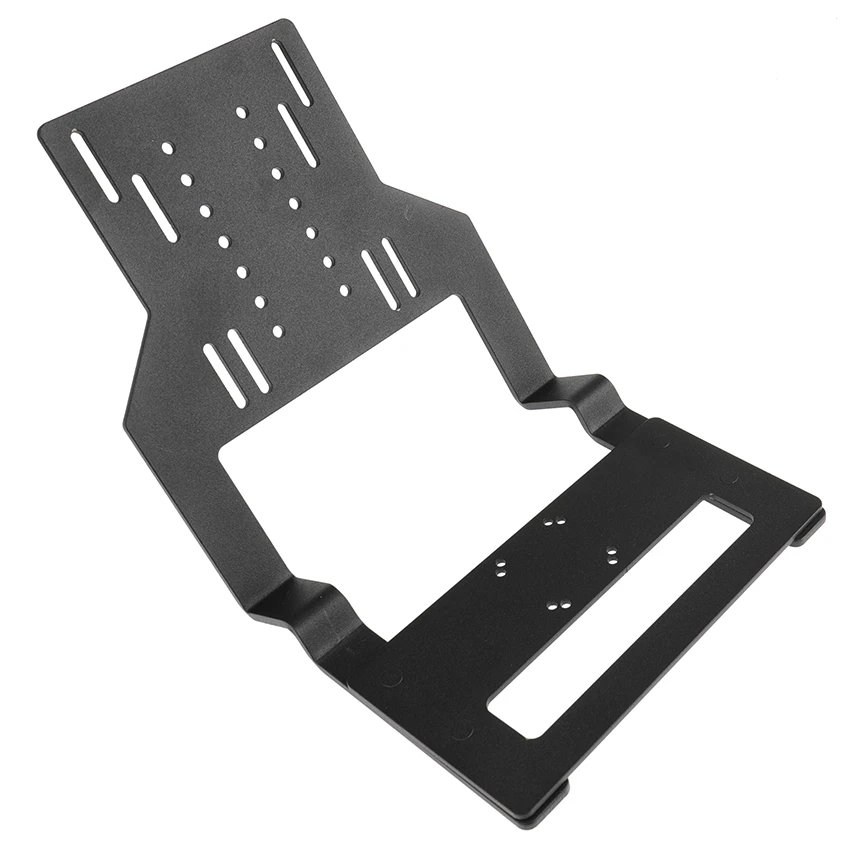

Keyboard and tablet mount. With VESA 75/100 + multiple 5 mm AMPS holes. Material: Metal.

الكمية

إنتهى من المخزن

الوصف

Keyboard and tablet mount. With VESA 75/100 + multiple 5 mm AMPS holes. Material: Metal.

معلومات فنية

Robust mount for installing a keyboard and a tablet as a unit, for professional everyday use in rought environments. Holds your equipment firmly in place, very strong design. Provides for an efficient, safe and confortable working environment with your device within easy sight and reach.

  • The mount fits for all standard keyboards and tablets. The keyboard attaches directly onto the mount. The tablet is placed either in a holder, or directly onto the mount, depending on requirement and model. The mount is to be used with:

  • - keyboards with AMPS holes

  • - keyboards without AMPS holes

  • - holders with AMPS holes, compatible with all Brodit holders

  • - devices with VESA 75/100 holes

  • Attach onto a Pedestal Mount for installation on any pipe/pole or flat surface.

  • Material: metal. Color: Black. Made in Sweden.

  • التعليمات

    Please read all of the instructions and look at the pictures before attaching the products.

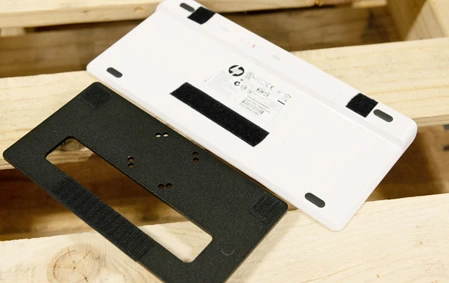

  • 1. To install a keyboard WITHOUT AMPS holes: Place the keyboard on the keyboard shelf and cut Velcro pieces in approprate lengths. Peel off the adhesive tape covers on the Velcro. Attach the Velcro pieces in matching positions on the keyboard and the keyboard shelf. Place the keyboard onto the keyboard shelf so the Velcro pieces attach properly.
  • Technical Information Illustration

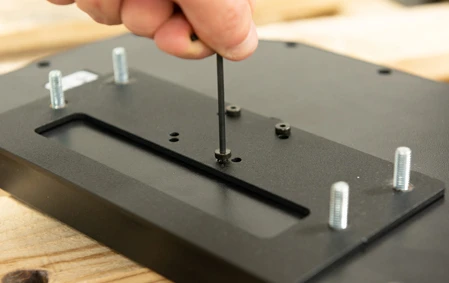

  • 2. To install a keyboard WITH AMPS holes: place the keyboard shelf over the keyboard so the AMPS holes match. Attach the keyboard onto the keyboard shelf with the enclosed screws.
  • Technical Information Illustration

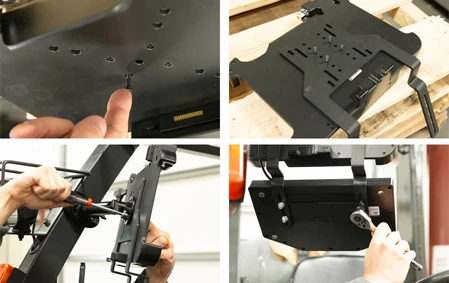

  • 3. To install a device holder: Place the enclosed screws in the AMPS holes in the holder so they stick out on the back of the mount, make sure the screws are long enough for your mounting scenario. Place the holder into desired position and attach it with the enclosed nuts.
  • Technical Information Illustration
  • To install a device with VESA 75/100 holes: Place the mount onto the device and attach it with the enclosed screws. Place the mount into desired position and attach it with the enclosed screws.
  • Technical Information Illustration
  • To install the keyboard shelf: Place the keyboard shelf onto the mount and attach it with the enclosed nuts. Adjust the position and tighten the nuts.
  • Technical Information Illustration

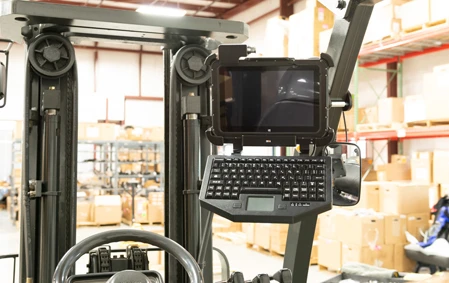

  • 4. The product is in place.
  • Technical Information Illustration
