Mount

رقم الصنف : 215842

With MultiMoveClip and 2" Pedestal Mount.

Zebra ZQ620

Zebra ZQ610

more...

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

With MultiMoveClip and 2" Pedestal Mount.

معلومات فنية

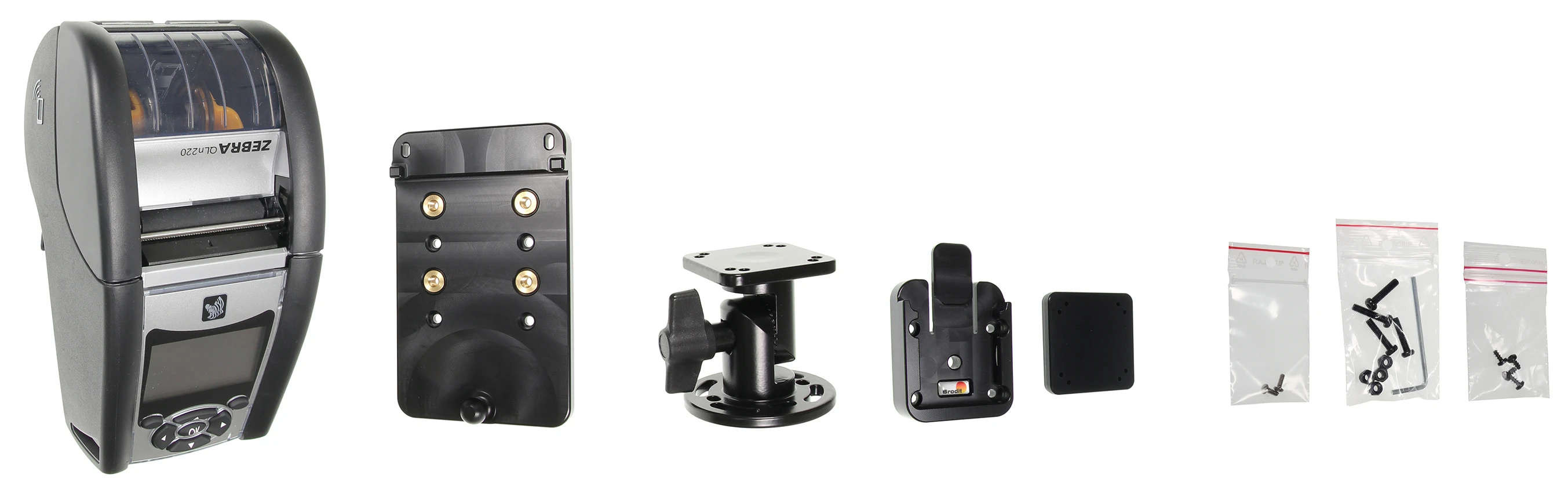

This mount offers an easy and secure way to mount your printer. With quick release MultiMoveClip, it makes it easy to move your printer between locations. Combining functionality and convenience, Brodit products contribute to an improved working environment. Custom made mount with a perfect, firm fit.

A Pedestal Mount made of aluminum is included, it provides for a firm installation. With AMPS-holes. Made of high grade ABS/Acetal plastic. Color: black. Made in Sweden.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

1. Attach the Quick Release Dock to the mounting plate using the enclosed self-tapping screws. Remove battery from printer. Insert swivel ball into attachment port at bottom of battery compartment.

2. Swivel the plate down temporarily and put battery back into place to secure swivel ball. Swivel the plate into place to cover the battery and secure using the enclosed screws.

3. Attach the MultiMoveClip to the pedestal using the enclosed hardware. Insert printer with attached plate into MultiMoveClip. Press release tab and slide printer out to remove.

4. The device is in place.

التوافق

Zebra : ZQ620
Zebra : ZQ610
Zebra : QLN 320
Zebra : QLN 220
