الوصف

For devices with a TMC module.

معلومات فنية

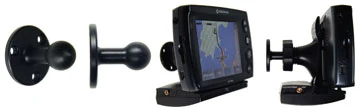

Mount for device with a TMC module. The choice when you want to get a firm installation on a ProClip Mounting Platform instead of using a suction cup mount. You can easily adjust the angle of your device in order to avoid light reflection in the screen. (TMC module not included).

التعليمات

Please read all of the instructions and look at the pictures before attaching the mount.

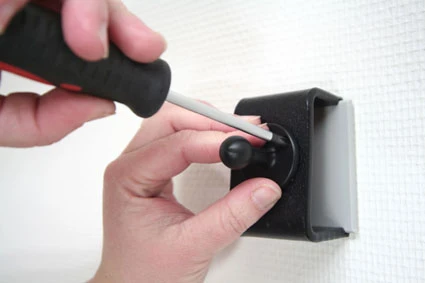

1. Place the 215258- mount in the desired position and attach it with the enclosed screws.

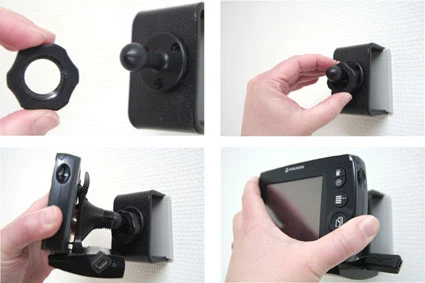

2. Place the locking ring onto the 215258-mount. NOTE: It is important to put the ring the right way onto the mount (as shown in picture). Press the original mount onto the 215258-mount.

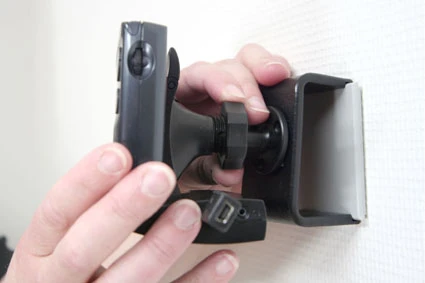

3. Lock the original mount onto the 215258-mount by tightening the locking ring.

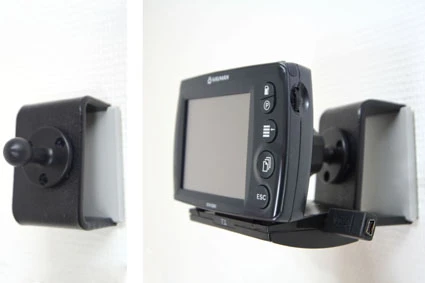

4. The mount is in place, with device in place.

التوافق

• Navman : N60i
• Navman : N20
• Navman : ICN 530
• Navman : N40i
• Navman : ICN 720
• Navman : F20
