With tilt swivel. For multimedia-monitors.

معلومات فنية

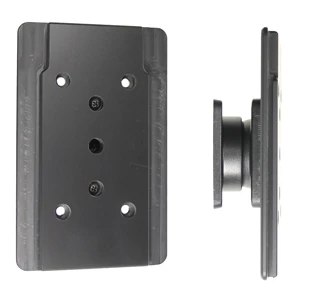

For installation of multimedia monitors in vehicles. The screen mount is placed onto a Brodit headrest mount. The mount comes with a tilt swivel so the monitor can be adjusted in order to avoid reflection. It’s easy to take the monitor with you when leaving the vehicle. The installation is quick and will not damage the interior of the vehicle.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

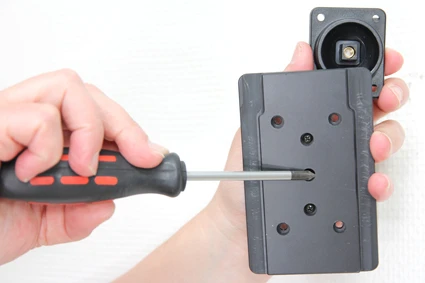

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

2. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws.

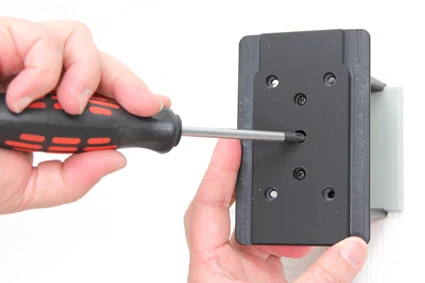

3. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw so the holder is firmly in place, but still can be adjusted.

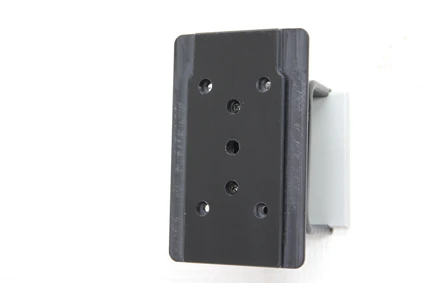

4. The holder is in place.

التوافق

• Nextbase : SDV97AM (7")
• Nextbase : SDV97AC (7")
• Nextbase : SDV97ACB (7")
• Nextbase : SDV97B (7")
• Nextbase : SDV685 Series
