Monitor Mount.

رقم الصنف : 213032

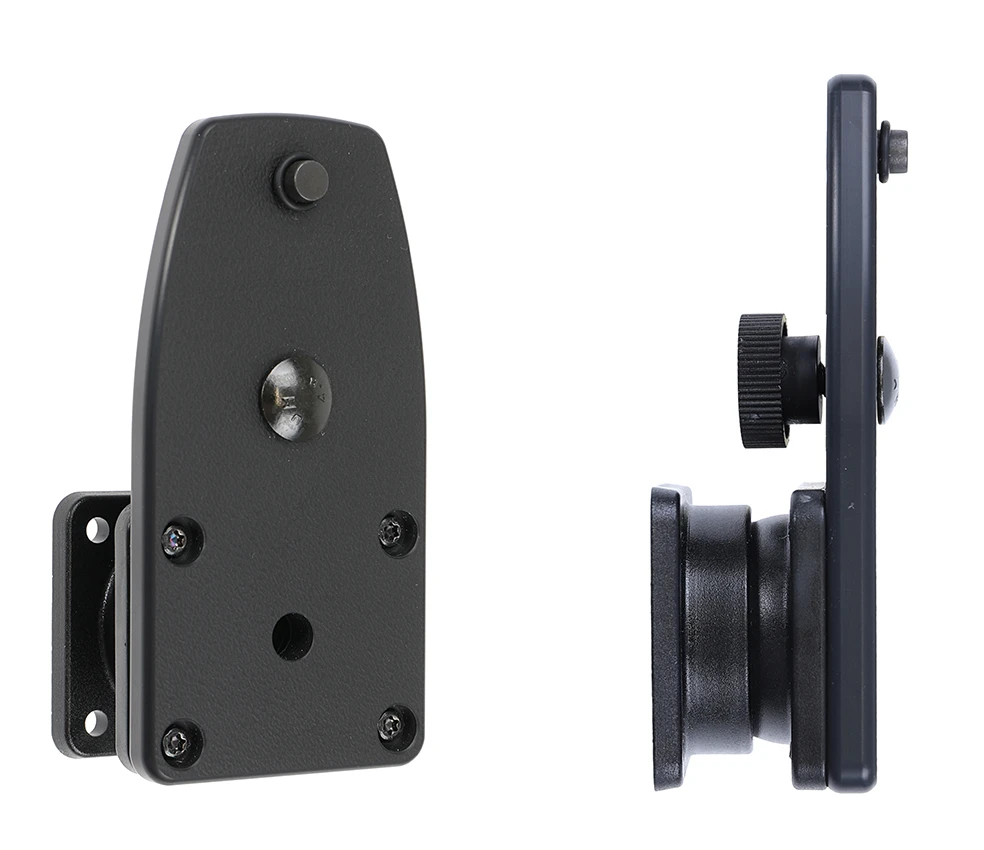

Mounting plate with Tilt Swivel, centered.

الكمية

إنتهى من المخزن

الوصف

Mounting plate with Tilt Swivel, centered.

معلومات فنية

The choice for an adjustabel screen angle. Fits monitors with a vertical slot in back. Install onto ProClip.

التعليمات

Attention! Please read all of the instructions anf look at the pictures before attaching the screen mount.

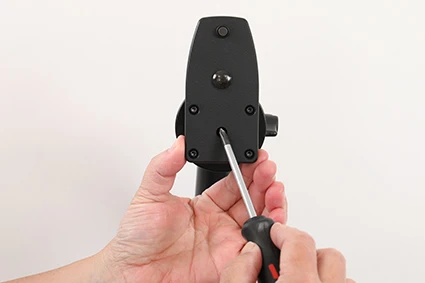

  • 1. Unscrew the screw on the lower part of the faceplate and remove it.
  • Technical Information Illustration

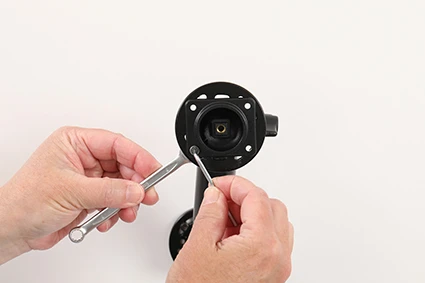

  • 2. Place the base plate of the Tilt Swivel onto the ProClip dash mount (or any other mount or flat surface). Screw the plate to the ProClip dash mount using the enclosed screws. (As long as you are screwing the plate to the ProClip you don't have to remove the cover of the adhesive tape)
  • Technical Information Illustration

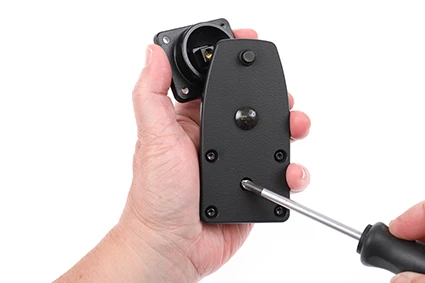

  • 3. Place the faceplate over the base plate and screw the pieces together. Adjust the faceplate to desired position and tighten the screw further. Note that the face plate will be harder/looser to tilt and swivel depending on how tight you screw on the screw.
  • Technical Information Illustration

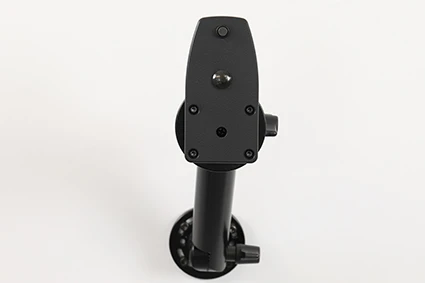

  • 4. The Navigation Screen Mount is in place. Place the screen onto the screen mount by sliding it downwards from above onto the nut in the center of the face plate. The rubber ring on the metal piece is to be OUTSIDE the groove on the back of the screen. Tighten the wheel on the back of the screen mount so the screen has a firm fit. The screen can be removed and you can take it with you when leaving the car.
  • Technical Information Illustration
