Holder with spring-lock
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

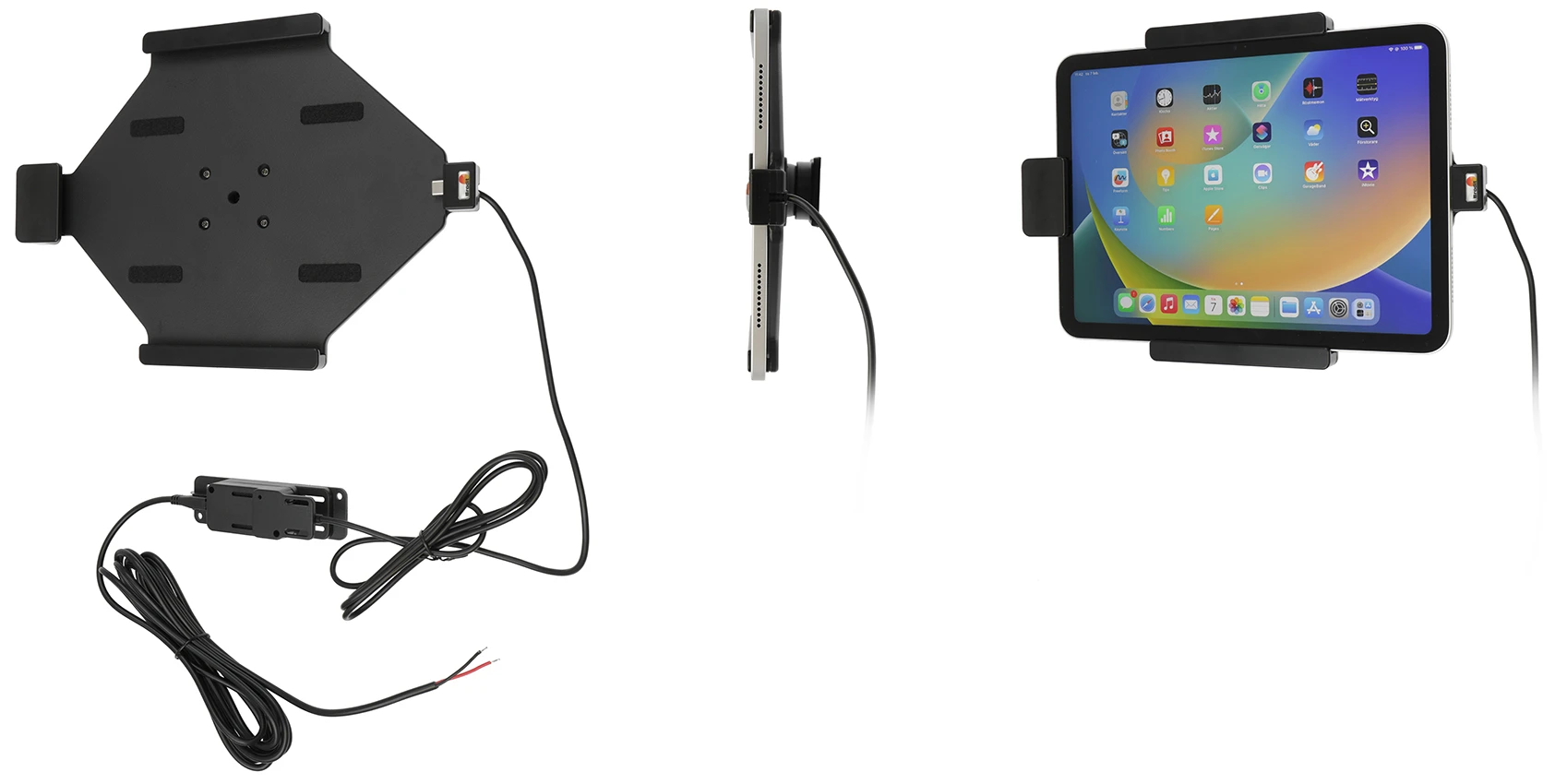

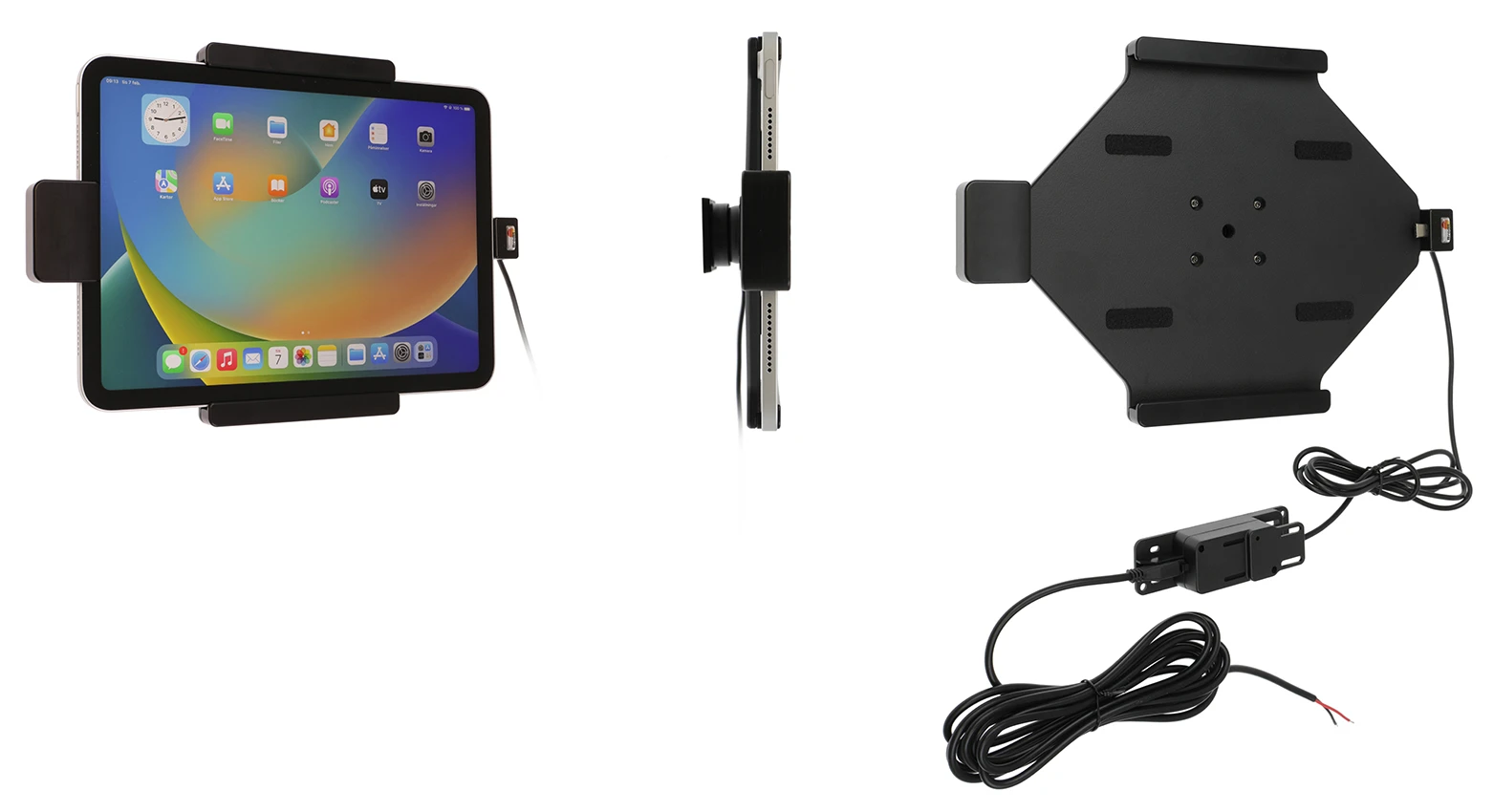

The holder with locking is to be used when you want to have your tablet extra firmly in place. The holder has a spring stud locking device, it keeps your device in a firm grip in the holder.
For fixed installation. The holder is to be connected inside the dashboard, providing an elegant installation without any cables hanging over the interior. The charging box has two USB ports: QC 3.0A + 2.4A. Connect the power cable with a 2A fuse. Professional installation recommended.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade ABS/Acetal plastic. Color: black. Made in Sweden.
An installation of a tablet onto a vehicle’s dashboard is always done on the customer’s own responsibility. Brodit recommends to use tablets on a Pedestal mount or a Brodit headrest mount.
دليل تركيب المنتج
رقم الخطوة 1

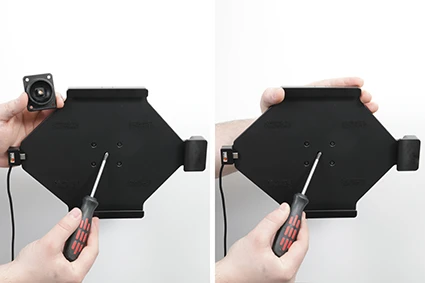

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Screw the holder onto the attaching plate. Tighten the screw so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 2

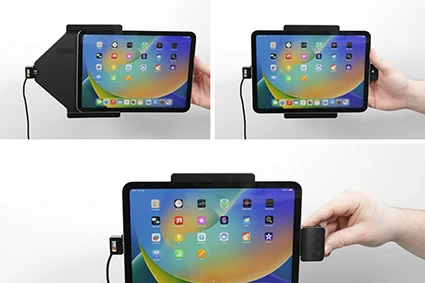

Slide the device sideways carefully into the holder. Press the spring stud locking device sideways onto the right part of the holder.
رقم الخطوة 3

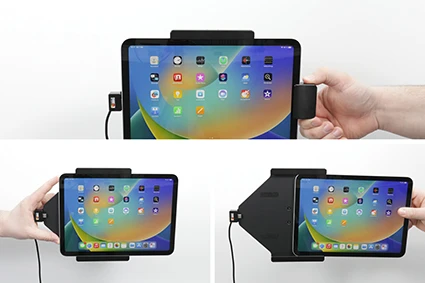

Remove the spring stud locking device by slidning it sideways away from the holder. Slide the device sideways carefully out of the holder.
رقم الخطوة 4

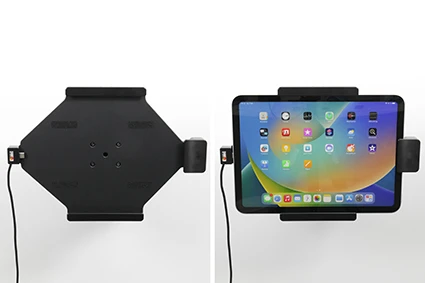

The holder is in place. Switch between portrait and landscape mode by turning the holder into desired position.
