Holder with spring-lock

رقم الصنف : 747310

For fixed installation. With tilt swivel. 2A charging. 12/24V. With Easy-switching system. Charging via pogo pins. Fits for device with or without handstrap. Module Upgrade Cradle.

Zebra TC78

Zebra TC73

more...

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

For fixed installation. With tilt swivel. 2A charging. 12/24V. With Easy-switching system. Charging via pogo pins. Fits for device with or without handstrap. Module Upgrade Cradle.

معلومات فنية

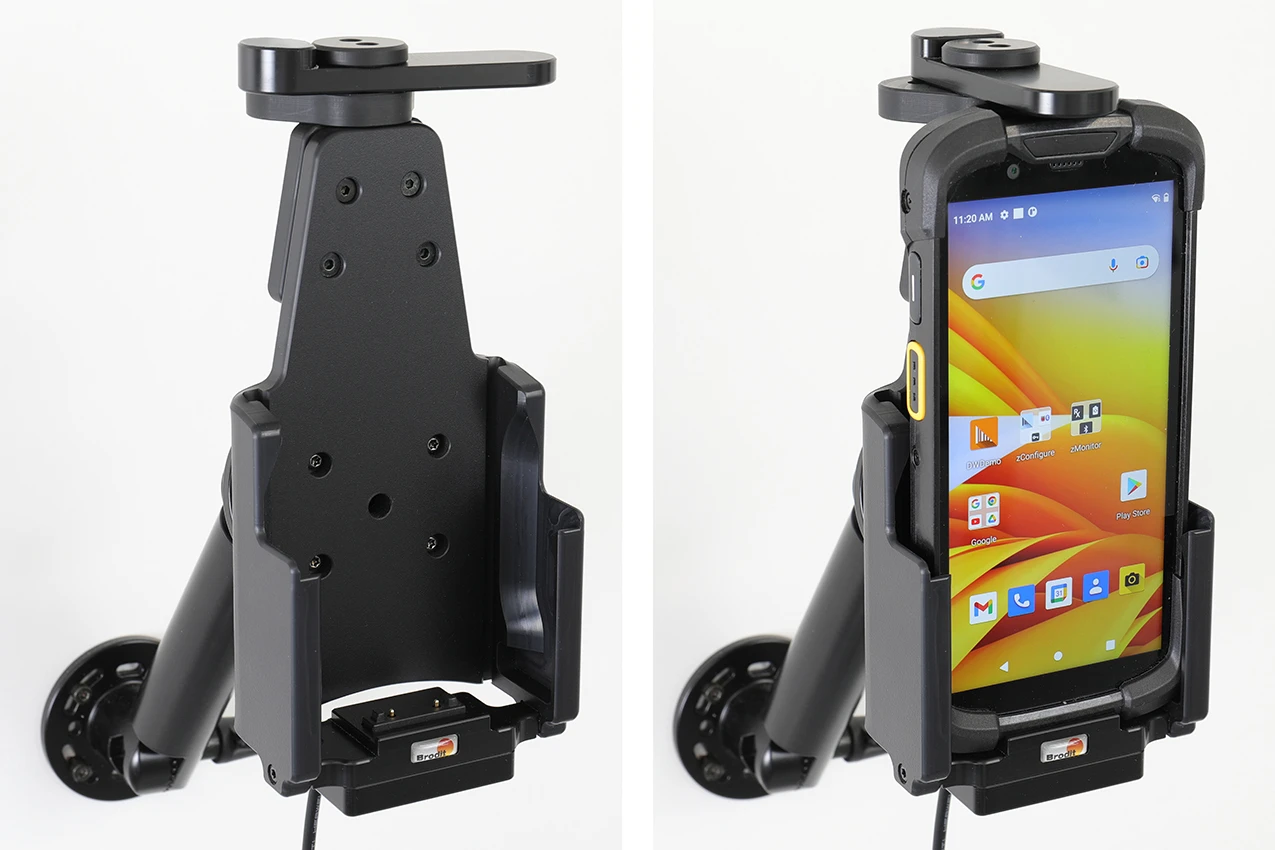

This holder is to be used when you want to have your Zebra device extra securely in place and still have it easy accessable. Safe and convenient! The holder is made of extra strong plastic and is equipped with a spring stud locking device.

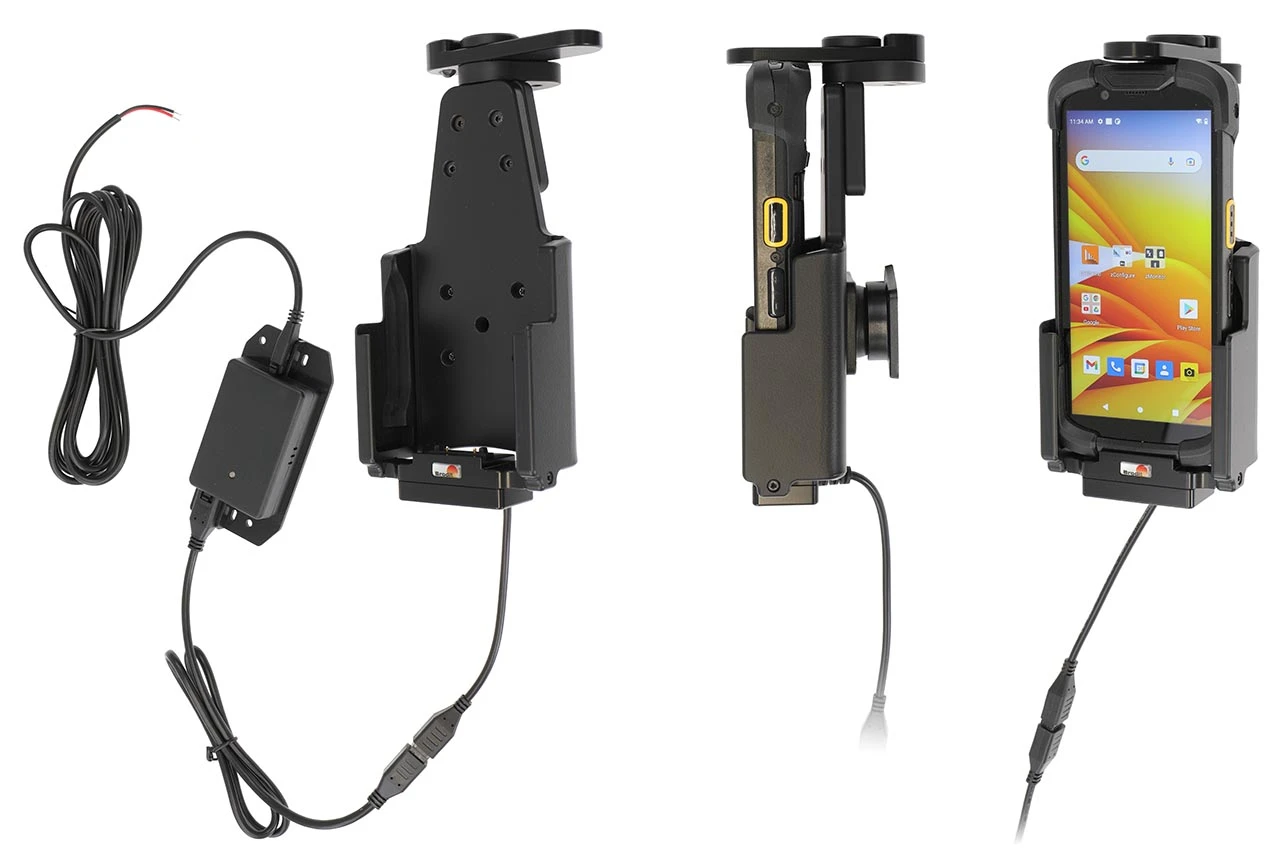

An active holder which is to be connected inside the dashboard, this gives a discreet, neat installation without cables hanging over the interior! You can choose to use the holder as an active holder for charging of your device only, or to connect an adapter to the Molex connector for additional features. Then you can use the holder also for power supply of your own solutions (can not be used for data communication or audio connection). 12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 2 A charger. Professional installation recommended.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Connect the power cable with a 3A fuse. Professional installation recommended. Attach onto a ProClip Mounting Platform or a Pedestal Mount.

Easy-switching system:

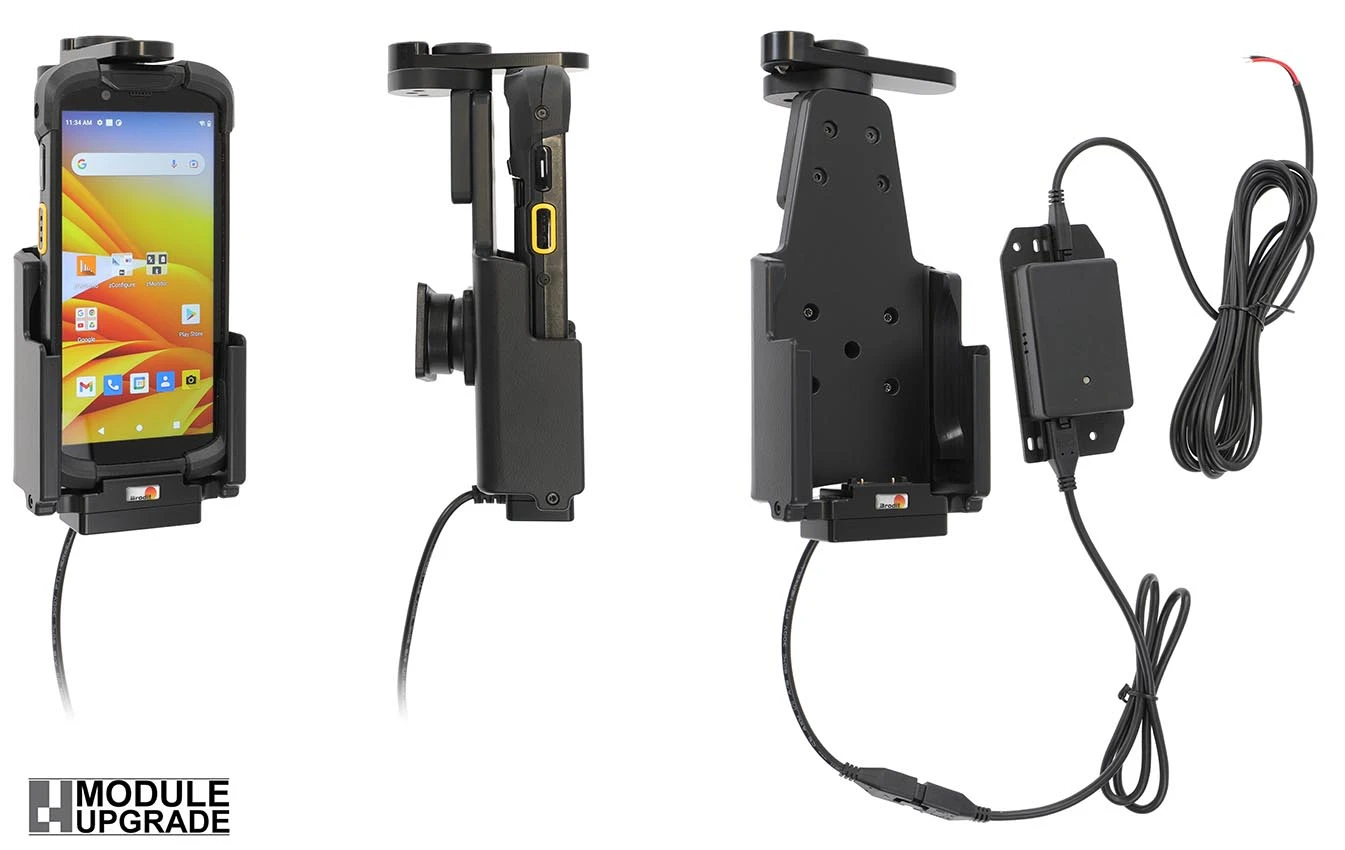

The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw so the holder is firmly in place, but still can be adjusted.

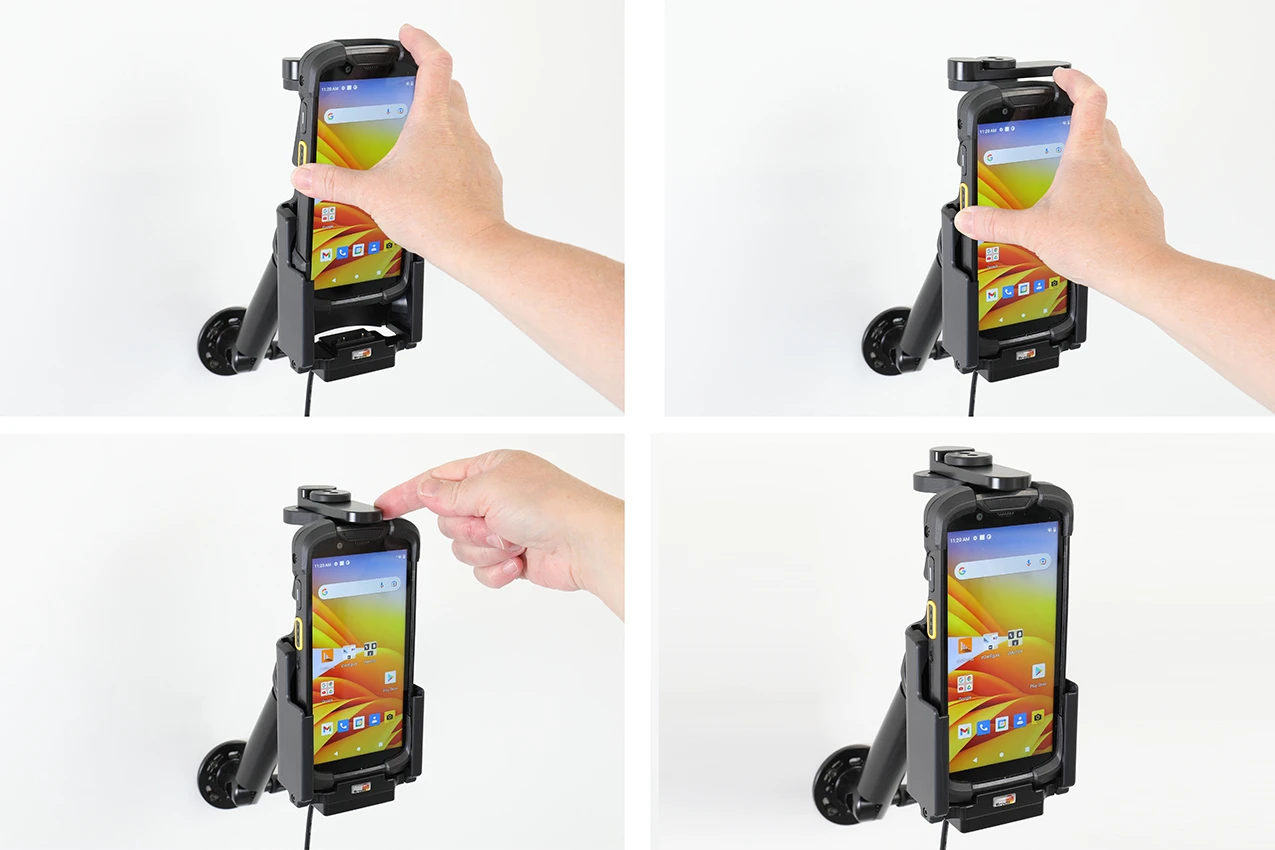

2. To place the device in the holder: Place the device over the holder and slide it straight downward into the holder. Turn the swiveling top support sideways in order to "lock" the device in place in the holder.

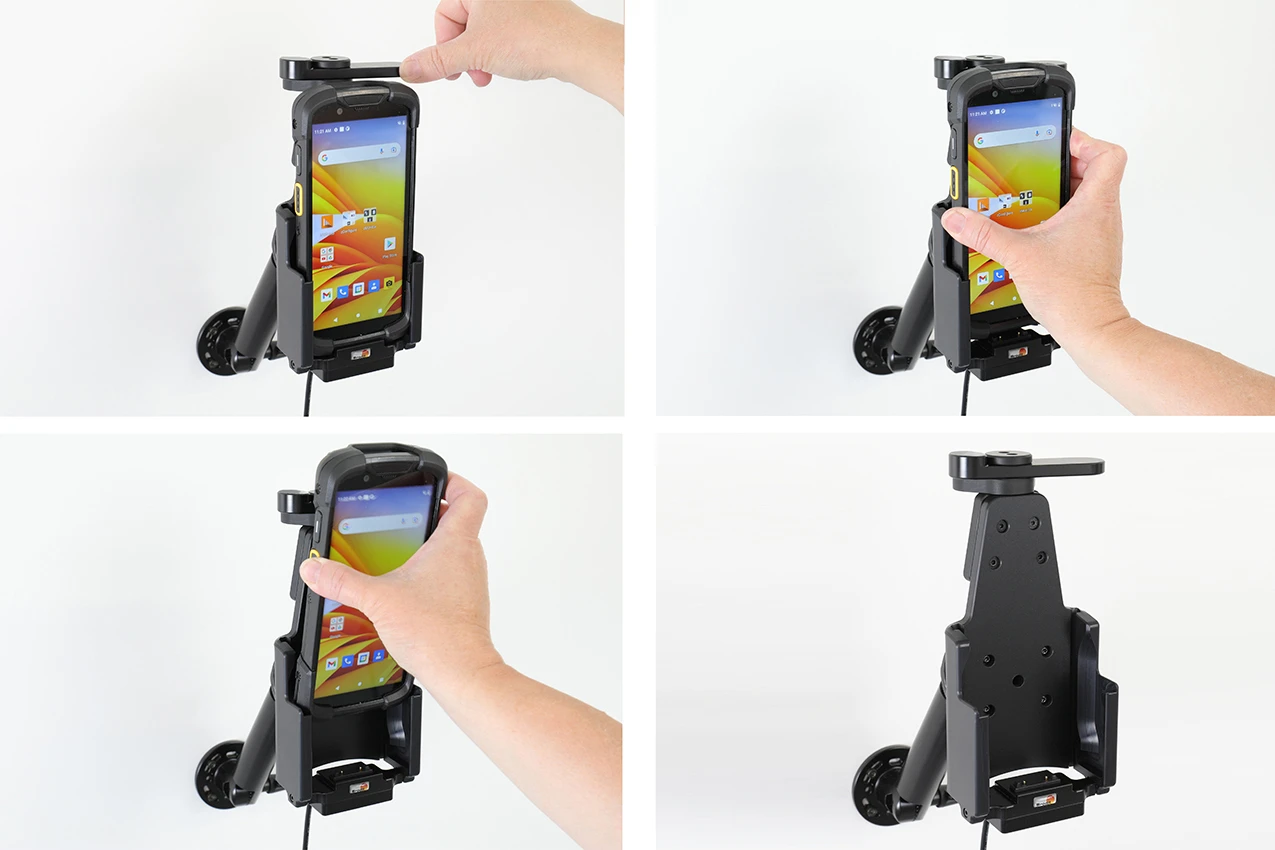

3. To remove the device from the holder: Turn the swiveling top support sideways in order to set the device free. Lift the device straight upward, out from the holder.

4. The holder is in place.

التوافق

Zebra : TC78
Zebra : TC73
