Holder with key-lock
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

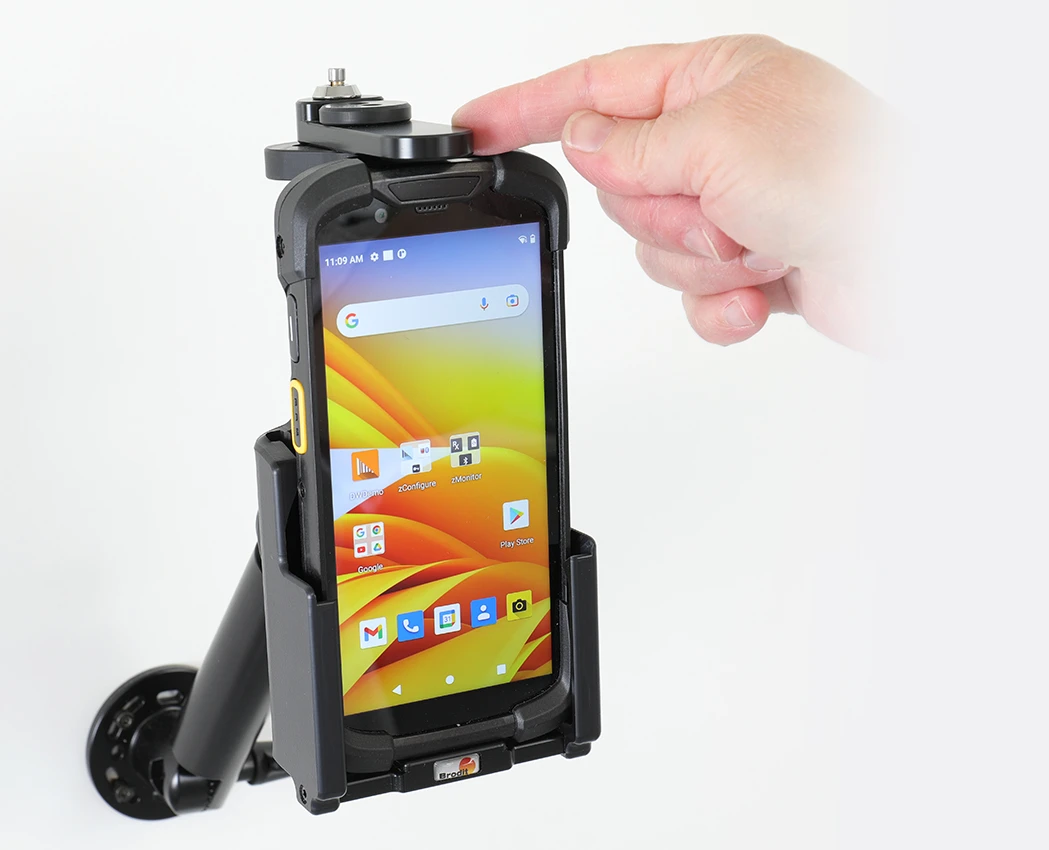

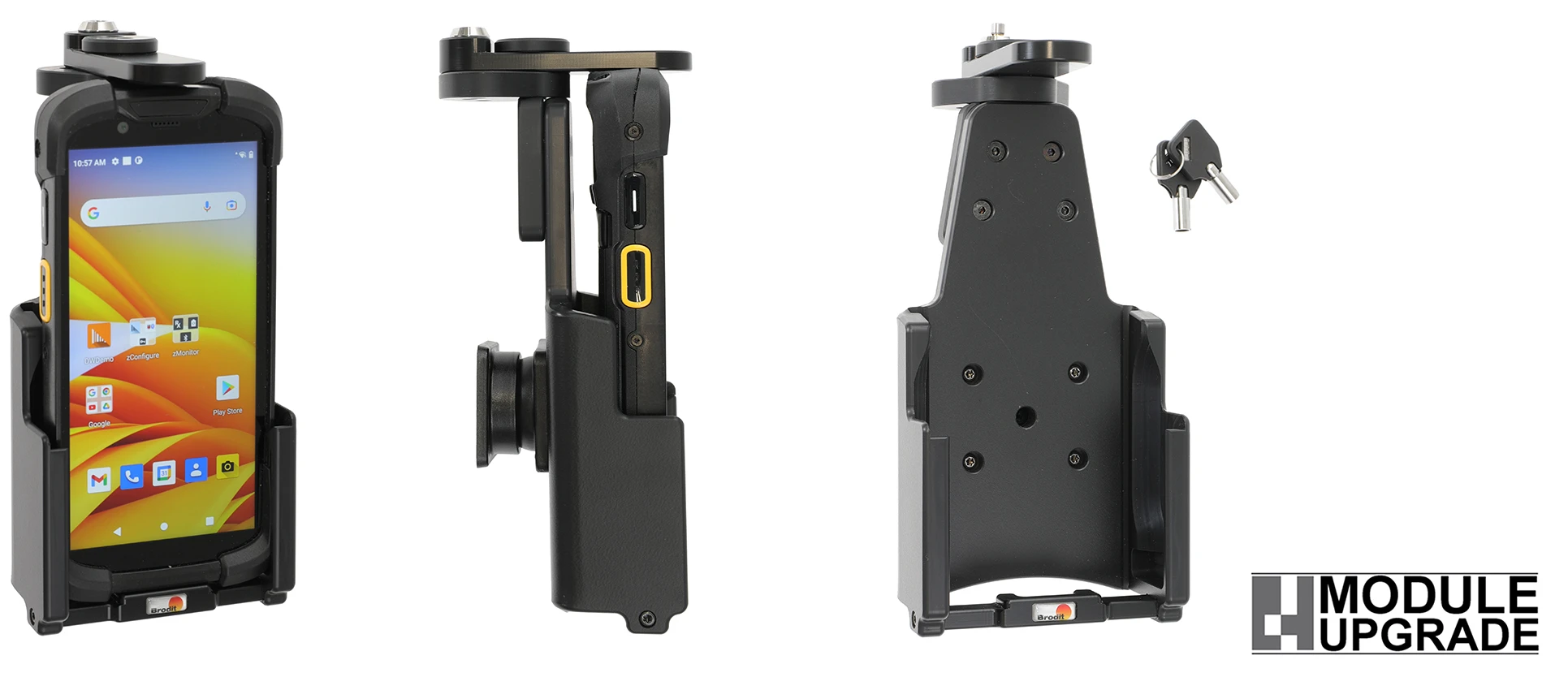

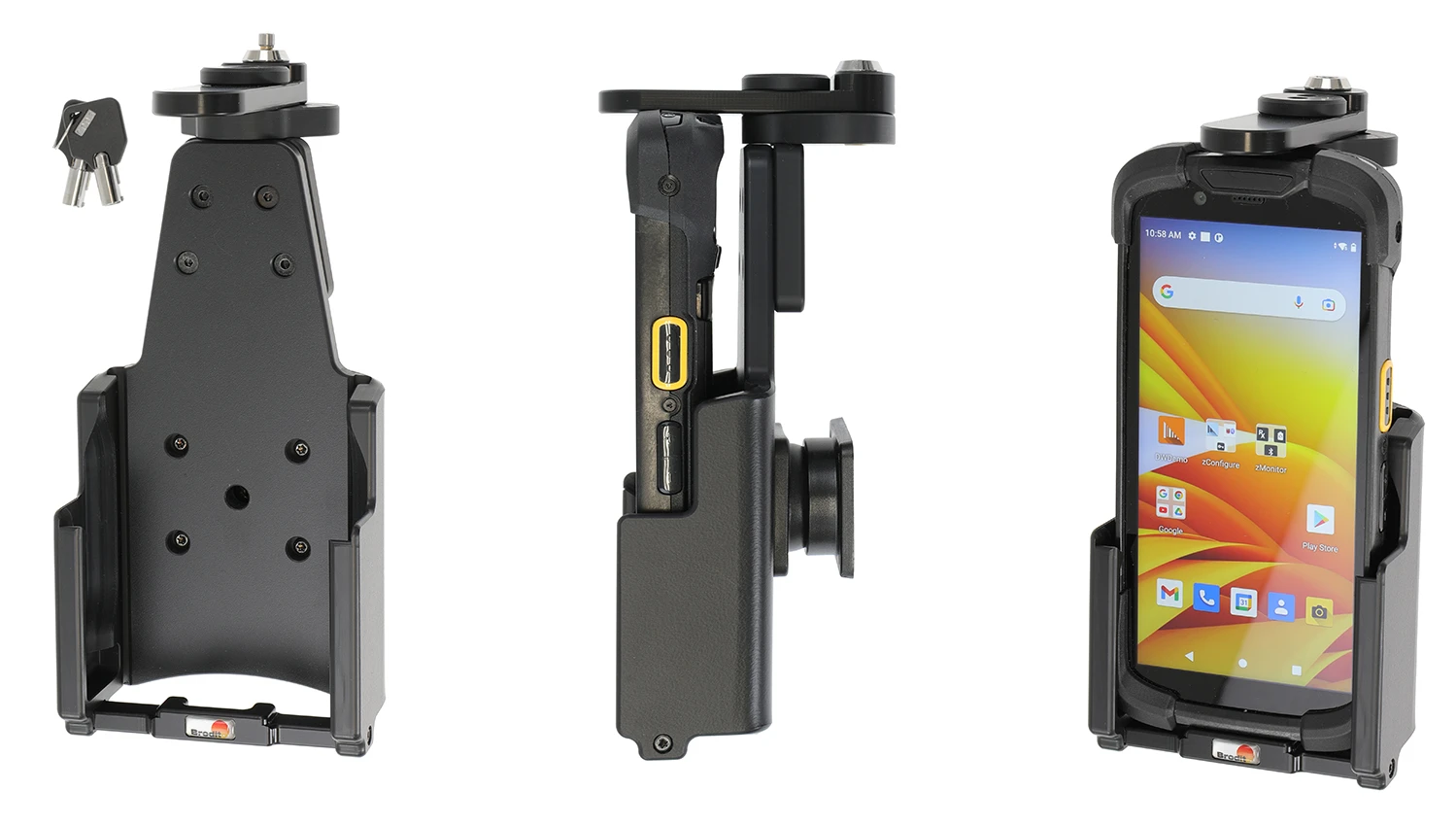

This holder is to be used when you will secure your device and still have it easy accessable. Perfect for use in stores, at exhibitions and any place where you want to use your device without having it easy removable. In order to remove the devicefrom the holder you need the key or a certain amount of violence is required. The holder includes a lock and two keys.
This is a Module Upgrade Cradle, this means that you can upgrade or replace features by using some of the following modules:
Item no. 216304 Charging module, with cig-plug and Easy-switching system.
Item no. 216305 Charging module, for fixed installation with Easy-switching system.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount or an ProClip mounting platform.
دليل تركيب المنتج
رقم الخطوة 1

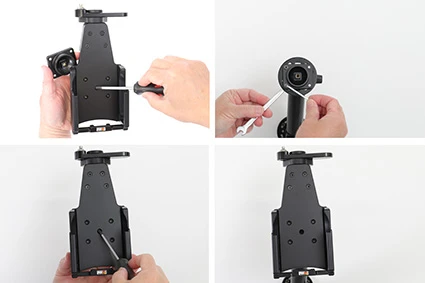

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 2

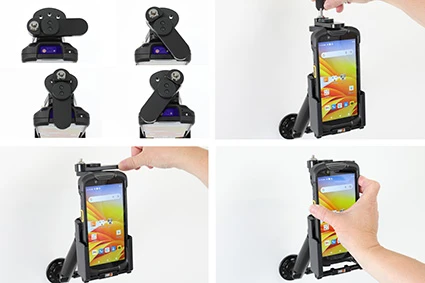

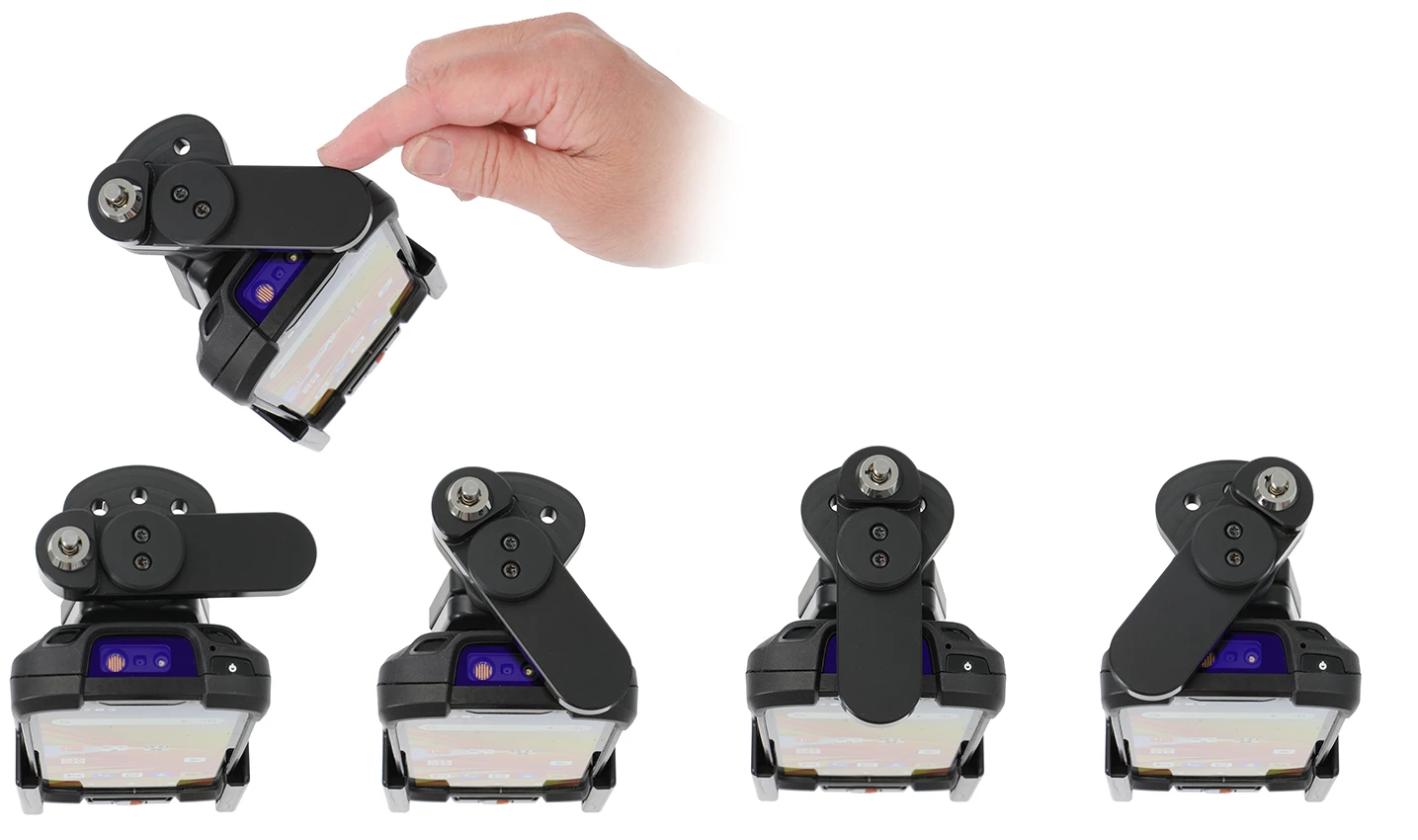

To place the device in the holder: Place the device over the holder and slide it straight downward into the holder. Turn the swiveling top support sideways in order to "lock" the device in place in the holder. Press the button to lock.
رقم الخطوة 3

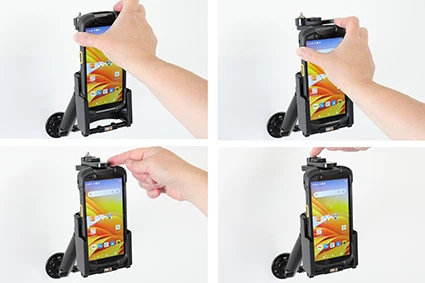

To remove the device from the holder: Use the enclosed key to open the lock. Turn the swiveling top support sideways in order to set the device free. Lift the device straight upward, out from the holder.
رقم الخطوة 4

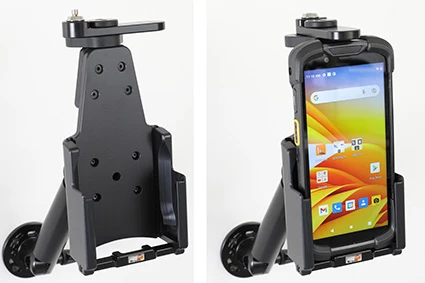

The holder is in place.
