Holder with key-lock
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

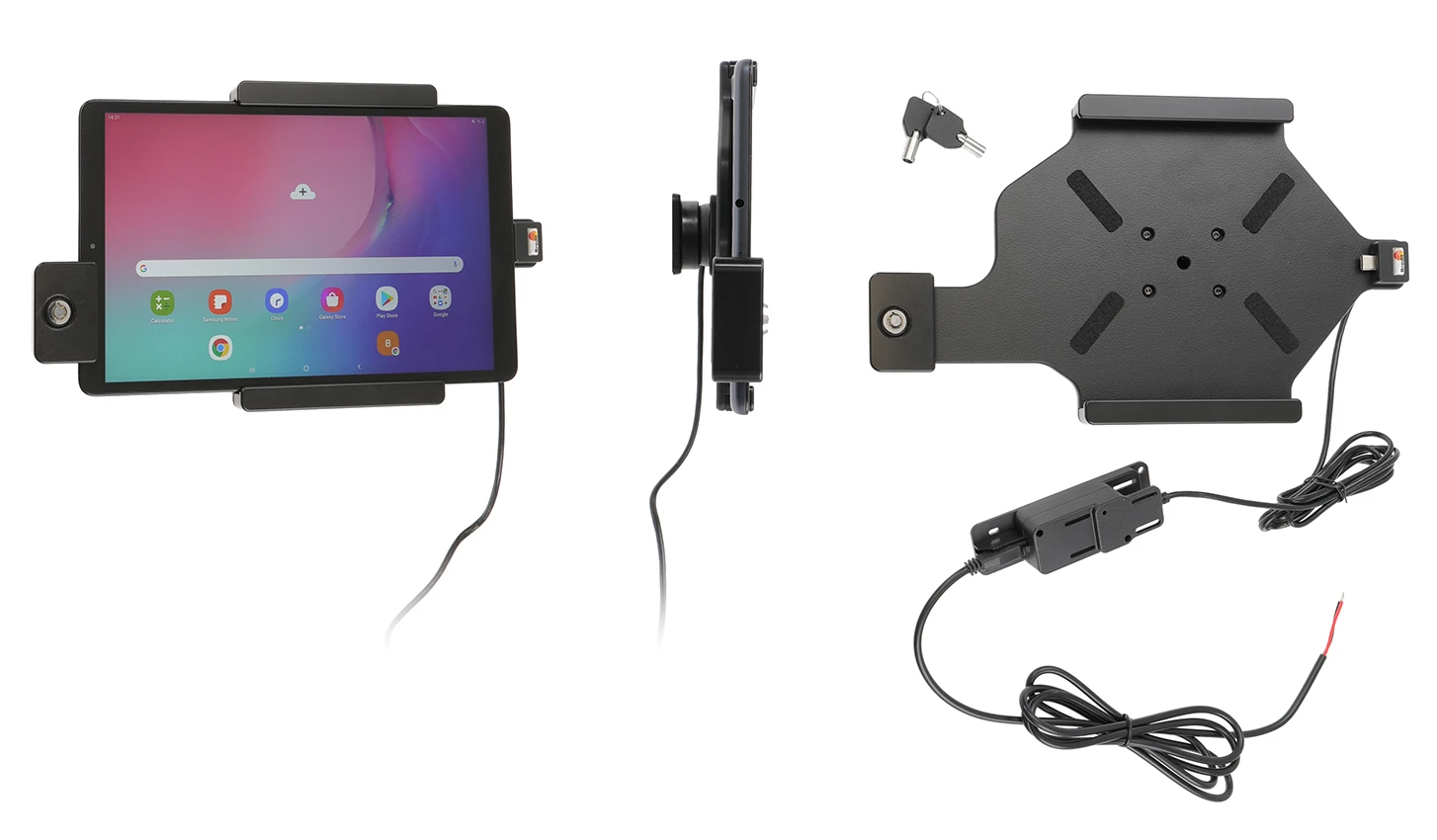

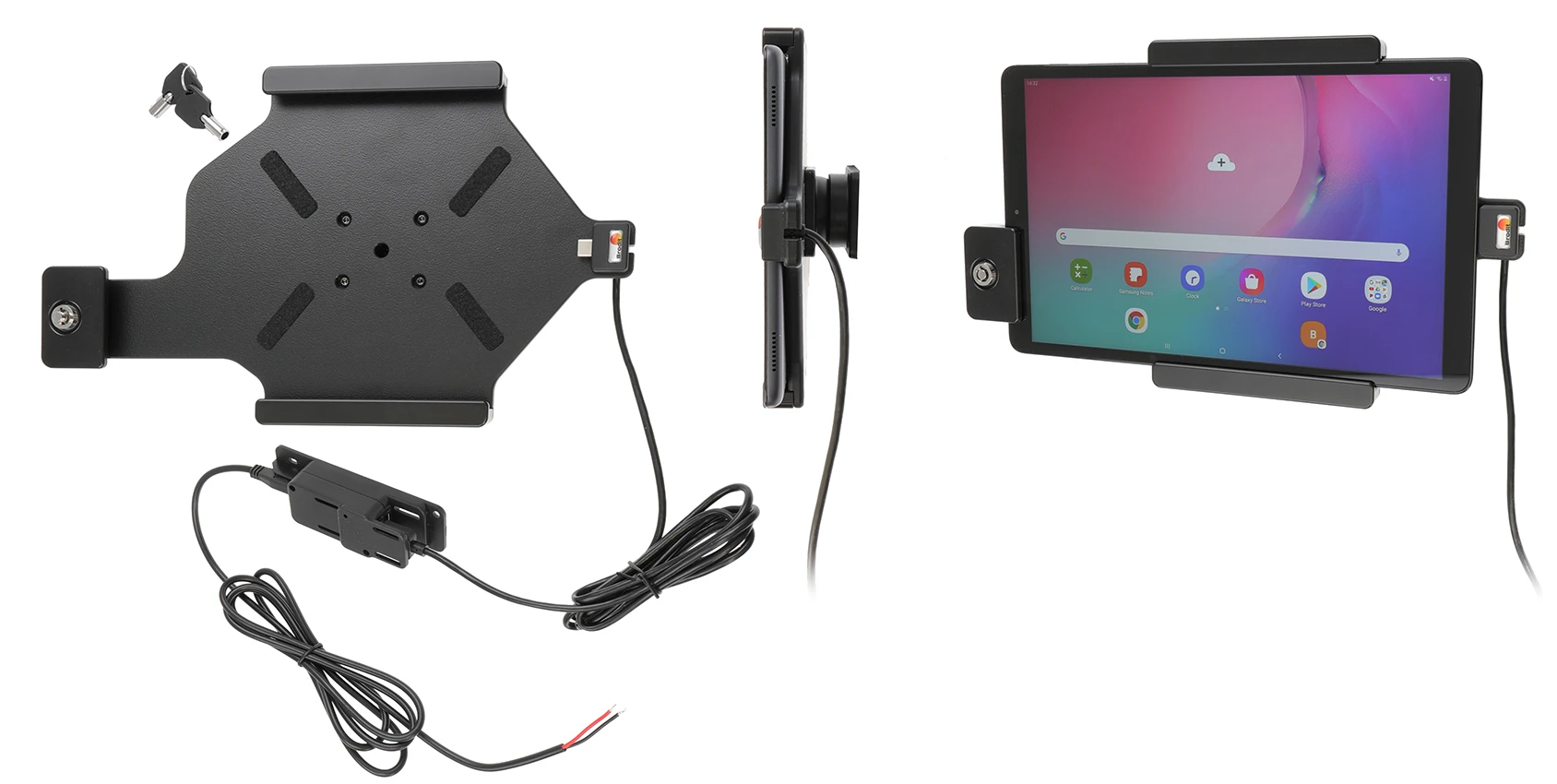

This holder is to be used when you want to secure your device and still have it easy accessable.
The active holder is to be connected inside the dashboard. It provides a discreet and neat installation without any cables hanging over the interior. Safe and convenient! 12/24 Volt. The product is E-approved. Connect the power cable with a 2 A fuse. 1 A charger. Charging via pogo plug. Professional installation recommended.
The holder is also perfect for use in stores, at exhibitions and any place where you want to use your devicw without having it easy removable. The holder is equipped with a lock. In order to remove the device from the holder you need the key, two keys are included. The holder is mounted onto a tilt swivel. This mean that you can adjust the angle in order to avoid light reflection on the screen. You can easily switch between portrait and landscape mode by turning the holder into desired position.
Tablets should not be installed onto a car's dashboard if blocking the view or key controls. ProClip is designed for use with smaller devices like smartphones. If you want to place a tablet onto a dashboard, each combination of tablet-car must be examined in detail by yourself in order to determine if such an installation is possible in the specific case. Brodit will not give any recommendations for such installations. An installation of a tablet onto a vehicle's dashboard is always done on the customer's own responsibility. Brodit recommends using tablets on the car's headrest, installed onto a Brodit headrest mount.
دليل تركيب المنتج
رقم الخطوة 1

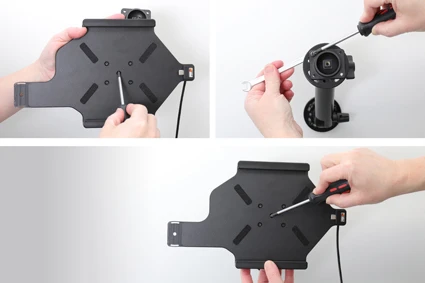

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Screw the holder onto the attaching plate. Tighten the screw so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 2

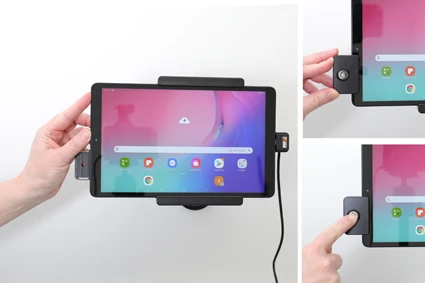

Slide the device sideways carefully into the holder until you feel that it is properly attached to the connector. Press the locking block sideways onto the left part of the holder. Press the button to lock.
رقم الخطوة 3

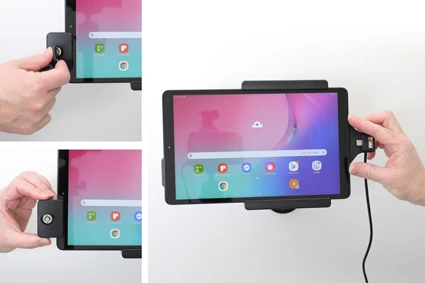

Open the lock with the key. Remove the locking block by slidning it sideways away from the holder. Slide the device sideways carefully out of the holder.
رقم الخطوة 4

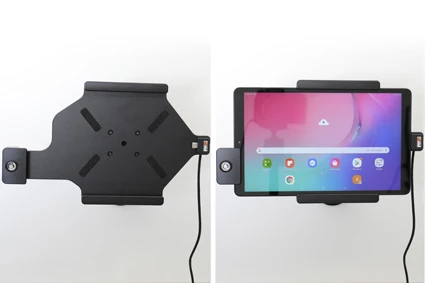

The holder is in place. Switch between portrait and landscape mode by turning the holder into desired position.
