Holder with key-lock
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

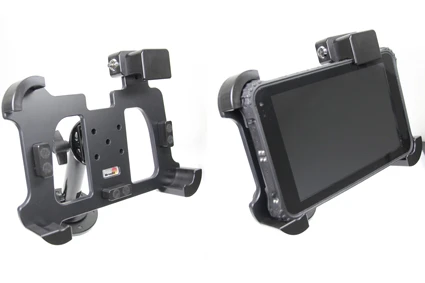

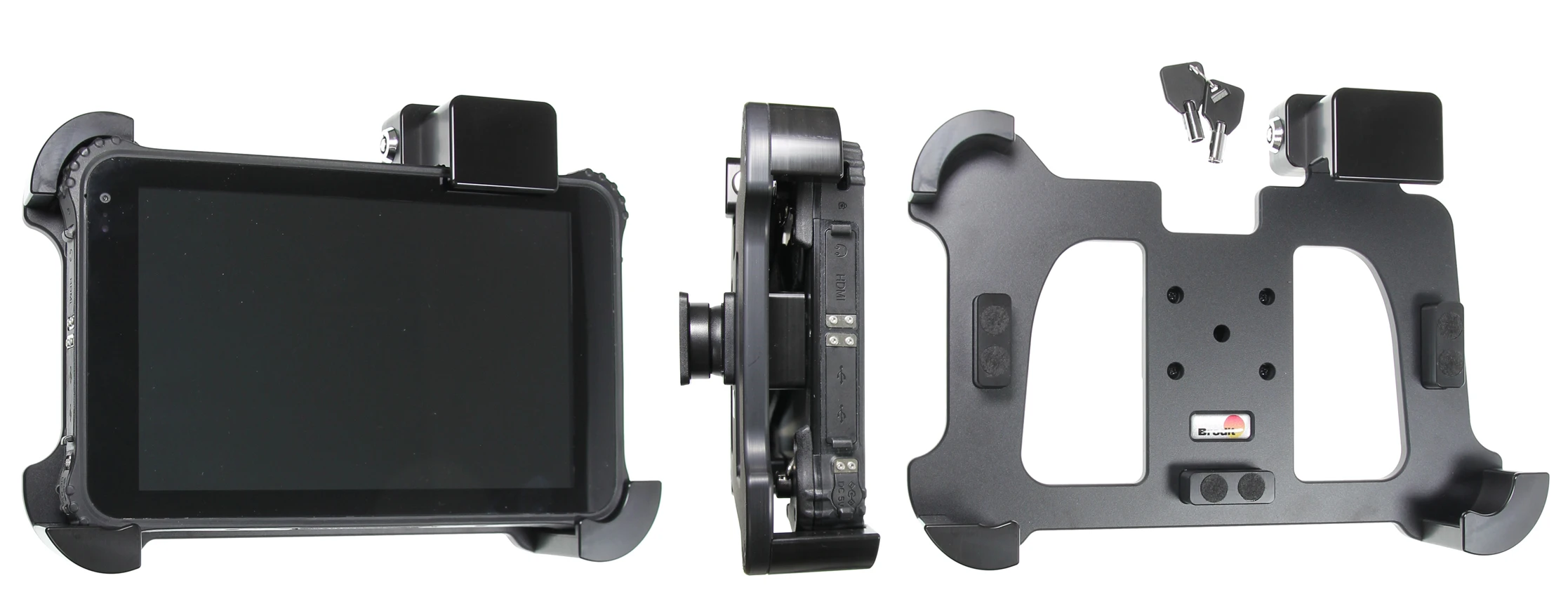

This holder is the perfect choice when you want to have your device securely locked in place and still easy accessible. The holder is made of extra strong plastic and is equipped with a lock. In order to remove the device from the holder you need a key (two keys are included). Attach the holder to any flat surface or a Pedestal Mount in a truck, distribution vehicle, warehouse etc. You have full access to the camera and all buttons and outlets when the device is in the holder.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 15° and swivels 360°. Mounting plate 42x50 mm with predrilled AMPS-holes. Made in Sweden. Made of high grade ABS and Acetal plastic. Color: Black. Devices should not be installed onto a vehicle's dashboard if blocking the view or key controls. An installation of a device in a vehicle is always done on the customer's own responsibility.
Dimensions: 243 x 192 x 70 mm (W x H x D mm)
Weight: 430 g
دليل تركيب المنتج
رقم الخطوة 1

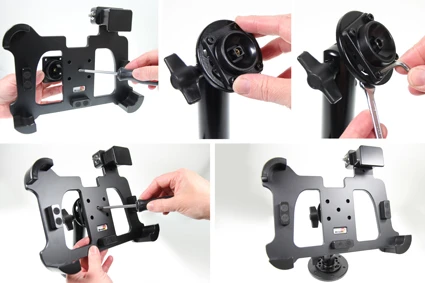

Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel and screw it into place. Tighten the screw firm at first, then loosen it a bit so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 2

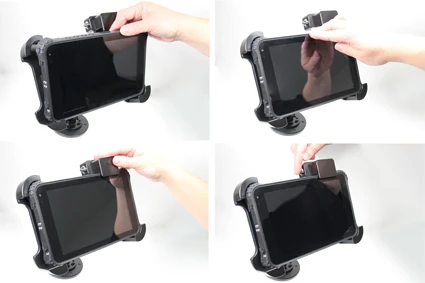

To place the device in the holder: Place the lower part of the device in the holder, then flip/press the upper part forward so it snaps into place in the holder. Push the lock downward and press the button to lock.
رقم الخطوة 3

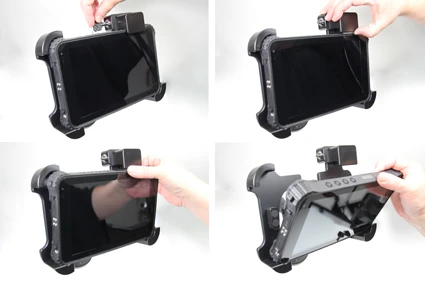

To remove the device from the holder: Use the enclosed key to open the lock. Slide the lock upward. Press upwards on the upper part of the holder, in the same time pull the upper part of the device out from the holder and then lift the device up and out from the holder.
رقم الخطوة 4
The holder is in place.
