Holder with key-lock

رقم الصنف : 216098

2 keys included. Can be used with Zebra XDIM module, Zebra article. no. 300140.

Zebra L10 XSLATE

Zebra L10 XPAD

more...

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

2 keys included. Can be used with Zebra XDIM module, Zebra article. no. 300140.

معلومات فنية

This holder is to be used when you want to secure your tablet and still have it easy accessable.

The holder is also perfect for use in stores, at exhibitions and any place where you want to use your tablet without having it easy removable. The holder is made of extra strong plastic and is equipped with a lock. In order to remove the tablet from the holder you need the key, two keys are included.

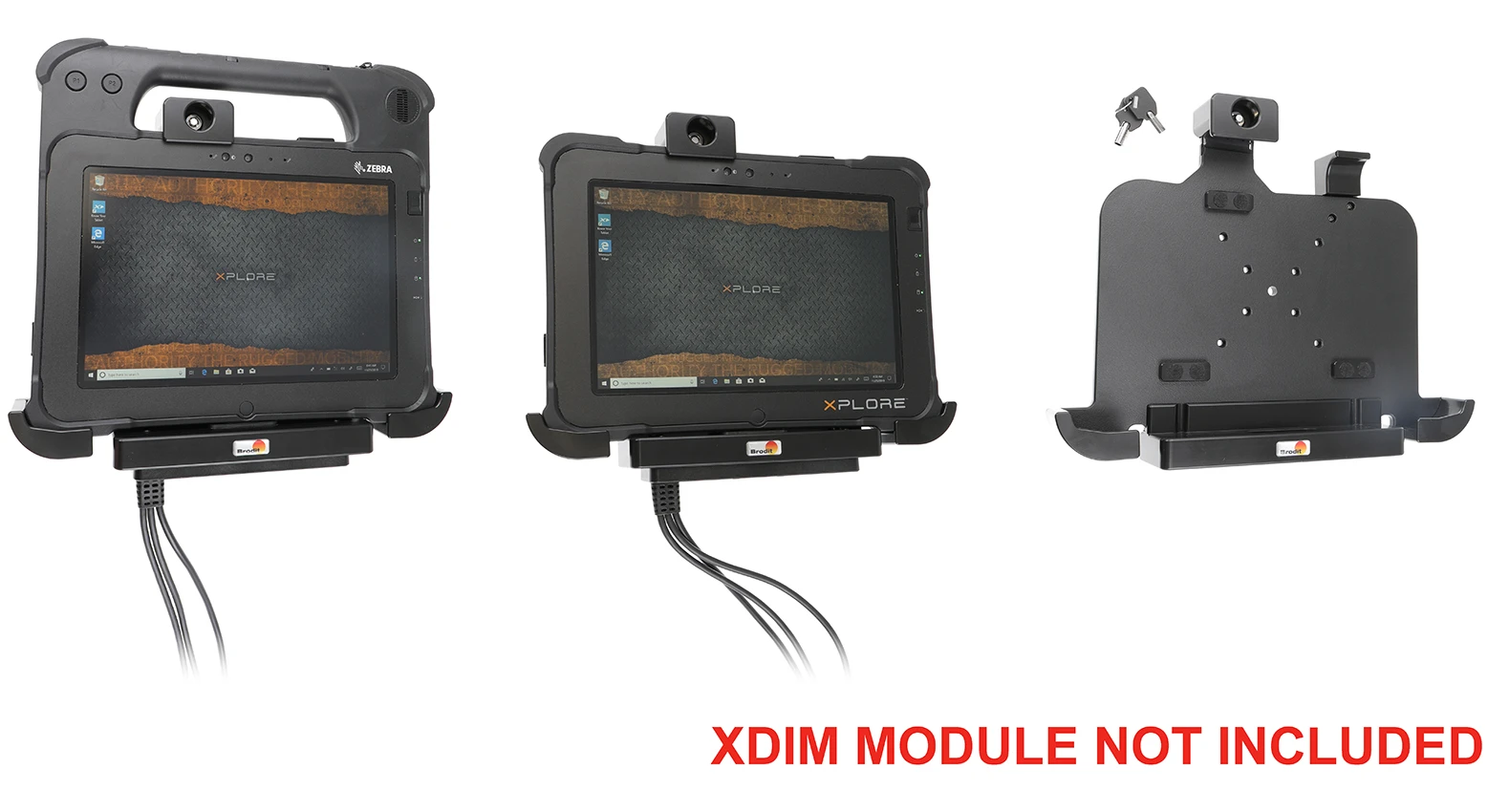

Zebra XDIM module not included. Zebra XDIM module article. no. 300140.

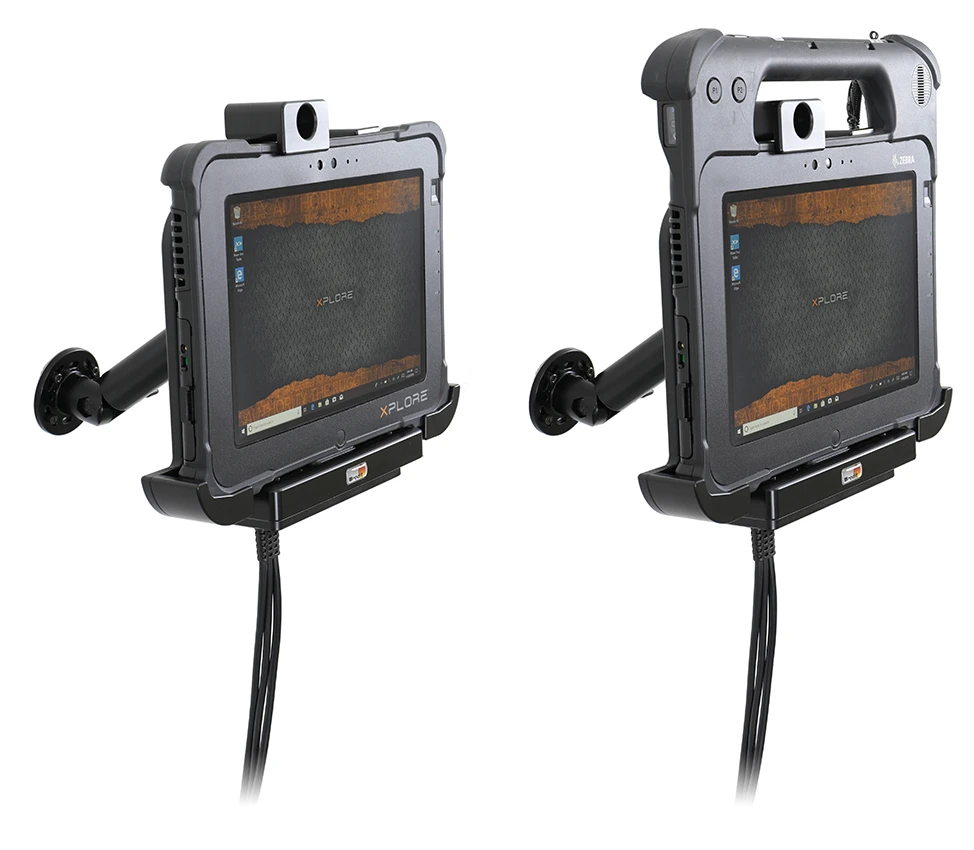

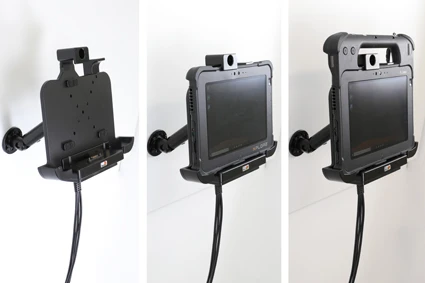

Attach the holder to any flat surface or a Pedestal Mount in a truck, distribution vehicle, warehouse etc. Predrilled AMPS and VESA standard holes. You have full access to the camera and all buttons and outlets when the device is in the holder.

Made in Sweden. Made of high grade ABS and Acetal plastic. Color: Black. Devices should not be installed onto a vehicle's dashboard if blocking the view or key controls. An installation of a device in a vehicle is always done on the customer's own responsibility.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

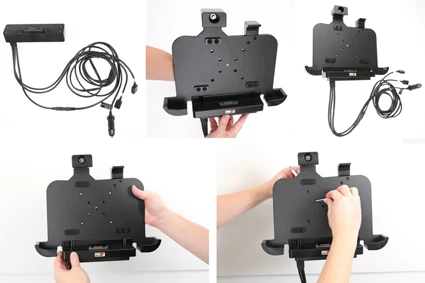

1. Place the holder onto the desired position. Screw the holder into place with the enclosed screws.

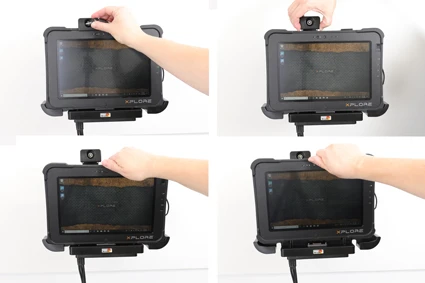

2. To place the device in the holder: Place the lower part of the device in the holder, then flip/press the upper part forwards so it snaps into place in the holder. Push the lock downwards and press the button to lock.

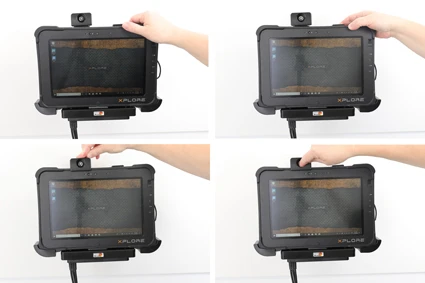

3. To remove the device from the holder: Use the enclosed key to open the lock. Slide the locks upwards. Press upwards on the upper part of the holder, in the same time pull the upper part of the device out from the holder and then lift the device up and out from the holder.

4. The holder is in place.

التوافق

Zebra : L10 XSLATE
Zebra : L10 XPAD
Xplore : L10 XPAD
Xplore : L10 XSLATE
