Holder for Cable Attachment
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

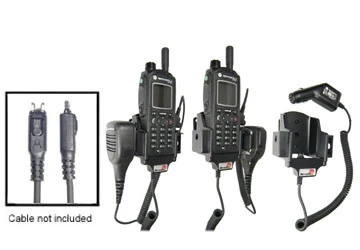

Holder with cable plug attachment. To be used with Motorolas original cable The cable is easy to attach to the holder, and then the cable connects to the radio automatically when you put your unit in the holder so you do not have to connect it manually each time. (Cable not included).
دليل تركيب المنتج
رقم الخطوة 1

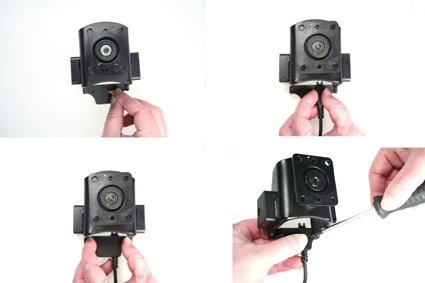

Installation of cable: Place the holder with the backside upwards. Peel off the adhesive tape cover on the holder. Place the connector into the lower part of the holder. Place the back piece over the connector, make sure the cable is in the correct position. Screw the back piece into place using the removed screws. The cable is in place.
رقم الخطوة 2

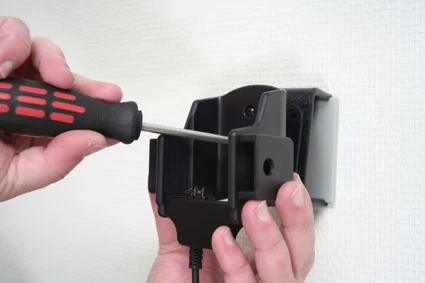

Installation of holder: Loosen the screw in the center of the holder so you can remove the attaching part on the back. Place the attaching part on desired position. Screw the attaching part into place with the enclosed screws.
رقم الخطوة 3

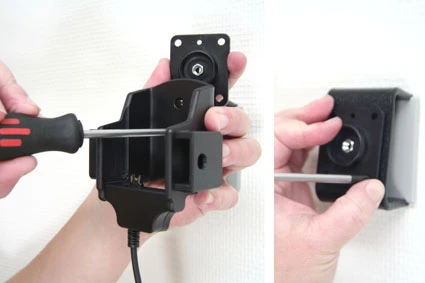

Place the holder over the attaching part. Screw the holder onto the attaching part.
رقم الخطوة 4

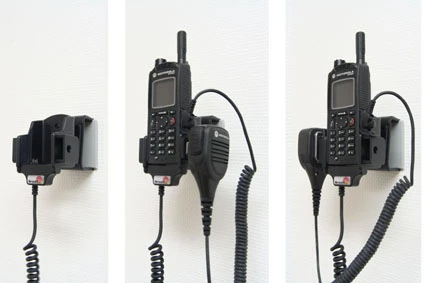

The holder in place, with cable in place.
