Angled. For multimedia-monitors with a vertical slot in back.

معلومات فنية

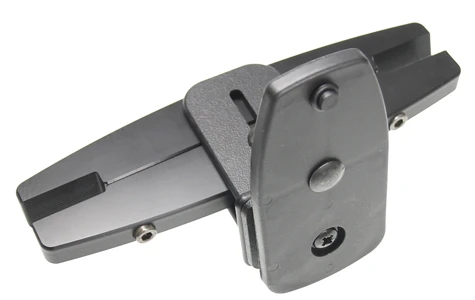

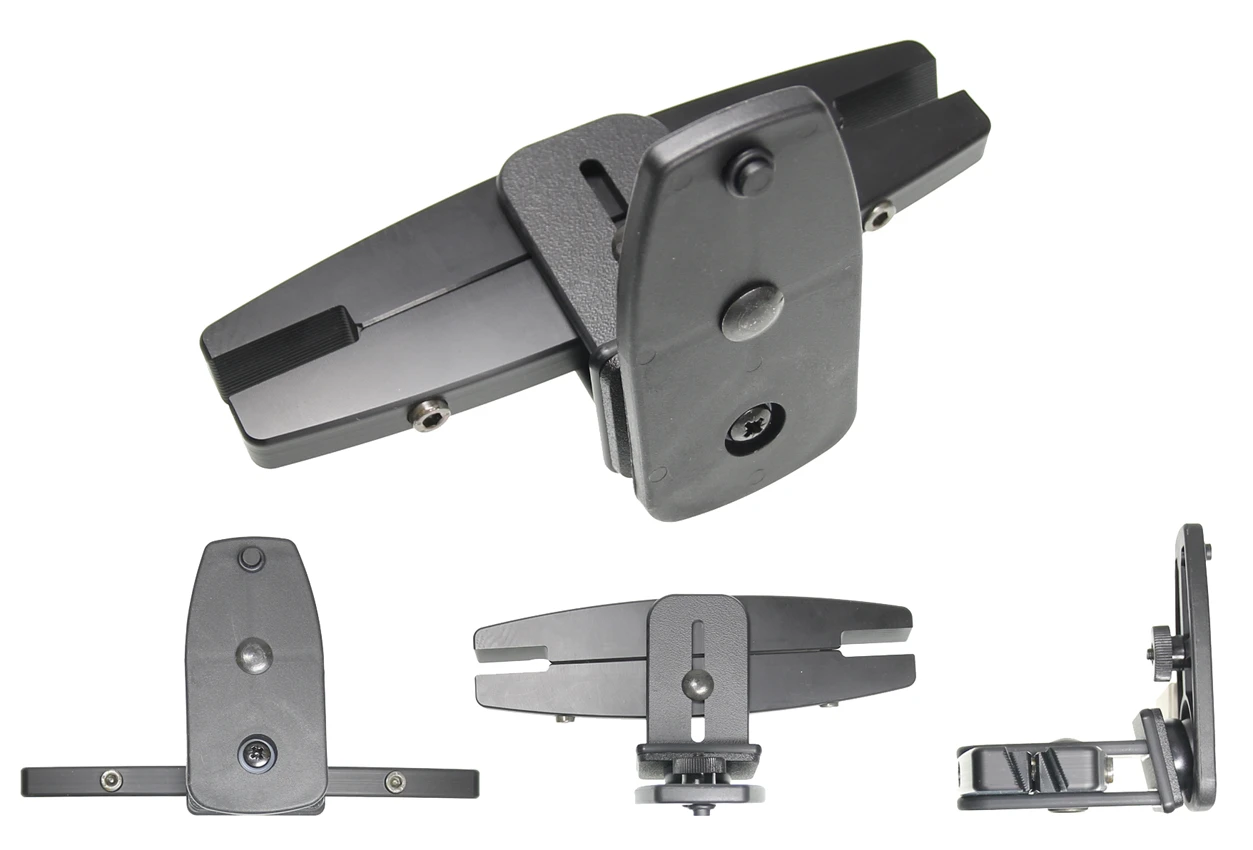

For installation of multimedia screens in vehicles. Fits screens with a vertical slot on the back side. The screen mount is placed onto a front seat’s head rest. It comes with a tilt swivel so the screen can be adjusted in order to avoid reflection. It’s easy to take the screen with you when leaving the vehicle. The installation is quick and will not damage the interior of the vehicle.

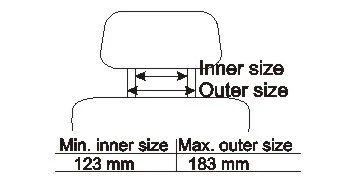

The head rest screen mount fits a number of vehicles, some of them are listed here. Are you missing a model? Measure the head rest in you vehicle, if its minimum inner size is 123 mm and maximum outer size is 183 mm, this product will fit your vehicle.

التعليمات

Attention! Read all instructions before attaching the head rest mount.

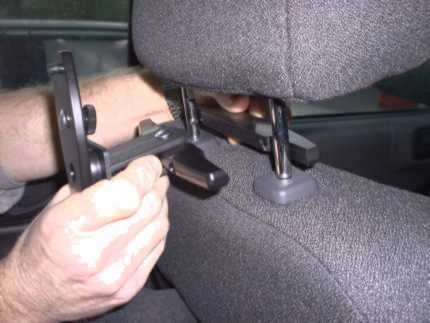

1. Remove the head rest. Place the head rest mount onto the head rest bars. The face plate shall be on the back side of the head rest. Put back the head rest.

If the head rest can not be removed, remove the two screws in the frontside of the head rest mount. Place one part of the head rest mount on each side of the head rest. The face plate is to be on the back side of the head rest. Put back the screws.

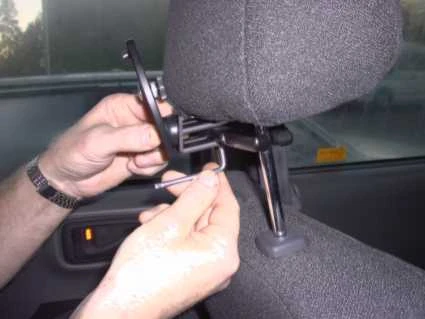

2. Tighten the screws on the frontside of the head rest mount, using the enclosed tool. Screw until the head rest mount is properly in place.

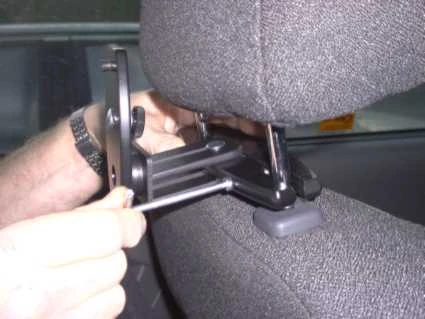

3. Pull up the head rest and the head rest mount. Press the face plate towards the head rest and tighten the screw in the buttom of the head rest mount. Adjust the head rest into desired position.

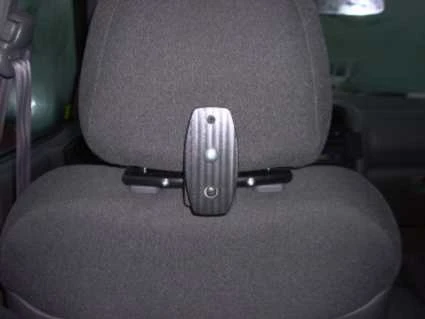

4. Adjust the face plate into desired position. Tighten the screw in the face plate. The head rest mount is in place.

التوافق

• BMW : 7-series F01, F02
• BMW : 7-series F01, F02
• BMW : 5-series F10, F11
• BMW : 5-series GT F07
• BMW : 5-series F10, F11
• BMW : 5-series GT F07
