Headrest mount with monitor mount
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
For installation of multimedia monitors in vehicles. Fits monitors with a vertical slot on the back side. The monitor mount is placed onto a front seat’s headrest. It comes with a tilt swivel so the monitor can be adjusted in order to avoid reflection. It’s easy to take the monitor with you when leaving the vehicle. The installation is quick and will not damage the interior of the vehicle.
The headrest monitor mount fits a number of vehicles, some of them are listed here. Are you missing a model? Measure the headrest in you vehicle, if its minimum inner size is 95 mm and maximum outer size is 155 mm, this product will fit your vehicle.
دليل تركيب المنتج
رقم الخطوة 1

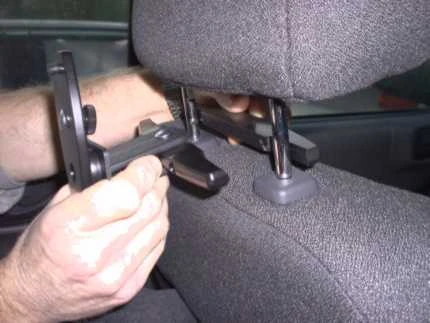

Remove the head rest. Place the head rest mount onto the head rest bars. The face plate shall be on the back side of the head rest. Put back the head rest. If the head rest can not be removed, remove the two screws in the frontside of the head rest mount. Place one part of the head rest mount on each side of the head rest. The face plate is to be on the back side of the head rest. Put back the screws.
رقم الخطوة 2

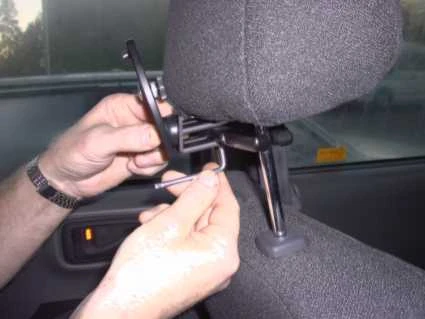

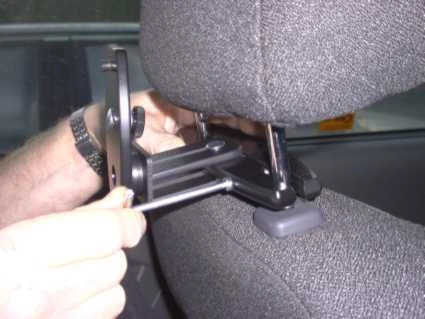

Tighten the screws on the frontside of the head rest mount, using the enclosed tool. Screw until the head rest mount is properly in place.
رقم الخطوة 3
Pull up the head rest and the head rest mount. Press the face plate towards the head rest and tighten the screw in the buttom of the head rest mount. Adjust the head rest into desired position.
رقم الخطوة 4

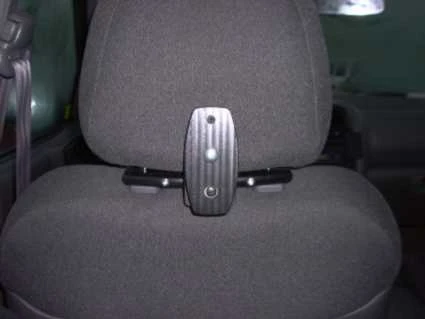

Adjust the face plate into desired position. Tighten the screw in the face plate. The head rest mount is in place.
