Headrest mount
7 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

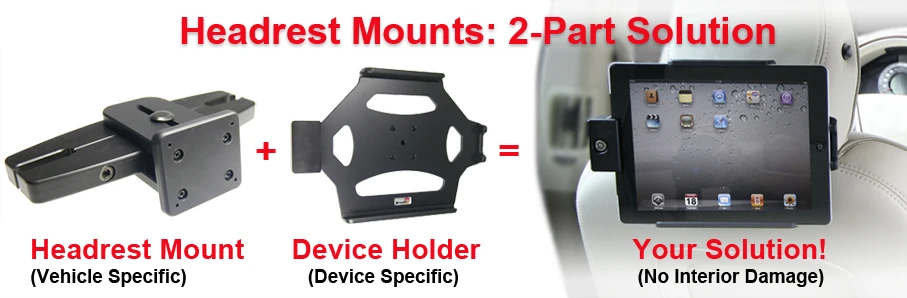

Note: Two-part solution!
Model specific two-part solution

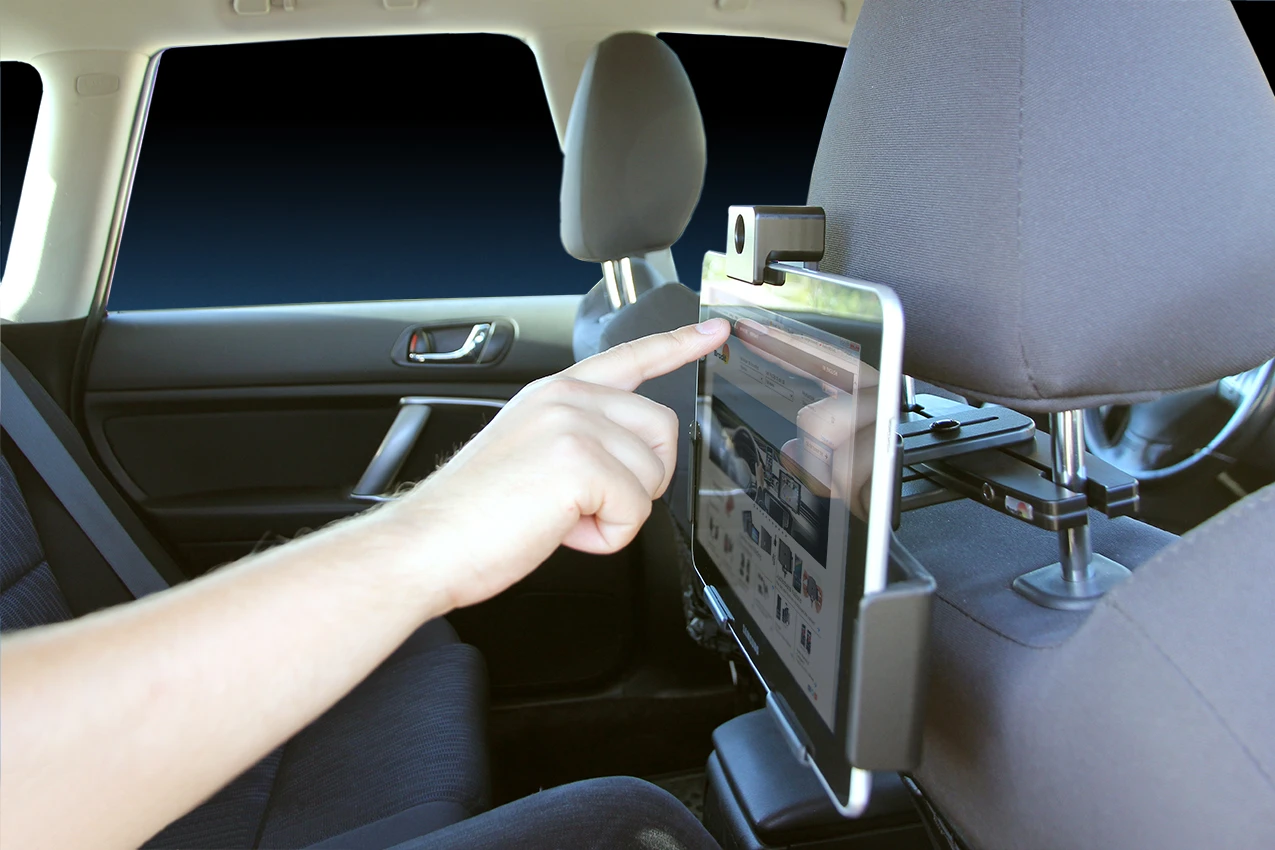

Brodit's headrest mount is car specific and works as a mounting platform. You will also need a holder for the unit you wish to mount. You can easily find holders to install by using the device search feature on our website. All Brodit's holders can be attached onto the headrest mount, but some holders for surfpads are crash tested and approved for use on Brodit's headrest mount (look for crash test labeling).

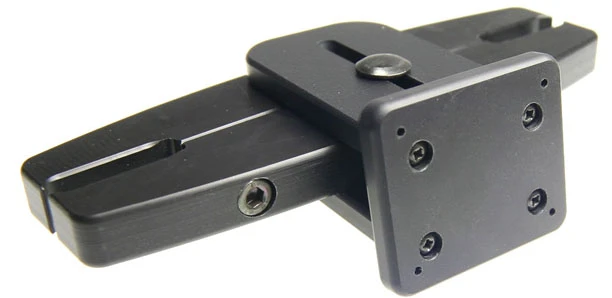

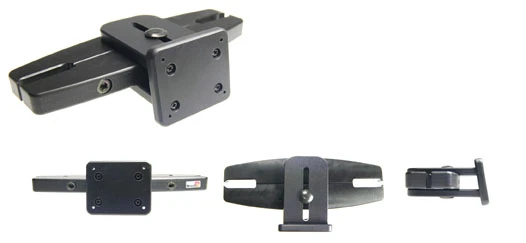

The headrest mount is to be placed onto the front seat's headrest. You can install it yourself in a couple of minutes, installation instructions are included. The face plate of the headrest mount has predrilled holes which makes the attachment of a holder easier.
Is your car missing?

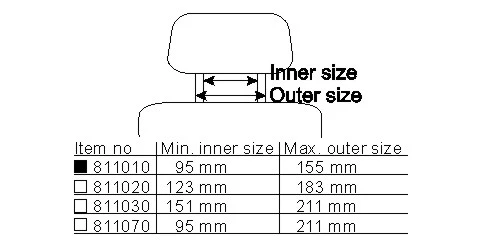

This headrest mount fits a number of vehicles, some of them are listed below. Are you missing a model? Measure the headrest in your vehicle, if it matches the measurements below this product will fit in your car.
Minimum inner size between headrest bars: 95 mm.
Maximum outer size between headrest bars: 155 mm.
دليل تركيب المنتج
رقم الخطوة 1

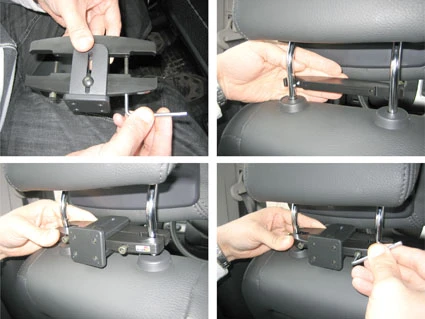

Use the enlcosed tool to remove the screws in the headrest mount so you get two parts. Place the back part of the headrest mount onto the front side of the headrest. Place the other part of the headrest, equipped with a mounting plate, onto the back part of the headrest mount so the screws match the holes. Tighten the two screws a little bit, just so the headrest mount is in place.
رقم الخطوة 2

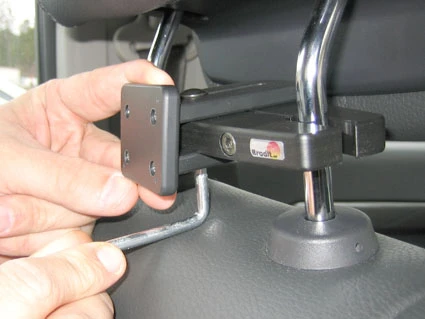

Use the other enclosed tool to loosen the screw underneath the headrest mount. Adjust the mounting plate into desired position. Tighten the screw underneath the headrest mount so the mounting plate is firmly in place.
رقم الخطوة 3

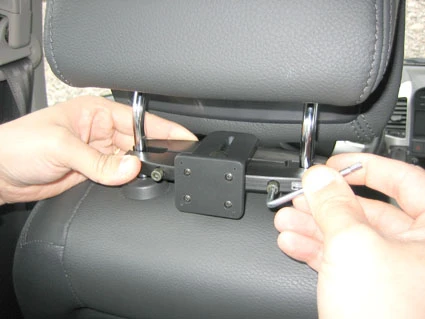

Adjust the height of the headrest mount into desired position. Tighten the screws so the headrest mount is firmly in place.
رقم الخطوة 4

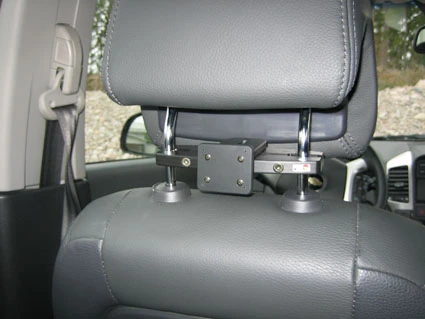

The headrest mount is in place.
