تفاصيل المنتج
Extra-strength ProClip
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.
دليل تركيب المنتج
رقم الخطوة 1
Mounting plate part
رقم الخطوة 2

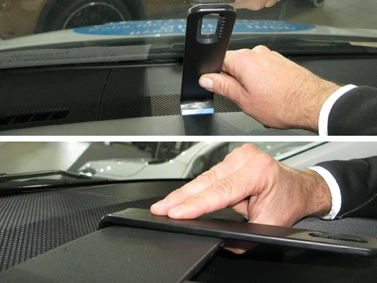

Use the enclosed alcohol pad to clean the area where the muont is to be installed. Peel off the cover of the adhesive tape of Part 1. Press the angled edge of Part 1 into the gap on top of the dashboard. Press Part 1 downward so the angled edge hooks under the front dashboard section.
رقم الخطوة 3

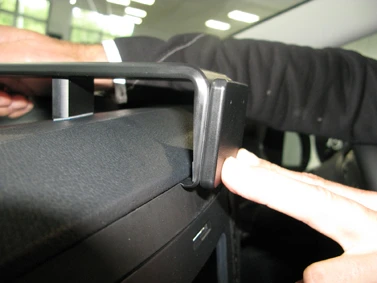

Peel off the cover of the adhesive tape of Part 2. Press the angled edge on the lower part of Part 2 into the gap between the top and center sections of the dashboard.
رقم الخطوة 4

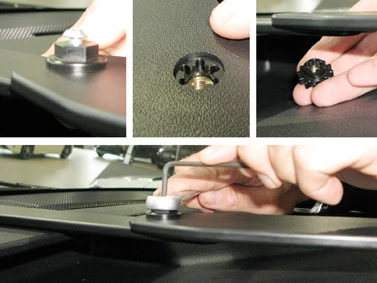

Align the hole in Part 2 over the hole in Part 1. Place the enclosed cogwheel into the hole from below. Place the enclosed nut over the cogwheel from above so it matches. Place the enclosed screw into place. Press the parts of the mount together until the mount reaches minimum length and hooks into place properly. Tighten the nut on the top of the mount so the parts are pulled together so the mount is firmly in place. Tighten the Allen screw with the enclosed key in order to fixate the position.
رقم الخطوة 5

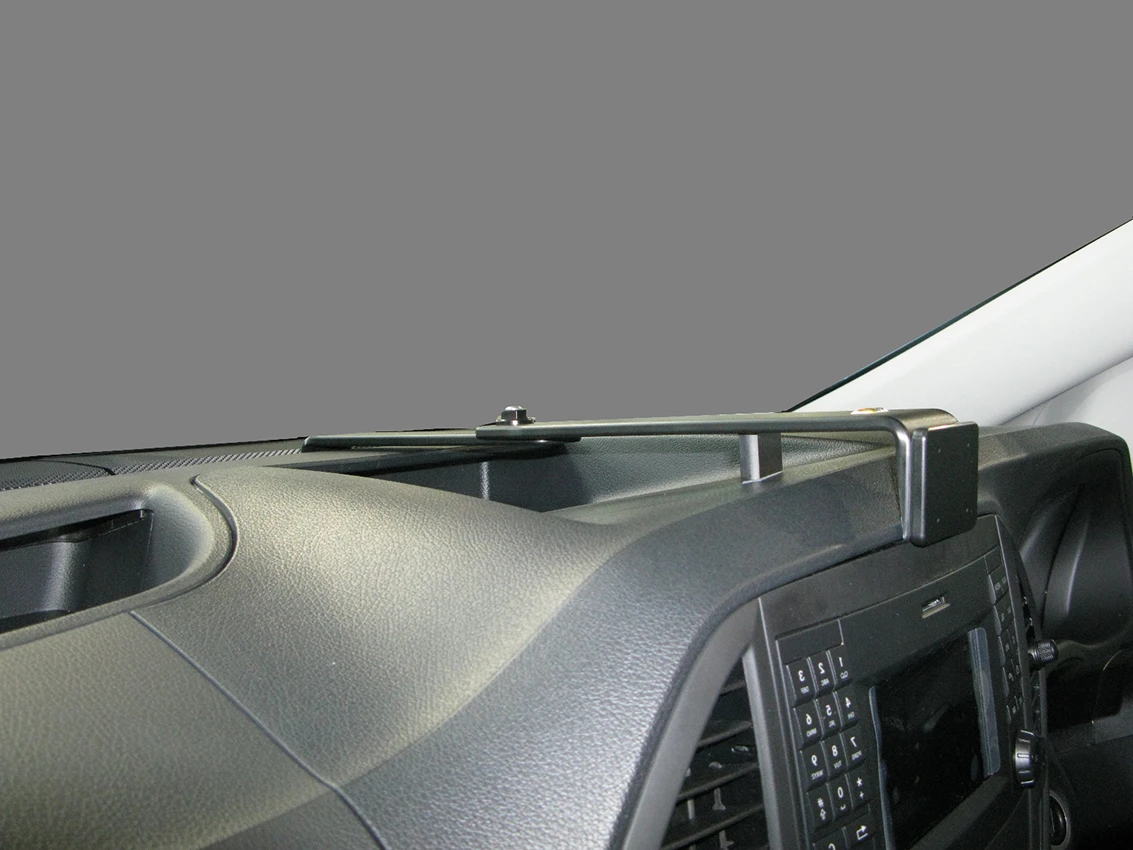

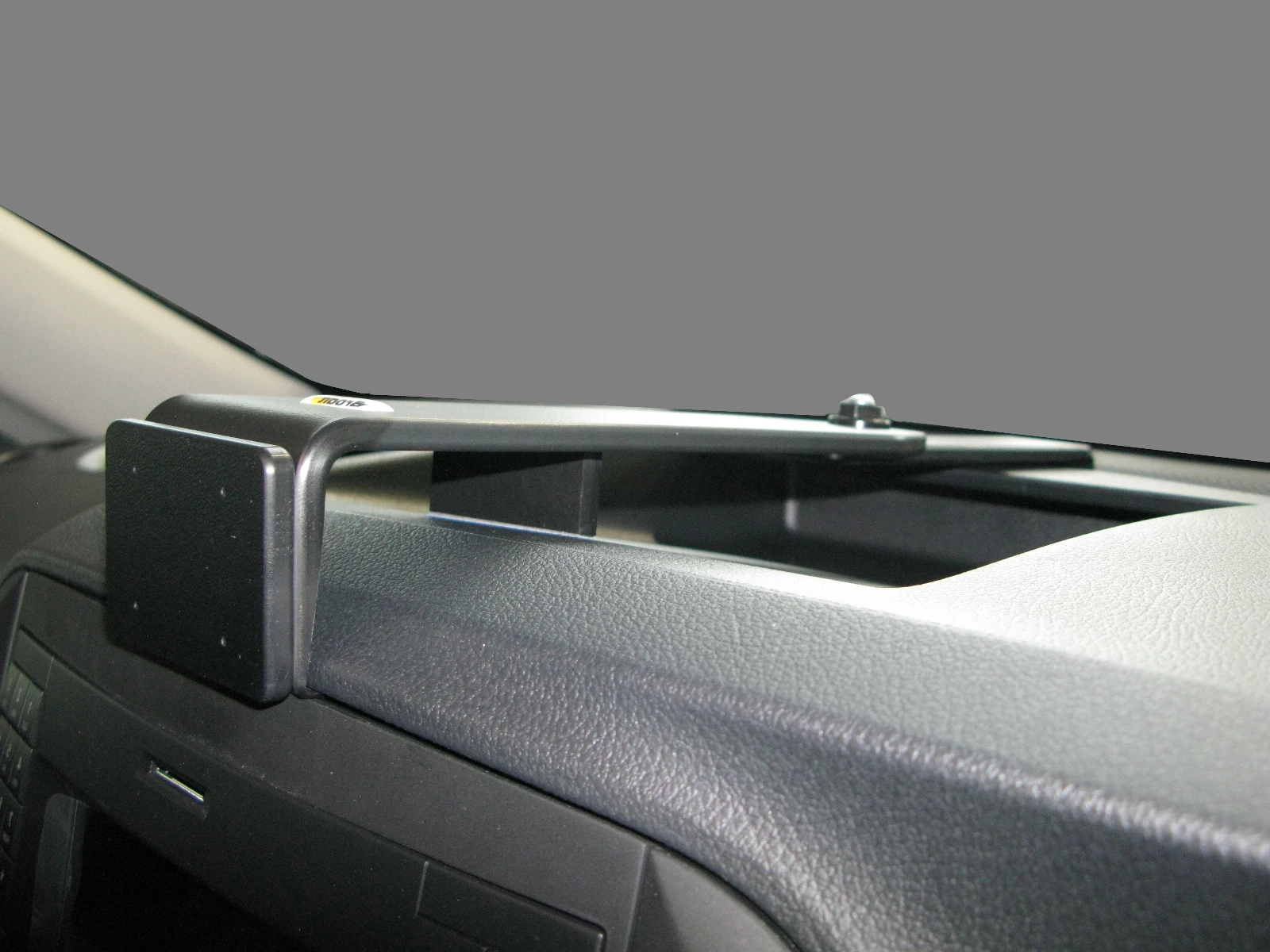

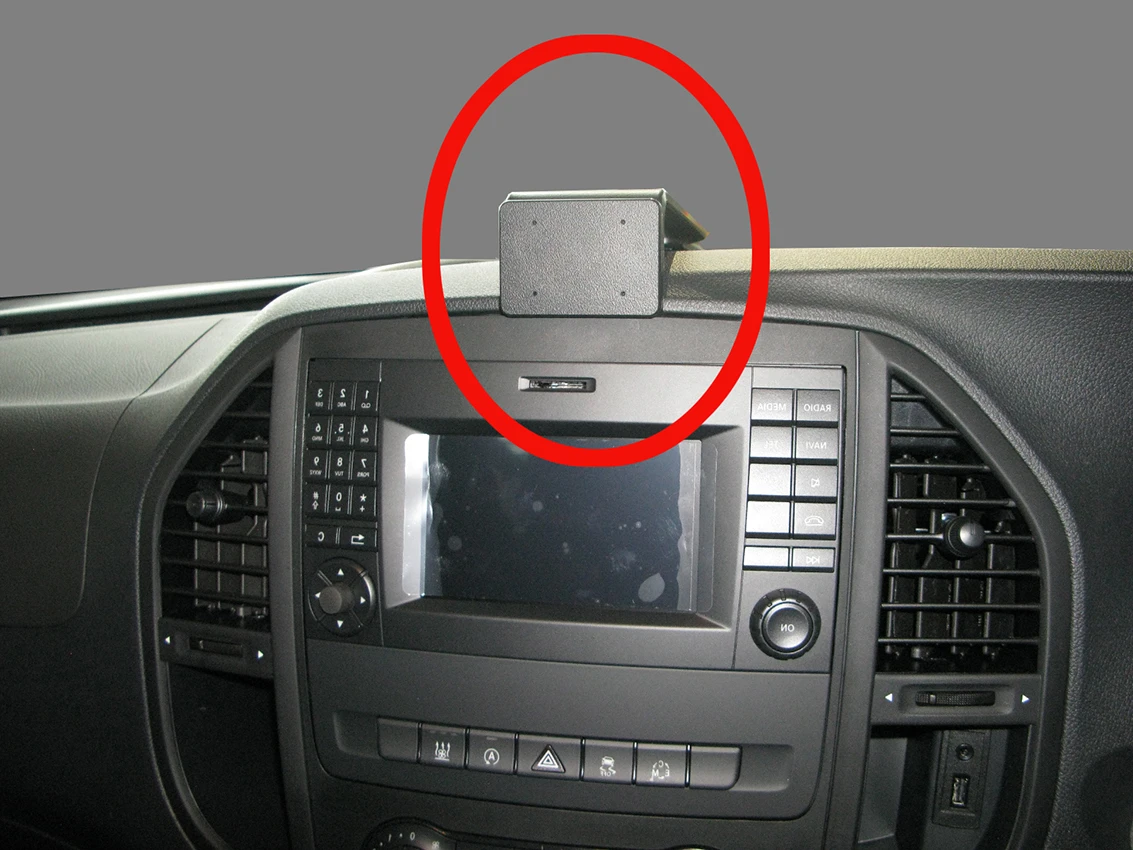

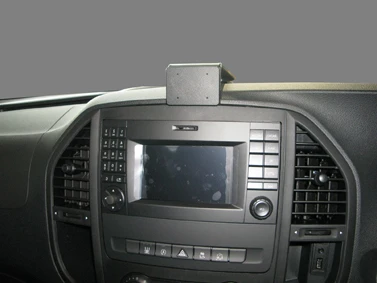

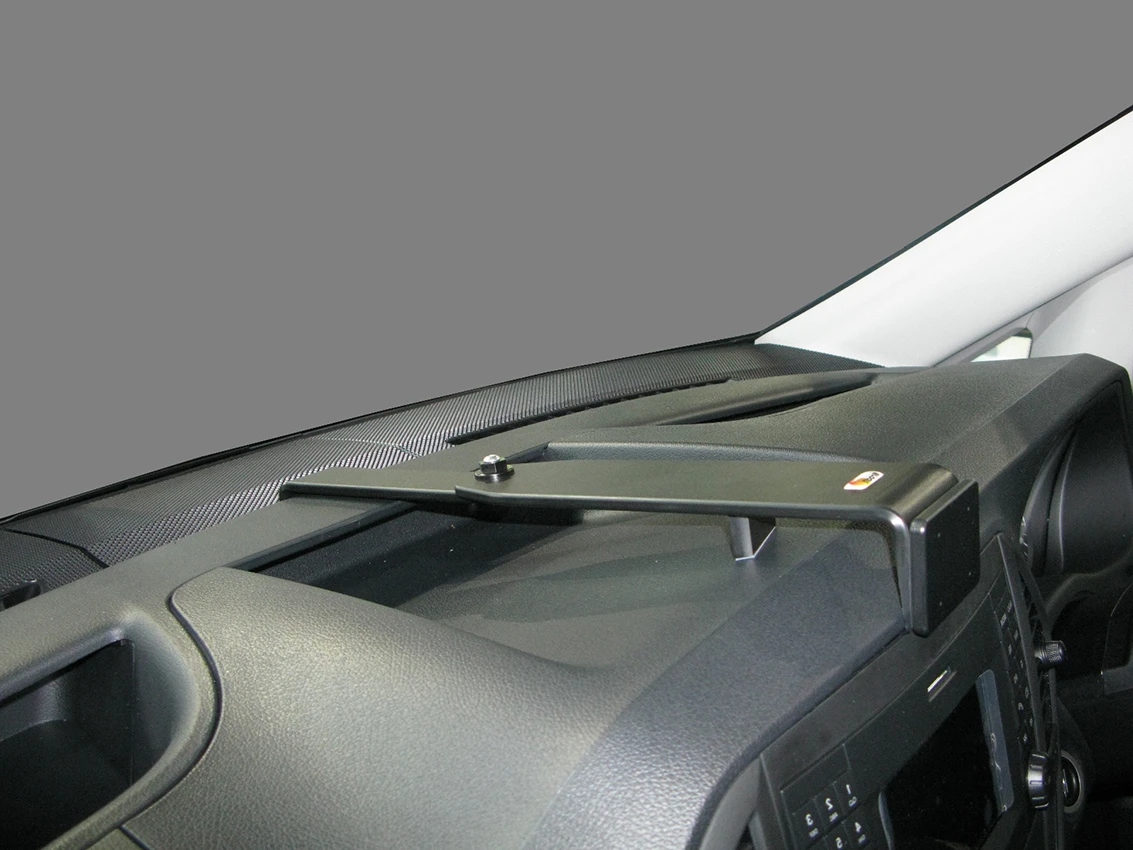

The mount is in place.
