تفاصيل المنتج
Extra-strength ProClip
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:
Extra strength ProClip mounting platform, designed for installation of a larger handheld devices in every day professional use. Keep your device installed in your vehicle, and you will get a more efficient, safe and comfortable work day. Onto the ProClip you can attach any accessory, such as a holder for a screen, surfpad, printer, handheld computer, mobile phone etc. The position has been carefully chosen in order offer an installation of your device within easy sight and rech.
The ProClip is model specific, it is customized for each vehicle and has a perfect fit. The ProClip is a firm mounting platform and is available in multiple positions for most vehicles. Discreet design that blends in well with the interior.
The ProClip is easy to install, you can do it in a minute! You simply snap the ProClip into place in gaps in the interior, you do not need to drill holes or use special tools or dismantle the dashboard. Detailed mounting instructions included. The ProClip has AMPS holes for easy installation of a holder. Made of high grade ABS/Acetal plastic. Color: Black. Developed and produced in Sweden.
- Do you want to be able to switch between several holders on the same ProClip? Please see Brodit’s MultiMoveClip.
- Are you installing larger devices or heavier equipment? Please see Brodit’s Pedestal Mounts
دليل تركيب المنتج
رقم الخطوة 1

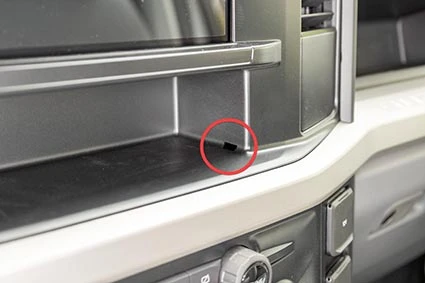

Remove the accessory tray liner to expose the retaining notches.Use the enclosed alcohol pad to clean the area where the mount will be installed. Peel off the adhesive tape cover on the right attaching piece.
رقم الخطوة 2

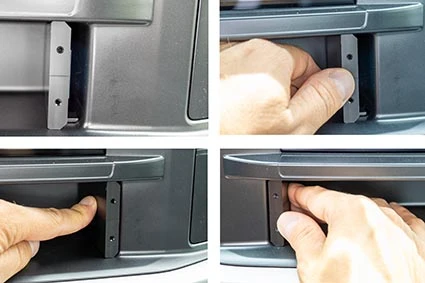

Place the right attaching piece by the right inner wall in the accessory tray so the lug is on the right side. Slide the lug into the retaining notch. Firmly press on the attaching piece to secure the adhesive tape to the accessory tray wall. Attach the left attaching piece on the left side of the tray in the same way.
رقم الخطوة 3

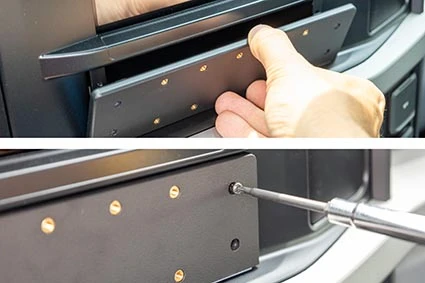

Place the faceplate over the accessory tray and align it the screw holes in the attaching pieces. Attach the faceplate onto the attaching pieces with the included screws.
رقم الخطوة 4

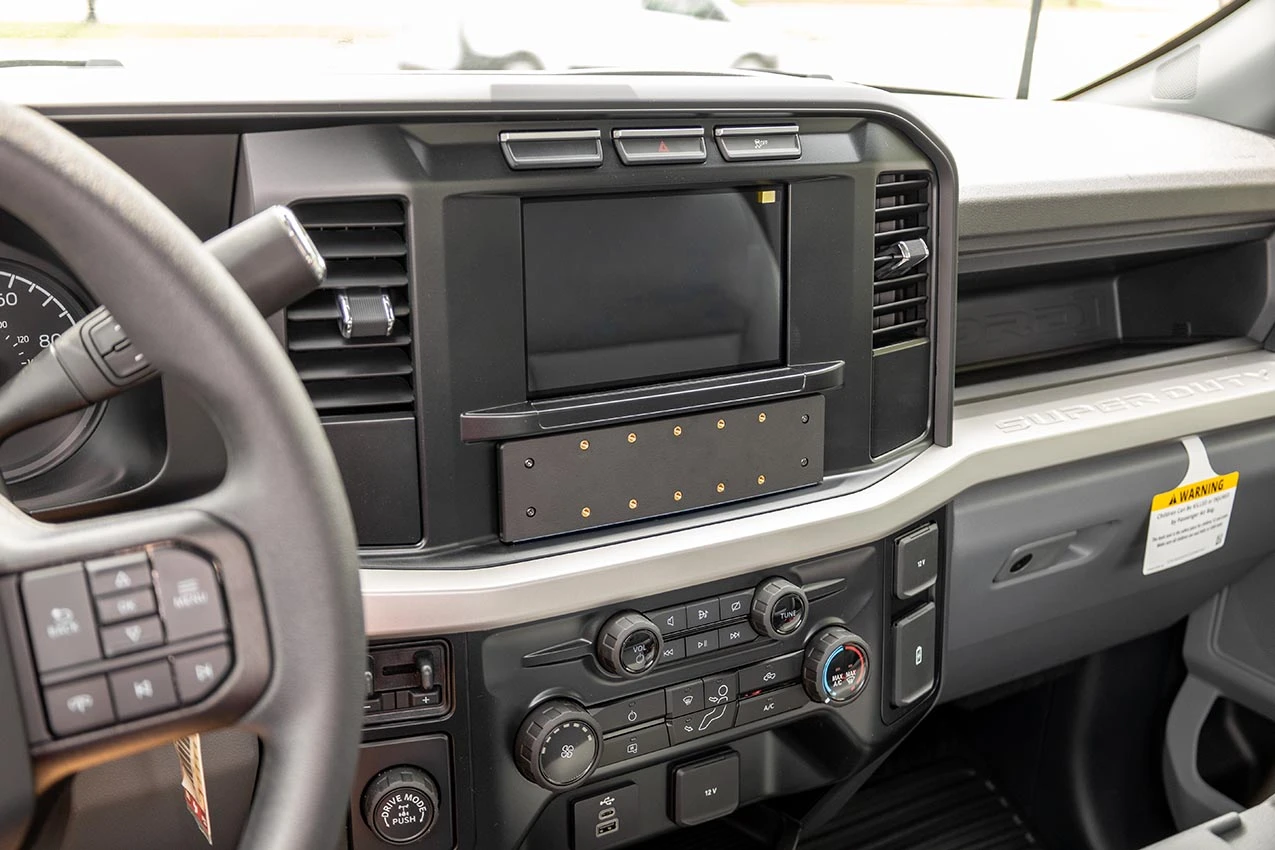

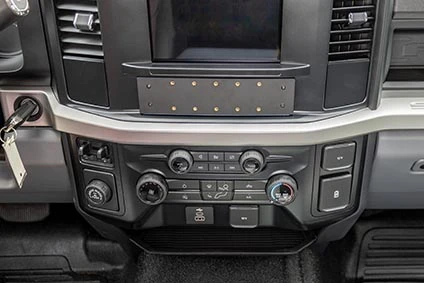

The ProClip mount is in place.
