Extra-strength ProClip

رقم الصنف : 213558

Mercedes Benz Arocs 2020-2023

Mercedes Benz Actros 5 2020-2023

more...

الكمية

إنتهى من المخزن

معلومات فنية

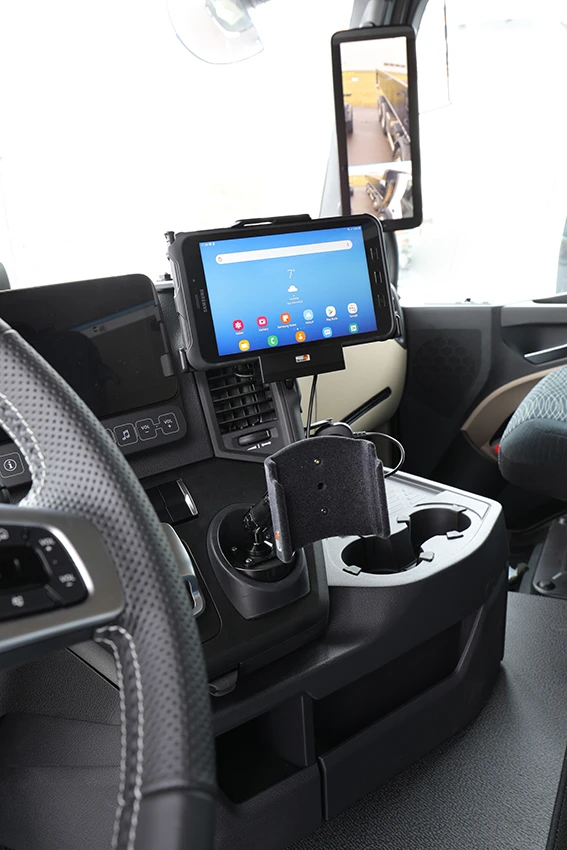

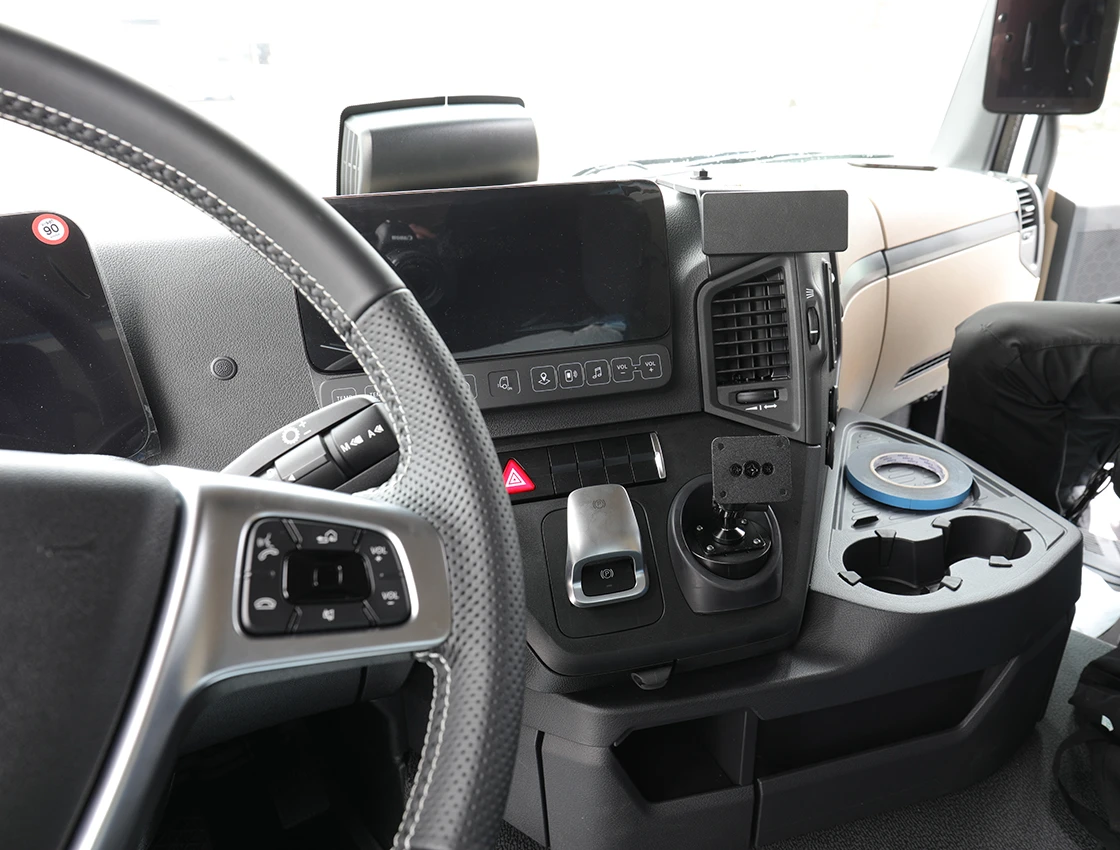

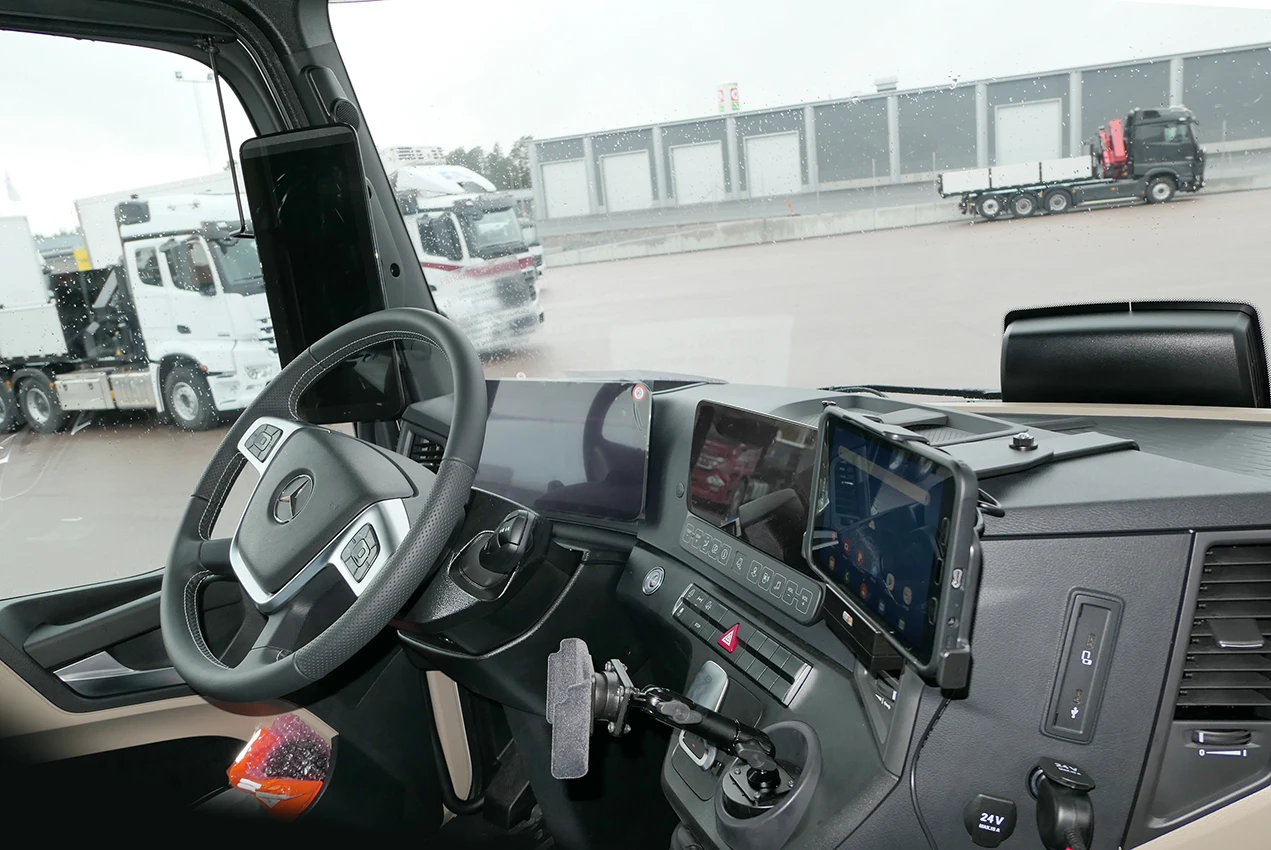

An extra strong vehicle mount, designed for installation of heavier devices. Customized for each vehicle model, provides a perfect fit. The placement is optimized for touch screens, tablets, PDAs, taximeter screens and printers. You will have your device within easy sight and reach so you can work efficiently, and you also get a safer and more comfortable working environment.

  • The installation is quick and easy and will not damage the interior. Detailed installation instructions included. AMPS holes. Made of ABS plastic. Color: black. Made in Sweden.

  • التعليمات

    Please read all of the instructions and look at the pictures before attaching the ProClip.

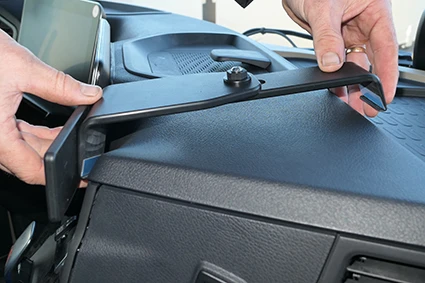

  • 1. Press the thin end of the enclosed gap opener into the gap between the dashboard and the speaker vent, to widen the gap. Use the enclosed alochol pad to clean the area where the ProClip is to be installed. Press the angled edge on the lower part of the ProClip into the gap between the frame surrounding the air vent and the dasboard.
  • Technical Information Illustration

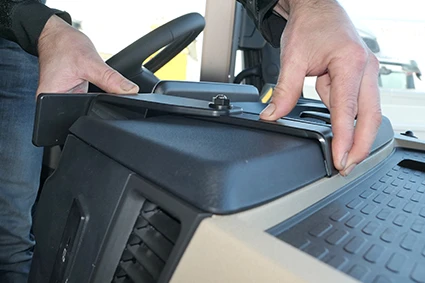

  • 2. Hook the angled edge on the upper part of the ProClip under the top part of the dashboard.
  • Technical Information Illustration

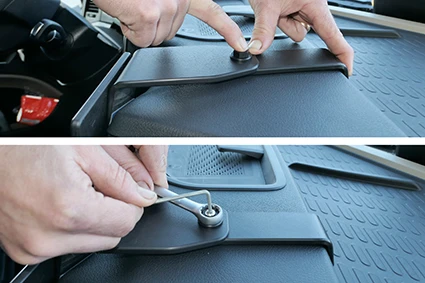

  • 3. Hold the upper part in the gap and in the same time press forward on the face plate so the ProClip contracts and is firmly in place. Tighten the large nut gently on top of the ProClip so the ProClip contracts and is firmly in place. Use an Allen key to tighten the small nut and lock the ProClip into the desired position.
  • Technical Information Illustration

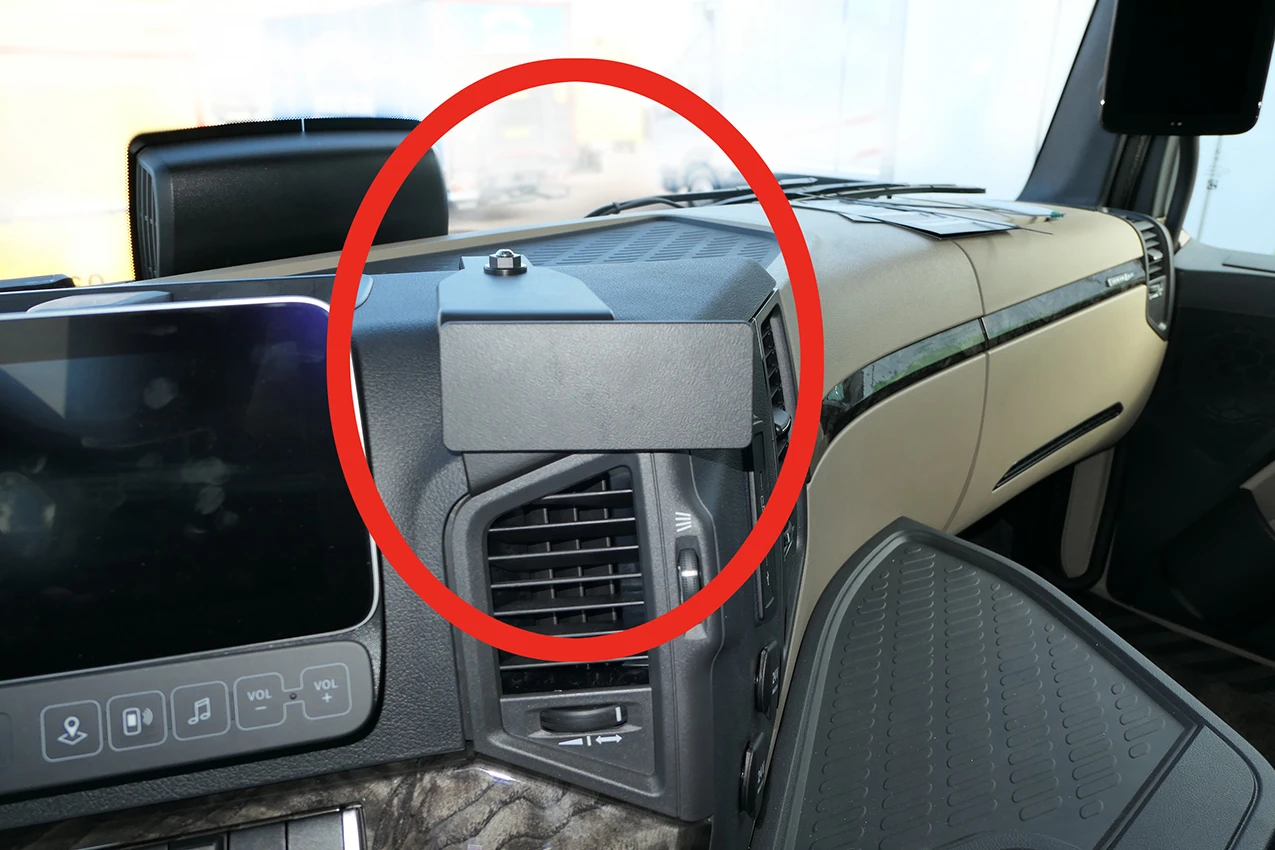

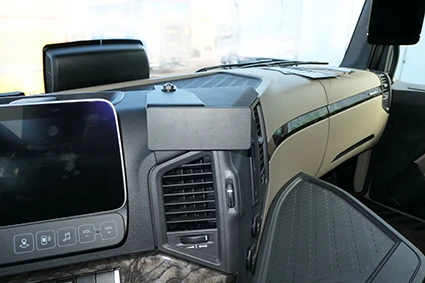

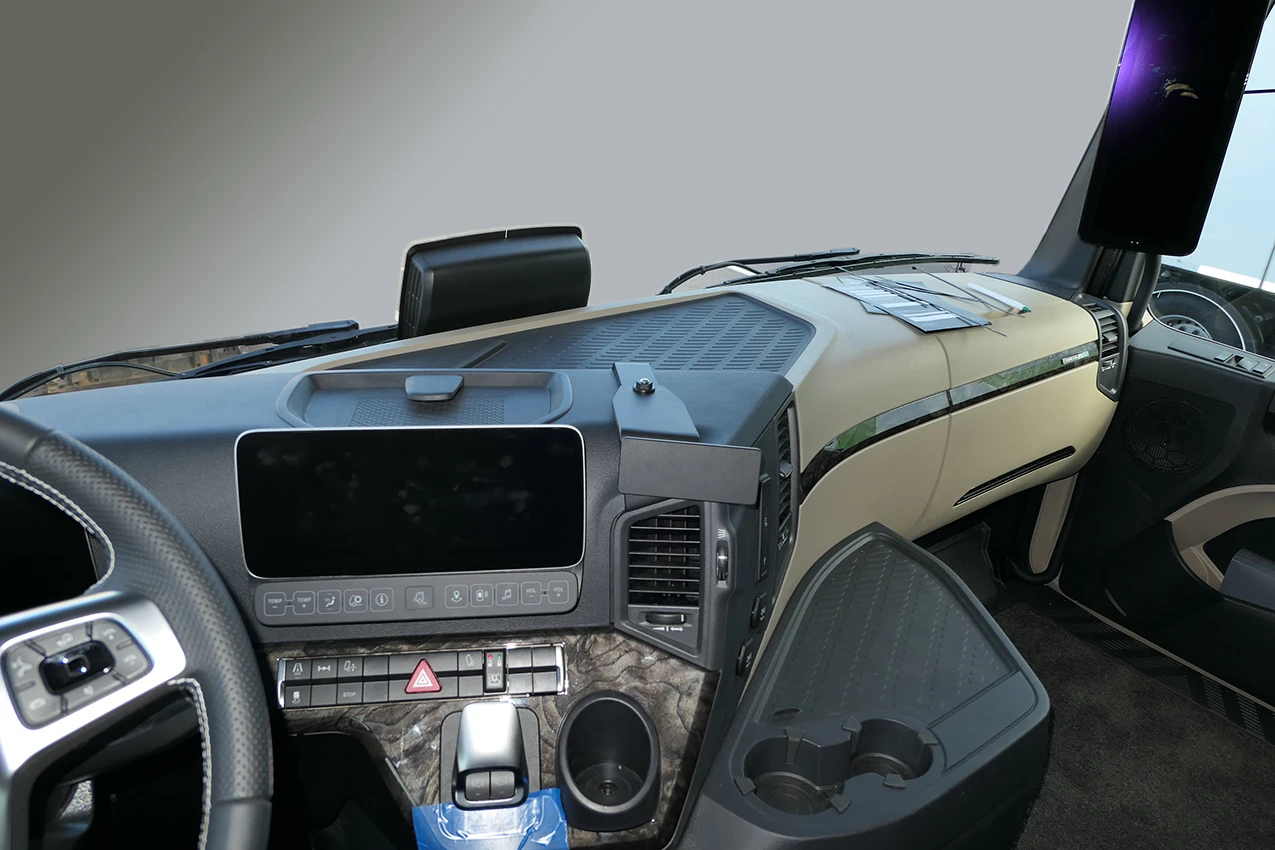

  • 4. The ProClip is in place.
  • Technical Information Illustration

    التوافق

    • Mercedes Benz : Arocs
    • Mercedes Benz : Actros 5
