الوصف

With Pedestal Mount.

معلومات فنية

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

Please read all of the instructions and look at the pictures before attaching the ProClip.

This ProClip will block the cup holder on the left side of the dashboard.

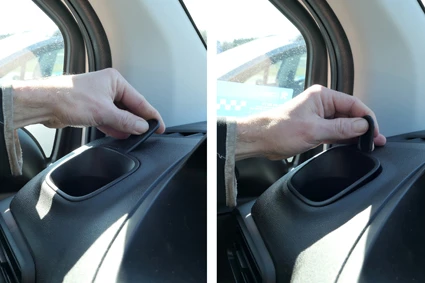

1. Use the enclosed gap opener to remove the cup holder.

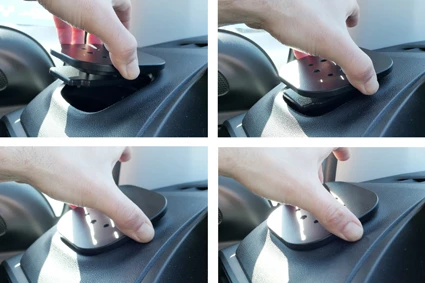

2. Place the upper part of the ProClip into the cup holder opening and hook the angled edge under the dashboard. Press the ProClip forward and then press the lower part down into the cup holder opening. Pull the ProClip downward so the lower angled edge hooks under the dashboard and the mounting plate rests on the dashboard.

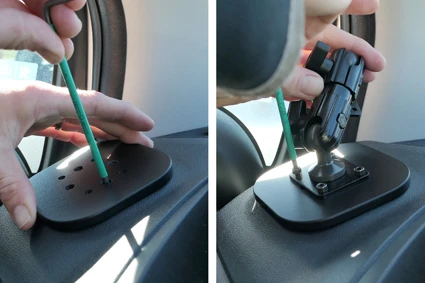

3. Tighten the four screws aternately so the ProClip is properly locked into place. Place the Pedestal Mount onto the mounting plate so the holes fit and attach it with the enclosed screws. Adjust the Pedestal Mount into desired position.

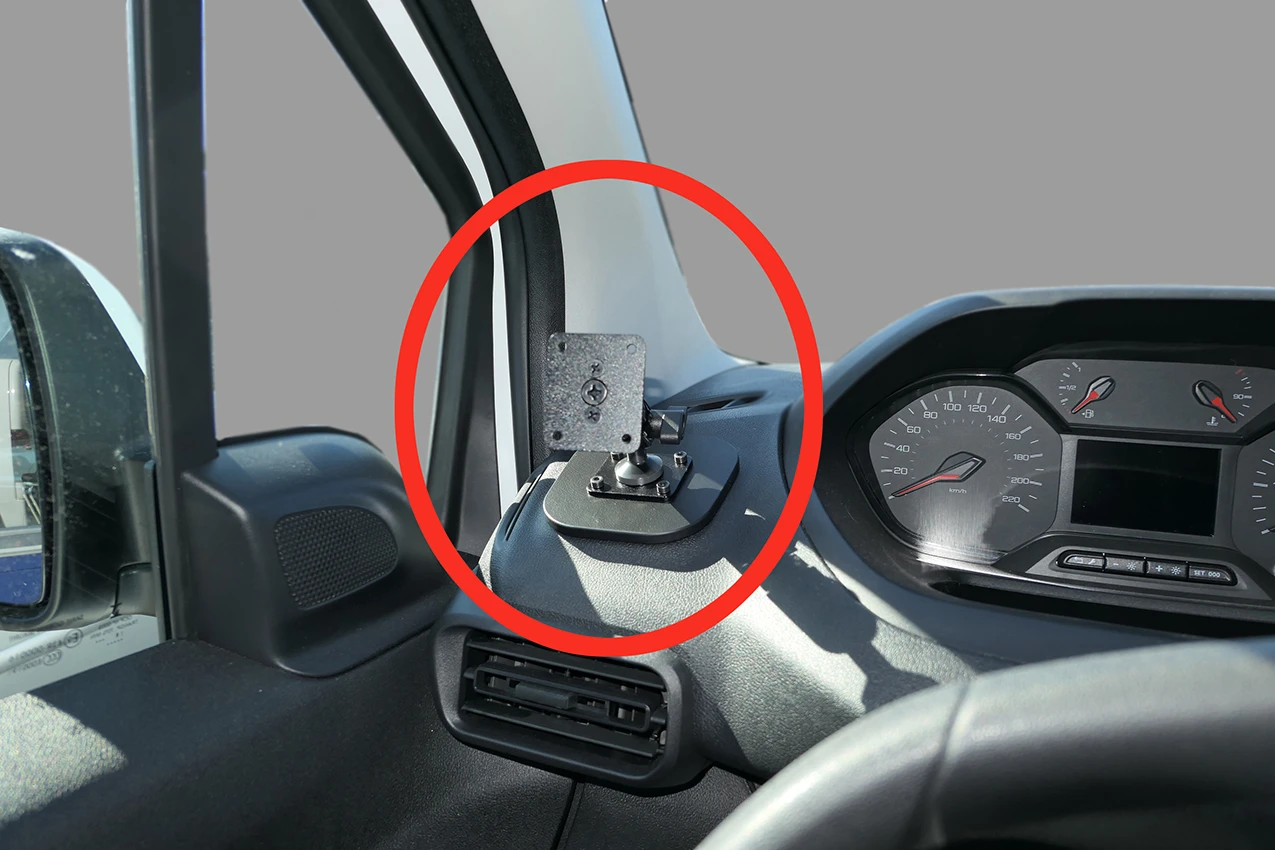

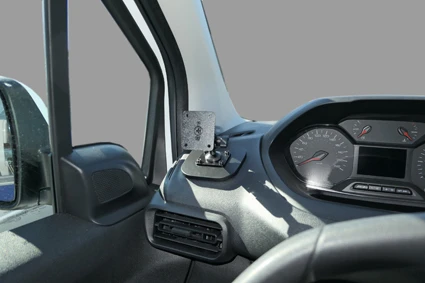

4. The ProClip is in place.

التوافق

• Citroen : E-Berlingo
• Citroen : Berlingo III
• Fiat : E-Doblò
• Fiat : Doblò
• Opel : Combo e
• Opel : Combo Cargo Electric
• Opel : Combo
• Peugeot : Rifter
• Peugeot : Partner
• Toyota : Proace City Verso
• Toyota : Proace City
