Extra-strength ProClip

رقم الصنف : 213550

Volvo S60 2019-2023

Volvo V60 2019-2023

more...

الكمية

إنتهى من المخزن

معلومات فنية

Extra strength mounting platform for installation of heavier devices. Customized for each vehicle model, provides a perfect fit and stable mounting platform. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, tablets, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient!

  • The installation is quick and easy and will not damage the interior. Detailed installation instructions included. Made of ABS/Acetal plastic. Color: black. Made in Sweden.

  • التعليمات

    Please read all of the instructions and look at the pictures before attaching the ProClip.

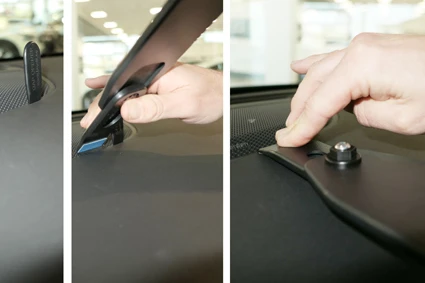

  • 1. Press the thin end of the enclosed gap opener into the gap between the dashboard and the speaker vent, to widen the gap. Use the enclosed alochol pad to clean the area where the ProClip is to be installed.Peel off the cover of the adhesive tape on the ProClip. Hook the angled edge on the upper part of the ProClip into the gap next to the gap opener. Press the lower part of the ProClip downward so the angled upper edge of the ProClip hooks under the speaker vent. Pull out the gap opener.
  • Technical Information Illustration

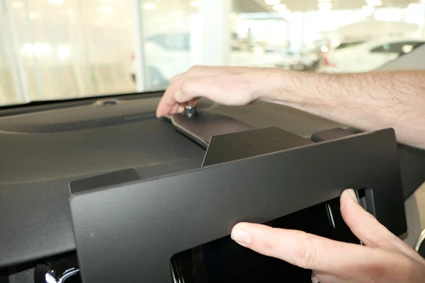

  • 2. Hook the angled edge on the lower part of the ProClip under the dashboard overhang. Hold the upper part in the gap and in the same time press forward on the face plate so the ProClip contracts and is firmly in place.
  • Technical Information Illustration

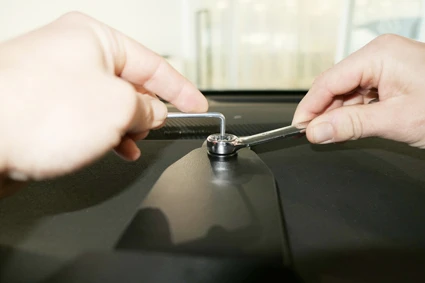

  • 3. Tighten the large nut gently on top of the ProClip so the ProClip contracts and is firmly in place. Use an Allen key to tighten the small nut and lock the ProClip into the desired position.
  • Technical Information Illustration

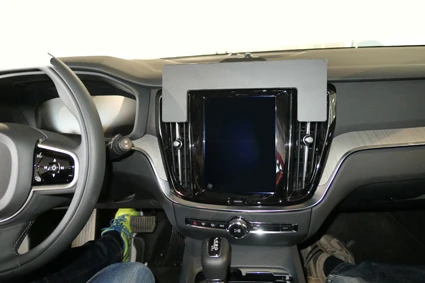

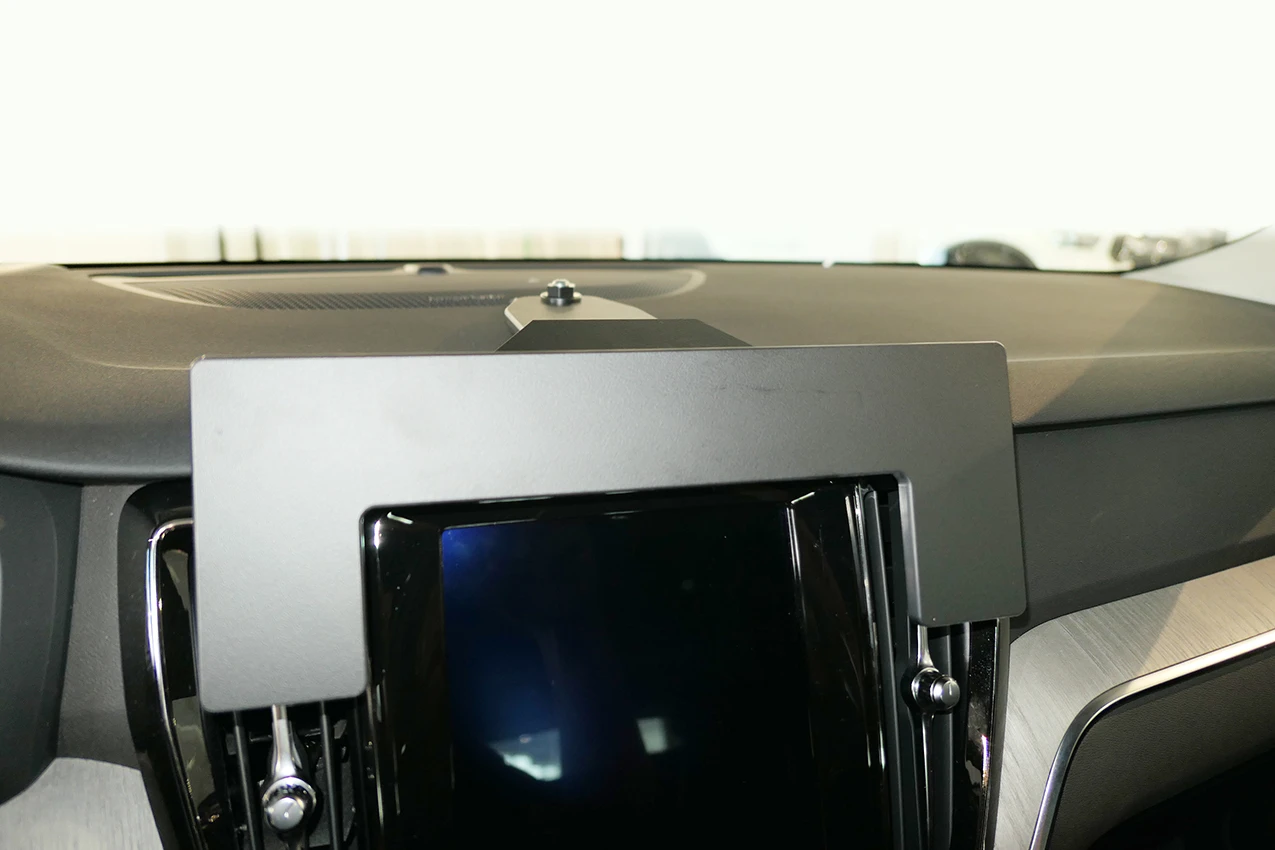

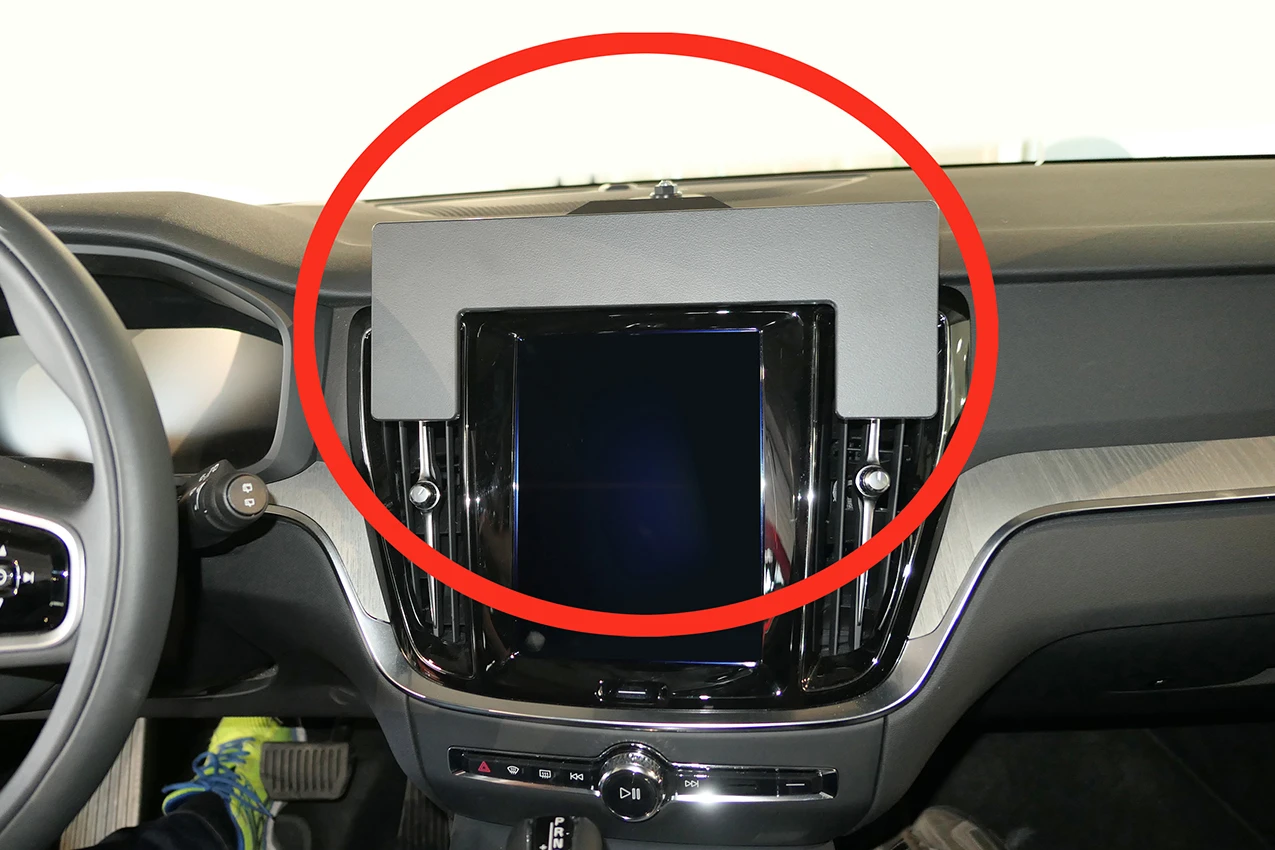

  • 4. The ProClip is in place.
  • Technical Information Illustration

    التوافق

    • Volvo : S60
    • Volvo : V60
