Extra-strength ProClip

رقم الصنف : 213545

Renault Talisman 2016-2022

الكمية

إنتهى من المخزن

معلومات فنية

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

Please read the instructions and look at the pictures carefully before installing the bracket.

  • This mounting bracket consists of three parts:
  • Technical Information Illustration
  • Part 1 main part with mounting plate.
  • Technical Information Illustration
  • Part 2 and 3 - support arms.
  • Technical Information Illustration

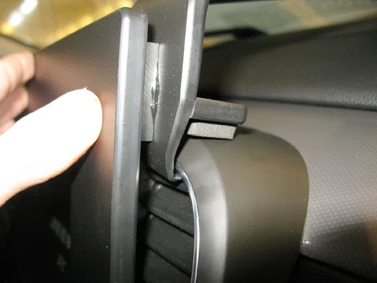

  • 1. Hook the curved lower edges of Part 1 under the upper edge of the air vent.
  • Technical Information Illustration

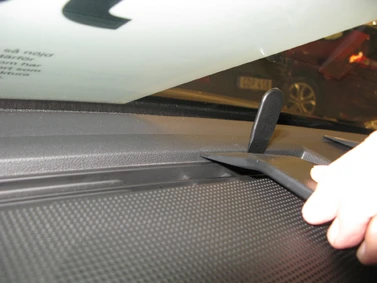

  • 2. Press the thin end of the enclosed gap opener into the gap between the air vent and the dashboard to widen the gap, in top of the dashboard. Press the angled edge of Part 2 and Part 3 into the gap next to the gap opener so the support arms are resting on the dashboard. Pull out the gap opener.
  • Technical Information Illustration

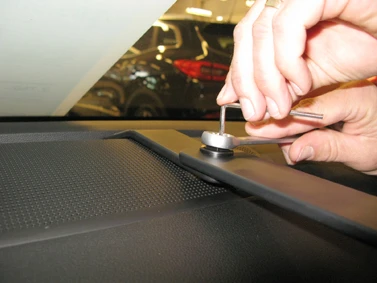

  • 3. Place Part 2 and Part 3 under Part 1 so the holes match. Press the enclosed locking screws into place in the holes. Lock the parts together by carefully tightening the screws alternately. It is important not to tighten the screws too hard. Lock the position with an Allen key.

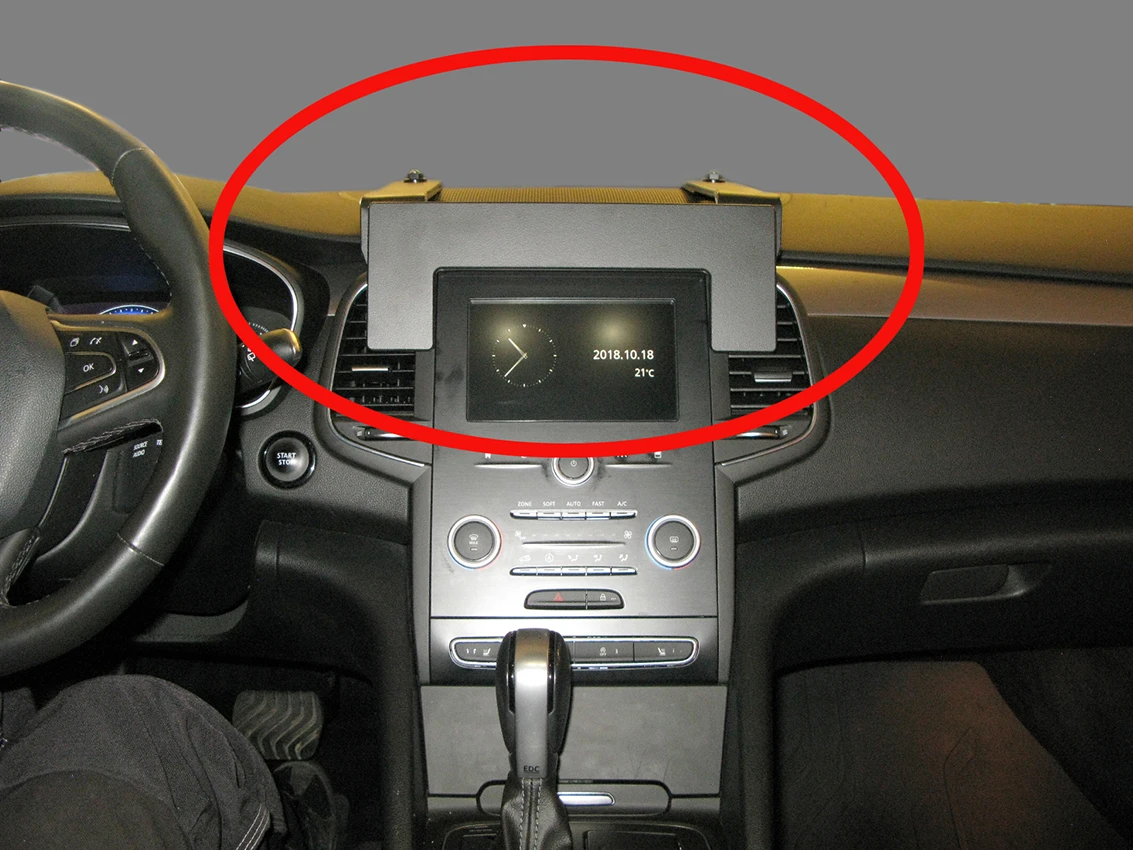

  • 4. The product is in place.


  • التوافق

    • Renault : Talisman
