Extra-strength ProClip

رقم الصنف : 213531

Mercedes Benz Vito 2015-2023

الكمية

إنتهى من المخزن

معلومات فنية

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

Please read all of the instructions and look at the pictures before installing the mount.

  • This mount consists of two parts: Part 1: Attaching part Part 1. Mounting plate part
  • Technical Information Illustration

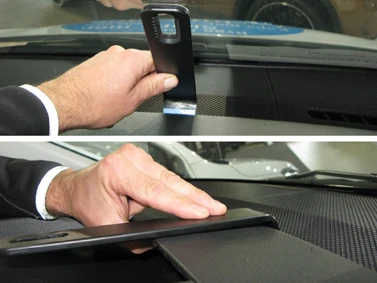

  • 1. Use the enclosed alcohol pad to clean the area where the muont is to be installed. Peel off the cover of the adhesive tape of Part 1. Press the angled edge of Part 1 into the gap on top of the dashboard. Press Part 1 downward so the angled edge hooks under the front dashboard section.
  • Technical Information Illustration

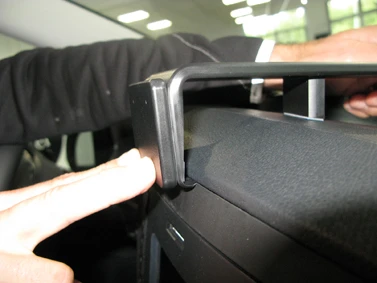

  • 2. Peel off the cover of the adhesive tape of Part 2. Press the angled edge on the lower part of Part 2 into the gap between the top and center sections of the dashboard.
  • Technical Information Illustration

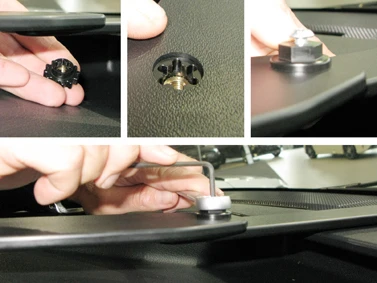

  • 3. Align the hole in Part 2 over the hole in Part 1. Place the enclosed cogwheel into the hole from below. Place the enclosed nut over the cogwheel from above so it matches. Place the enclosed screw into place. Press the parts of the mount together until the mount reaches minimum length and hooks into place properly. Tighten the nut on the top of the mount so the parts are pulled together so the mount is firmly in place. Tighten the Allen screw with the enclosed key in order to fixate the position.
  • Technical Information Illustration

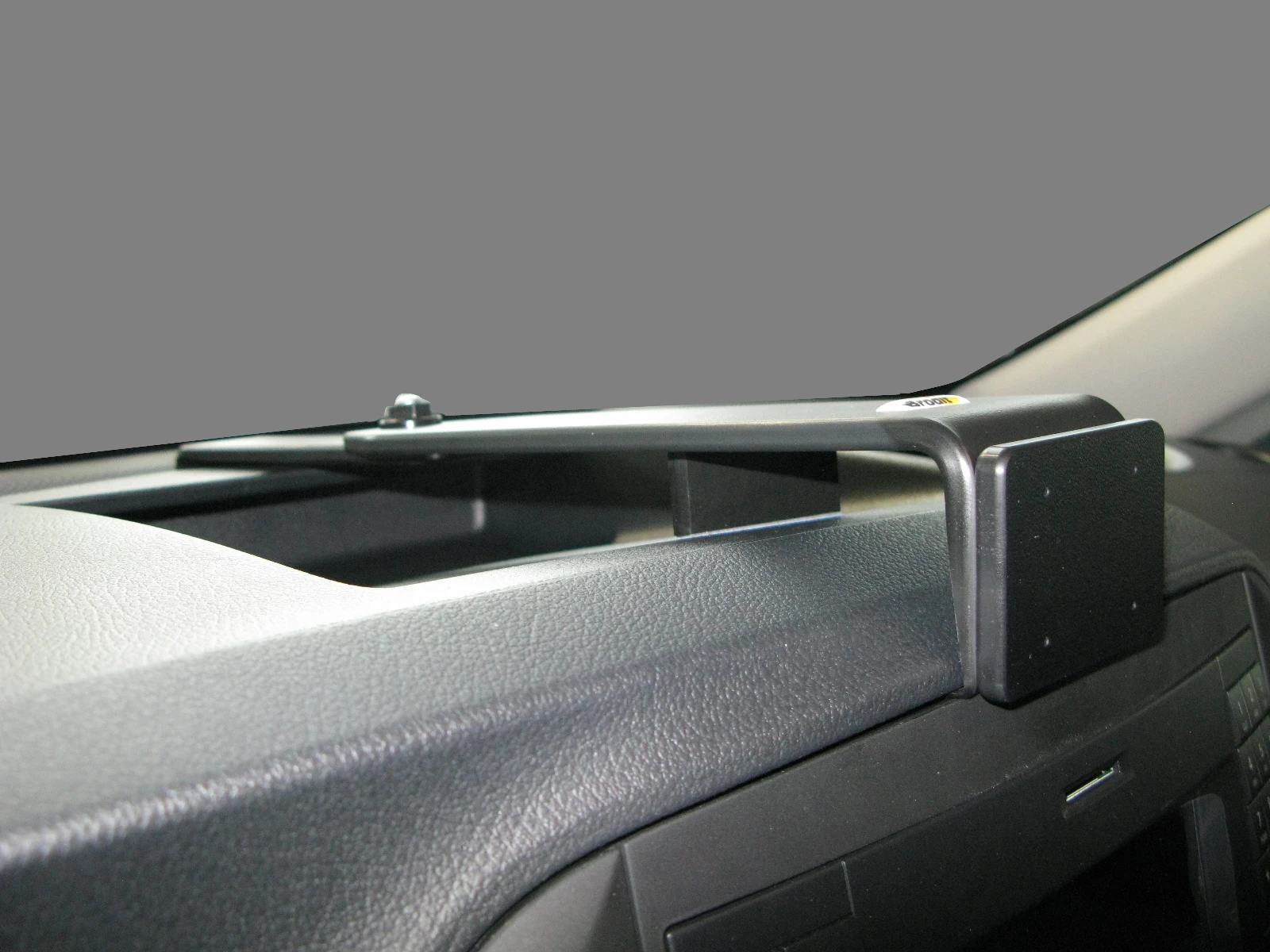

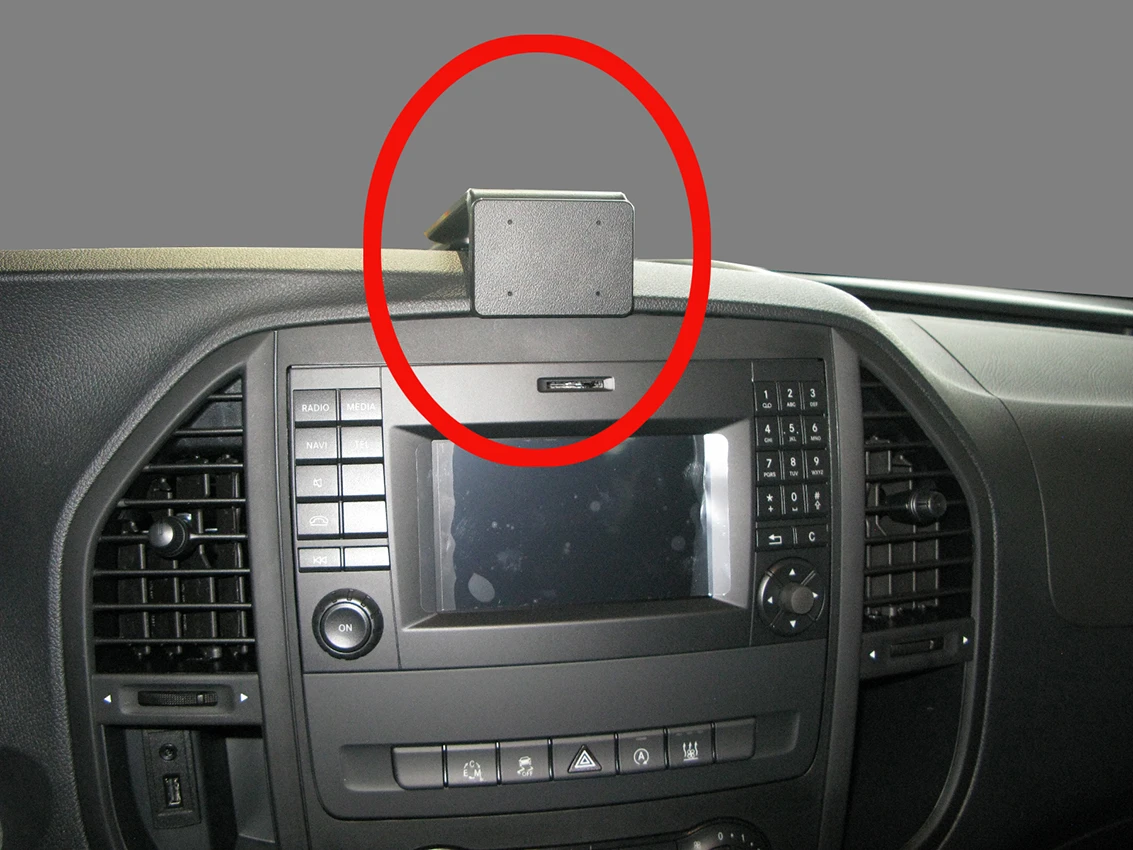

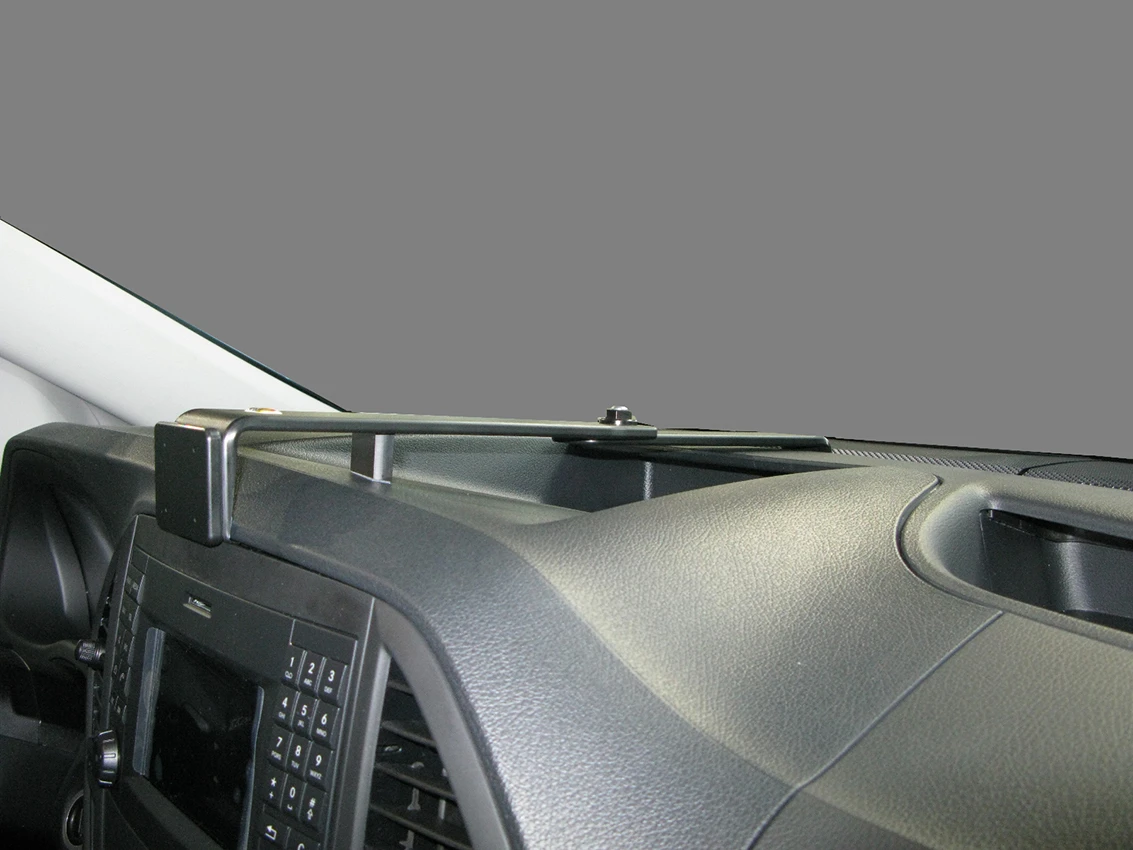

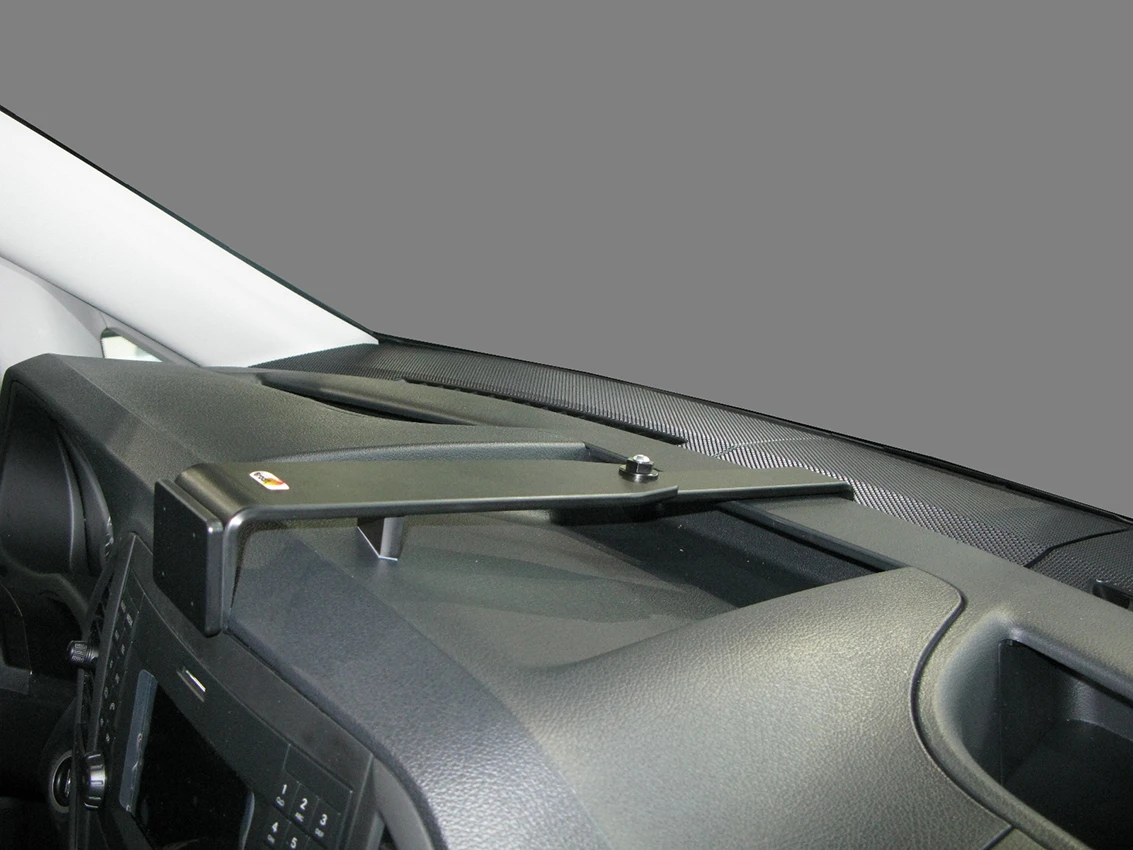

  • 4. The mount is in place.
  • Technical Information Illustration

    التوافق

    • Mercedes Benz : Vito
