Extra-strength ProClip

رقم الصنف : 213530

Hino 195-series 2016-2022

Hino 155-series 2016-2022

more...

الكمية

إنتهى من المخزن

التعليمات

Please read all of the instructions and look at the pictures before attaching the ProClip.

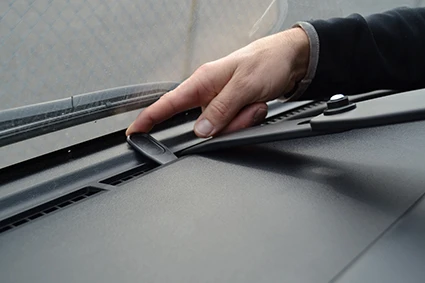

  • 1. Press the thin end of the enclosed gap opener into the gap between the frame surrounding the air vent and the dashboard, to widen the gap.
  • Technical Information Illustration

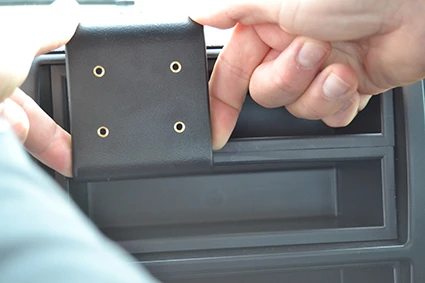

  • 2. Carefully, pull the parts of the mount apart until the mount reaches maximum length. Press the angled upper edges of the mount into the gap next to the gap opener. Remove the gap opener.
  • Technical Information Illustration

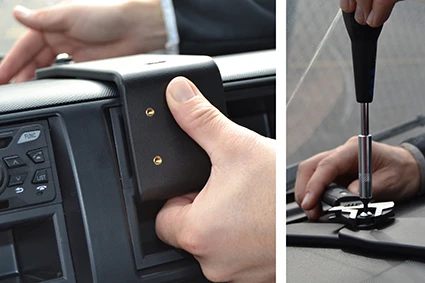

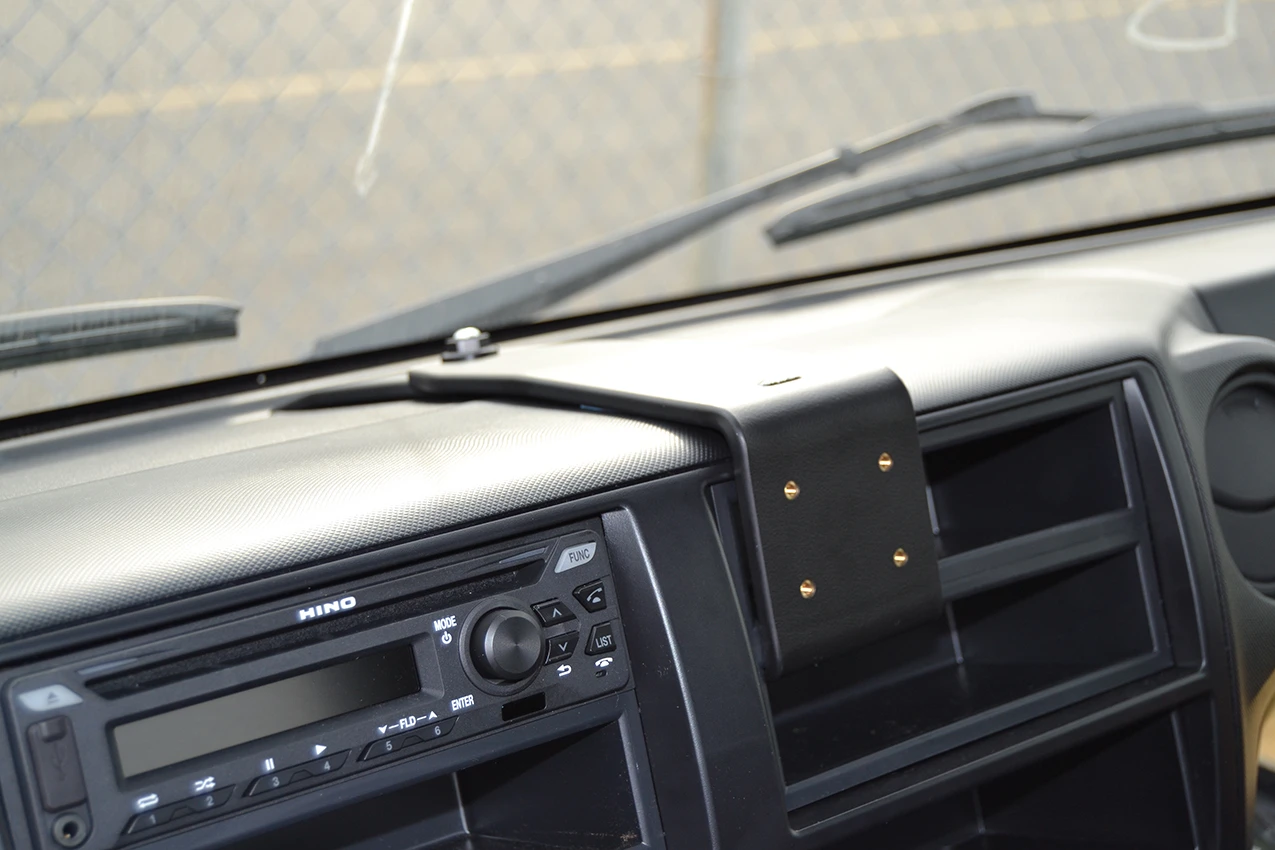

  • 3. Hook the angled edge on the lower part of the mount under the center frame between the two compartments on the right center dash area. Press the parts of the mount together until the mount reaches minimum length and hooks into place properly. Tighten the nut on the top of the mount so the parts are pulled together and the mount is firmly in place. Tighten the Allen screw with the enclosed key in order to fixate the position.
  • Technical Information Illustration

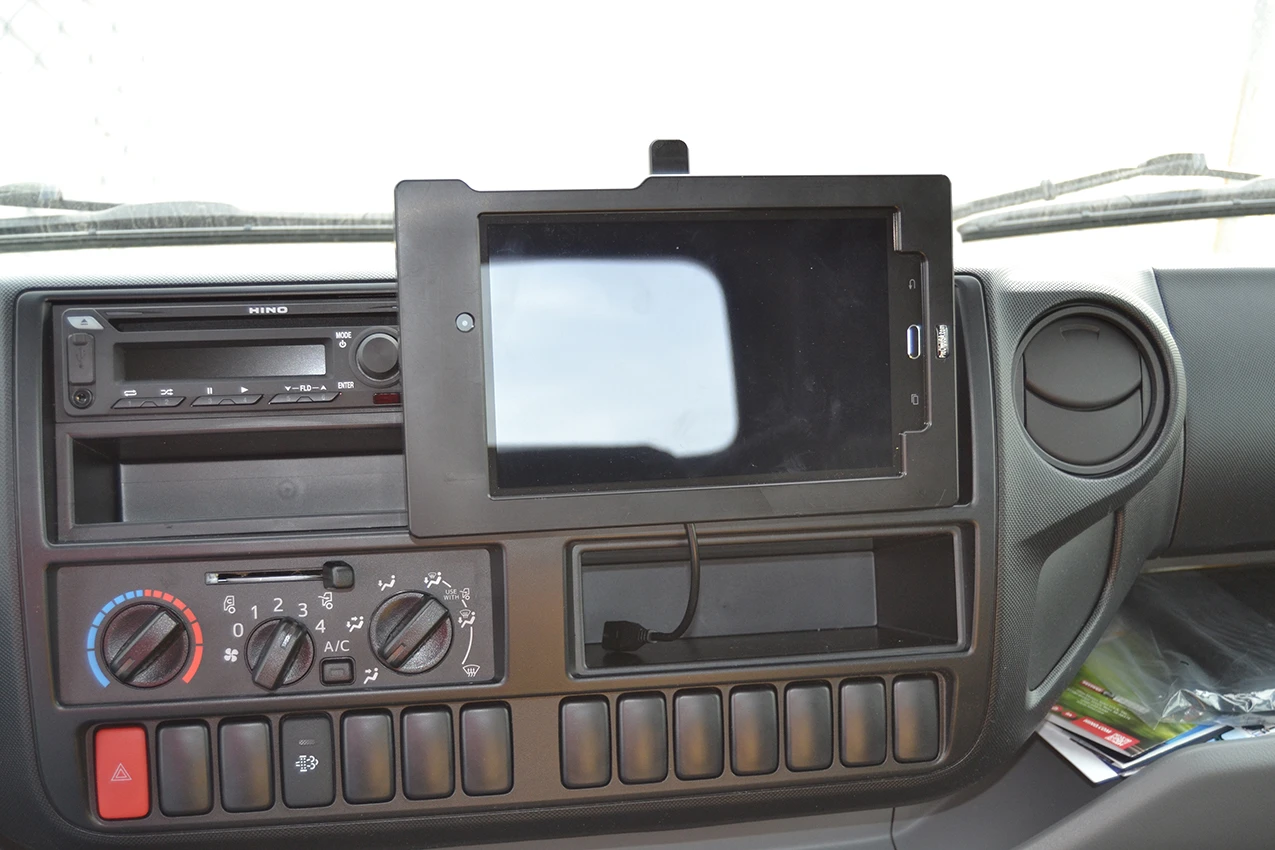

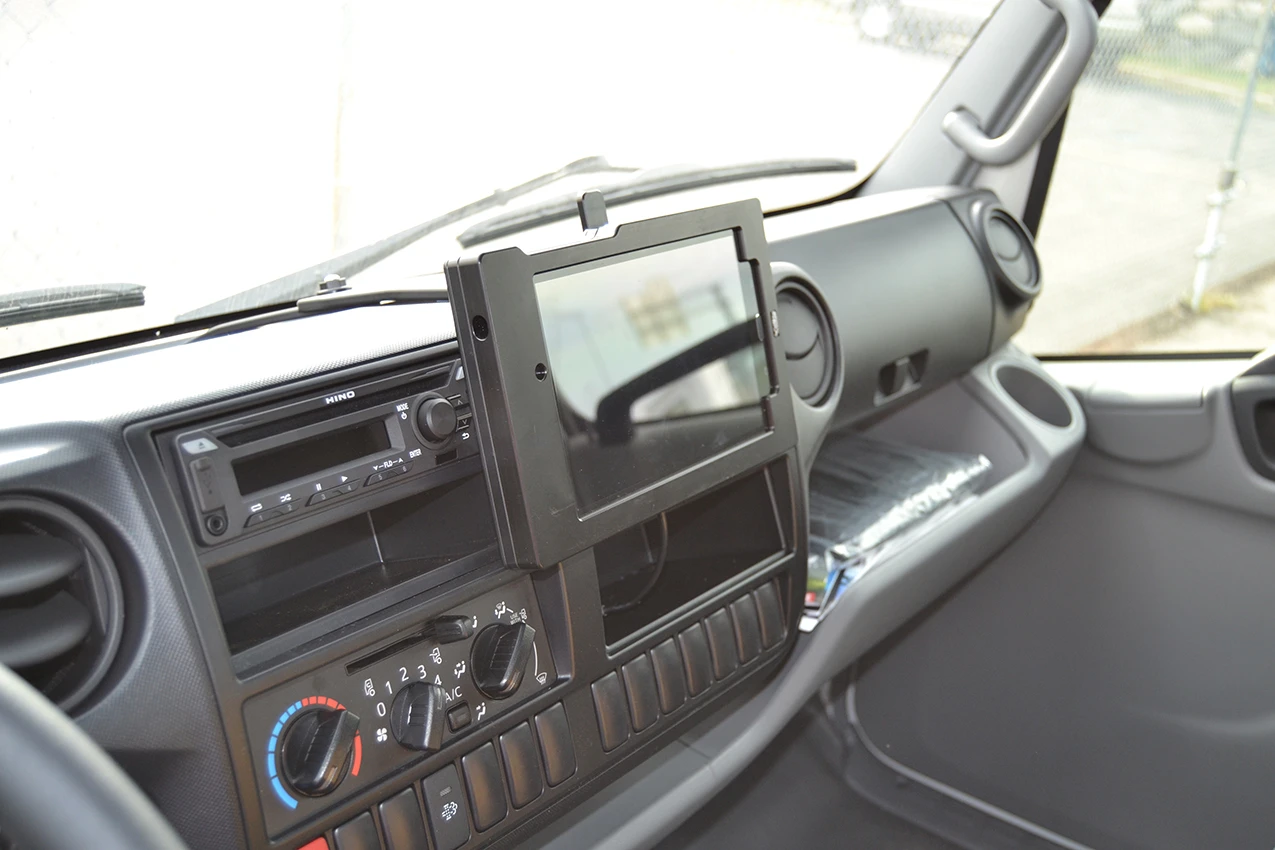

  • 4. The ProClip is in place.
  • Technical Information Illustration

    التوافق

    • Hino : 195-series
    • Hino : 155-series
