Extra-strength ProClip

رقم الصنف : 213522

Volkswagen Golf VII 2013-2020

Volkswagen Golf VII Variant 2013-2020

more...

الكمية

إنتهى من المخزن

معلومات فنية

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

Please read all of the instructions and look at the pictures before installing the mount.

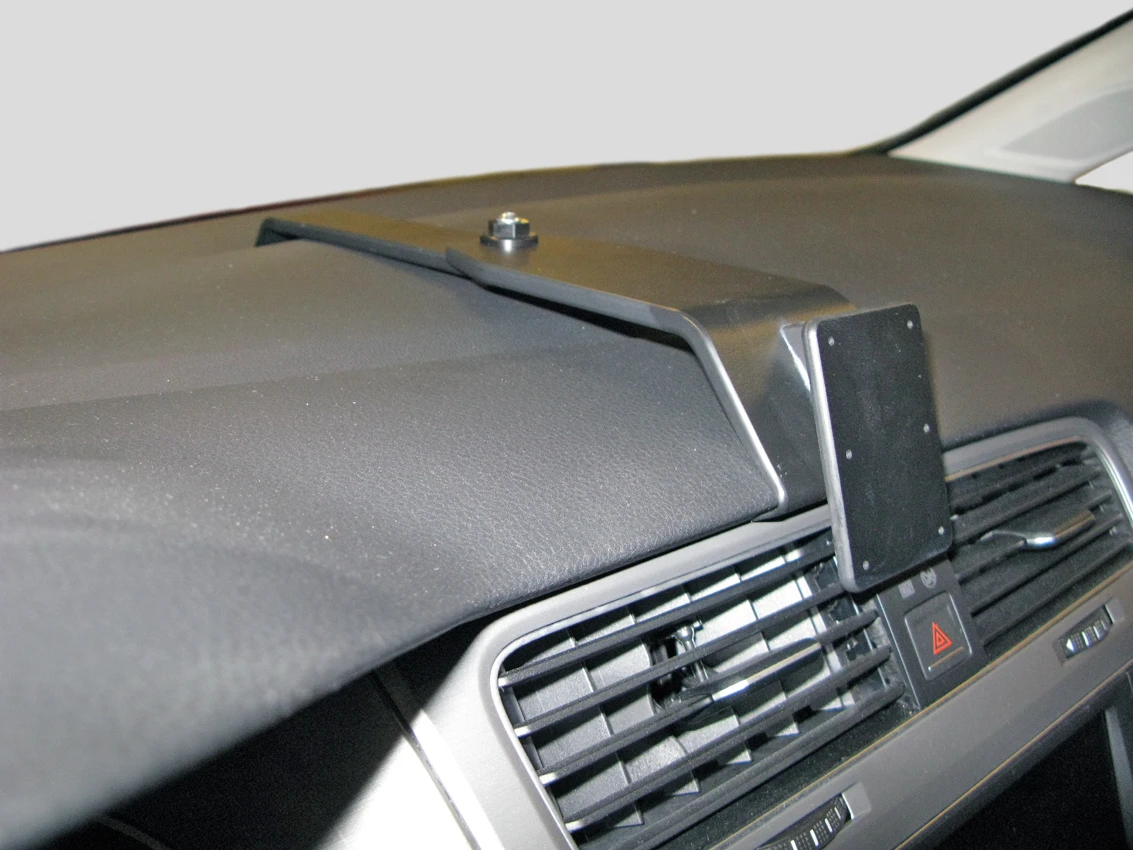

  • This mount can also be placed further left, then insert the upper edge of the mount to the left of the divider in the airvent on top of the dashboard.
  • Technical Information Illustration

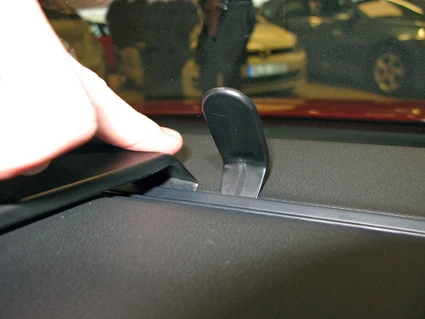

  • 1. Carefully, pull the parts of the mount apart until the mount reaches maximum length. Insert the thin end of the enclosed gap opener into the front gap of the airvent, on top of the dashboard, to widen the gap. Insert the angled upper edge of the ProClip into the gap next to the gap opener. Remove the gap opener.
  • Technical Information Illustration

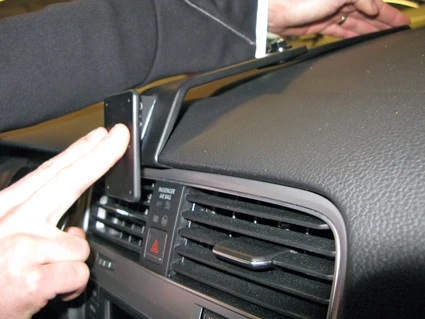

  • 2 Hook the angled lower edge of the ProClip around the dashboard ledge. Press the parts of the mount together until the mount reaches minimum length and hooks into place properly.
  • Technical Information Illustration

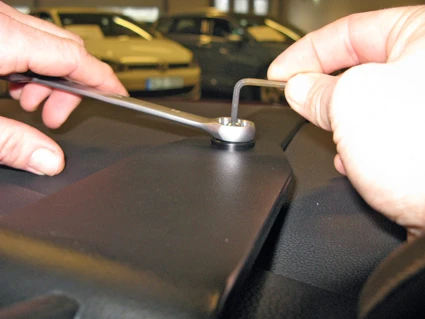

  • 3. Tighten the nut on the top of the mount so the parts are pulled together so the mount is firmly in place. Tighten the Allen screw with the enclosed key in order to fixate the position.
  • Technical Information Illustration

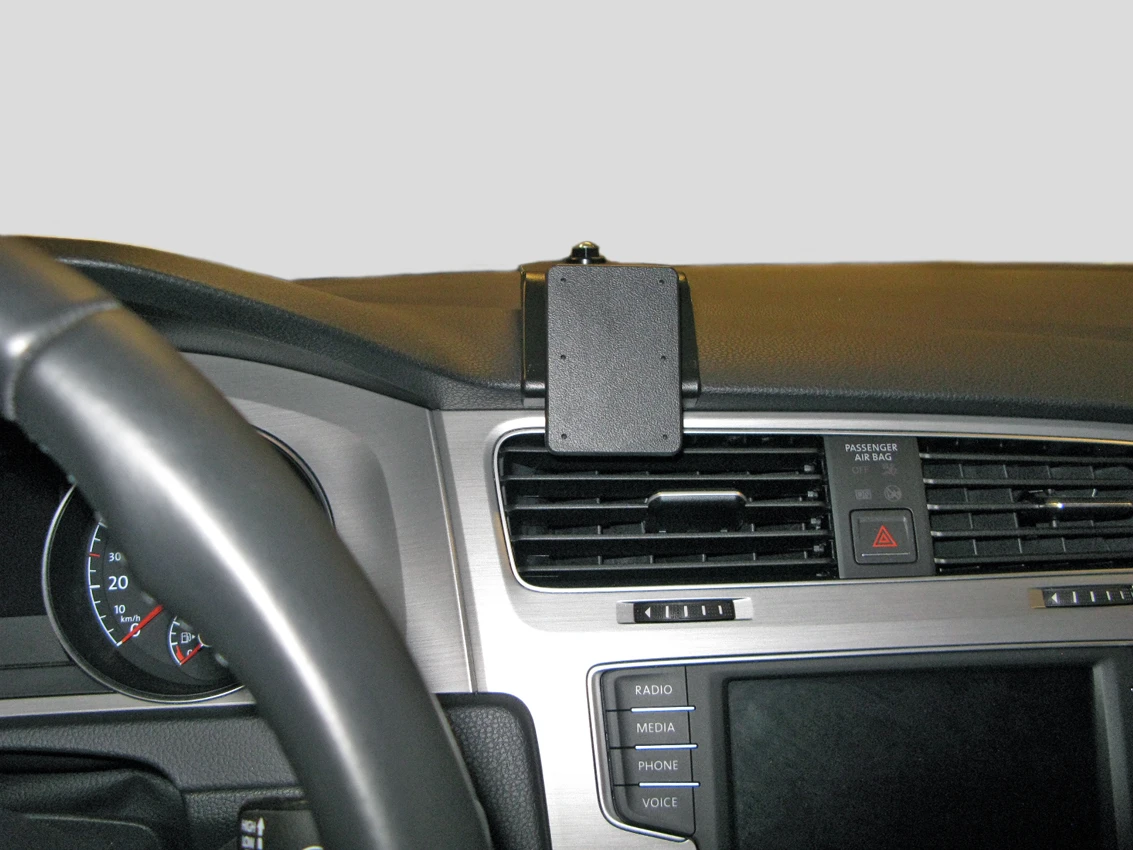

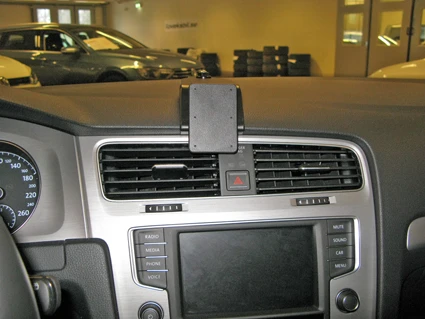

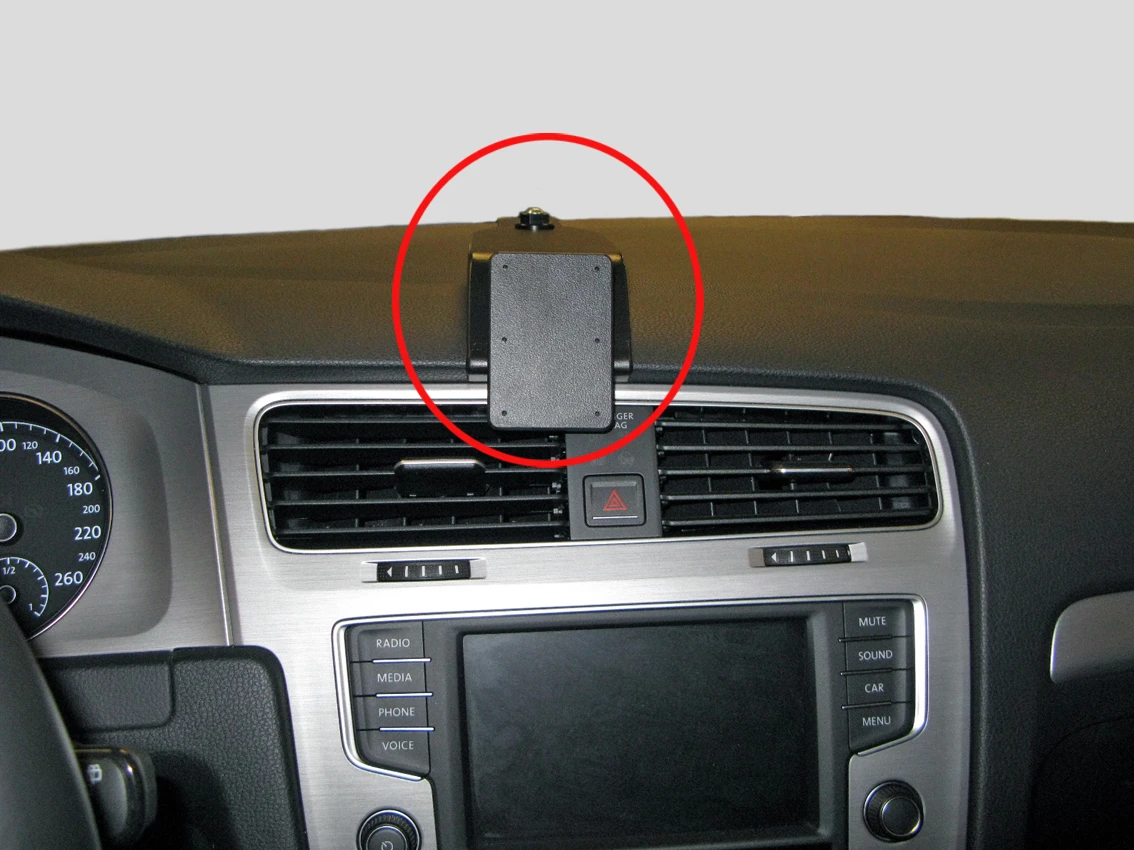

  • 4. The mount is in place.
  • Technical Information Illustration

    التوافق

    • Volkswagen : Golf VII
    • Volkswagen : Golf VII Variant
