الوصف

ONLY for the dashboard style with one air vent on each side of the stereo.

معلومات فنية

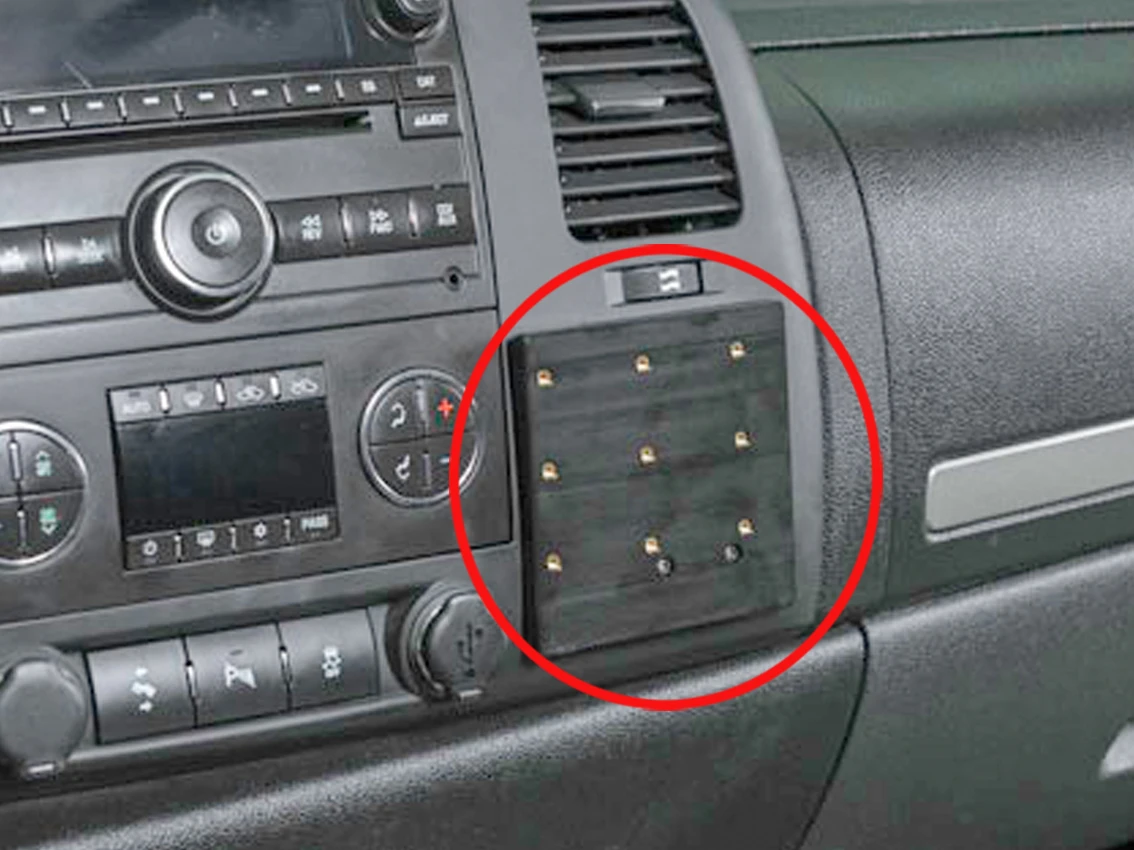

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

Please read all of the instructions and look at the pictures before installing the ProClip.

This ProClip consists of three parts:

1. Mounting base. 2. Bottom plate. 3. Face plate.

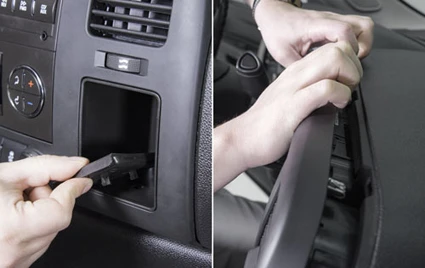

1. Remove the rubber pad on the bottom of the cubby on the lower right side of the dash. Starting at a corner, use the enclosed gap opener to gently pry the frame around the center dash open. Pull the upper center dash frame a few centimeters away from the dash.

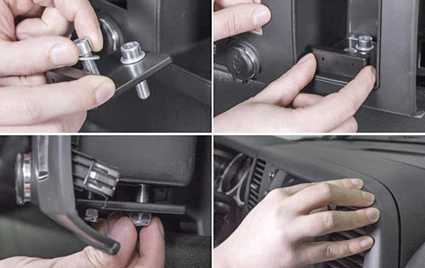

2. Insert the included bolts and washers through the holes in the mounting base. Align the holes in the mounting base with the holes in the bottom of the cubby. Place the bottom plate over the bolts from underneath. Thread the nuts onto the bolts and tighten them. Carefully press the dashboard frame back into place.

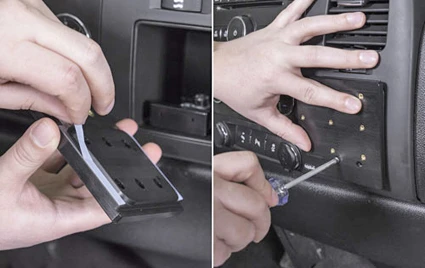

3. Remove the adhesive tape covers on the face plate. Align the two holes on the lower center part of the face plate with the two pre-drilled holes in the mounting base. Screw the face plate onto the mounting base using the enclosed screws.

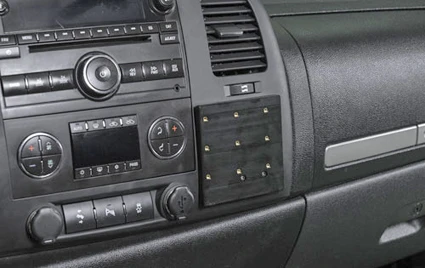

4. The ProClip is in place.

التوافق

• Chevrolet : Silverado 1500 Series
• Chevrolet : Silverado 2500/3500 Series
• GMC : Sierra 1500 Series
• GMC : Sierra 2500/3500 Series
