Extra-strength ProClip

رقم الصنف : 213503

International 8000-series 2002-2017

International Durastar 2002-2018

more...

الكمية

إنتهى من المخزن

معلومات فنية

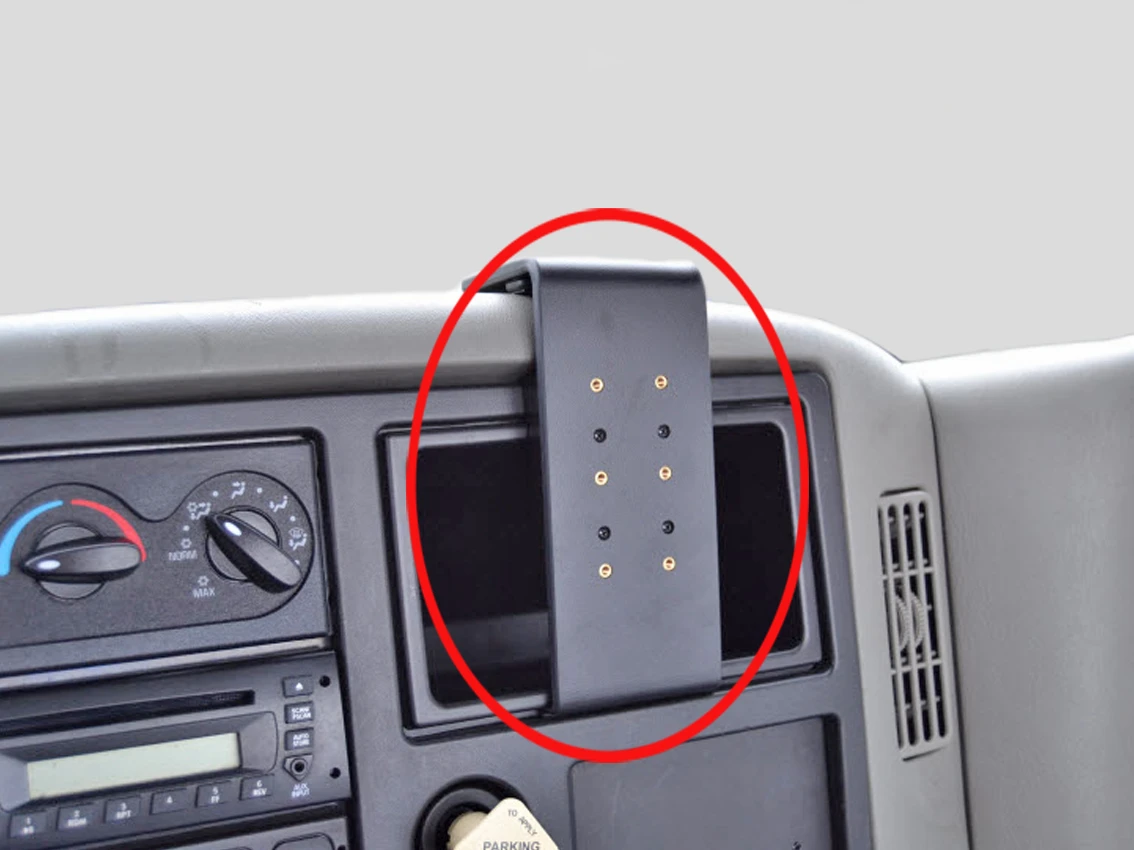

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

Please read all of the instructions and look at the pictures before installing the ProClip.

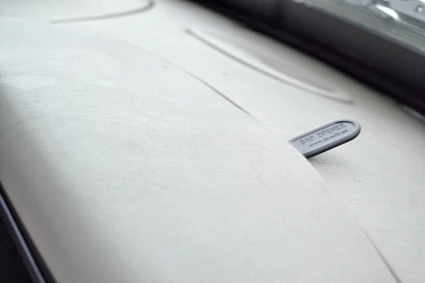

  • 1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Press the thin end of the enclosed gap opener into the gap dividing the upper dash paneling, to widen the gap. Remove the adhesive tape cover on the ProClip.
  • Technical Information Illustration

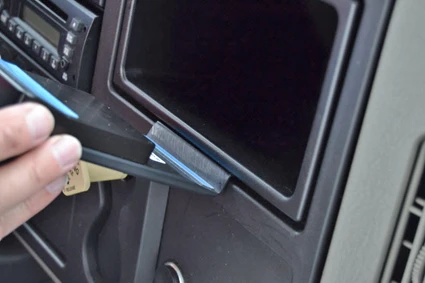

  • 2. Insert the lower S-shaped edge of the ProClip into the gap between the frame surroinding the storage box and the remainder of the dash. Push the ProClip forward so the angled edge hooks behind the panel.
  • Technical Information Illustration

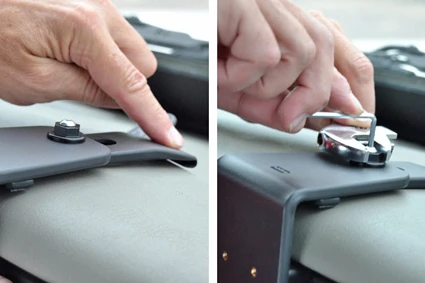

  • 3. Align the upper edge of the ProClip next to the gap opener. Use a wrench to adjust the length of the upper part of the ProClip until the angled edge hooks ontp the upper dash next to the gap opener. Fixate the locking by using an Allen key. Remove the gap opener.
  • Technical Information Illustration

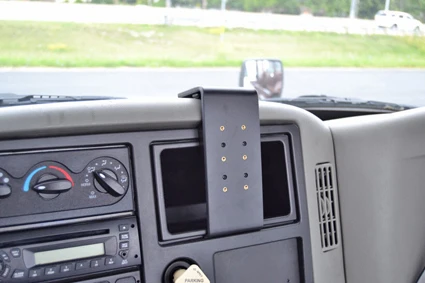

  • 4. The ProClip is in place.
  • Technical Information Illustration

    التوافق

    • International : 8000-series
    • International : Durastar
    • International : TerraStar
    • International : Transtar
    • International : 4000-series
