Extra-strength ProClip

رقم الصنف : 213500

Extra strong mounting platform.

Volkswagen Passat Alltrack 2016-2023

Volkswagen Passat 2015-2023

more...

الكمية

إنتهى من المخزن

الوصف

Extra strong mounting platform.

معلومات فنية

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

Please read the instructions and look at the pictures carefully before installing the bracket.

  • This mounting bracket consists of three parts:
  • Technical Information Illustration
  • Part 1 main part with mounting plate.
  • Technical Information Illustration
  • Part 2 and 3 - support arms.
  • Technical Information Illustration

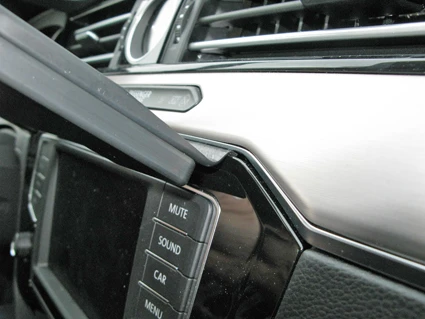

  • 1. Press the angled edges on the main part of the bracket into the gap between the frame surrounding the stereo and the dashboard.
  • Technical Information Illustration

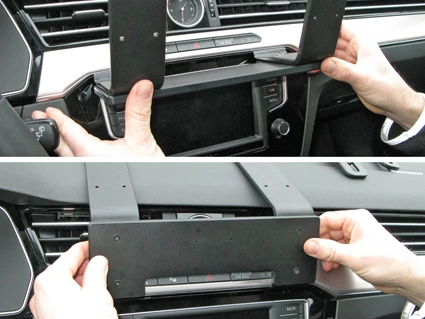

  • 2. Press/flip the main part forward so the angled edges hook behind the panel properly and the arms of the main part are resting on the dashboard.
  • Technical Information Illustration

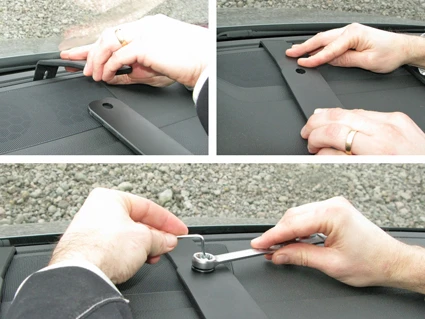

  • 3. Insert the front part of both support arms into the air vent by the windshield. Align the back part of the support arms with the arms of the main part. The support arms should rest below the arms from the main part. Lock the arms into place by tightening the large nuts. Important not to pull too hard! Then fixate the locking by using an Allen key.
  • Technical Information Illustration

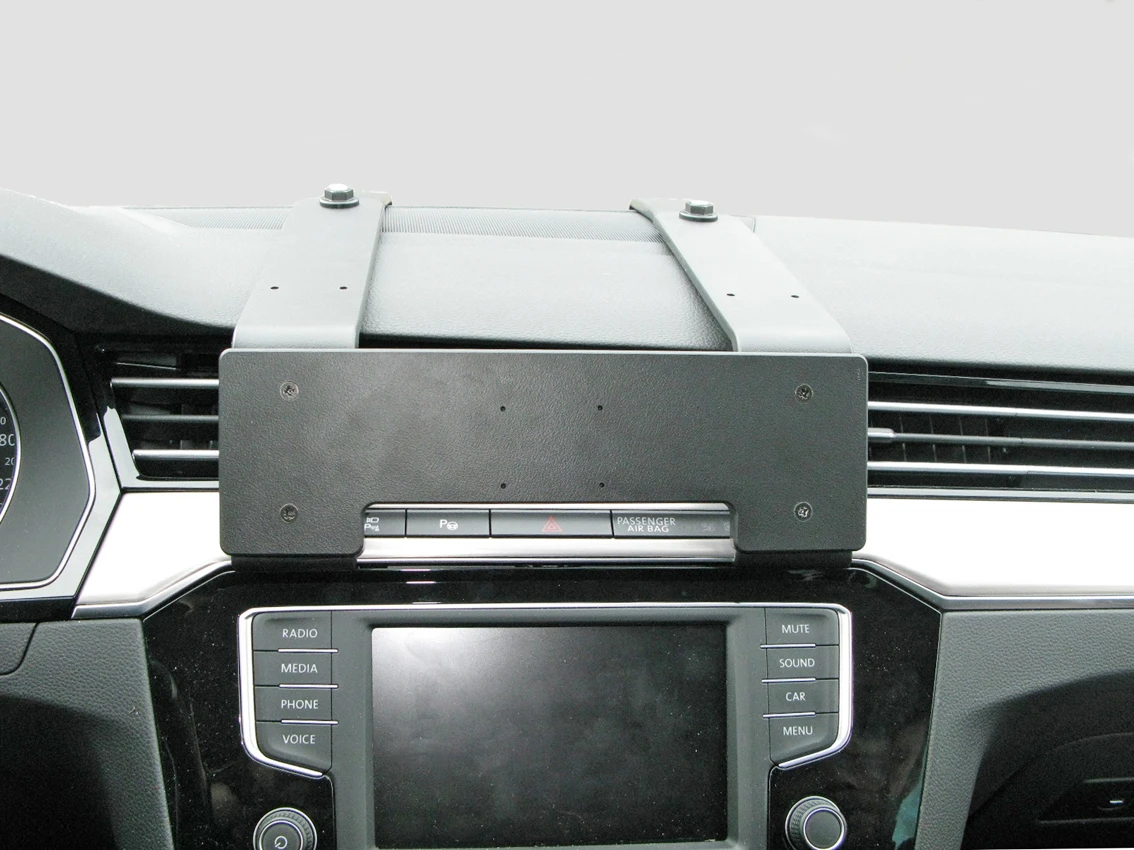

  • 4. The bracket is in place.
  • Technical Information Illustration

    التوافق

    • Volkswagen : Passat Alltrack
    • Volkswagen : Passat
