Extra-strength ProClip

رقم الصنف : 213496

Skoda Octavia III 2013-2021

الكمية

إنتهى من المخزن

معلومات فنية

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

Please read all of the instructions and look at the pictures before attaching the ProClip.

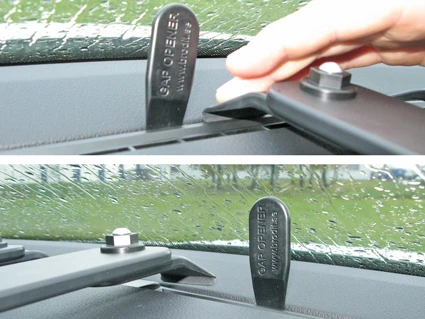

  • 1. Press the thin end of the enclosed gap opener into the gap between the frame surrounding the air vent and the dashboard, to widen the gap. Hook the angled upper left part of the ProClip into the gap next to the gap opener. Remove the gap opener and press the thin end into the gap next to where the upper right part of the ProClip will attach. Hook the angled upper right part of the ProClip into the gap next to the gap opener. Press downward on top of the upper parts so all of the angled edges go all the way into the gap.
  • Technical Information Illustration

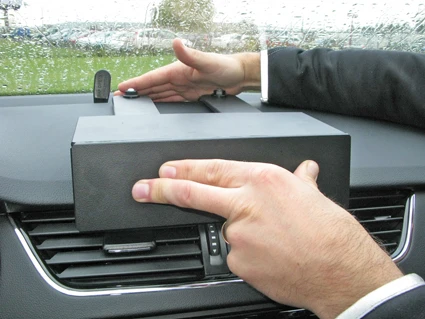

  • 2. Hook the angled edge on the lower part of the ProClip under the dashboard overhang. Hold the two upper parts in the gap and in the same time press forward on the face plate so the ProClip contracts and is firmly in place. Remove the gap opener.
  • Technical Information Illustration

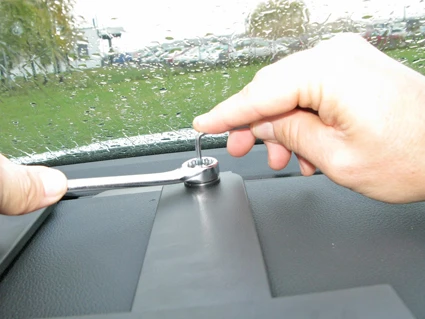

  • 3. Tighten gently the large nuts on top of the ProClip so the ProClip contracts and is firmly in place. Use an Allen key to tighten the small nuts and lock the ProClip into the desired position.
  • Technical Information Illustration

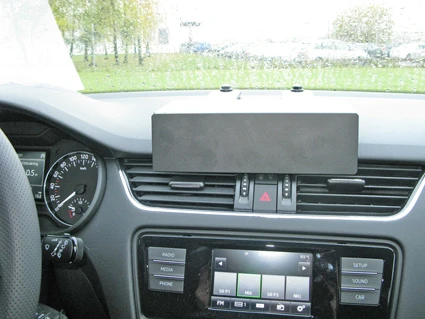

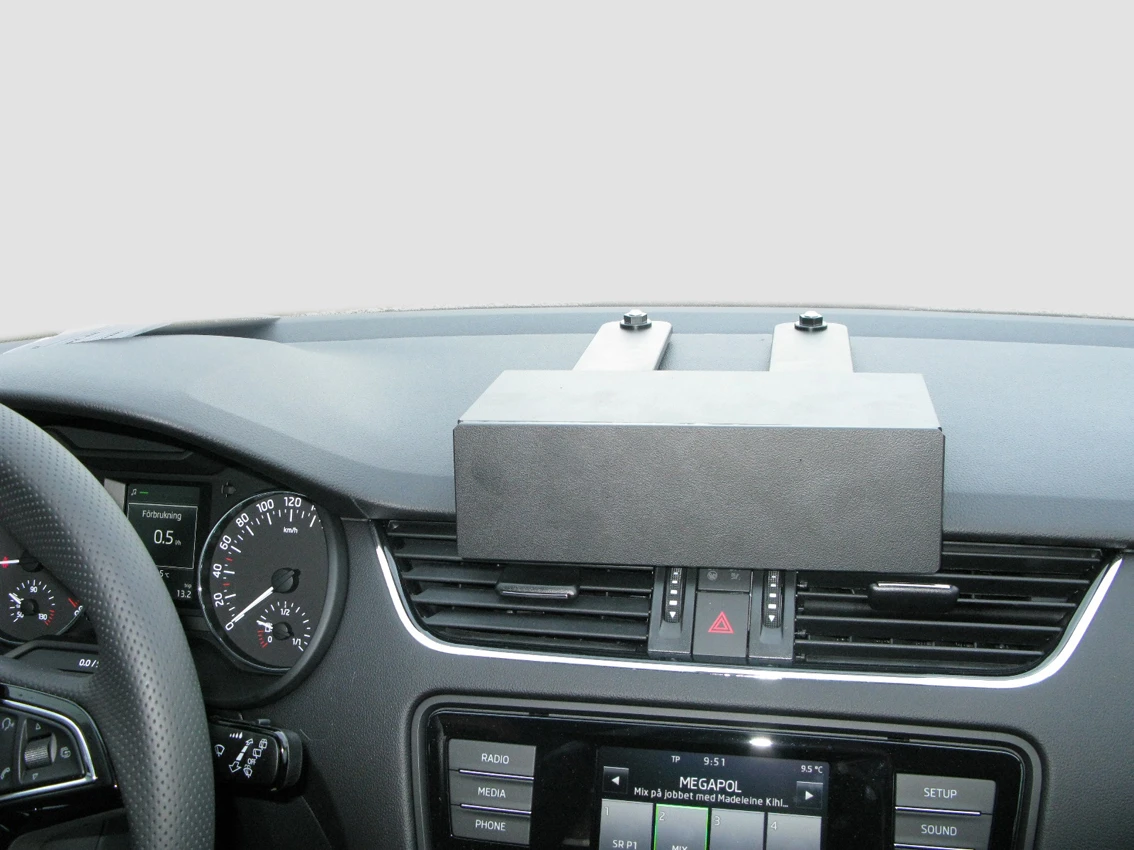

  • 4. The ProClip is in place.
  • Technical Information Illustration

    التوافق

    • Skoda : Octavia III
