Extra-strength ProClip

رقم الصنف : 213491

Mercedes Benz Sprinter 2007-2018

Volkswagen Crafter 2007-2016

more...

الكمية

إنتهى من المخزن

معلومات فنية

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

Please read the instructions and look at the pictures before installing the bracket.

  • This mounting bracket consists of four parts:
  • Technical Information Illustration
  • Part 1 - support arm.
  • Technical Information Illustration
  • Part 2 - mounting plate.
  • Technical Information Illustration
  • Part 3 - mounting arm.
  • Technical Information Illustration

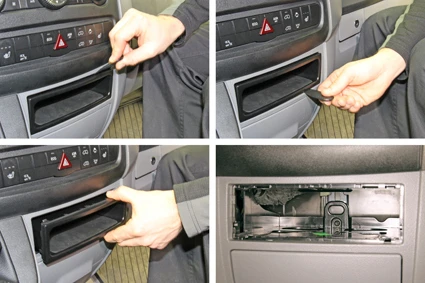

  • 1. Press the enclosed gap opener into the upper gap between the storage compartment and the center console. Press the gap opener upward/forward so the storage compartment comes off on the top side. Repeat the procedure with the gap opener on the lower gap between the storage compartment and center console. Pull out the storage compartment. Note the oval shaped hole at the bottom of the space where the storage compartment was.
  • Technical Information Illustration

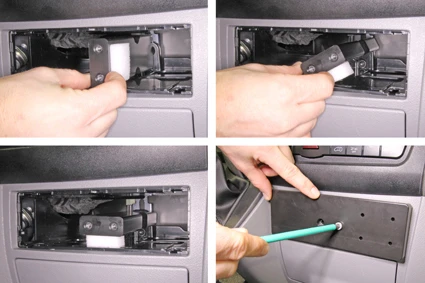

  • 2. Press the support arm vertically into the space so that the knob at the end goes into the hole. Note that the foam should be on the right side. Turn the support arm clockwise so the knob locks it into place. Thread the enclosed screws trough the holes in the mounting plate and screw into the support arm.

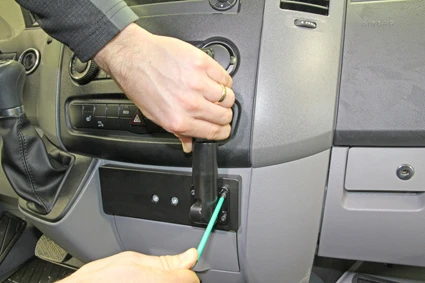

  • 3. Screw the mounting arm into place in the pre-drilled holes.

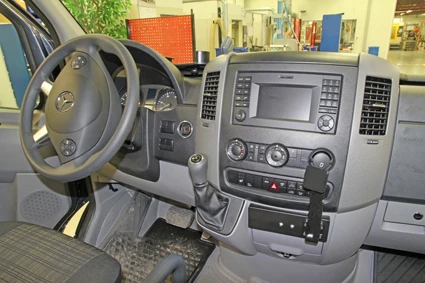

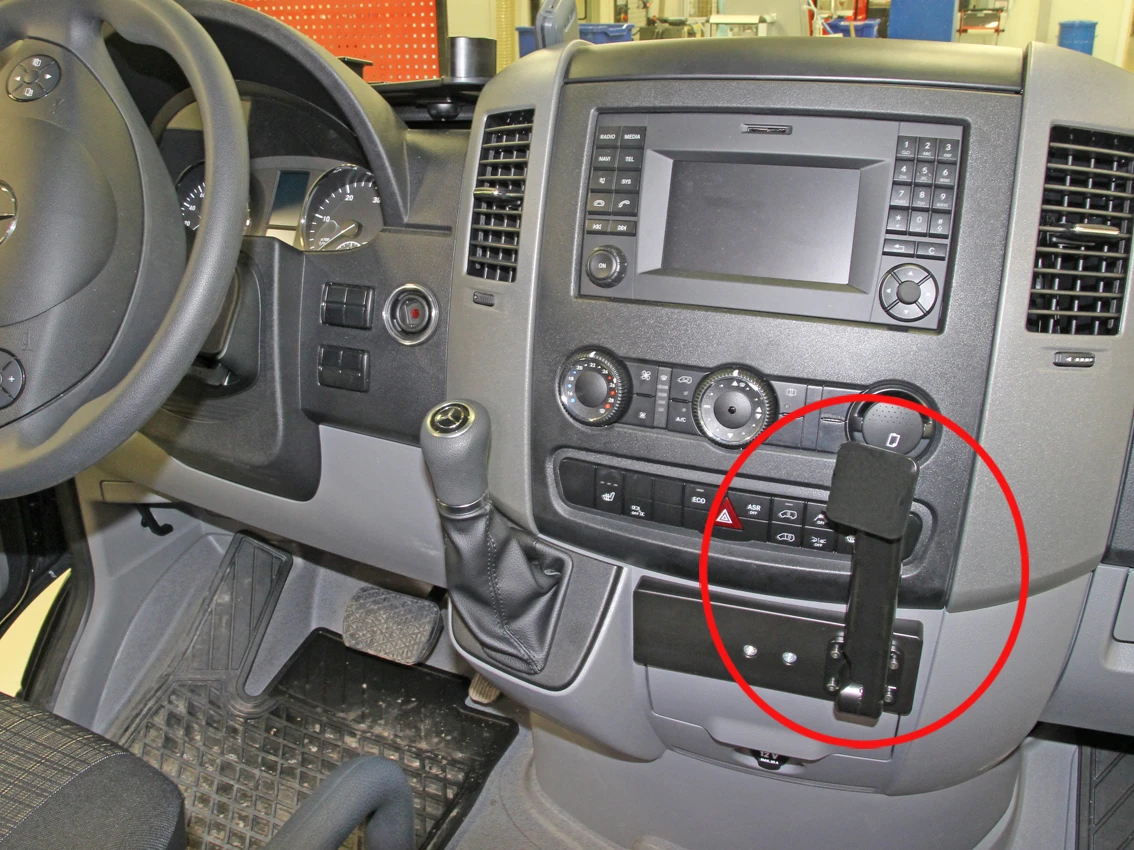

  • 4. The mounting bracket is in place.


  • التوافق

    • Mercedes Benz : Sprinter
    • Volkswagen : Crafter
