Extra-strength ProClip

رقم الصنف : 213477

Fiat Doblò 2010-2014

Opel Combo 2012-2018

more...

الكمية

إنتهى من المخزن

معلومات فنية

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

Please read the instructions and look at the pictures carefully before installing the bracket.

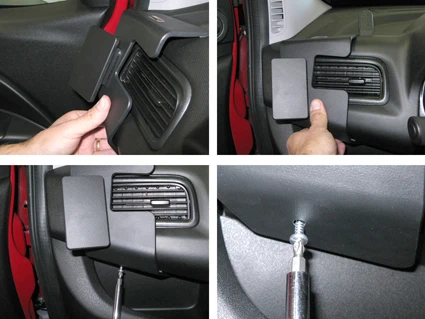

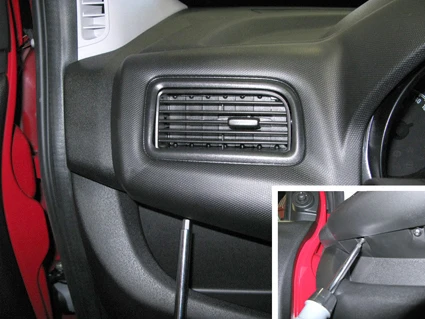

  • 1. Use the enclosed alcohol pad to clean the area where the bracket is to be installed. Remove the left screw situated below the left air vent assembly.
  • Technical Information Illustration

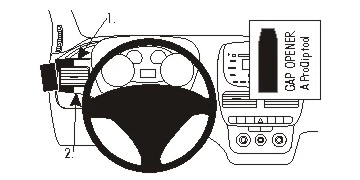

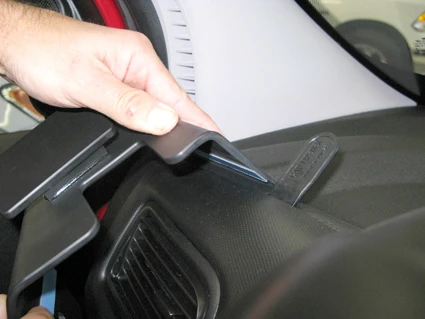

  • 2. Insert the enclosed gap opener into the gap between the panel surrounding the air vent and the dashboard, to widen the gap. Remove the adhesive tape covers on the bracket. Insert the angled upper edge of the bracket into the gap next to the gap opener.
  • Technical Information Illustration
  • 3. Press the lower part of the bracket forward. Align the hole on the bracket with the hole below the air vent assembly. Secure the bracket using the enclosed screw. Remove the gap opener.
  • Technical Information Illustration

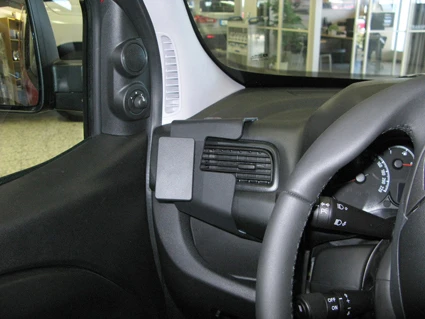

  • 4. The bracket is in place.
  • Technical Information Illustration

    التوافق

    • Fiat : Doblò
    • Opel : Combo
