Extra-strength ProClip

رقم الصنف : 213474

Scania R-series 2010-2016

Scania G-series 2010-2018

more...

الكمية

إنتهى من المخزن

معلومات فنية

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

Please read all of the instructions and look at the pictures before attaching the ProClip. This ProClip consists of two parts:

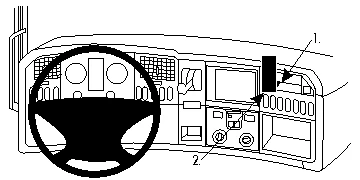

  • Part 1. Attaching part
  • Technical Information Illustration
  • Part 2. ProClip face plate.
  • Technical Information Illustration

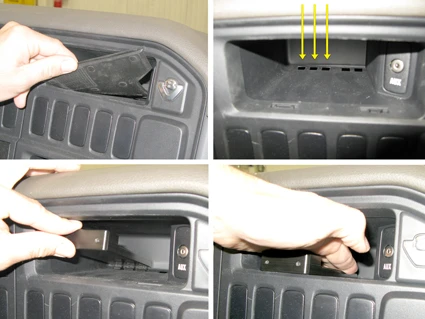

  • 1. Remove the rubber mat in the compartment. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Place the notches on Part 1 into the three holes on the left side of the compartment. Press Part 1 downward so the notches go all the way into the holes.
  • Technical Information Illustration

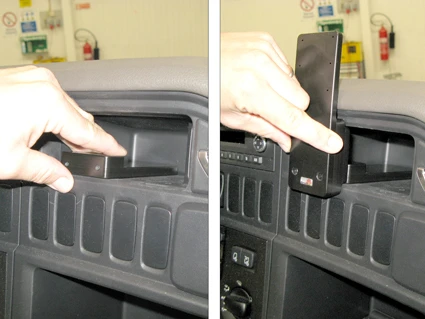

  • 2. Pull Part 1 toward you so the notches hook into the holes. Peel off the adhesive tape covers on Part 2. Place Part 2 onto Part 1 so the corners of Part 2 rest against the compartment frame and the holes in Part 2 match the holes in Part 1.
  • Technical Information Illustration

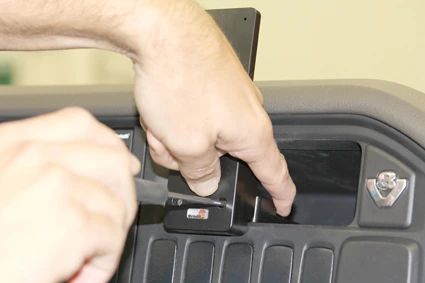

  • 3. Pull Part 1 toward you, in the same time attach Part 2 onto Part 1 with the enclosed screws. It is important to keep pulling Part 1 the whole time you tighten the screws in order for the notches to hook properly in the holes.
  • Technical Information Illustration

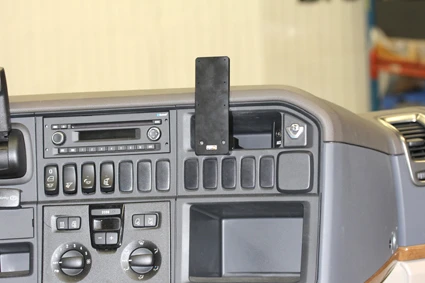

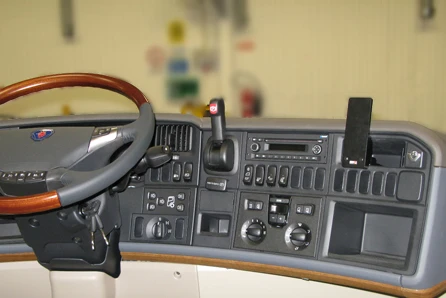

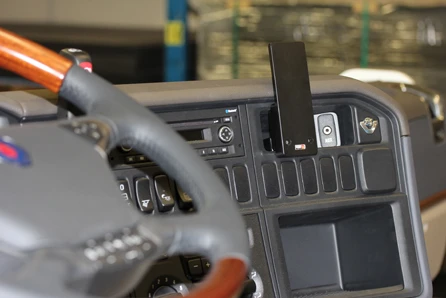

  • 4. The ProClip is in place.
  • Technical Information Illustration

    التوافق

    • Scania : R-series
    • Scania : G-series
