Extra-strength ProClip

رقم الصنف : 213472

Chevrolet Van 2008-2016

GMC Van 2008-2016

more...

الكمية

إنتهى من المخزن

معلومات فنية

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

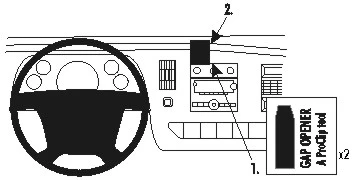

Please read all of the instructions and look at the pictures before attaching the ProClip.

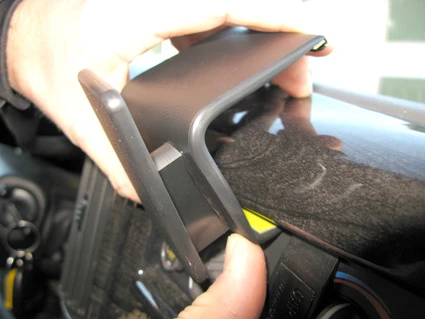

  • 1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Press the thin end of one of the enclosed gap openers into the gap between the climate control panel and its surrounding panel frame, to widen the gap. Peel off the cover of adhesive tape on the ProClip. Hold the curved edge on the lower part of the ProClip in a 45 degree angle towards the dashboard
  • Technical Information Illustration

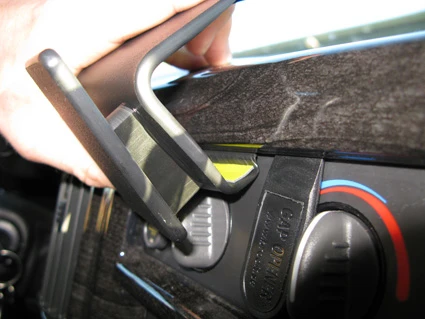

  • 2. Press the curved edge on the lower part of the ProClip into the gap next to the gap opener. Pull out the gap opener.
  • Technical Information Illustration

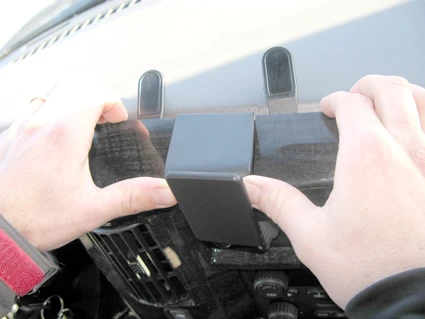

  • 3. Press both gap openers into the gap on top of the dashboard. Flip the ProClip forward and push firmly forward on the upper part of the face plate so the angled edge on the upper part of the ProClip goes into the seam/gap between the gap openers. Push until you see or hear/feel it click into place. Pull out the gap openers.
  • Technical Information Illustration

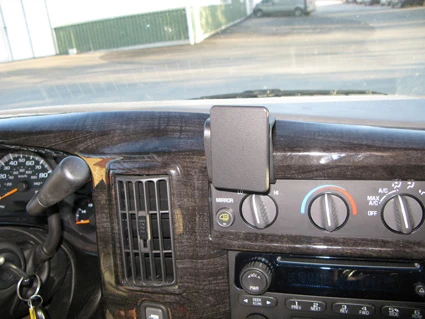

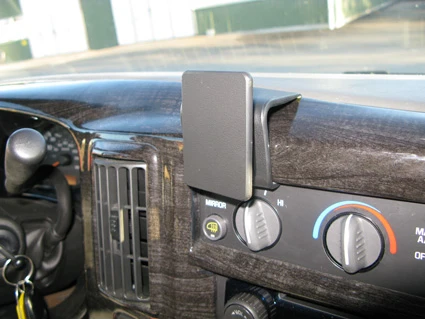

  • 4. The ProClip is in place.
  • Technical Information Illustration

    التوافق

    • Chevrolet : Van
    • GMC : Van
    • Chevrolet : Express
    • GMC : Safari
