Extra strength mounting platform.

معلومات فنية

Extra strength mounting platform for installation of heavier devices. You can keep your device in a holder or attach it directly onto the mounting platform. The placement is optimized for touch screens, PDAs, taximeter screens and printers. You will have your device within easy reach, safe and convenient! The installation is quick and easy and will not damage the interior. Detailed installation instructions included.

التعليمات

Please read all of the instructions and look at the pictures before attaching the ProClip.

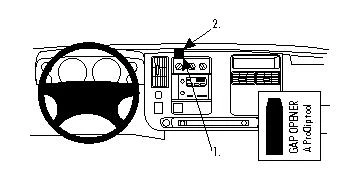

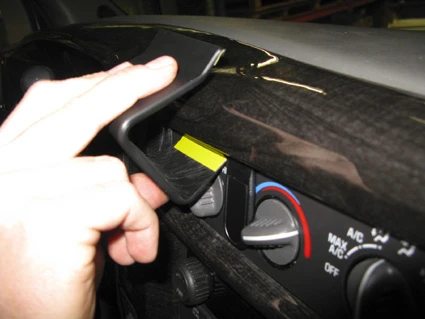

1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Press the thin end of the enclosed gap opener into the gap between the control panel and the surrounding frame to widen the gap. Peel off the adhesive tape covers on the ProClip. Press the curved edge on the lower part of the ProClip into the gap next to the gap opener.

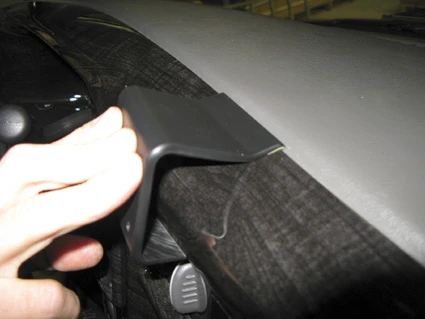

2. Press the ProClip upward so the curved lower edge goes all the way into the gap and hooks behind the control panel.

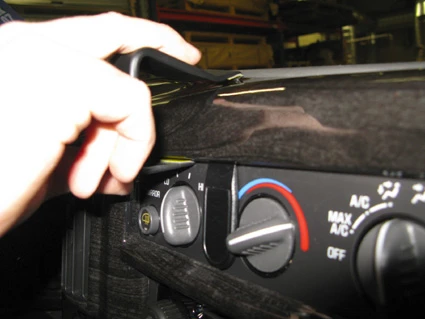

3. Press forward on the upper part of the ProClip so the angled upper edge hooks behind the frame surrounding the control panel. Pull out the gap opener.

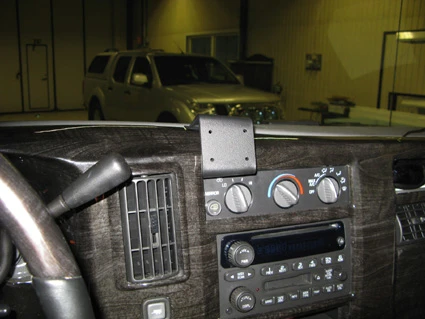

4. The ProClip is in place.

التوافق

• GMC : Van
• GMC : Safari
• Chevrolet : Van
• Chevrolet : Express
