Device Mounting Adapter

رقم الصنف : 215931

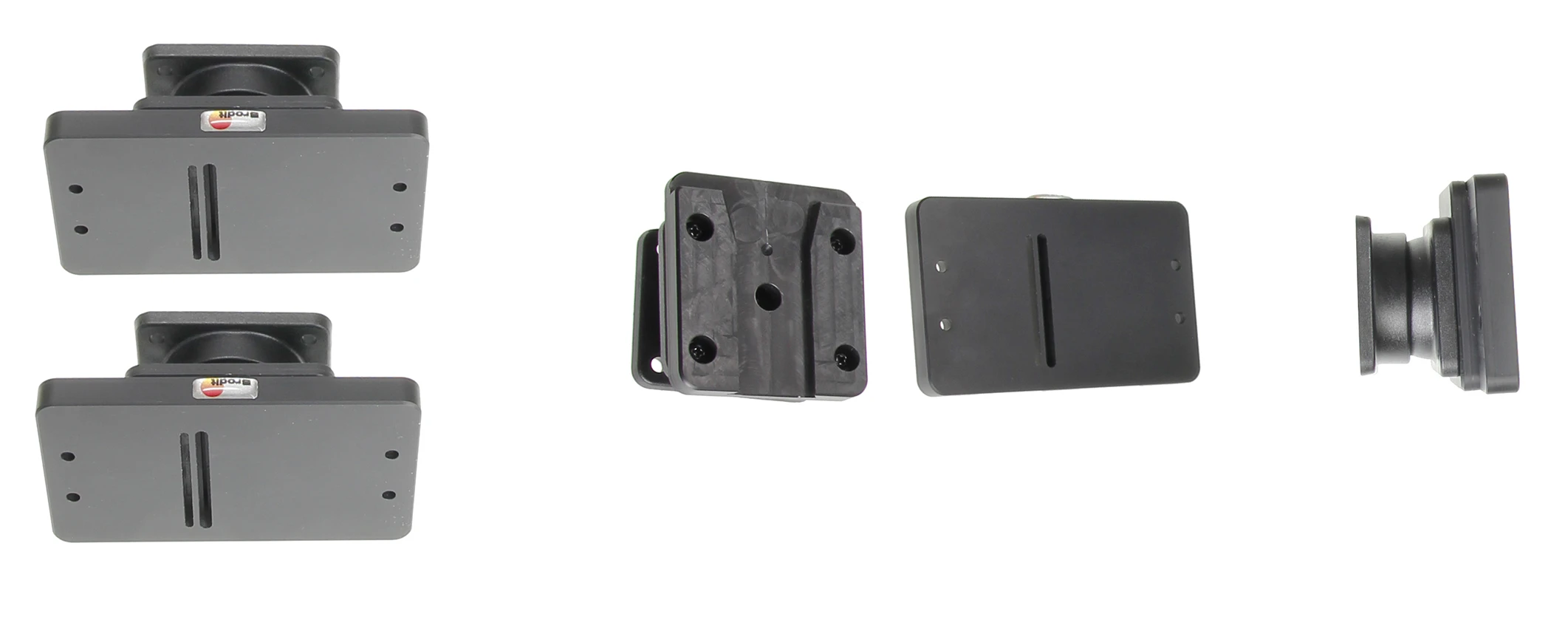

With tilt swivel. Set of 2 mounting adapters.

Nextbase Duo Cinema

الكمية

إنتهى من المخزن

الوصف

With tilt swivel. Set of 2 mounting adapters.

معلومات فنية

A set of two mounting adapters with tilt swivel. To be used with Nextbase original Duo Cinema mount. The mounting adapter consists of an adapter plate that is to be attached onto the back of the Duo Cinema mount, which then is to be attached onto any flat surface.

  • Tilts 20°, swivels 360°. Made of black ABS/Acetal plastic. Made in Sweden.

  • Dimensions of one adapter: 90 x 55 x 38 mm (W x H x D mm)

  • Weight of one adapter: 83 g

  • التعليمات

    Please read all of the instructions and look at the pictures before installation.

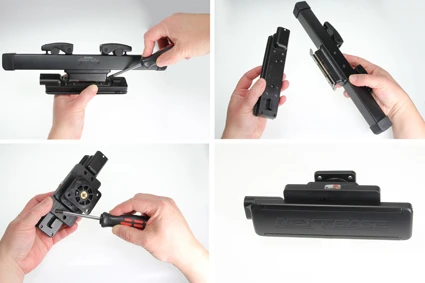

  • 1. Remove the original Duo Cinema mount from the Nextbase headrest mount by loosening the six screws. Place the mounting adapter plate onto the back of the Duo Cinema mount and screw it into place with four of the removed screws.
  • Technical Information Illustration

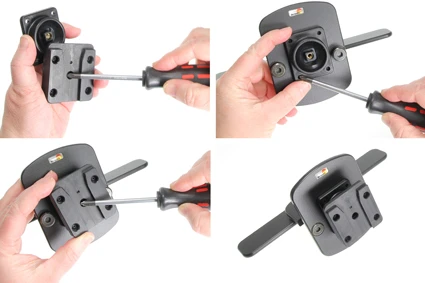

  • 2. Loosen the screw in the center of the mounting adapter so you can remove the attaching plate on the back.Place the attaching plate onto any flat surface. Screw the attaching plate into place with the enclosed screws. Place the mounting adapter onto the attaching plate so the tilt swivel fits. Tighten the screw so the mounting adapter is firmly in place, but still can be adjusted/angled.
  • Technical Information Illustration

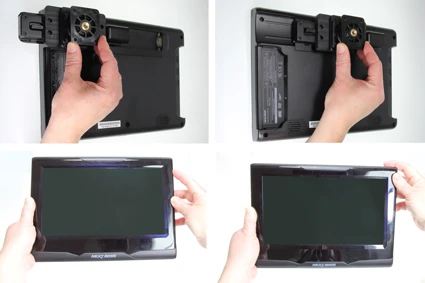

  • 3. To attach the mounting adapter onto the screen: Place the mounting adapter with the Duo Cinema mount on the back side of the screen ant press it sideways into place.
  • Technical Information Illustration
  • To attach the screen onto the mounting adapter: Place the screen above the mounting adapter. Press the screen straight downward so it attaches properly onto the mounting adapter.
  • Technical Information Illustration
  • To remove the screen: Press the screen straight upward, away from the mounting adapter.
  • Technical Information Illustration

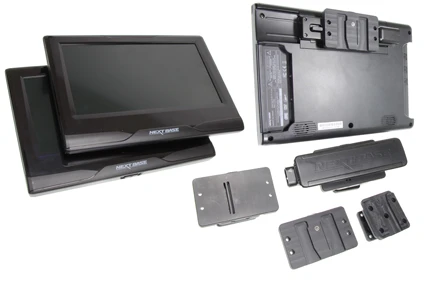

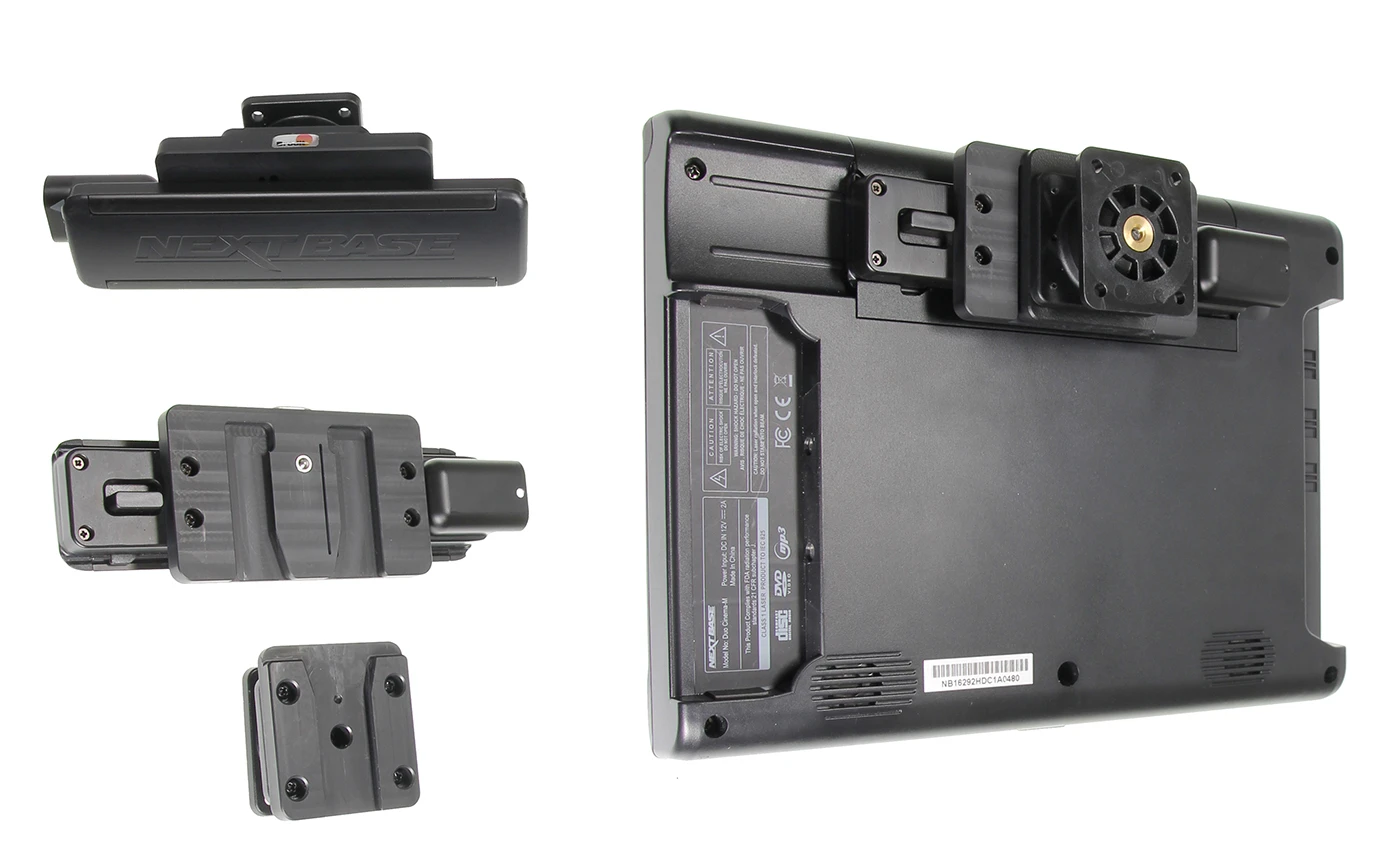

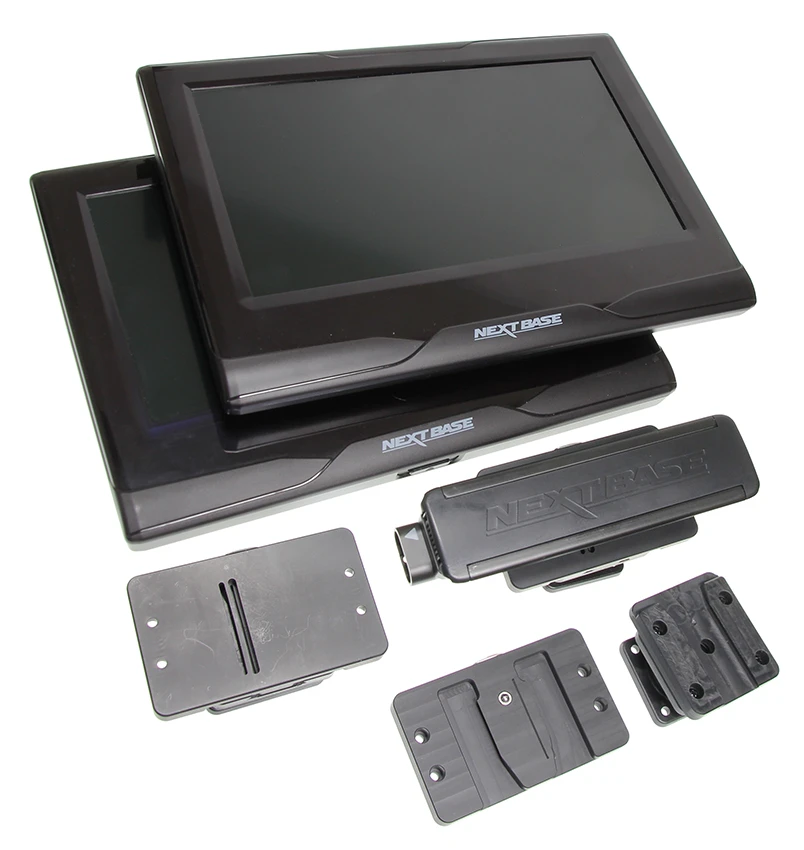

  • 4. The product in place.
  • Technical Information Illustration

    التوافق

    • Nextbase : Duo Cinema
