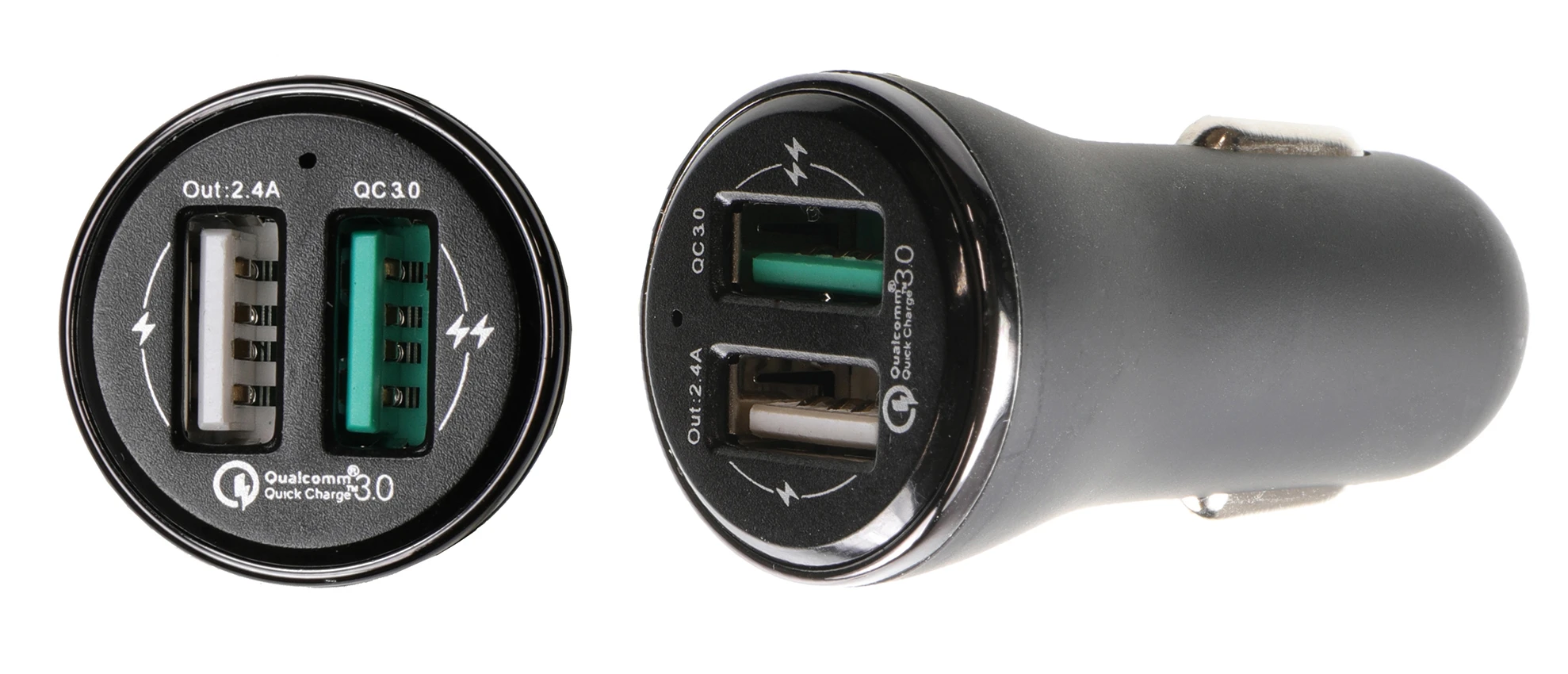

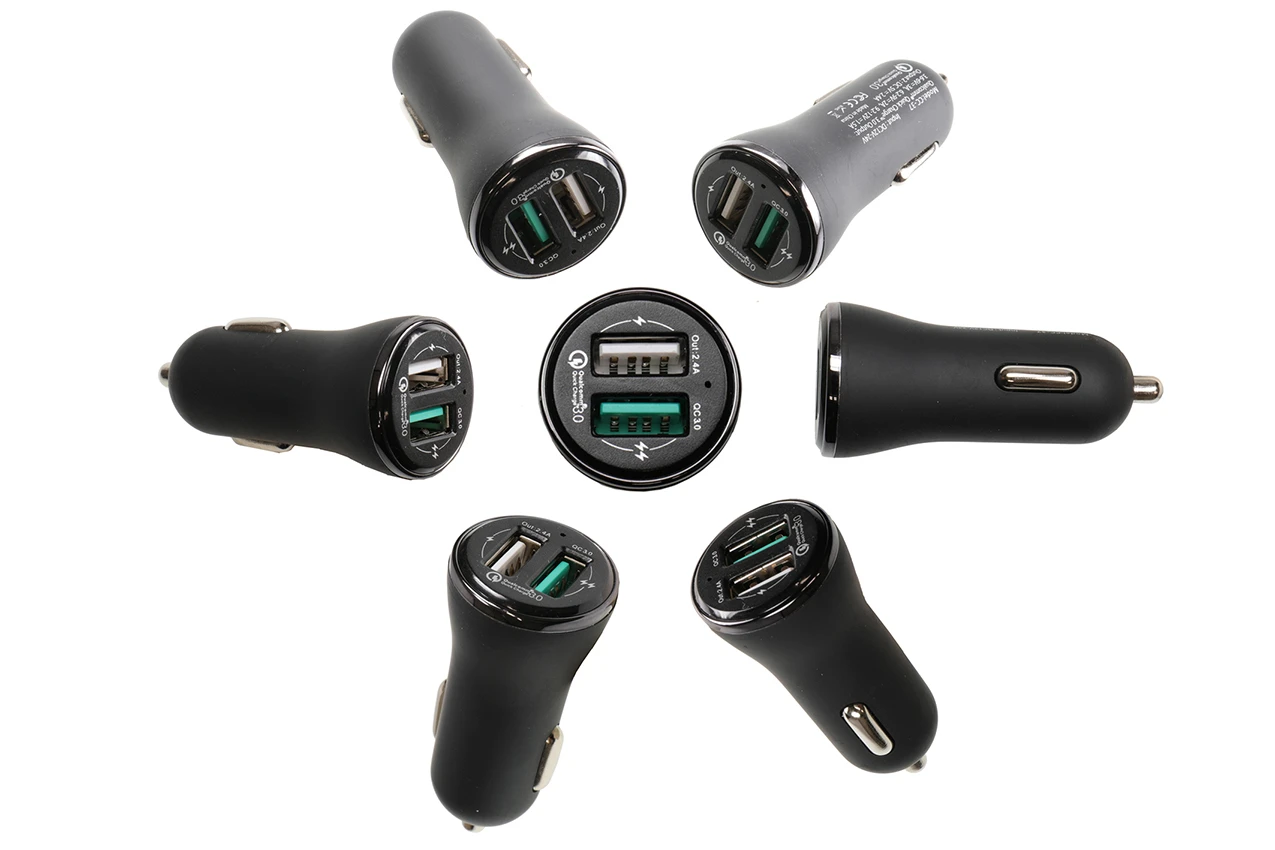

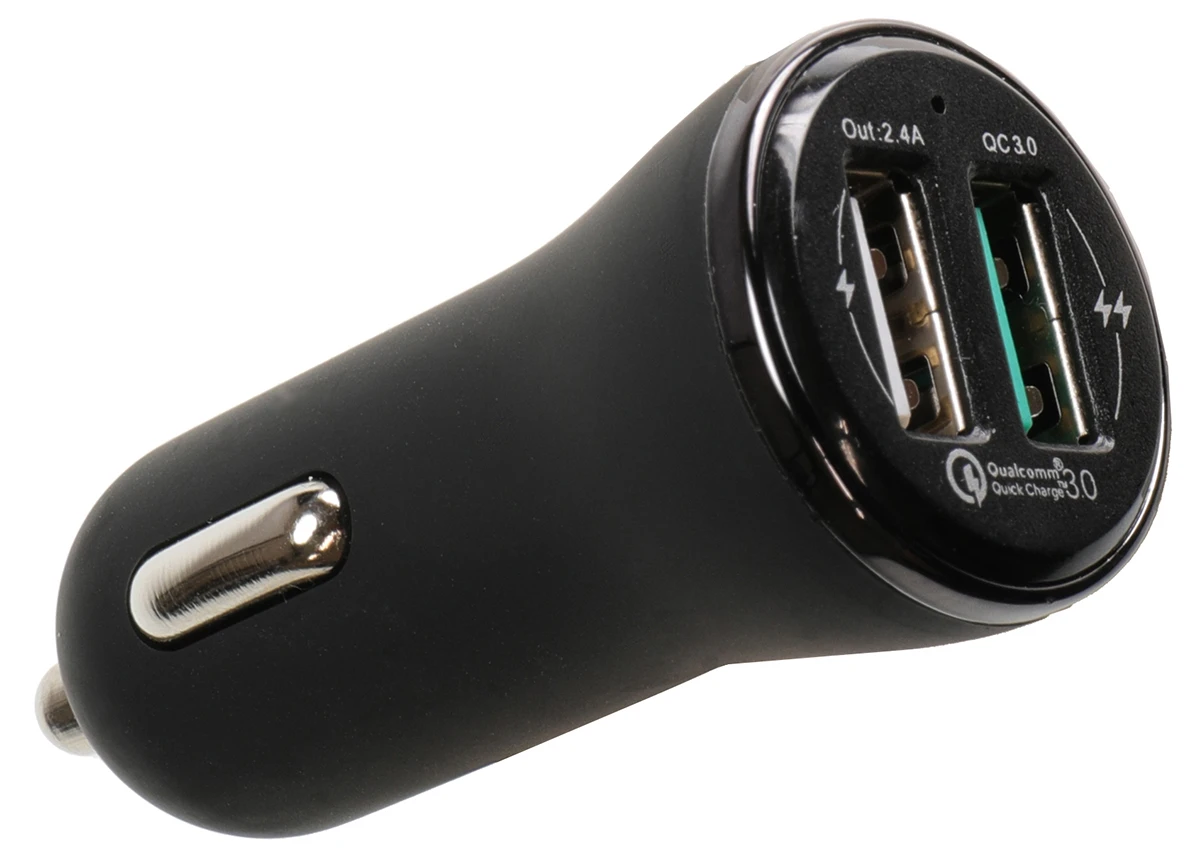

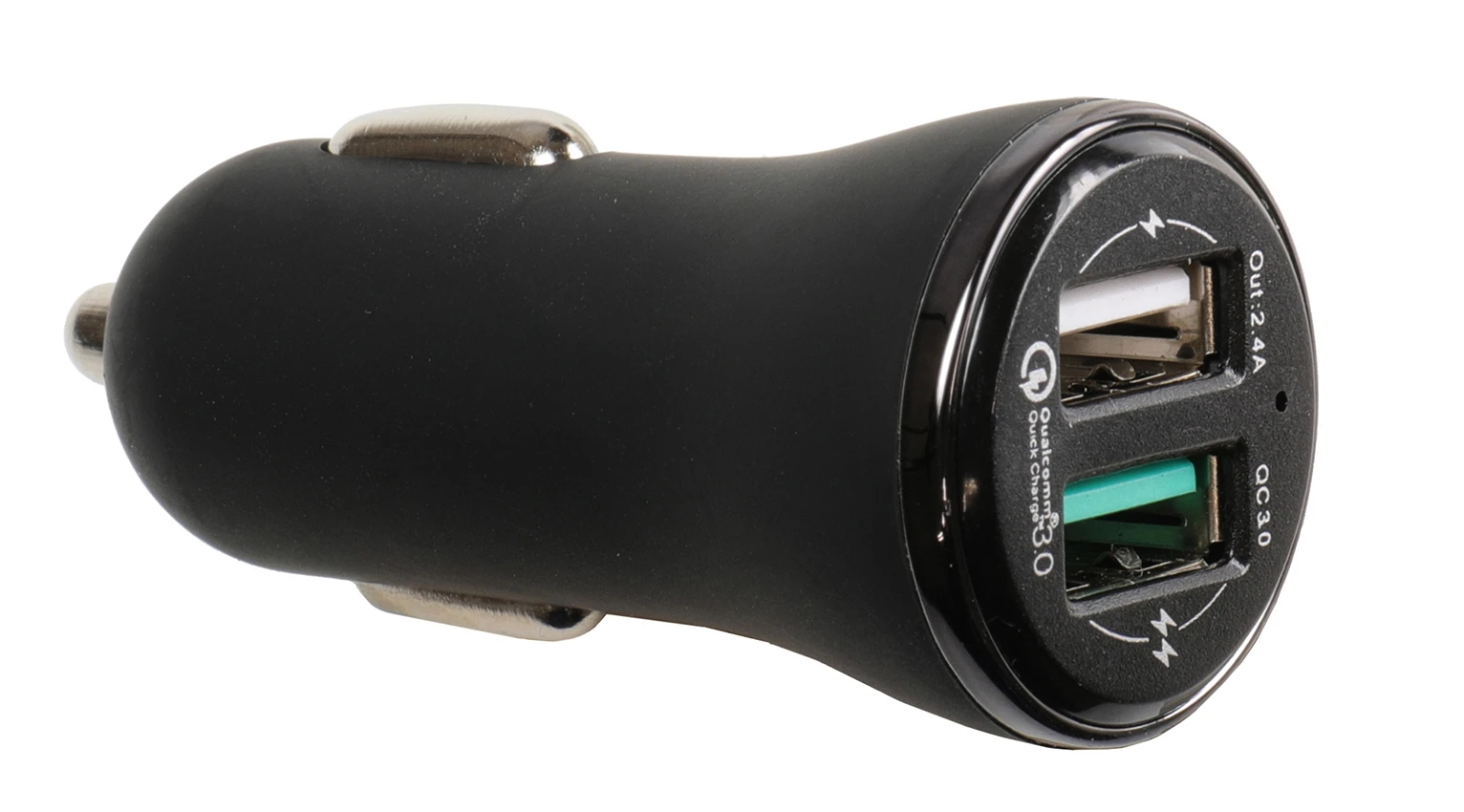

Dual USB Type-A Female Qualcomm Quick Charge 3.0 + 5V/2.4A. 12/24 Volt.

معلومات فنية

This cig-plug adapter with dual USB is listed under Qualcomm Quick Charge 3.0 as Certified Accessories. Very fast charging for all devices that support Quick Charge, and fully backwards-compatible with standard charging of non-Quick Charge devices.

Simultaneously charging of two devices with dual USB ports (QC3.0 + 5V/2.4A)

Port 1 (white) is recommended for use with Apple devices

Port 2 (green) is recommended for use with Android and other devices

(Both ports can be used for all devices regardless.)

With built-in protection from overcharging and short-circuiting. Made of high quality PC + ABS fireproof material. Approvals: CE, RoHS, FCC, UL, QC3.0. Color: Black.

التعليمات

Charging specifications:

- Output Connector Type: Dual USB Type-A Female.

- Output Voltage: 5V, 9V, 12V(Nominal)

- Output Current:

- USB Port 1:4.9V ~ 5.25V 2.4A (White port, recommended for Apple)

- USB Port 2:3.6V ~ 6V/3A 6.2-9V/2A 9.2-12V/1.5A (Green port, recommended for Android etc)

- Output Voltage Ripple: 300mV pk-pk at Max Load

- Input Voltage Range: DC 12--24V DC, Input can handle 40V Load dump translent events

- Input Current: 3.0 A DC Max

- Input Current with No device attached: 0.005A

- DC-DC Conversion Efficiency: Over 86% Typical

- Rated Power:

- USB Port 1 12 Watts Max. White port.

- USB Port 2 18 Watts Max. Green port.
