Charging cradle
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

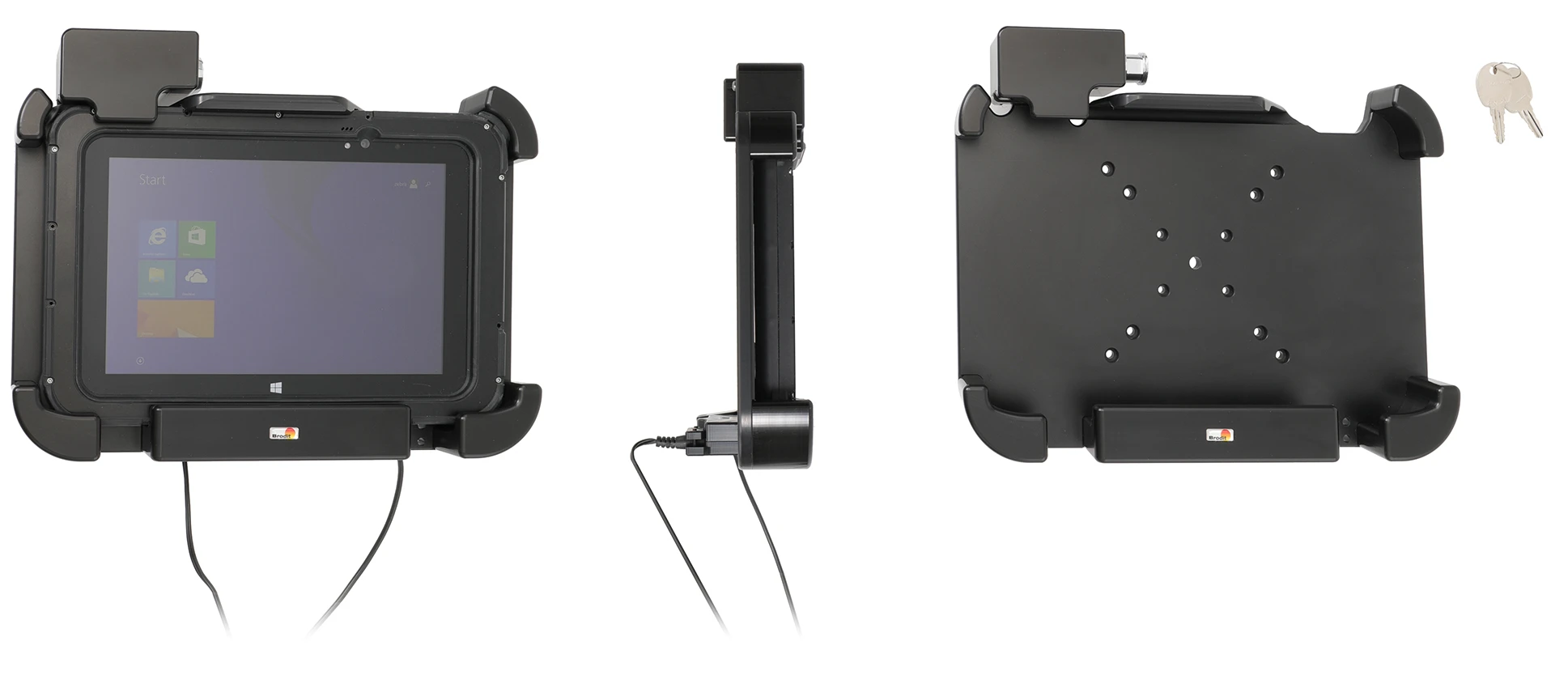

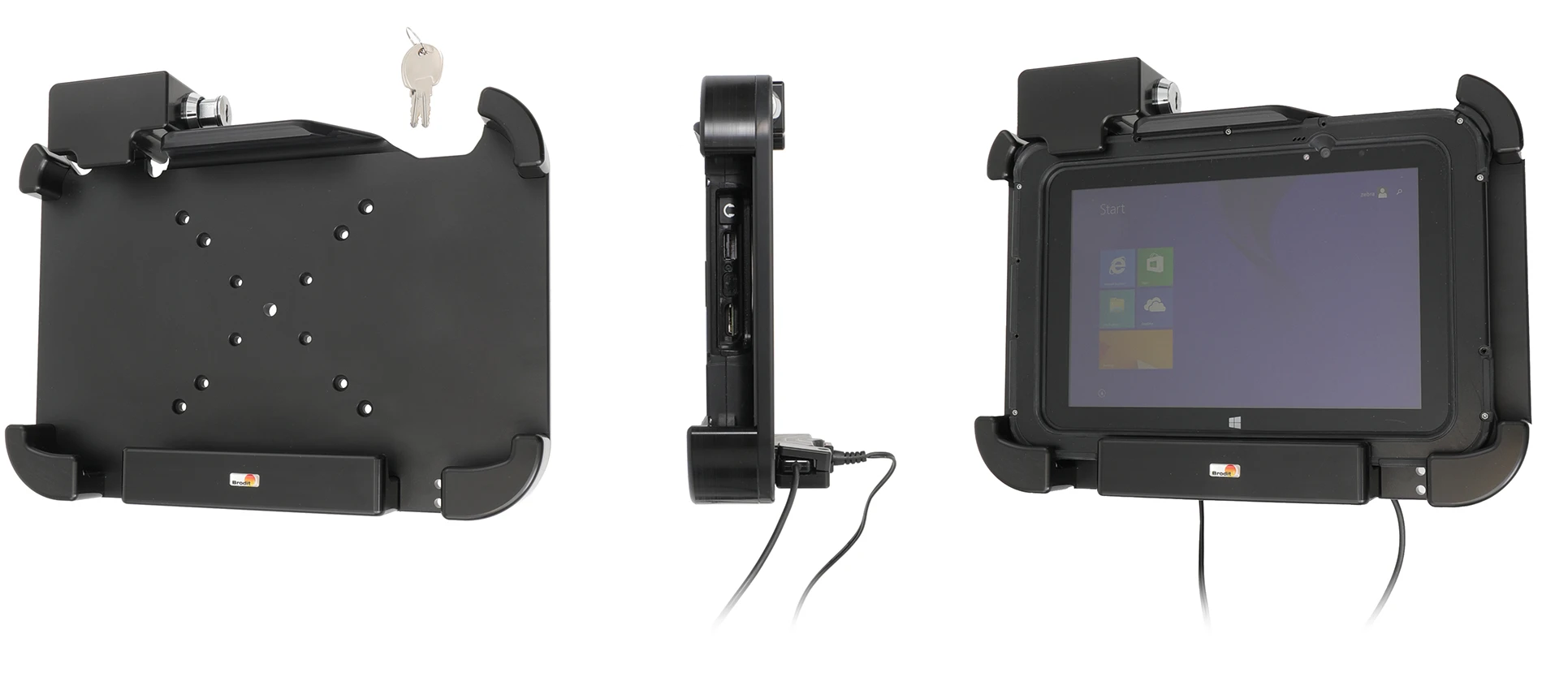

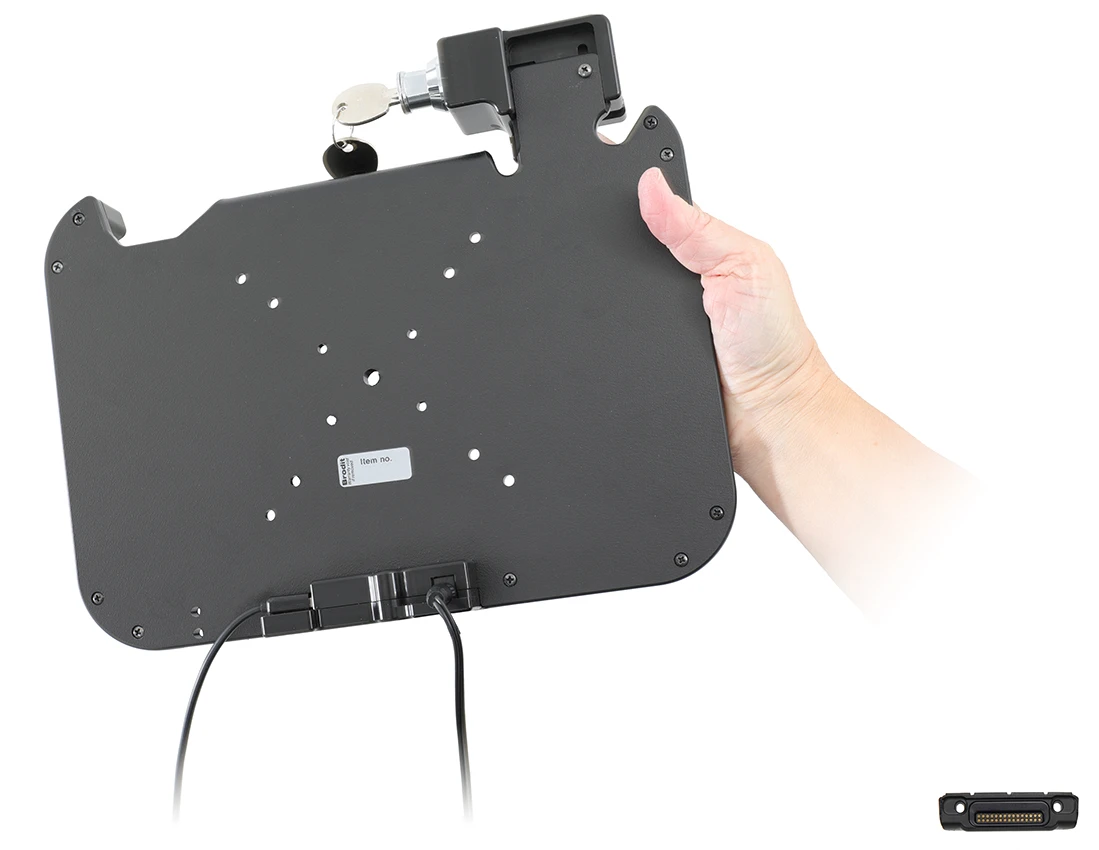

This holder is the perfect choice when you want to have your device securely locked in place and still easy accessible. Custom fit for devices with rugged frame ( NOT for expansion module/handstrap). The holder has an extra robust design for an extra secure fit and is equipped with a lock. In order to remove the device from the holder you need a key (two keys are included). Attach the holder to any flat surface or a Pedestal Mount in a truck, distribution vehicle, warehouse etc. Predrilled AMPS and VESA standard holes. You have full access to the camera and all buttons and outlets when the device is in the holder.
The holder has a DC connectorto plug in a power supply, it charges via pogo pin connection. The power supply is NOT included in the holder, add one of these products in order to get charging to your device:
Item no. 941017 Cable with cigarette ligther plug, straight cable, 12V out, 3A. 12V in.
Item no. 941012 Hard wire cable for fixed installation, 12V out, 3A. 12V in.
Item no. 941023 Cable with cigarette ligther plug, straight cable, 12V out, 3A. 12/48V in.
Item no. 941024 Hard wire cable for fixed installation, 12V out, 3A. 12/48V in.
The holder has a USB Host connector for data connection.
Made in Sweden. Made of high grade ABS and Acetal plastic. Color: Black. Devices should not be installed onto a vehicle's dashboard if blocking the view or key controls. An installation of a device in a vehicle is always done on the customer's own responsibility.
دليل تركيب المنتج
رقم الخطوة 1

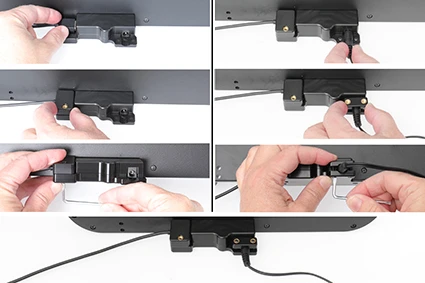

Attach the cables: Connect the cable in the port. Place the enclosed lid over the cable and attach it with the enclosed screw.
رقم الخطوة 2

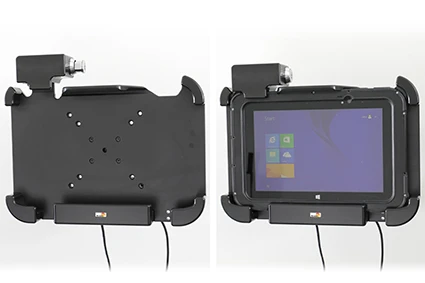

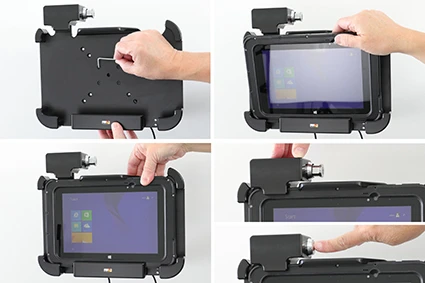

Place the holder onto the desired position and screw into place with the enclosed screws. To place the device in the holder: Place the lower part of the device in the holder, then flip/press the upper part forward so it snaps into place in the holder. Push the lock block downward and press the button to lock.
رقم الخطوة 3

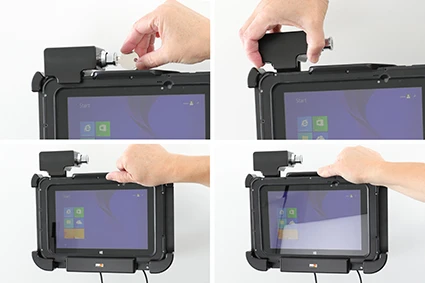

To remove the device from the holder: Use the enclosed key to open the lock. Slide the lock block upward. Press upwards on the upper part of the holder, in the same time pull the upper part of the device out from the holder and then lift the device up and out from the holder.
رقم الخطوة 4
The holder is in place.
