Charging cradle
8 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

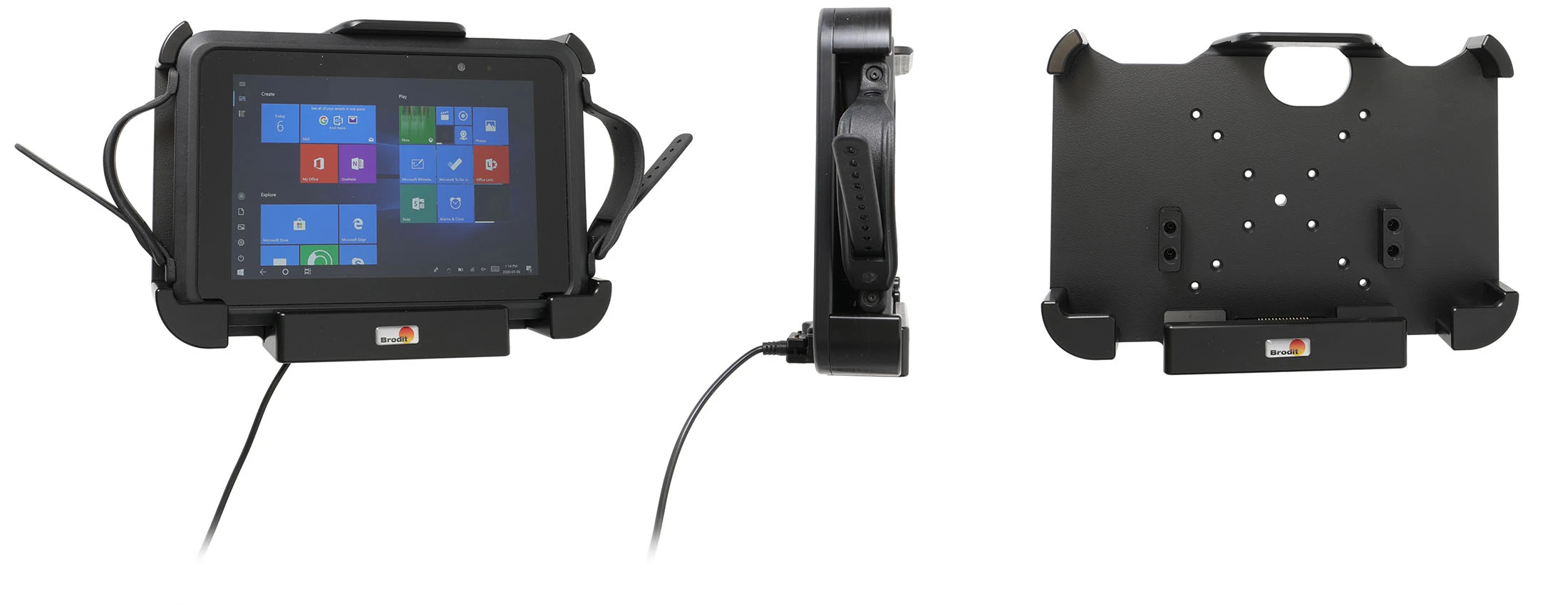

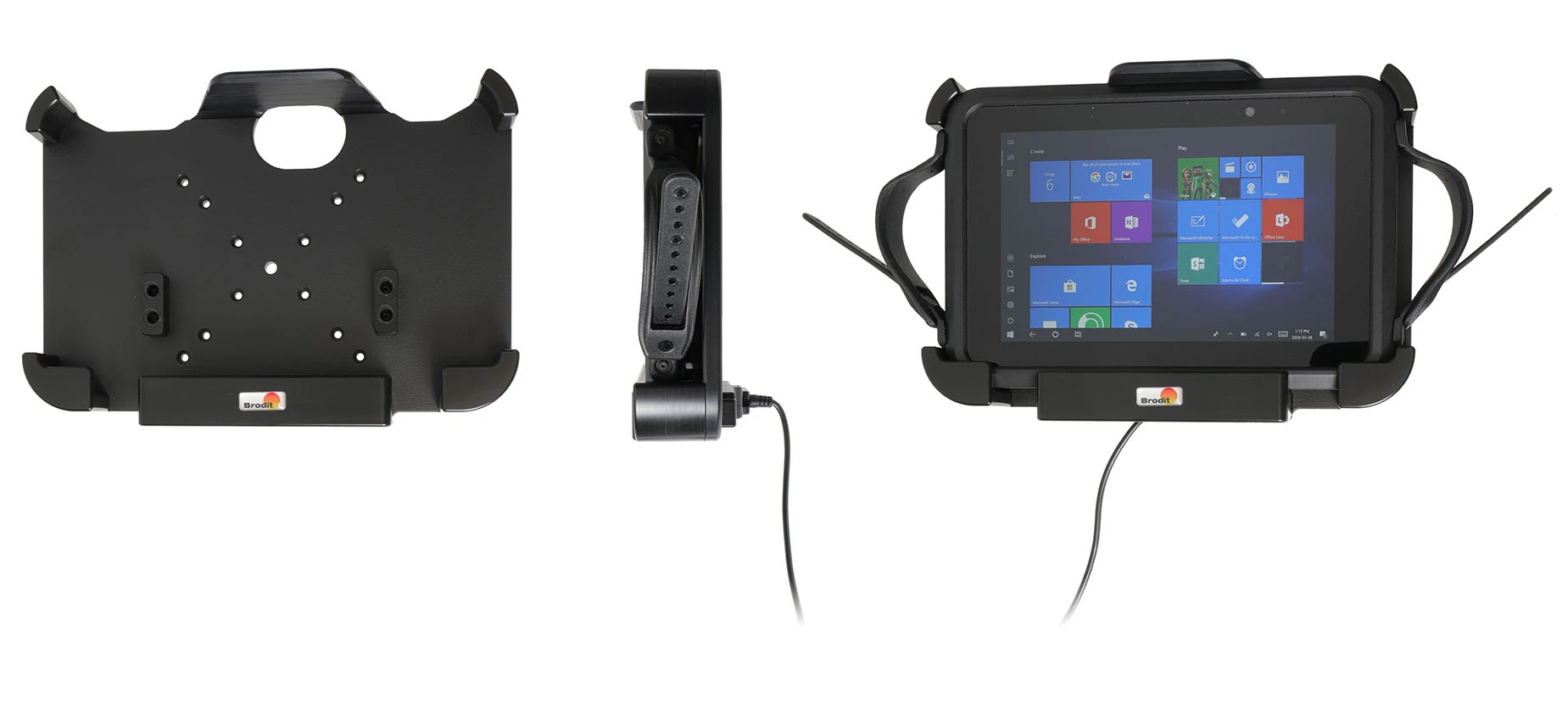

This holder is the perfect choice when you want to have your device within reasy reach. Custom fit for devices with Integrated 1D/2D barcode Scanner (ET51AE-W12E-SF, ET51AE-W15E-SF, ET51CE-G21E-SFA6, ET51CE-G21E-SFNA. The holder has an extra robust design. Attach the holder to any flat surface or a Pedestal Mount in a truck, distribution vehicle, warehouse etc. Predrilled AMPS and VESA 75/100 standard holes. You have full access to the camera and all buttons and outlets when the device is in the holder.
The holder has a DC connector to plug in a power supply. The power supply is NOT included in the holder, add one of these products in order to get charging to your device:
Item no. 941023 Cable with cigarette ligther plug, straight cable, 12V out, 3A. 12/48V in.
Item no. 941024 Hard wire cable for fixed installation, 12V out, 3A. 12/48V in.
Made in Sweden. Made of high grade Acetal plastic. Color: Black. Devices should not be installed onto a vehicle's dashboard if blocking the view or key controls. An installation of a device in a vehicle is always done on the customer's own responsibility.
دليل تركيب المنتج
رقم الخطوة 1

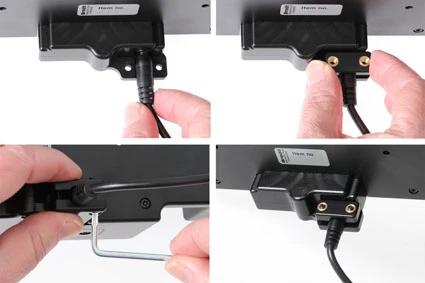

To attach the cable: Attach the cable to the device. Place the lid over the cable and screw it into place with the enclosed screws.
رقم الخطوة 2

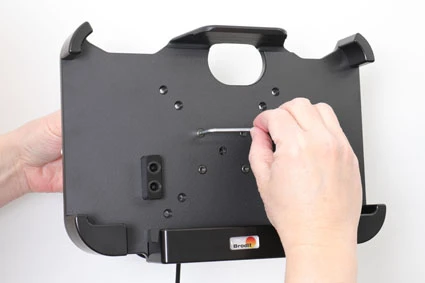

To attach the holder: Place the holder onto the desired position and screw it into place with the enclosed screws.
رقم الخطوة 3

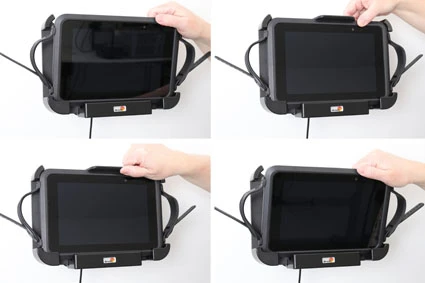

To place the device in the holder: Place the lower part of the device in the holder. Flip/press the upper part of the device forward so it snaps into place in the holder. To remove the device from the holder: Press upwards on the upper part of the holder, at the same time pull the upper part of the device out from the holder. Lift the device up and out from the holder.
رقم الخطوة 4

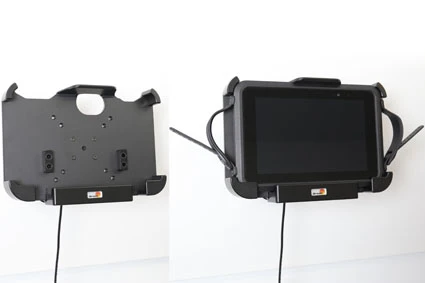

The holder is in place.
