Adjustable label guide
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

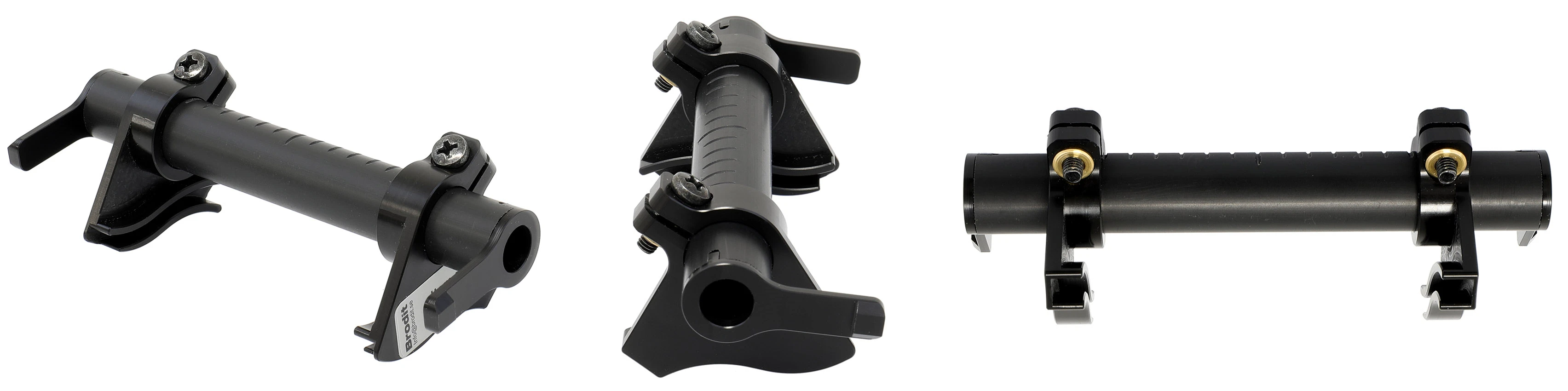

Adjustable label guide for use with external label rolls. Mounted inside the Honeywell RP4 printer to guide the labels accurately and ensure smooth feeding without jamming.
The guide can be adjusted to fit different roll widths and is easy to install and remove when needed.
For optimal performance and reliable feeding, we recommend using this product together with holder 217072, which is designed to provide stable roll support when working with external label rolls.
دليل تركيب المنتج
رقم الخطوة 1

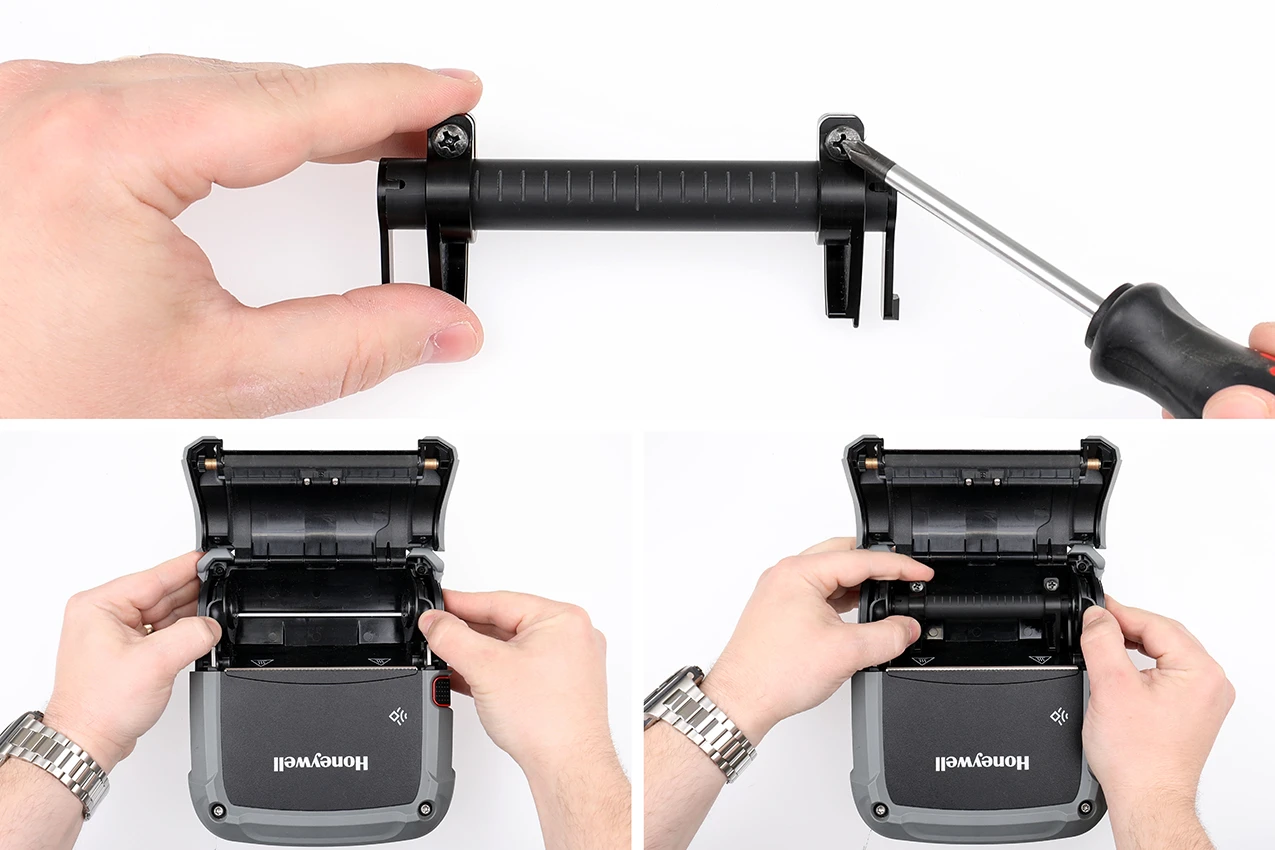

Loosen the screws slightly so that the guide arms can be angled. Pull the attachment points apart and place the label guide inside the printer.
رقم الخطوة 2

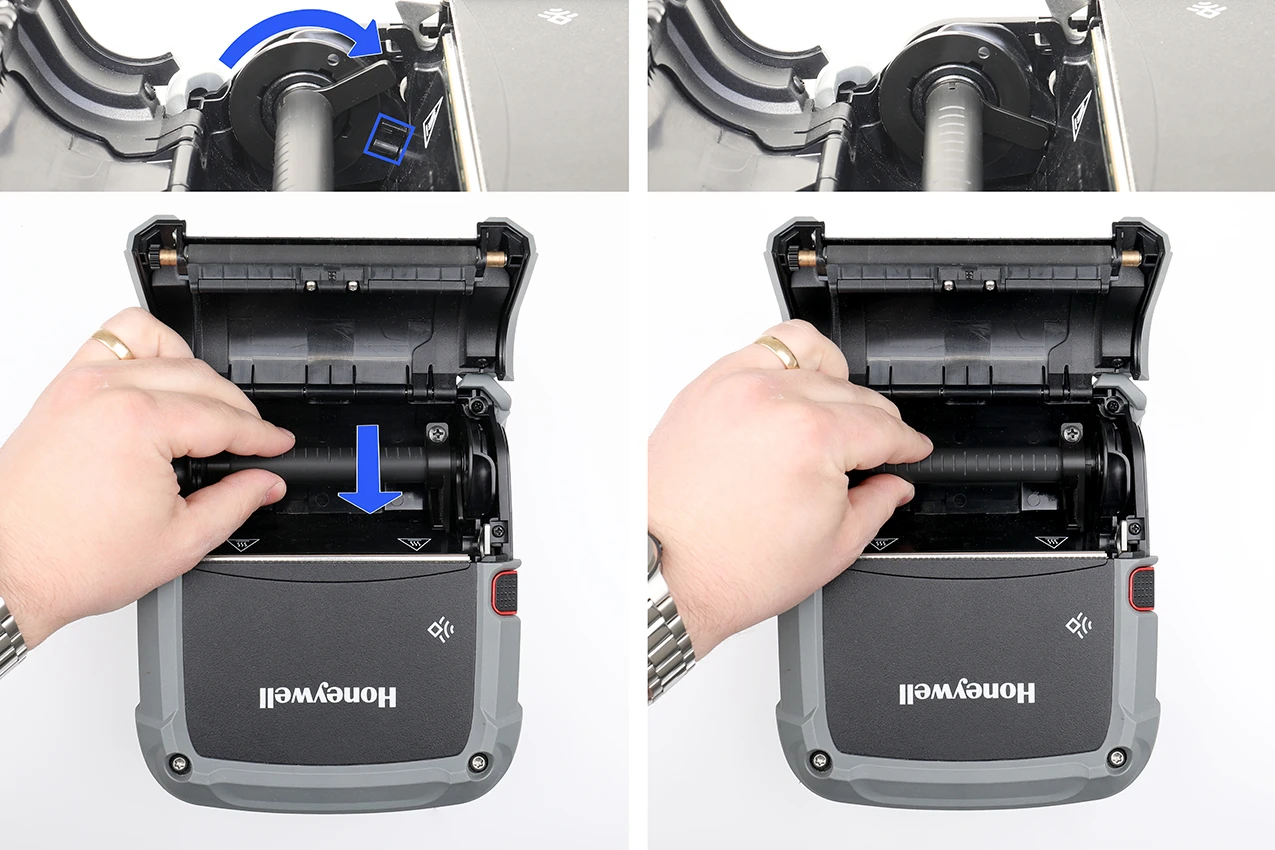

Rotate the label guide downward until the locking arms click into the designated slot. Make sure both arms have clicked in and are securely seated.
رقم الخطوة 3

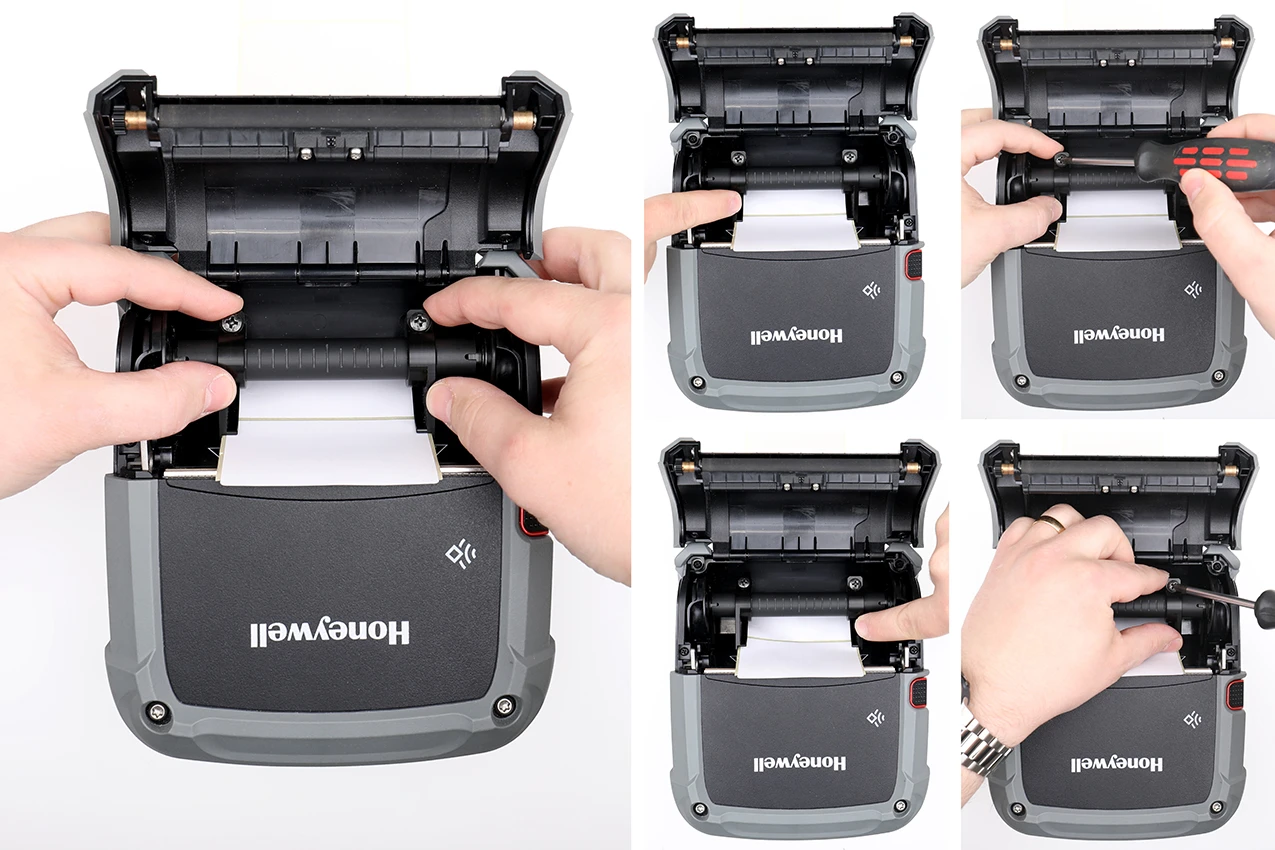

Adjust the guide arms to match the width of the label roll you are using. Press down on the arms as shown, on the opposite side from the screw, so that they move into the correct position. Then tighten the screws.
رقم الخطوة 4

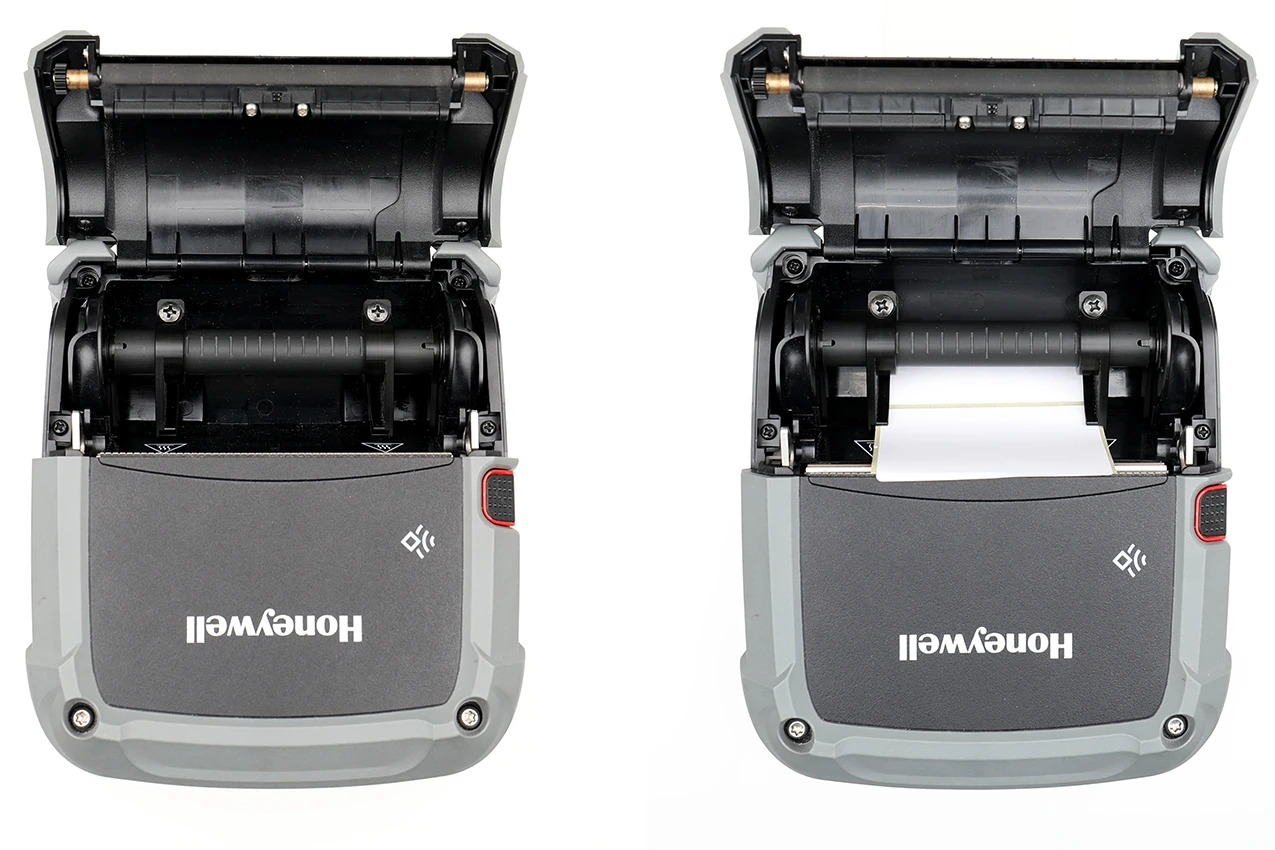

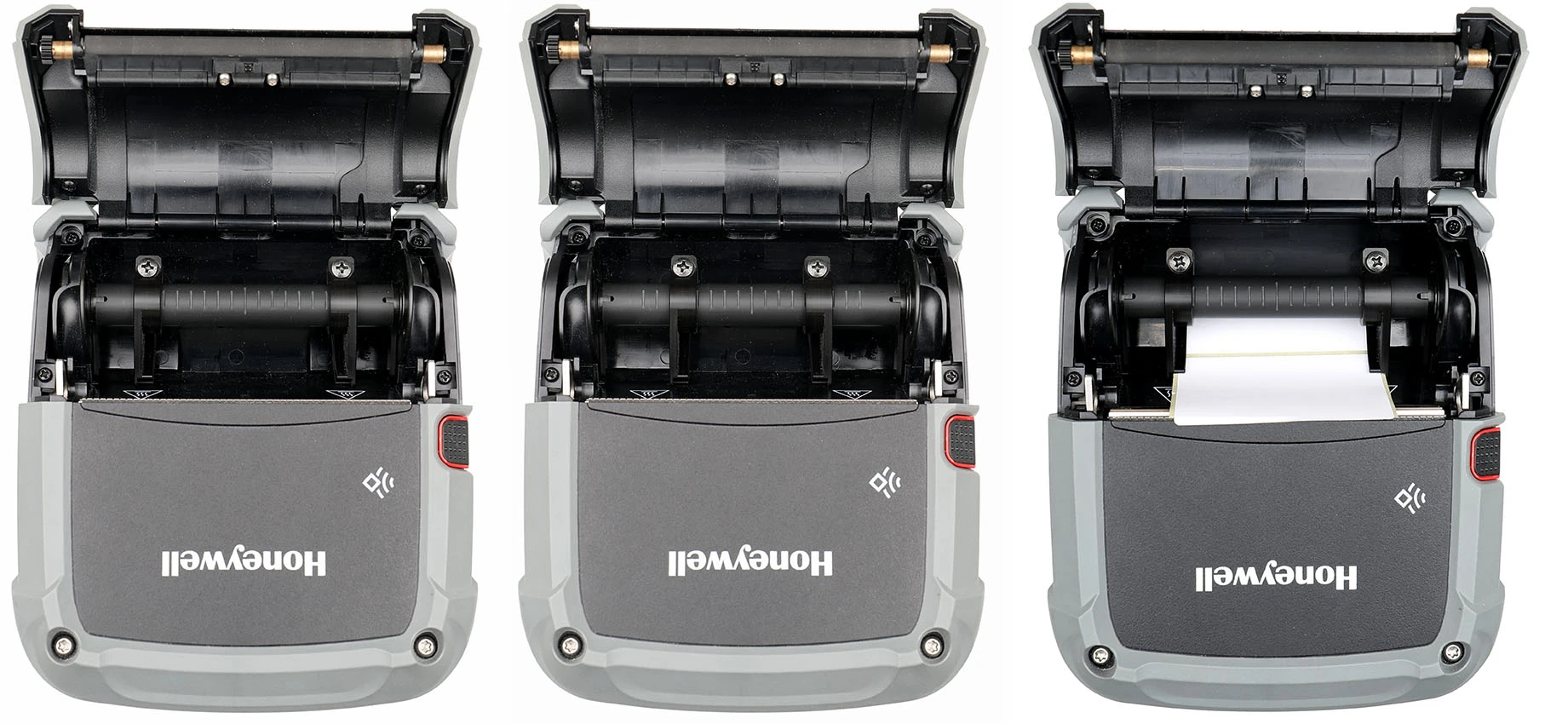

The label guide is now properly installed.
