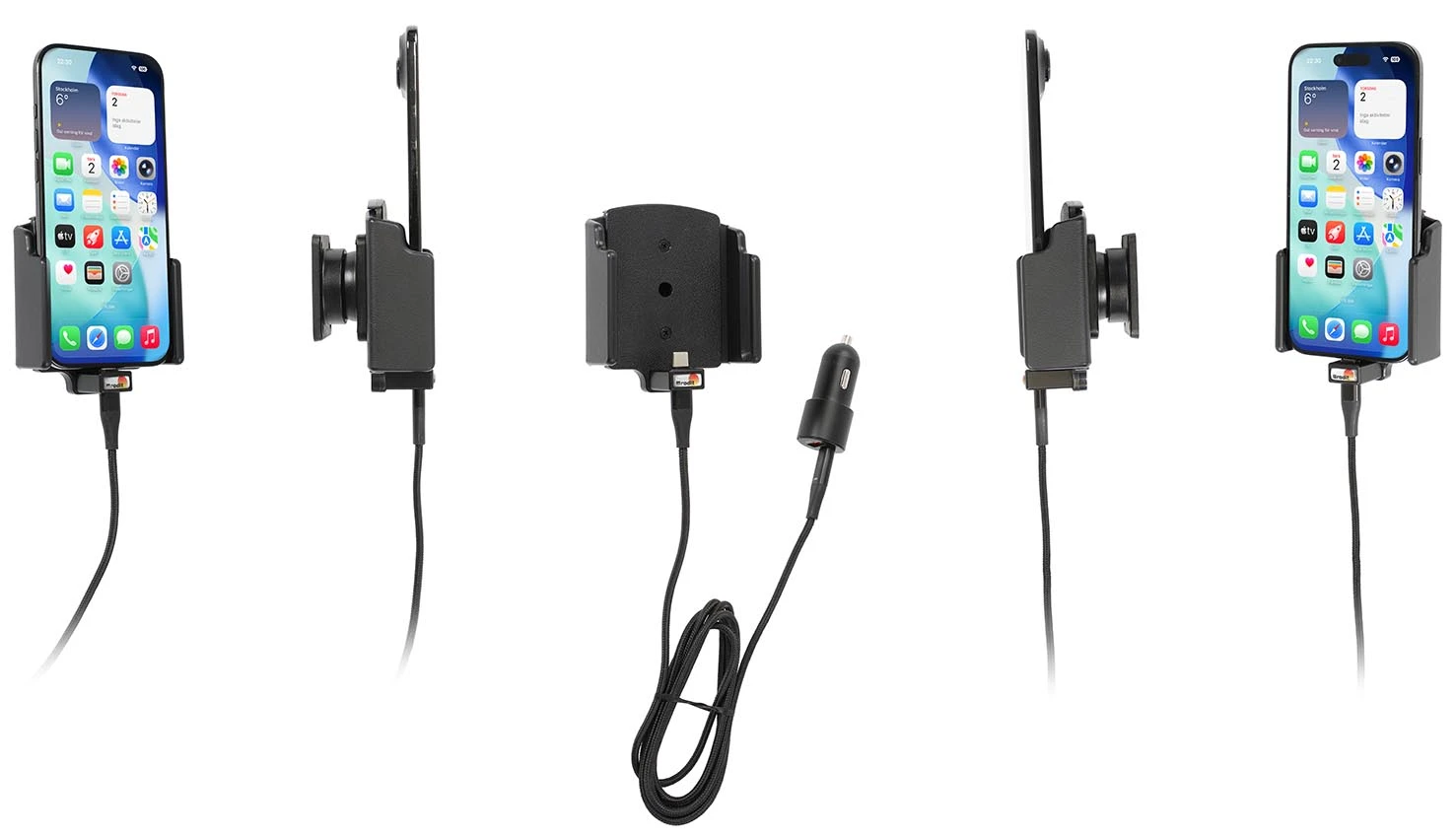

Active holder with USB-cable and cig-plug adapter

Active holder with USB-cable and cig-plug adapter

رقم الصنف : 721457

Adjustable holder with Type-C connector. Fits for devices with and without skin with the following dimensions: Width: 70-83 mm, Thickness: 2-10 mm. With Car charger, 2 USB ports: Type-A and Type-C. With tilt swivel. 12/24 Volt.

Apple iPhone Air

الكمية

إنتهى من المخزن

طلب مسبق

الوصف

معلومات فنية

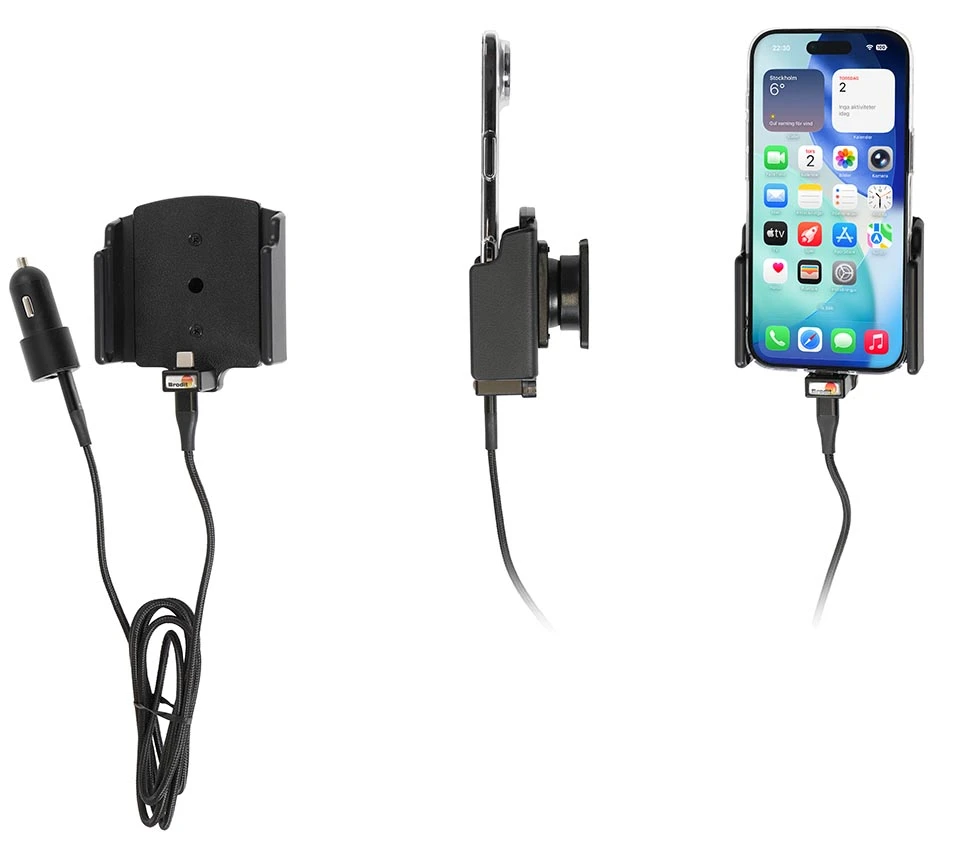

Charging holder with USB-C cable and Car charger. Keeps your battery fully charged at all times and your device in an upright position for better reception. Provides for safer driving when viewing, accessing and operating your device in your vehicle. Custom made design with a perfect, firm fit. Easy dock/undock your device with one hand.

The adjustable holder fits for devices with Type-C connector, with and without skin with the following dimensions: Width: 70-83 mm, Thickness: 2-10 mm. Measure your device and compare with the holder specifications in order to make sure you have chosen the correct product (if you are using a skin: measure the device with the skin in place). Choose to connect the holder either to the vehicle's USB-C outlet, or use the Car charger for the 12/24V socket.

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. For easy and optimal installation, attach the holder onto a custom ProClip Vehicle Mount, a Pedestal Mount or attach it directly to any surface.

التعليمات

Please read all of the instructions and look at the pictures before attaching the holder.

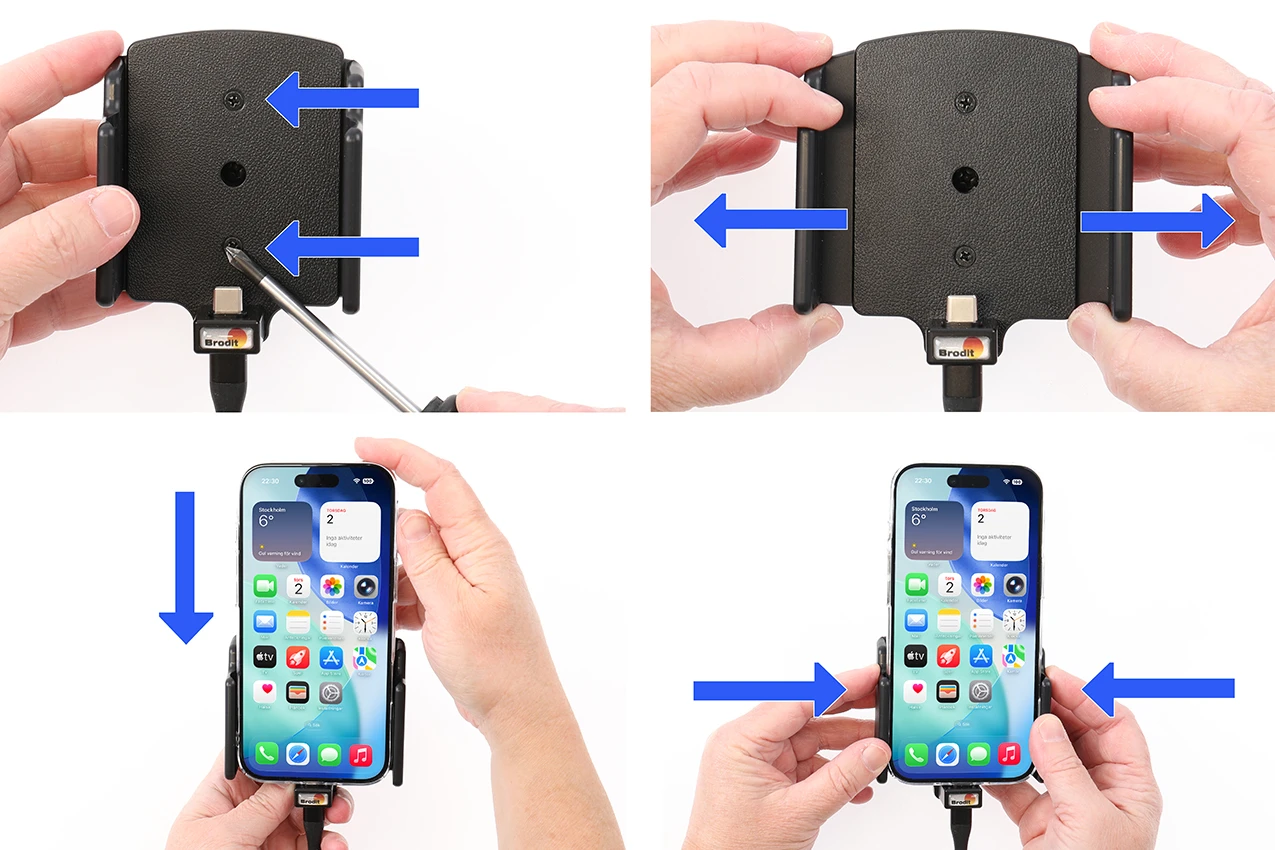

1. To adjust the holder for your device: Loosen the screws on the front side of the holder, so the sides of the holders can be adjusted. Place the device in the holder and press the sides together so the device is firmly in place. Remove the device carefully without moving the sides.

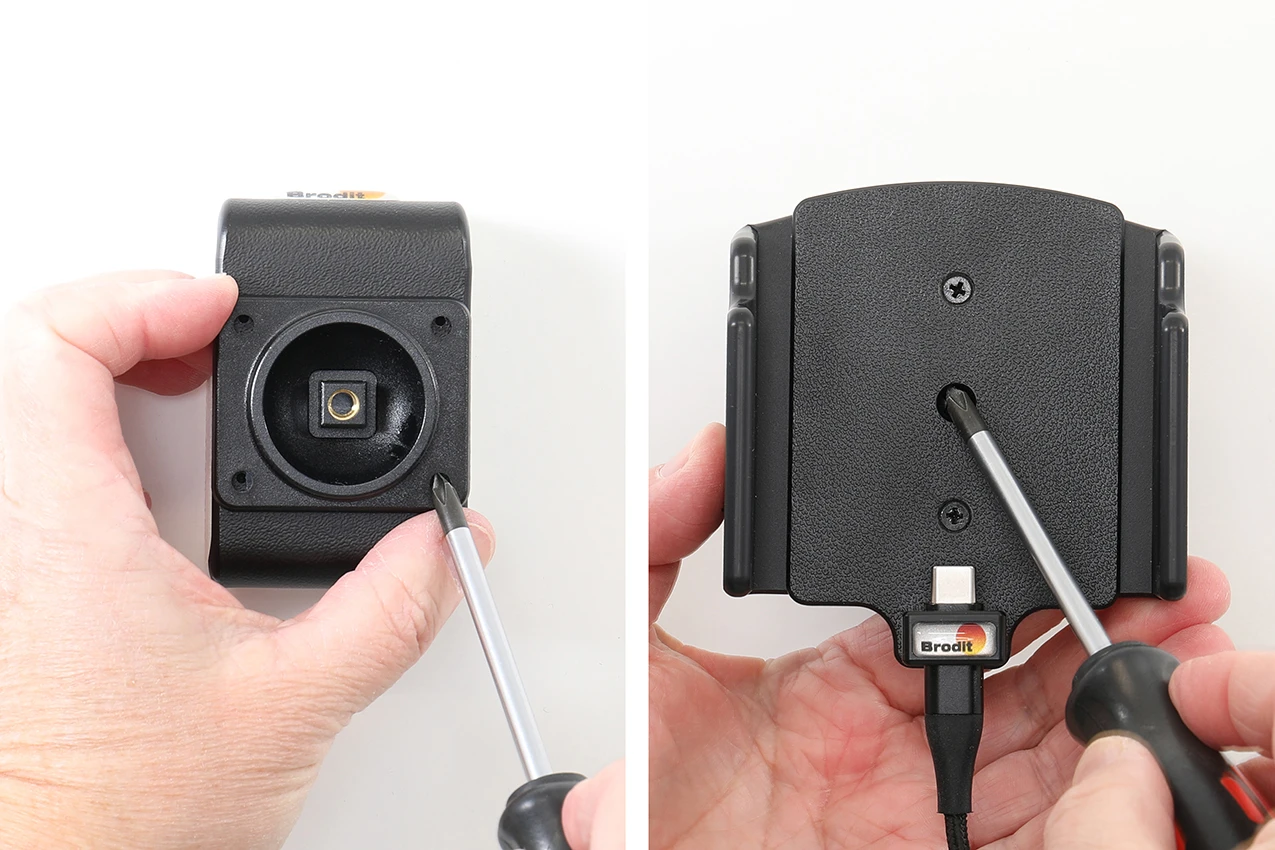

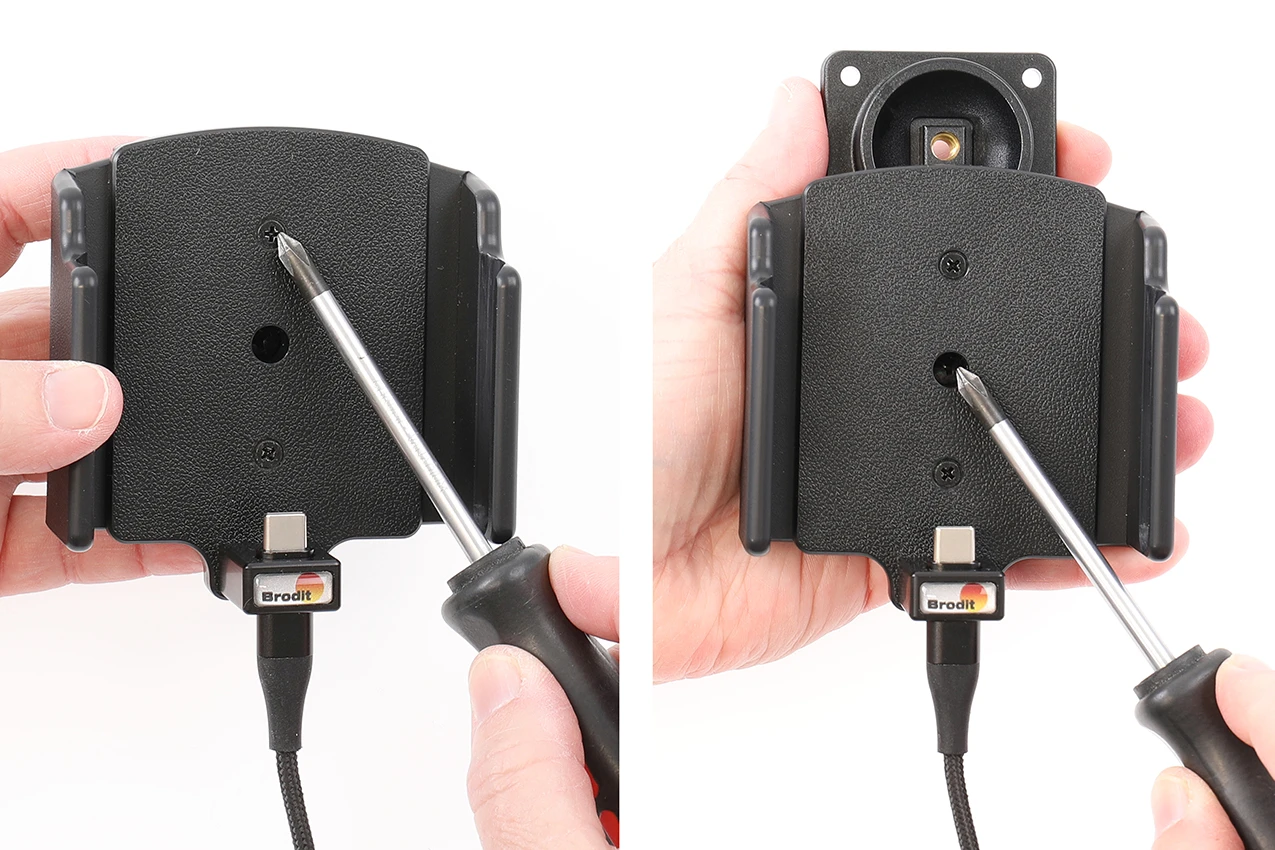

2. Tighten the screws on the front side of the holder. To install the holder: Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.

3. Place the attaching plate into the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw so the holder is firmly in place, but still can be adjusted.

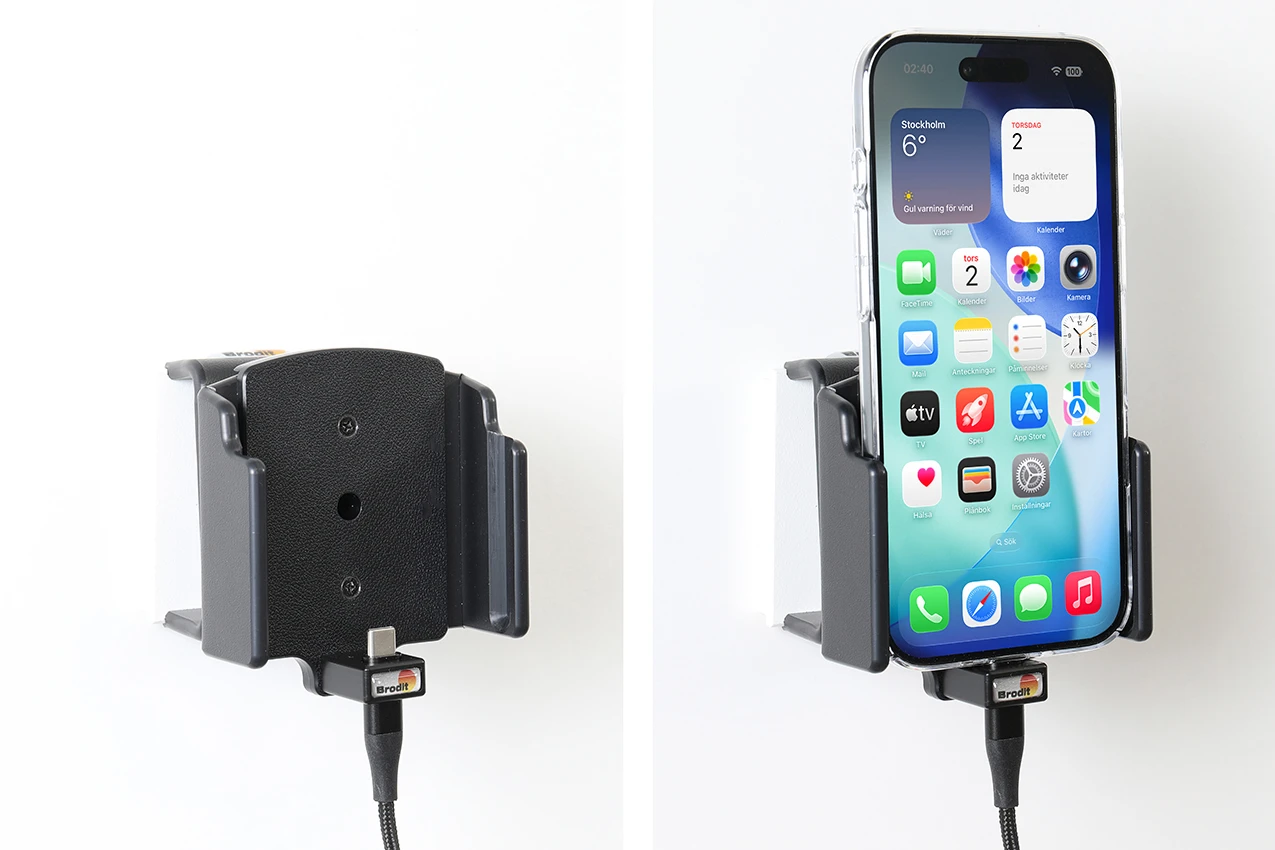

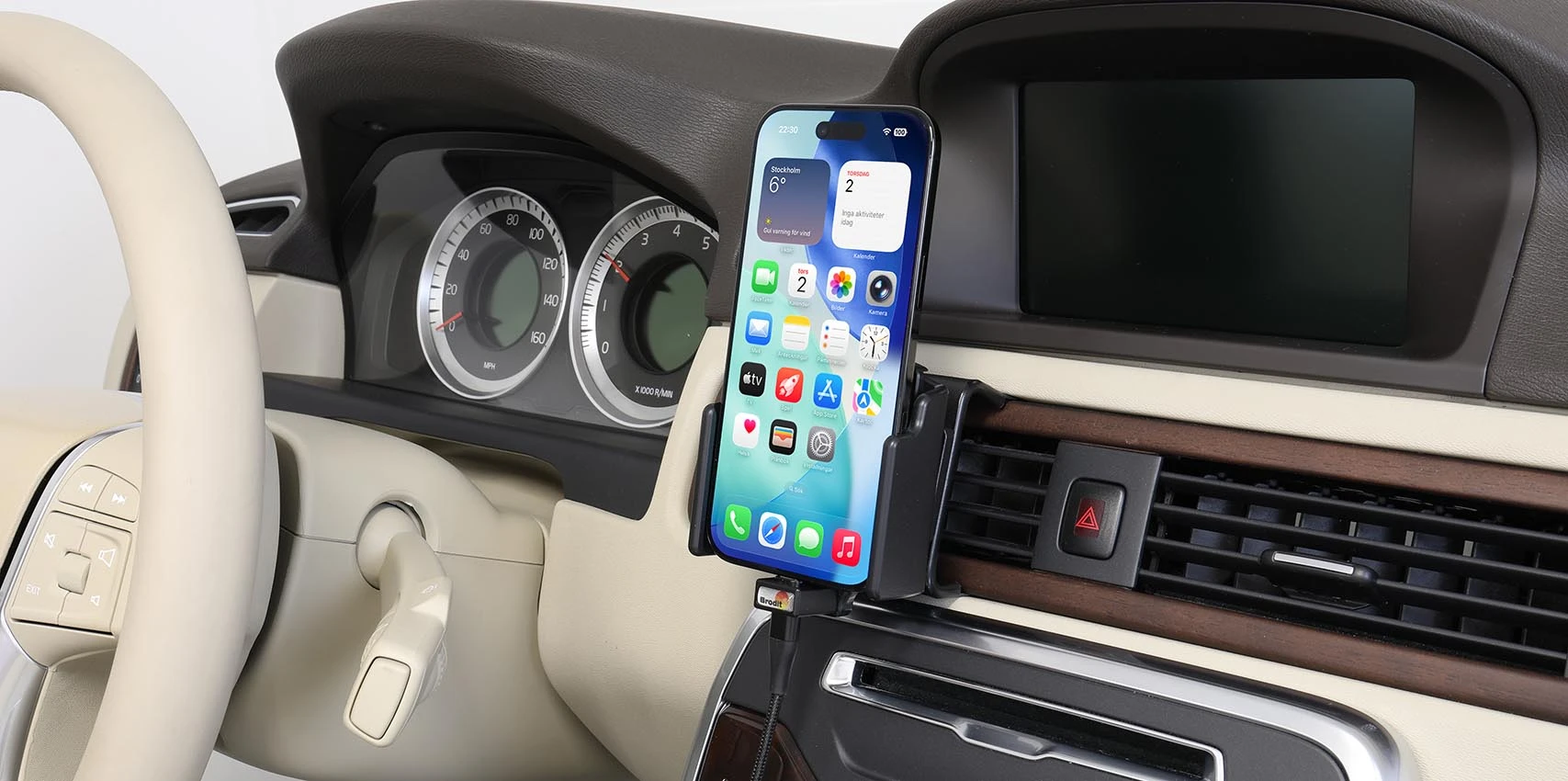

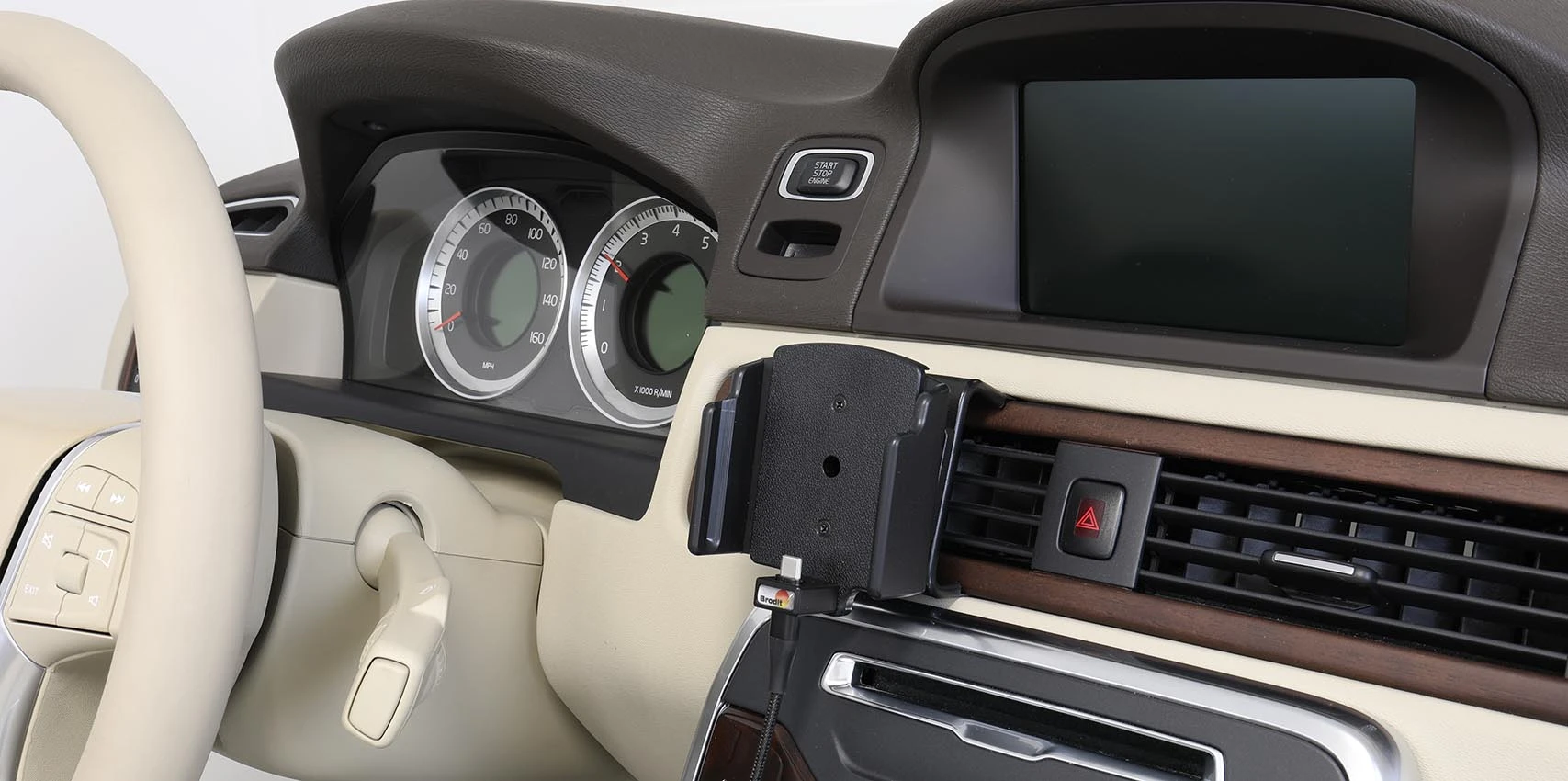

4. The holder is in place.

التوافق

Apple : iPhone Air
