Active holder with USB-cable and cig-plug adapter
6 شاهد الناس هذا العنصر خلال الأسبوع الماضي
الكمية:

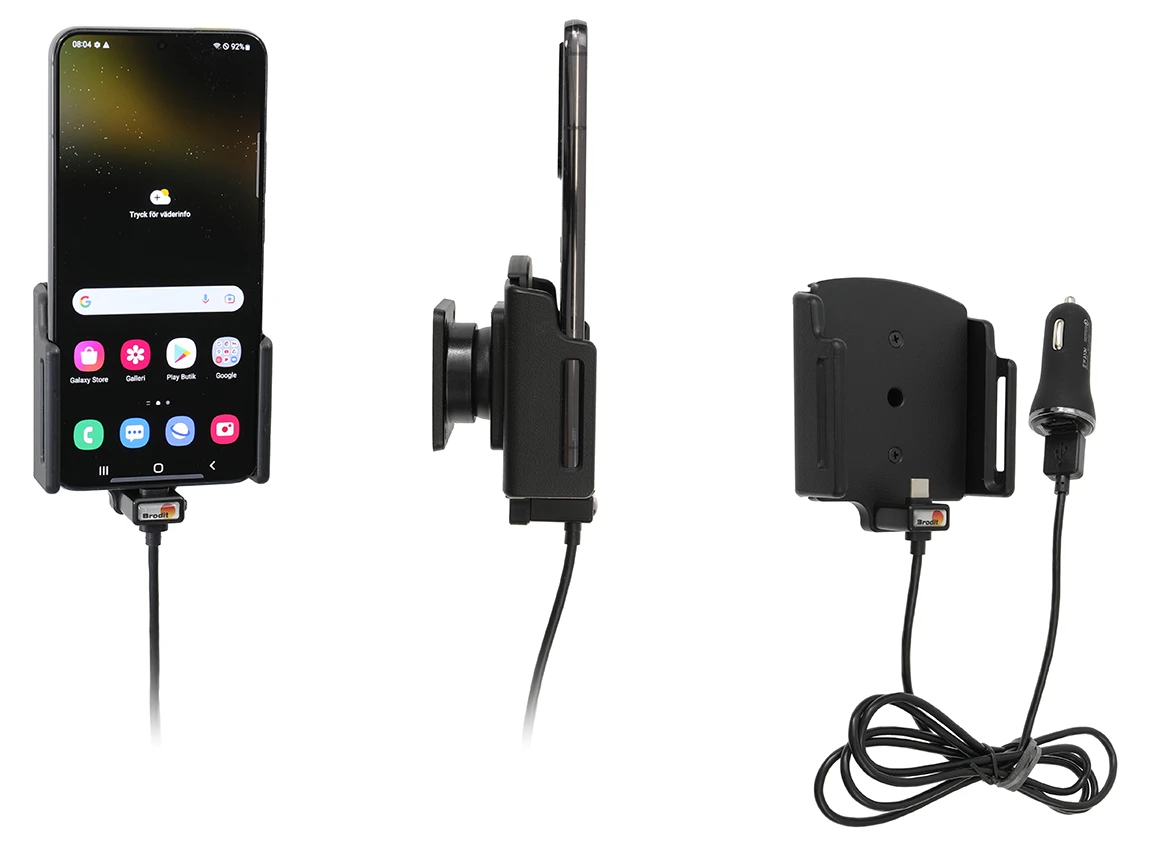

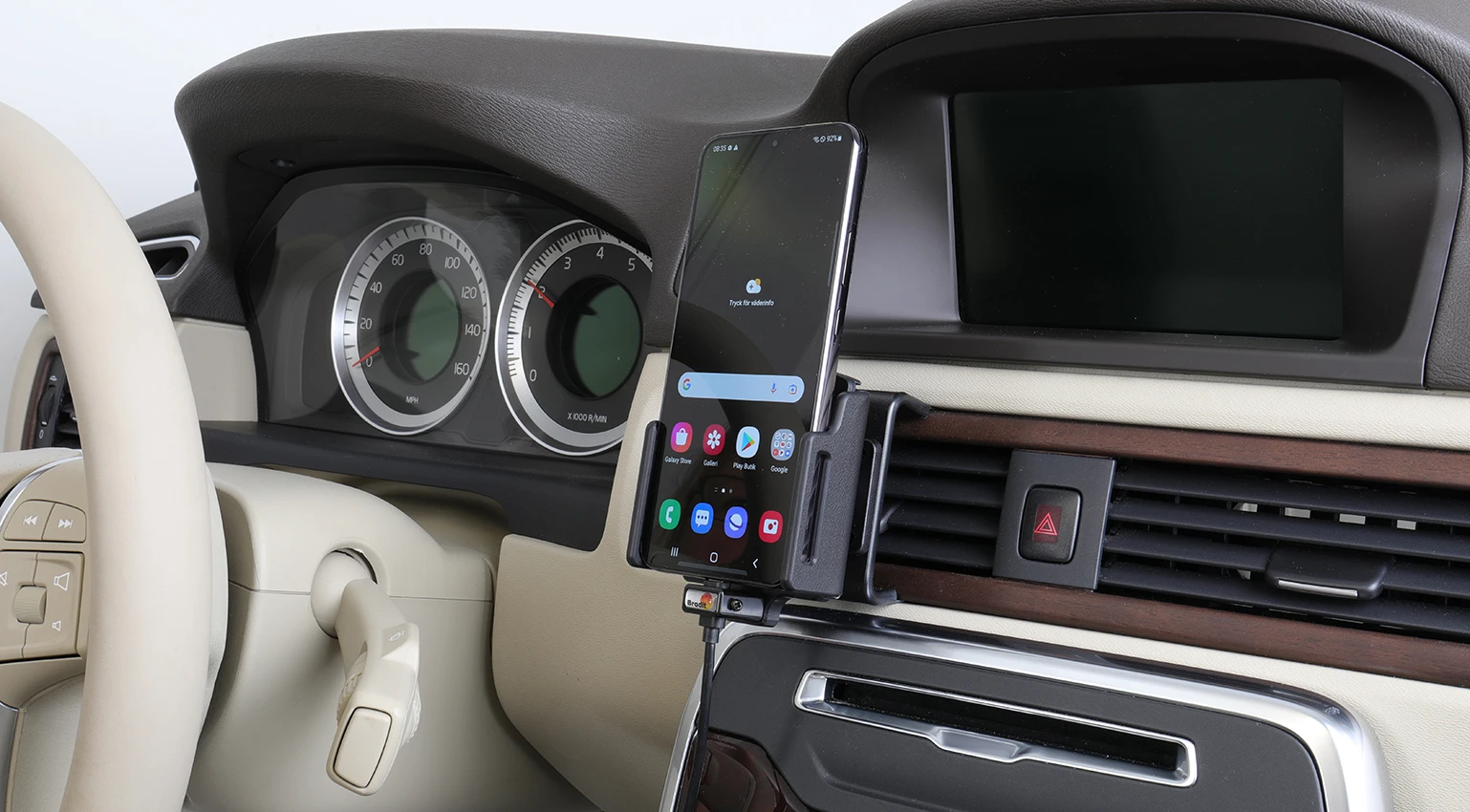

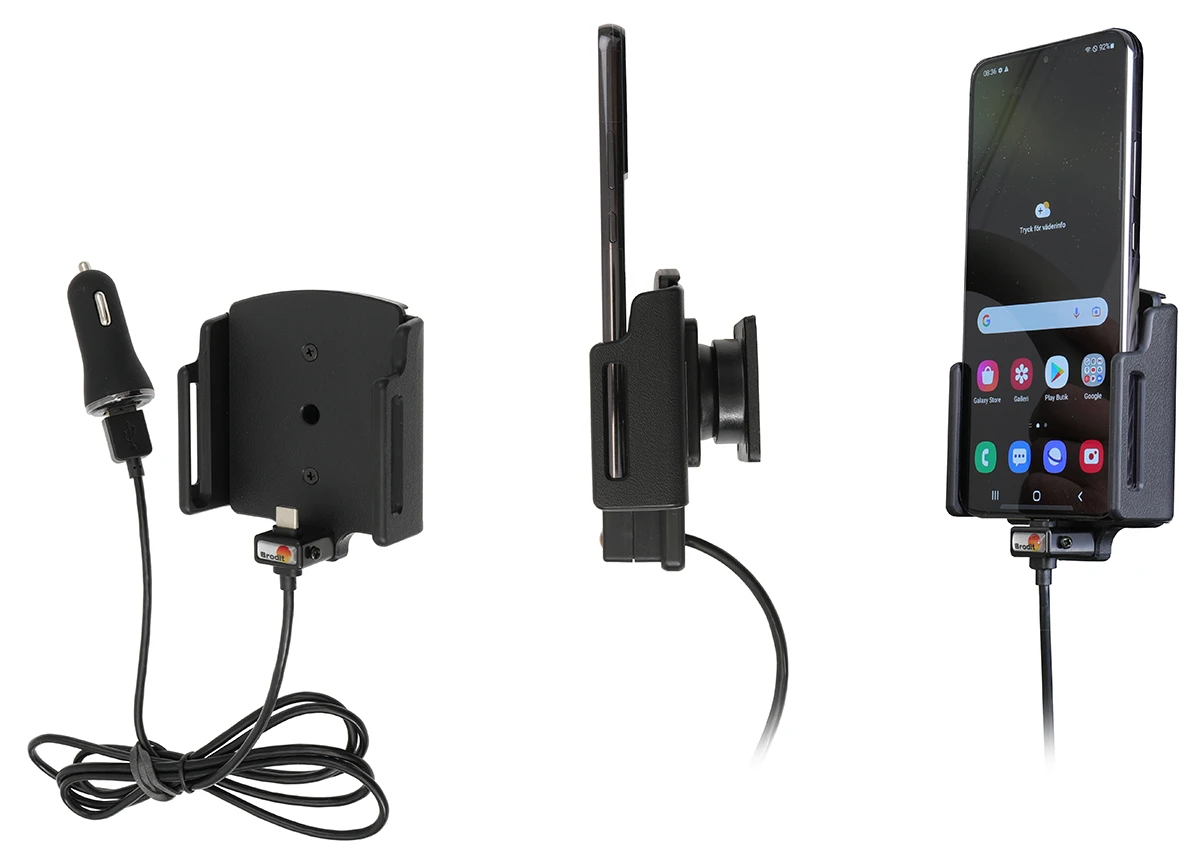

With your mobile in a holder while driving you will always have it within easy sight and reach! And with an active holder you always have a charged battery when leaving the car. Neat, discreet and convenient! With USB-cable with cig-plug adapter, choose to connect either to the vehicle's USB outlet or the 12/24V socket. The cig-plug adapter has two USB ports: QC 3.0A + 2.4A. It is easy to slide the device into place in the holder so it connects to the charging, and to take it out of the holder when leaving the car.

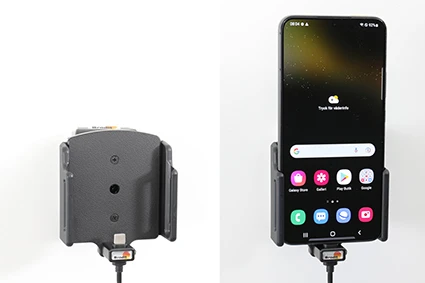

The adjustable holder fits for devices with USB type C connector, with skin, with the following dimensions: Width: 75-89 mm, Thickness: 6-10 mm. Measure your device and compare with the holder specifications in order to make sure you have chosen the correct product. Before using the holder you need to set the holder's width so it suits your device, then your phone is held firmly in place in an upright position for maximum cellular reception. The holder has a neat and discreet design which blends well with the vehicle's interior.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Color: black. Made in Sweden. Attach onto a ProClip mounting platform.
دليل تركيب المنتج
رقم الخطوة 1

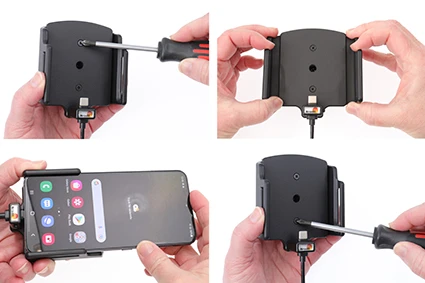

To adjust the holder for your device: Loosen the screws on the front side of the holder, so the sides of the holders can be adjusted. Pull out the sides until maximum width. Place the device in the holder and press the sides together so the device is firmly in place. Gently remove the device without altering the position of the sides. Tighten the screws on the front side of the holder to lock the sides into correct position.
رقم الخطوة 2

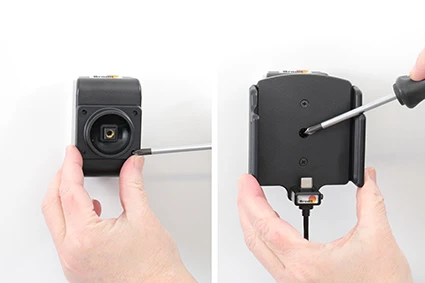

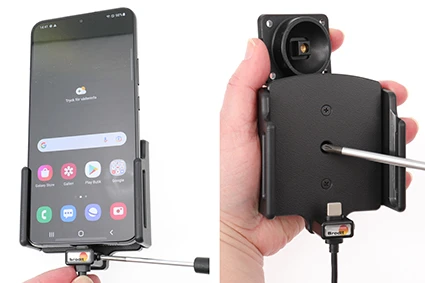

Check that the connector connects to the phone. If you need to adjust the depth of the charging socket: Loosen the screw on the side of the block in which the charging socket is located. Adjust the position of the charging socket so that it connects to the phone properly. Lock the position of the charging contact by tightening the screw. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back.
رقم الخطوة 3
Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw so the holder is firmly in place, but still can be adjusted.
رقم الخطوة 4

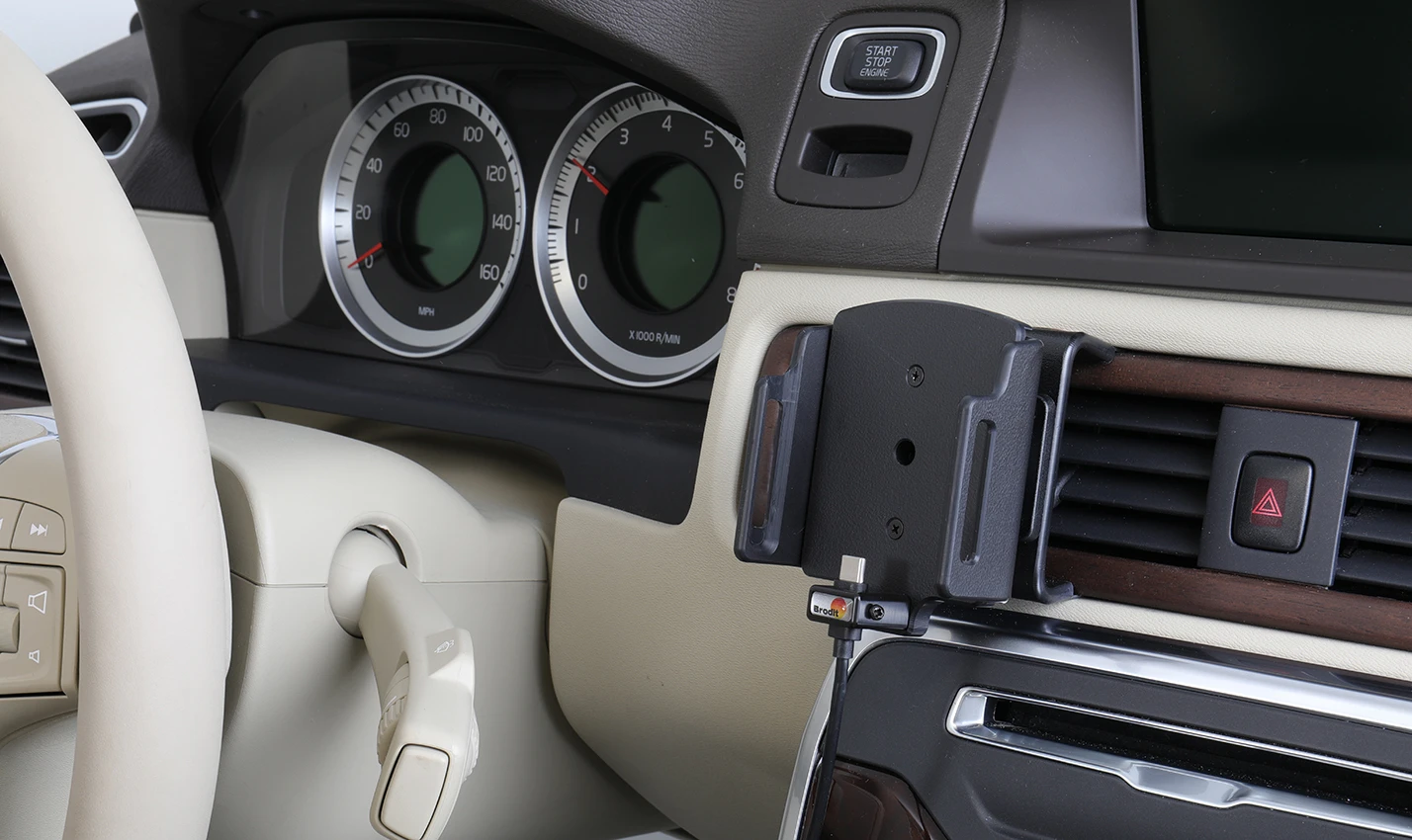

The holder is in place.
